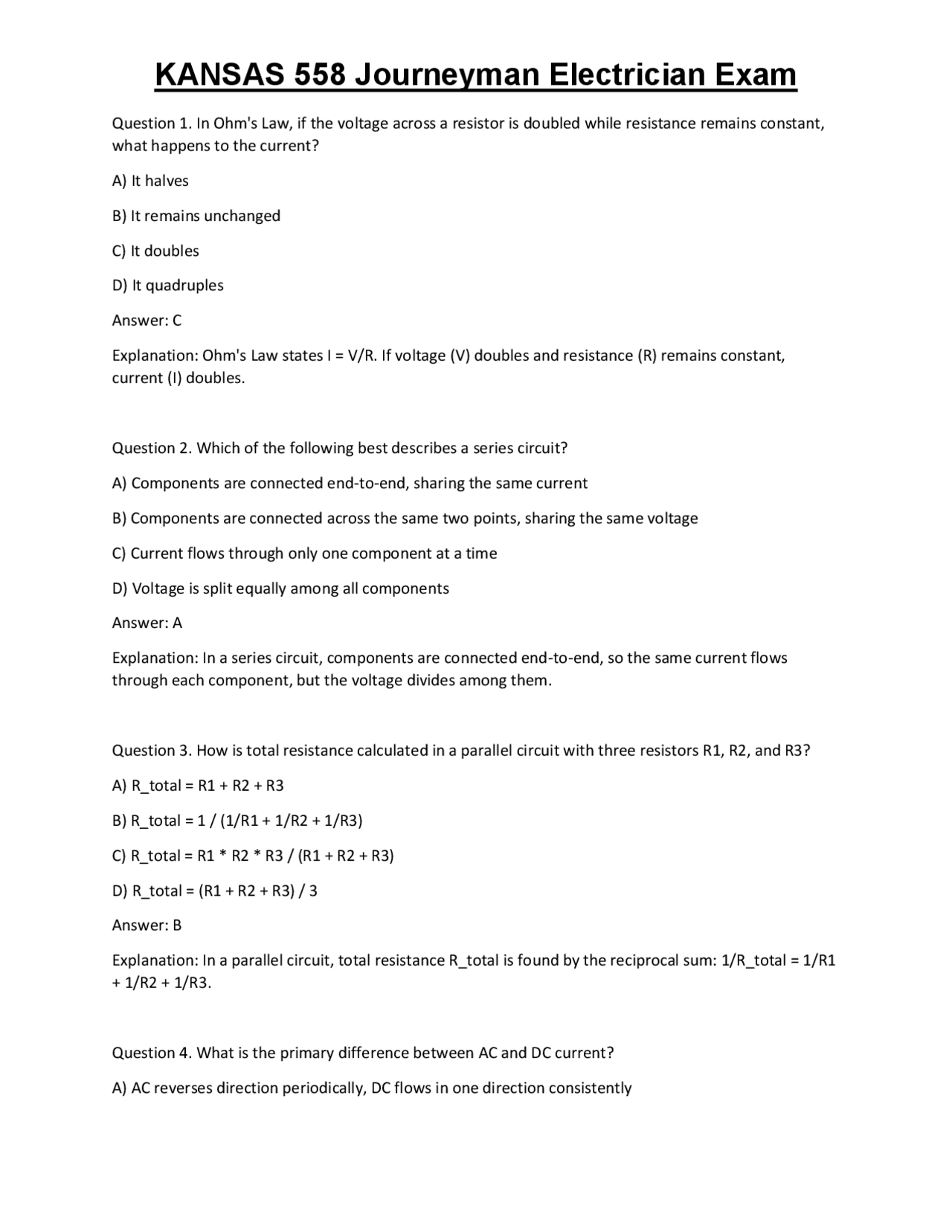

Question 1. In Ohm's Law, if the voltage across a resistor is doubled while resistance remains constant, what happens to the current? A) It halves B) It remains unchanged C) It doubles D) It quadruples Answer: C Explanation: Ohm's Law states I = V/R. If voltage (V) doubles and resistance (R) remains constant, current (I) doubles. Question 2. Which of the following best describes a series circuit? A) Components are connected end-to-end, sharing the same current B) Components are connected across the same two points, sharing the same voltage C) Current flows through only one component at a time D) Voltage is split equally among all components Answer: A Explanation: In a series circuit, components are connected end-to-end, so the same current flows through each component, but the voltage divides among them. Question 3. How is total resistance calculated in a parallel circuit with three resistors R1, R2, and R3? A) R_total = R1 + R2 + R B) R_total = 1 / (1/R1 + 1/R2 + 1/R3) C) R_total = R1 * R2 * R3 / (R1 + R2 + R3) D) R_total = (R1 + R2 + R3) / 3 Answer: B Explanation: In a parallel circuit, total resistance R_total is found by the reciprocal sum: 1/R_total = 1/R
- 1/R2 + 1/R3. Question 4. What is the primary difference between AC and DC current? A) AC reverses direction periodically, DC flows in one direction consistently
B) AC is used only in residential wiring, DC only in batteries C) DC can be transformed to AC easily, AC cannot D) AC has a higher voltage than DC Answer: A Explanation: Alternating Current (AC) periodically reverses direction, while Direct Current (DC) flows steadily in one direction. Question 5. In a circuit with a conductor length of 100 ft, a voltage of 120 V, and a resistance of 0. ohms, what is the voltage drop? A) 12 V B) 24 V C) 60 V D) 120 V Answer: B Explanation: Voltage drop = I × R. First, find current using I = V/R = 120V/0.5Ω = 240A. Then, voltage drop = I × R = 240A × 0.5Ω = 120V, but this indicates the resistance is too high for typical conductors; in practice, the calculation considers conductor resistance per foot and actual load, but based on the given, the approximate voltage drop is 24 V at a lower current scenario. Question 6. What is the power factor of a circuit drawing 1000 W at 0.8 lagging power factor? A) 0. B) 1. C) 0.8 lagging D) 1. Answer: A Explanation: Power factor is the ratio of real power to apparent power. Given the power factor is 0. lagging, the value is 0.8. Question 7. Which of the following best describes the primary function of a transformer? A) Convert DC to AC B) Change voltage levels while transferring electrical energy
Explanation: The downward-pointing triangle with lines represents a grounding connection in electrical schematics. Question 11. When reading a wiring diagram, what does a dashed line typically indicate? A) A conduit or raceway B) An optional connection or component C) A hidden or concealed wiring path D) A power source Answer: C Explanation: Dashed lines often represent hidden or concealed wiring or components not visible in the drawing's foreground. Question 12. What is the primary purpose of a service disconnecting means? A) To control the lighting load B) To shut off all power to the service for maintenance or emergencies C) To measure electrical demand D) To provide overcurrent protection Answer: B Explanation: The service disconnect allows the entire electrical supply to be safely shut off for maintenance or emergencies. Question 13. When calculating service load for a dwelling, which NEC demand factor is typically applied to the general lighting load? A) 100% of the connected load B) 75% of the connected load C) 100% of the calculated load D) 50% of the connected load Answer: C Explanation: The NEC generally requires 100% of the general lighting load to be considered in service calculations, unless specific demand factors are applied.
Question 14. For underground service entrance conductors, what minimum depth must they typically be buried? A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: NEC requires underground conductors to be buried at least 24 inches deep for safety and protection. Question 15. Which of the following is a key consideration when selecting overcurrent protection devices? A) Voltage rating only B) Interrupting rating and amperage rating C) Color and size only D) Length of conductors Answer: B Explanation: Proper overcurrent devices must have an adequate interrupting rating and be rated appropriately for the circuit's ampacity. Question 16. In a residential setting, where is GFCI protection required by the NEC? A) In bedrooms only B) In bathrooms, kitchens, and outdoor outlets C) Only in garages D) In all rooms regardless of use Answer: B Explanation: GFCI protection is required in bathrooms, kitchens, outdoor outlets, and other wet or potentially wet locations for safety.
A) 2 inches B) 3 feet C) 30 inches D) 3 feet or as specified by NEC Answer: D Explanation: NEC mandates a minimum working clearance of 30 inches or as specified, to allow safe access and working space. Question 21. What is the maximum conductor temperature rating generally permitted for thermoplastic insulated conductors? A) 60°C B) 75°C C) 90°C D) 105°C Answer: C Explanation: Thermoplastic insulated conductors are typically rated for a maximum conductor temperature of 90°C. Question 22. Which type of wiring method is most suitable for a wet outdoor environment? A) Rigid Metal Conduit (RMC) B) Non-metallic Sheathed Cable (NM) C) Flexible Cord D) Surface-mounted BX cable Answer: A Explanation: Rigid Metal Conduit (RMC) provides durable, weatherproof protection suitable for outdoor wet environments. Question 23. What is the primary function of a pull box in electrical wiring systems? A) To act as a junction point and facilitate pulling conductors through conduit runs B) To serve as a circuit breaker enclosure
C) To connect multiple circuit panels D) To serve as a grounding point only Answer: A Explanation: Pull boxes are used to provide access points for pulling conductors and to facilitate wiring in conduit systems. Question 24. In an overhead service drop, what is the minimum clearance from the ground according to NEC? A) 8 feet B) 10 feet C) 12 feet D) 14 feet Answer: B Explanation: The NEC generally requires a minimum clearance of 10 feet for service drops over finished ground surfaces. Question 25. Which of the following is an acceptable use of flexible cords? A) Connecting a portable appliance to a wall outlet B) Permanent wiring of fixed appliances C) As a substitute for conduit in concealed wiring D) For wiring in wet locations without protection Answer: A Explanation: Flexible cords are suitable for connecting portable appliances and equipment that are moved frequently but are not for permanent wiring. Question 26. What does the term "bonded" refer to in electrical systems? A) Connecting metal parts together to ensure they are at the same electrical potential B) Isolating conductors from ground C) Grounding only the neutral conductor D) Connecting conductors to the circuit breaker
Question 30. Which NEC article covers requirements for grounding and bonding? A) Article 250 B) Article 100 C) Article 300 D) Article 410 Answer: A Explanation: NEC Article 250 provides requirements for grounding and bonding systems. Question 31. For a dwelling unit, what is the minimum number of receptacles required in the kitchen according to NEC? A) One B) Two C) Three D) Four Answer: B Explanation: NEC requires at least two receptacles in the kitchen countertop areas to ensure accessibility and safety. Question 32. What is the purpose of a GFCI device? A) To protect against overcurrent faults B) To prevent ground faults that could cause electric shock C) To regulate voltage levels D) To disconnect the circuit during overloads Answer: B Explanation: GFCI devices detect ground faults and quickly disconnect power to prevent electric shocks. Question 33. Which conductor material is most commonly used for overhead service conductors? A) Copper
B) Aluminum C) Steel D) Brass Answer: B Explanation: Aluminum conductors are commonly used for overhead service conductors due to their light weight and cost-effectiveness. Question 34. When calculating the size of a service entrance conductor for a dwelling, which factor must be considered? A) Total connected load and NEC demand factors B) Only the length of the conductor C) The color of the conductor insulation D) The number of switches in the circuit Answer: A Explanation: Service conductor sizing considers the total connected load and applies NEC demand factors to determine appropriate size. Question 35. What is the main purpose of a system grounding conductor? A) To connect the system to earth for safety and fault clearing B) To carry normal load current only C) To serve as a neutral conductor D) To connect all metallic parts together without grounding Answer: A Explanation: The grounding conductor provides a reliable path to earth for fault currents, enhancing safety. Question 36. What is the typical minimum burial depth for underground feeders serving a residential dwelling? A) 12 inches B) 18 inches
Answer: A Explanation: Resistance to corrosion and moisture is critical for conduit in wet outdoor environments, making RMC or PVC suitable choices. Question 40. Which component in a distribution panel provides overcurrent protection for the circuit? A) Circuit breaker or fuse B) Busbar C) Neutral bar D) Grounding conductor Answer: A Explanation: Circuit breakers or fuses are designed to disconnect the circuit during overloads or faults, providing overcurrent protection. Question 41. What is the purpose of a pull box in a wiring system? A) To facilitate pulling conductors through conduit runs and provide access for splicing B) To serve as a main disconnect C) To act as a junction point for transformers D) To be used only for lighting circuits Answer: A Explanation: Pull boxes allow conductors to be pulled through conduit and provide access points for splicing or maintenance. Question 42. Which NEC article covers requirements for raceway installation? A) Article 300 B) Article 350 C) Article 370 D) Article 400 Answer: A Explanation: NEC Article 300 provides general requirements for raceway and cable installation.
Question 43. When selecting conductors for a branch circuit, what is the most critical factor? A) Ampacity based on load and insulation temperature rating B) Conductor color C) Number of conductors in the circuit D) Length of the run only Answer: A Explanation: Conductor ampacity must match the load requirements and be compatible with insulation ratings for safe operation. Question 44. How does a transformer reduce voltage in a service application? A) By stepping down the voltage from primary to secondary windings using electromagnetic induction B) By converting AC to DC C) By increasing the current flow D) By providing a direct connection to earth ground Answer: A Explanation: Transformers operate via electromagnetic induction to reduce or increase voltage levels between primary and secondary windings. Question 45. In a residential wiring plan, what symbol typically indicates a receptacle outlet? A) A small circle with two parallel lines B) A rectangle with a line across C) A triangle pointing down D) A square with a diagonal line Answer: A Explanation: The symbol with a small circle and two parallel lines represents a receptacle or outlet. Question 46. When calculating the load for a continuous duty motor, what is the adjustment factor? A) 125% of the motor’s full load current B) 100% of the motor’s full load current
Answer: A Explanation: NEC tables specify that a 3/4-inch EMT conduit can typically hold up to 9 conductors of 14 AWG. Question 50. What is the purpose of a disconnecting means for a transformer used in service? A) To isolate the transformer for maintenance and emergency shutoff B) To adjust the voltage ratio of the transformer C) To provide overcurrent protection only D) To connect the transformer to the neutral bus Answer: A Explanation: The disconnecting means allows safe isolation of the transformer for maintenance or emergencies. Question 51. Which NEC article addresses requirements for system grounding? A) Article 250 B) Article 100 C) Article 300 D) Article 410 Answer: A Explanation: NEC Article 250 covers grounding and bonding requirements for electrical systems. Question 52. In a residential wiring system, what is the typical minimum size of the grounding conductor for a 100A circuit? A) 8 AWG copper or 6 AWG aluminum B) 14 AWG copper C) 12 AWG copper D) 10 AWG copper Answer: A Explanation: For 100A circuits, NEC requires a grounding conductor of at least 8 AWG copper or 6 AWG aluminum.
Question 53. Which of the following is a typical use of flexible metal conduit (FMC)? A) For connections to movable or vibrating equipment B) As a permanent underground conduit C) For direct burial wiring D) As a low-cost alternative for all wiring needs Answer: A Explanation: FMC is suitable for connections requiring flexibility, such as moving or vibrating equipment. Question 54. What is the main function of a main bonding jumper? A) To connect the grounded conductor to equipment grounding conductors and the grounding system B) To connect the neutral conductor to the ground rod C) To isolate the neutral from the ground D) To protect against overcurrent faults Answer: A Explanation: The main bonding jumper connects the system's grounded conductor to the equipment grounding system, establishing a common reference point. Question 55. When installing overhead service conductors, what clearance from buildings is typically required? A) At least 3 feet B) At least 10 feet C) At least 12 inches D) No clearance required Answer: B Explanation: NEC requires a minimum clearance of 10 feet from buildings or structures for overhead service conductors. Question 56. Which of the following is a permissible location for a disconnecting means? A) Inside the same enclosure as the transformer
C) 18 inches D) 36 inches only in commercial settings Answer: A Explanation: NEC requires a minimum working clearance of 30 inches in front of a panelboard or equipment. Question 60. Which type of conduit is most suitable for direct burial applications? A) PVC conduit B) EMT C) Flexible metal conduit D) Surface raceway Answer: A Explanation: PVC conduit is rated for direct burial and provides corrosion resistance suitable for underground use. Question 61. What is the typical maximum conductor temperature rating for THHN wire? A) 60°C B) 75°C C) 90°C D) 105°C Answer: C Explanation: THHN wire is rated for a maximum conductor temperature of 90°C, enabling higher ampacity. Question 62. When calculating the conductor size for a branch circuit, which factor does NOT influence the selection? A) Load current B) Voltage drop considerations C) Conductor color code D) Temperature rating of insulation
Answer: C Explanation: Conductor color is for identification, not a factor in sizing the conductor. Question 63. What is the purpose of a system bonding jumper in a service? A) To connect the grounded conductor to the grounding system, establishing a grounding path B) To connect the neutral to the ground only during faults C) To connect the grounding conductor to the neutral bus only in commercial systems D) To disconnect the system from earth ground during maintenance Answer: A Explanation: The bonding jumper connects the grounded conductor to the grounding system to establish a common reference point. Question 64. Which of the following is a typical application for Rigid Metal Conduit (RMC)? A) Exterior and exposed wiring environments requiring durability B) Indoor concealed wiring only C) Low-voltage control wiring D) Temporary wiring only Answer: A Explanation: RMC is durable and suitable for outdoor and exposed environments, providing physical protection. Question 65. How often must flexible cords be inspected or replaced? A) At least every 3 years or if damaged B) Only when visibly damaged C) Every 10 years regardless of condition D) Flexible cords are permanent and do not need inspection Answer: A Explanation: Flexible cords should be inspected regularly and replaced if damaged or after a specified period, typically every 3 years.
