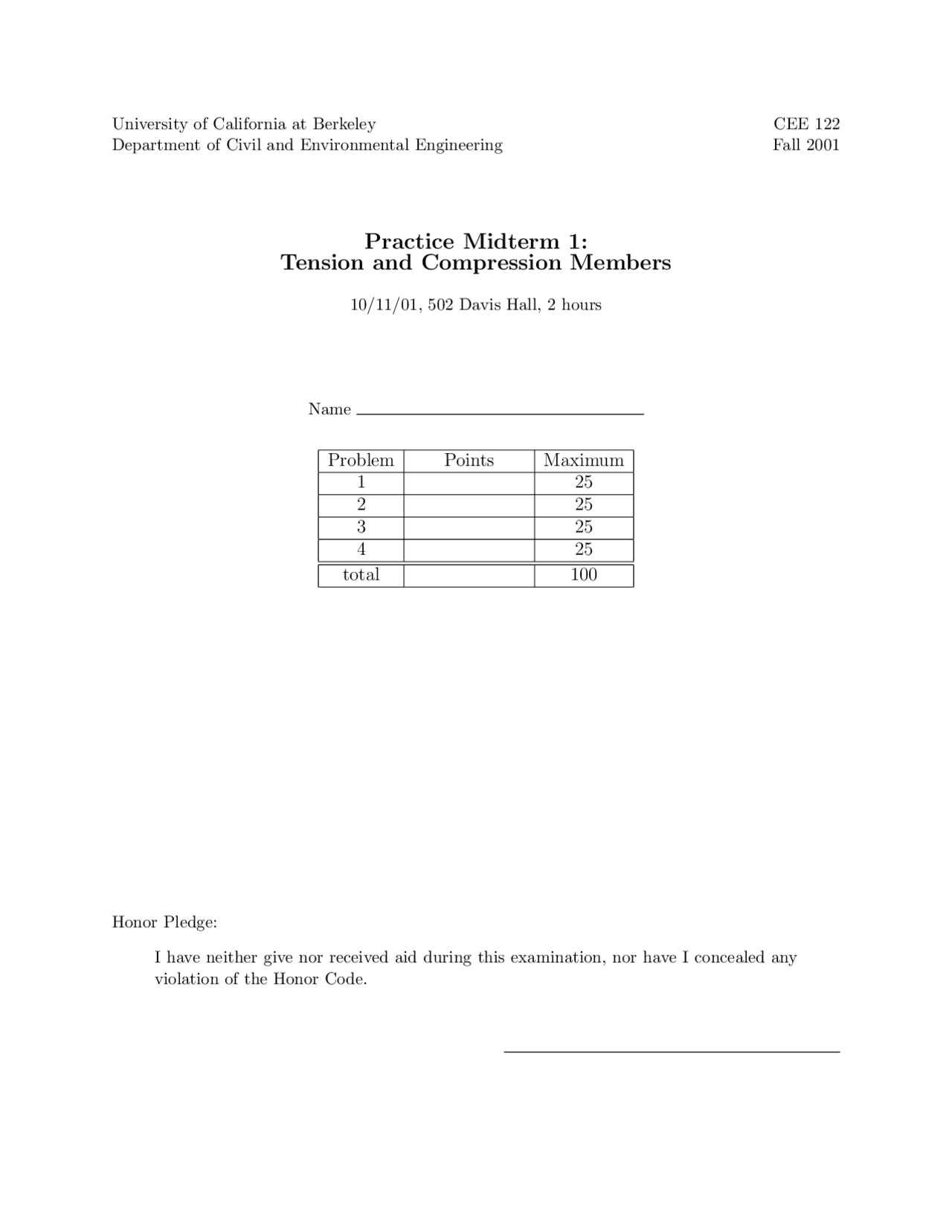

University of California at Berkeley CEE 122
Department of Civil and Environmental Engineering Fall 2001
Practice Midterm 1:
Tension and Compression Members
10/11/01, 502 Davis Hall, 2 hours
Name
Problem Points Maximum
1 25
2 25
3 25
4 25
total 100
Honor Pledge:
I have neither give nor received aid during this examination, nor have I concealed any
violation of the Honor Code.
