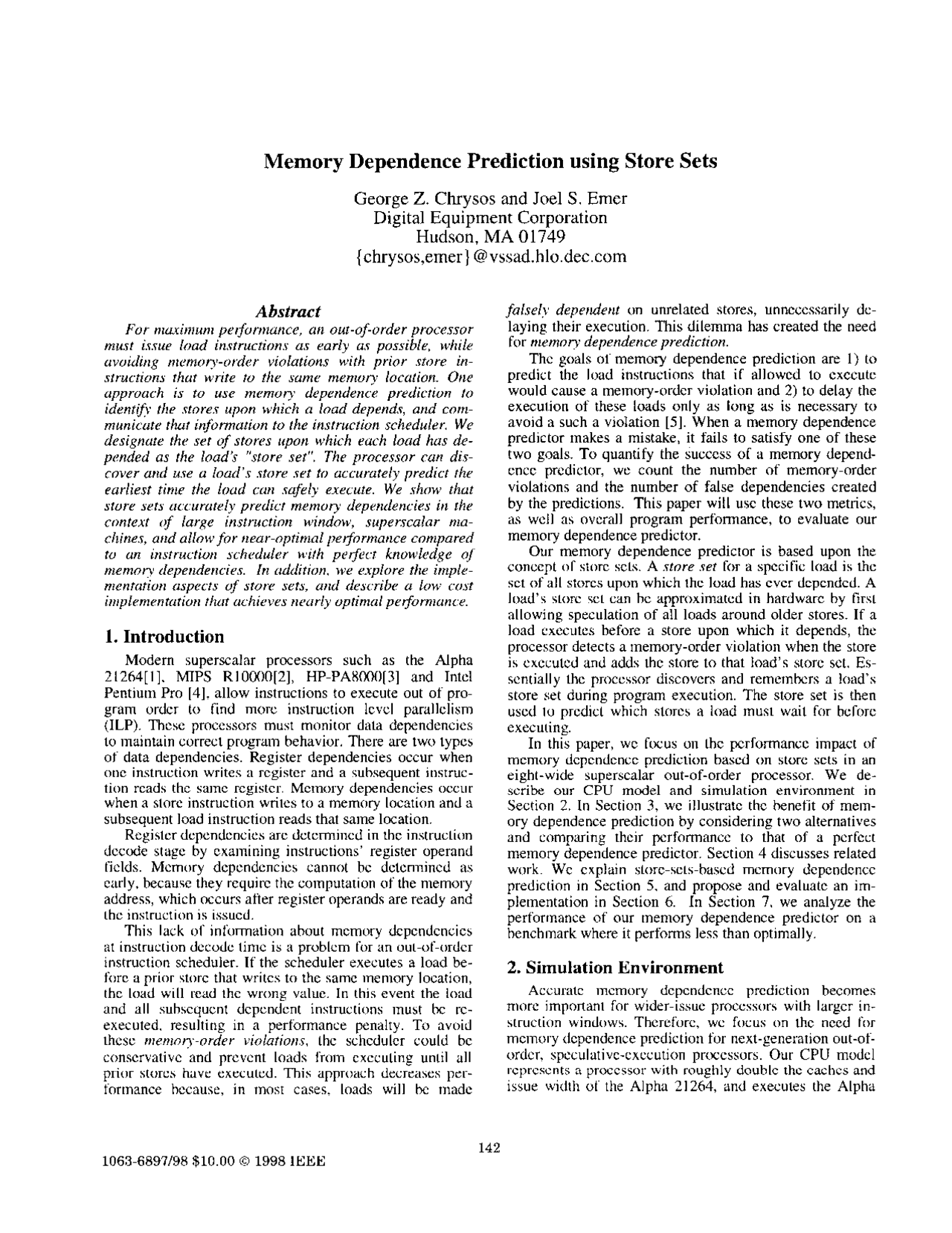

Memory Dependence Prediction using Store Sets
George Z. Chrysos and Joel S. Emer
Digital Equipment Corporation
Hudson, MA 01749
{chrysos,emer} @vssad.hlo.dec.com
Abstract
For maximum performance, an out-of-order processor must issue load instructions as early as possible, while avoiding memov-order violations with prior store in- structions that write to the same memory location. One approach is to use memory dependence prediction to identify the stores upon which a load depends, and com- municate that information to the instruction scheduler. We designate the set of stores upon which each load has de- pended as the load’s “store set”. The processor can dis- cover and use a load’s store set to accurately predict the earliest time the load can safely execute. We show that store sets accurately predict memory dependencies in the
context of large instruction window, superscalar ma-
chines, and allow for near-optimal performance compared to an instruction scheduler with perfect knowledge of memory dependencies. In addition, we explore the imple- mentation aspects of store sets, and describe a low cost implementation that achieves nearly optimal performance.
1. Introduction
Modern superscalar processors such as the Alpha 21264[1], MIPS RlOOO0[2], HP-PA8000[3] and Intel Pentium Pro [4], allow instructions to execute out of pro- gram order to find more instruction level parallelism (ILP). These processors must monitor data dependencies to maintain correct program behavior. There are two types of data dependencies. Register dependencies occur when one instruction writes a register and a subsequent instruc- tion reads the same register. Memory dependencies occur when a store instruction writes to a memory location and a subsequent load instruction reads that same location. Register dependencies are determined in the instruction decode stage by examining instructions’ register operand fields. Memory dependencies cannot be determined as early, because they require the computation of the memory address, which occurs after register operands are ready and the instruction is issued. This lack of information about memory dependencies at instruction decode time is a problem for an out-of-order instruction scheduler. If the scheduler executes a load be- fore a prior store that writes to the same memory location, the load will read the wrong value. In this event the load and all subsequent dependent instructions must be re- executed, resulting in a performance penalty. To avoid these memory-order violations, the scheduler could be conservative and prevent loads from executing until all prior stores have executed. This approach decreases per- formance because, in most cases, loads will bc made
1063-6897/98 $10.00 0 1998 IEEE
falsely dependent on unrelated stores, unnecessarily de- laying their execution. This dilemma has created the need for memory dependence prediction. The goals of memory dependence prediction are 1) to predict the load instructions that if allowed to execute would cause a memory-order violation and 2) to delay the execution of these loads only as long as is necessary to avoid a such a violation [5]. When a memory dependence predictor makes a mistake, it fails to satisfy one of these two goals. To quantify the success of a memory depend- ence predictor, we count the number of memory-order violations and the number of false dependencies created by the predictions. This paper will use these two metrics, as well as overall program performance, to evaluate our memory dependence predictor. Our memory dependence predictor is based upon the concept of store sets. A store set for a specific load is the set of all stores upon which the load has ever depended. A load’s store set can be approximated in hardware by first allowing speculation of all loads around older stores. If a load executes before a store upon which it depends, the processor detects a memory-order violation when the store is executed and adds the store to that load’s store set. Es- sentially the processor discovers and remembers a load’s store set during program execution. The store set is then used to predict which stores a load must wait for before executing. In this paper, we focus on the performance impact of memory dependence prediction based on store sets in an eight-wide superscalar out-of-order processor. We de- scribe our CPU model and simulation environment in Section 2. In Section 3, we illustrate the benefit of mem- ory dependence prediction by considering two alternatives and comparing their performance to that of a perfect memory dependence predictor. Section 4 discusses related work. We explain store-sets-based memory dependence prediction in Section 5, and propose and evaluate an im- plementation in Section 6. In Section 7, we analyze the performance of our memory dependence predictor on a benchmark where it performs less than optimally.
2. Simulation Environment
Accurate memory dependence prediction becomes more important for wider-issue processors with larger in- struction windows. Therefore, we focus on the need for memory dependence prediction for next-generation out-of- order, speculative-execution processors. Our CPU model represents a processor with roughly double the caches and issue width of the Alpha 21264, and executes the Alpha
instruction set. We chose the size of the instruction queue, 128 entries, based upon performance sensitivity analysis by increasing the size of the instruction queue by powers of two until no further performance could be gained for our machine configuration. We model an aggressive fetch unit, which can fetch multiple basic blocks in a cycle, and a large McFarling-style choosing branch predictor [9]. The model parameters are listed in Table 2.1.
Table 2.
CPU Model
. (^) 128 entry instruction queue . (^) 128K 2-way set-associative Instruction cache . (^) 128K 2.way set-associative write-back Data cache . 8 Instructions maximum issued per cycle . (^) 4 D-Cache Ports (any combination of loads and stores) . (^) 8M Direct Mapped, Write-Back Unified Second Level Cache
We assume that the processor detects memory-order violations by keeping a table of the effective addresses of all loads while they are in-tlight speculatively. That table is checked for each store to see if a speculatively executed load actually depended on the store. If the processor de- tects a memory-order violation, it must have some recov- ery mechanism to salvage the correct architectural state. Our simulator recovers from a memory-order violation by rrappin~ the load involved in the memory-order violation, i.e., squashing that load and all subsequent instructions in program order, whether they depend on the load or not. It then re-fetches the instruction stream starting with the load in violation. Our CPU model can re-fetch the instruction stream the cycle after a memory-order violation is de- tected. We used the SPEC95 benchmarks as a test suite. To avoid long simulation times, we ran our simulations until our simulator had retired 100 million instructions. We skipped over initialization code, and warmed up the caches before starting the actual simulation. The benchmarks were compiled with the standard DEC C and FORTRAN compilers with full optimizations under Digital Unix 4.0.
3. Motivation
To measure the importance of memory dependence prediction, we first considered two approaches that do not predict memory dependencies: no speculation and naive speculation. We considered these approaches because they are virtually free in hardware, giving us a lower bound in performance. Also, they allow us to measure the maximal impact of the two sources of performance loss in memory dependence prediction, false dependencies and menlory- order violations, when compared with a perfect memory dependence predictor.
3. I No Speculation
We configured our simulator to require that all load in- structions wait until all prior store instructions have issued before being allowed to issue. This conservative approach eliminates all memory-order violations, but also creates
many false memory dependencies. Loads waiting for a store instruction must wait for the store’s address and data value register to be ready before issuing.’ For some loads, the additional delay of the false dependence will be hidden by the out-of-order execution engine. Other loads will be on the critical path and the unnecessary delay will have a direct impact on performance. Overall, we found the performance of this scheme to be poor. Table 3.1 lists the rates at which false dependencies occurred, i.e., the number of times that a load waited unnecessarily for a store, when running with the no speculation model. The large rate of occurrence of these false dependencies gives a crude indication that the performance impact of these false dependencies will be great. In fact, as we show in Figure 3.1, some benchmarks execution time increased by a factor of two or more com- pared with a perfect memory dependence predictor.
3.2 Naive speculation
To examine the opposite extreme, we configured our CPU simulator to execute loads when their register depend- encies were ready, independent of their memory dependen- cies. Again, no memory dependence predictor is used. The processor allows the loads to execute out-of-order, commit- ting memory-order violations and causing traps. Table 3. shows the number of memory-order violations per thousand retired instructions. Between O-7% of all dynamic loads resulted in memory-order violations for the SPEC benchmarks. This metric is only intended to give an indica- tion of performance impact. Like branch misprediction or cache-miss rate, the actual performance impact can often only be determined by knowing the penalty. To estimate this penalty we calculate the memory trap penalty as the number of cycles between the first time a load is fetched to the next time the load is fetched after a memory-order violation has been detected. That time can vary from load to load, and program to program depending on the time it takes for the conflicting store to execute. The memory trap penalty indicates the average number of cycles in which no useful instructions were fetched. This gives an indication of the performance impact due to memory-order violations. Table 3.1 shows the average memory trap pen- alty for each of the SPEC95 benchmarks when running with the naive speculation policy. Tyson and Austin [S] suggest that the memory trap pen- alty can be effectively reduced by re-executing only the load instruction and its dependent instructions, but not re- executing any other instructions that were fetched after the load but are not dependent on it. Designing the processor to have the ability to replay only dependent instructions could significantly reduce the memory trap penalty, but could also negatively impact performance. In order to replay only dependent instructions, typically those instructions must remain in the instruction queue until they retire. This is in contrast to the DEC Alpha 21264, where instructions are aggressively de-allocated from the instruction queue when
1 A processor could split a store into two operations, the first being the effective address computation and the second being the delivery of the data value to the memory. This could reduce the time needed to resolve store-load dependencies. These “split store” solutions are not considered in this paper.
ent loads, but only as long as necessary to avoid memory- order violations and not impose false dependencies. They proposed a mechanism to avoid memory-order violations; a pair of fully associative structures that hold store-load pairs that have caused memory-order violations in the past. These structures direct the order of execution for subse- quent instances of the instructions. Other work uses memory dependence prediction to supply the consumers of dependent loads with data sooner. In [7] Moshovos and Sohi use memory dependence pre- diction to guide forwarding of data values from stores to dependent loads. Work by Tyson and Austin[8] combines memory dependence prediction and load value prediction [12] to satisfy the consumers of a load early. The ideas explored in our paper might also benefit from using these ideas to further increase performance. Our paper explores the premise that the history of memory dependencies can accurately predict future mem- ory dependencies. In order to do this we stress the concept of a store set, which contains all prior memory dependen- cies for a load. The concept of store sets is similar to an idea mentioned in [7]. We show, in an idealized model, that store sets are actually a good construct for use in pre- dicting memory dependencies in the context of a large instruction window machine. We then propose novel algo- rithms to create a fast, reasonably low-cost “common tag” style[l l] implementation of a store-sets-based memory dependence predictor that achieves nearly optimal per- formance using direct mapped structures.
5. Store Sets
The concept of store sets is based upon two underlying assumptions. The first is that the historic behavior of memory-order violations is a good predictor of future memory dependencies. The second is that it is important to predict dependencies of loads where one load is dependent on multiple stores or multiple loads depend on the same store. In this section, we describe the concept of store sets and their use in memory dependence prediction. Once we have established that the use of store sets is effective for memory dependence prediction, we go on to describe a low-cost implementation in Section 6.
5.1 Concept
We define each load instruction in a running program as having an associated set of store instructions, called its store set. A load’s store set consists of all stores (identified by their PC) upon which it has ever depended. A processor will approximate the load’s store set by keeping track of the stores that have caused the load to suffer memory- order violations in the past. When a program begins executing, all of the loads have empty store sets, and the processor allows naive specula- tion of loads around stores. When a load and store execute in the wrong order, causing a violation, the store PC is added to the load’s store set, e.g., set A. If another store conflicts with that same load, that store PC is also added to set A. The next time the processor sees that load, it re- quires that the load execute after any recently fetched stores in store set A. When the load is fetched, the proces-
sor will determine which stores in the load’s store set were recently fetched but not yet issued, and create a depend- ence upon those stores. Loads that never cause memory- order violations will have no imposed memory dependen- cies, and will execute as soon as possible. Loads that cause memory-order violations will be dependent on only those prior stores upon which they have depended in the past. If one of the stores in store set A also causes a memory-order violation with another load, it becomes part of that load’s store set also. Loads and stores are identified by their PCs. Here is an example:
Example 5. PC
:
store C store A 8 store B 12 store C
28 load B store set ( PC 8 ) 32 load D store set ( (null) ) 36 load C store set ( PC 0, PC 12 ) 40 load B store set ( PC 8 )
Each load’s store set has been annotated. Notice that a load can have multiple store dependencies. For example, the load at PC 36 depends on both the stores at PC 0 and PC 12. Also multiple loads can depend on the same store. For example, the loads at PCs 28 and 40 both depend on the store at PC 8. This situation where multiple loads depend on the same store is fairly common, occurring when there is one writer and multiple readers of a value. One load depending on multiple stores is somewhat more obscure. Three situa- tions where this can happen are: 1) A load can depend on stores from different paths, e.g., if (expr) then x = a; else x = b; ..... c = x; 2) a load can depend on multiple stores to fields of a structure packed in a data word that are all read together, e.g., writes of the red, green and blue compo- nents of a color structure; and 3) assuming that memory write-after-write hazards are treated as dependencies, a load can depend on a series of stores to the same location; e.g., multiple spills to the same location. To evaluate the importance of allowing multiple loads to depend on the same store, and one load to have multiple store dependencies, we created three configurations of our simulator. First, we created a configuration in which each load in the program has its own store set, and that store set can contain as many stores as necessary, but a store can only reside in one store set. When a store causes a mem- ory-order violation, it is eliminated from any store set it is in, and placed in the store set of the load with which it conflicted last. Essentially this prohibits multiple loads from being dependent on the same store. In the second configuration, we limited the size of a store set to one, allowing each load in the program to specify at most one store dependence. This prohibits one load from being dependent on multiple stores. Note that unlike the last configuration, we do allow one store to ex- ist in as many store sets as necessary in this configuration. When a memory-order violation occurs, the store replaces any prior store in the load’s store set.
Figure 5.1: Effect on Run Time When Not Allowing Multiple Dependence flexibility
5 1. g 1. Q .N
i5 1 E 0. s 0.
0 Only one load depends on any store Loads^ depend^ on at mst^ one^ store
Lastly we created an “infinite” configuration, in which neither the store set size nor the number of store sets in which a store can appear is confined. Figure 5.1 shows the normalized increase in run time for each of the first two configurations when compared with the third configura- tion. Clearly, either of these two constraints on store-sets would significantly impact overall IPC in some applica- tions. As an aside, we also expanded the second contigura- tion to allow one load to depend on 2,4 or 8 stores. The B- way associative structure resulted in no performance deg- radation over not constraining the number of stores per load. The 4-way structure was also fairly good. Per- (primes) was the only benchmark that suffered signifi- cant performance degradation with the 4-way structure. In Section 6, we describe a method for using direct mapped structures and retaining multiple dependence flexibility for both cases described above.
5.2 Performance
To evaluate the performance of store-set memory de- pendence prediction, we used the “infinite” configuration described above. Each dynamic load encountered in the simulation was classified as one of the following: not pre-
dieted (for loads that have empty store sets), predicted correctly, falsely dependent, or memory-order violation. The performance of the predictor can be evaluated by the quantity of memory-order violations and false dependen- cies. The data for SPEC95 is shown in Figure 5.2. For most of the benchmarks, the infinite predictor does well. As expected, it effectively eliminates memory-order vio- lations for all of the benchmarks. A few of the benchmarks have a significant number of false dependencies. Applu and xlisp suffer from false dependencies the most, and less so for vortex,gcc,go and swim. The infinite store set predictor could suffer false de- pendencies if a memory dependence does not exist for every execution of a particular store-load pair. Once a store PC is placed in a load’s store set, it stays there for the rest of the run, requiring that the load wait for the store in every future instance of the two PCs executing. If the store-load pair access the same memory location infre- quently, many false dependencies are imposed to save a few memory-order violations. This intermittent memory conflict between a store and a load encourages the notion of a “working” store set that contains stores that the load depended on recently. To es- timate this “working” store set, we use a feedback that
figure 5.2: Infinite Store Sets Predictor - Dynamic Load Breakdown 350 [1-""-- ,,""^~-.--"."...-""--~^ "-~---"_"",-~-^ .---.. I-^ -----.^ --.-^ .-~----"^ ~--.-I.
300
t" 250
(^9) y 200
$ 150
438 100
J 50
0
0 Not Redicted Correct Redictions 0 False dependencies n Memory Order Violations
Figure 6.1: Implementation of Store Sets Memory Dependence Prediction
Load/Store PC Store^ Set^ ID Table^ Last^ Fetched^ Store^ Table
I
Index
(SW-) (LFST)
b (^) SSID
Loads and stores index into the SSIT to get their store set identifiers, which are used to access and update the LFST. The store inums that are found in the LFST indicate the memory dependence prediction.
branch resolves. We found this to be a minor effect (+/- 2%) due to the opposing effects of prefetching and cache thrashing that the wrong-path execution causes. The re- sults indicate that if we can approximate the performance of the infinite store-set memory dependence predictor, we would have a solution with nearly optimal performance.
6. Store Set Implementation
We find that by imposing a few restrictions on store sets, we can retain the performance of the infinite memory dependence predictor, while creating a low-cost solution. The hardware used to implement store sets will consist of structures with finite dimensions. Limiting the size of the structures will force unrelated loads to share store sets, potentially introducing false dependencies. We also limit store PCs to exist in at most one store set at a time. This is similar to configuration two in Section 5.1, except that we propose algorithms to merge store sets, allowing two loads that depend on the same store to share a store set. Since store sets allow a load to be dependent on multi- ple stores, it would theoretically be necessary to have a mechanism that delayed the load until all the stores in the store set had executed. Constructing such a mechanism could be expensive. We would like to make the load de- pendent on just one of those stores, but we do not know which of the load’s store dependencies will be the last to execute. To solve this problem, we have conservatively constrained stores within a store set to execute in order. This is accomplished by making each of the stores de- pendent on the last fetched store within its store set. Each store specifies one dependence and each load specifies one dependence to form an in-order chain resulting in correct program behavior. Requiring that the stores in a store set execute in order has the benefit that it eliminates complicated write-after- write hazard detection in the processor. If two sequential stores that are in the same store set both write to location X and are followed by a load to location X, the load really only depends on the second store in the sequence. Since we enforce ordering within store sets, special hardware is not needed to make this distinction.
6.1 Components
Our implementation of memory dependence prediction with store sets consists of two tables. The first is a PC in- dexed table called the Store Set Identifier Table (SSIT) that maintains the store sets using a common tag for each load and the stores in its store set. The second is called the Last Fetched Store Table (LFST) and maintains dynamic information about the most recently fetched store for each store set. The information in this table is the inum of the store, which is a hardware pointer that uniquely identifies the instance of each instruction in flight. Recently fetched loads access the SSIT based on their PC and get their store set identifier (SSID). If the load has a valid SSID, then it has a valid store set. It will access the second table, the LFST, and get the inum of the most re- cently fetched store instruction that was a member of its store set. Recently fetched stores also access the SSIT. If the store finds a valid SSID, then it belongs to a valid store set. The store must then do two things. First, it must access the LFST and get the most recently fetched store instruc- tion in its store set. The new store will become dependent upon the store it found in the LFST. Second, it will update the table, inserting its own inum, since it is now the last fetched store in that particular store set. After a store instruction issues, it accesses the LFST and invalidates the entry if it still refers to itself. This en- sures that loads and stores will only be made dependent on stores that have not yet issued. If the stores are from dif- ferent code paths and not executed every time the load is executed, only the store that is fetched will access the SSIT and modify the LFST. The load will always be de- pendent on the appropriate store and the stores will never be forced to depend on each other, since they are executed at different times. Figure 6.1 shows a diagram of the ta- bles. When the CPU recovers from a misspeculation (branch mispredict, jump mispredict, or memory-order violation) the SSIT does not need to be modified. Ideally, the LFST must roll back each entry to the last live store that wrote that entry. Although we modeled that behavior, we believe that simply marking aborted stores as done in the table would be sufficient.
The mechanism for memory dependence prediction using these tables is best explained by example. At the start of a program, assume that all the entries in the SSIT are invalid. Initially, store and load instructions will access the table and get no valid memory dependence informa- tion. If a load commits a memory-order violation, a store set is created in the SSIT. The load and store instructions involved in the conflict will be assigned a store set identi- fier, say SSID X. SSIDs can be assigned in a number of ways. We chose an exclusive-or hash on the load’s PC. SSID X will be written into two locations in the SSIT; the first location will be indexed by the load PC, and the sec- ond by the store PC. The next time that store PC is fetched, it will read the SSIT entry indexed by its PC. Since the SSID is valid, it uses that store set’s SSID to access the LFST where it finds no valid recent fetched instructions from store set X. So, it will not be made de- pendent on another store. The store proceeds to write its own inum into the LFST. When the load instruction is subsequently fetched, it accesses the SSIT and then the LFST with SSID X. The LFST conveys to the instruction scheduler that the load is dependent upon the store in- struction it finds there. This time, the instruction sched- uler will impose a dependence between the load and store, in a similar manner to the way it imposes register depend- ence constraints. If the load later conflicts with a different store, the SSIT is notified of the new memory-order violation. SSID X is copied into the SSIT entry indexed by the new store’s PC. Now there are three entries in the SSIT that point to SSID X. The next time the two stores and the load are fetched, the second store will depend on the first store, and the load will depend on the second store. Note that stores are constrained to be in only one store set at a time to keep the SSIT and the LFST simple. A store could be part of more than one store set if we al- lowed the SSIT to hold more than one SSID in each entry. The multiple SSIDs would then have to access the LFST, increasing the number of read ports needed. Also, each load would then be dependent on up to two stores, adding more size and complexity to the instruction scheduling hardware that needs to impose dependencies. The tables depicted in Figure 6.1 allow a store to be in only one store set at a time. This apparently violates the premise that a memory dependence predictor should allow multiple loads to be dependent on the same store. In the next subsection, we describe an algorithm that can use the simple hardware in Figure 6.1 and retain that functionality.
6.2 Store Set Assignment
When a memory-order violation occurs, entries are created in the SSIT. When neither the load’s nor the store’s SSID is valid, one is created and assigned to both. If the load’s SSID is valid and the store’s is not, the store inherits the load’s SSID, and becomes part of the load’s store set. We have not yet discussed what happens if the store already had a valid SSID. Overwriting the store’s old SSID will effectively remove the store from its old store set and put it into a new one. This has the undesirable ef- fect of limiting a store to be in only one store set at a time. To govern the decisions made when determining whether
to overwrite one valid SSID with another, we have estab- lished some store-set assignment rules. Limiting the number of store sets to which a store can belong could create new possibilities for memory-order violations. Multiple loads may cause memory-order viola- tions due to the same store, and since a store can only be- long to one store set, a conflict can occur where the loads compete to have the store in their own store set. This can result in poor behavior, similar to a cache thrash where two loads always cause each other to miss.
Example 6. Ld PC I -> Store Set 1 ( St PC X, St PC Y, St PC Z) Ld PC 2 -> Store Set 2 ( St PC .I, St PC K)
In Example 6.1, two loads have conflicted with stores in the past. Ld PC 1 has conflicted with the three stores specified in store set 1, and Ld PC 2 has conflicted with the two stores specified in store set 2. Now suppose that Ld PC 1 causes a memory-order violation when executing out of order with St PC J. We’d like to add St PC J to store set 1, but since we only allow a store to exist in one store set at a time, we must also remove it from store set 2. The next time Ld PC 2 executes, it traps because it conflicts with St PC J, and the memory dependence predictor did not enforce a dependence between them because St PC J is no longer in store set 2. It is apparent that if we are not careful, we can have an oscillation where Ld PC I and Ld PC 2 take turns trapping and removing St PC J from the other load’s store set. To avoid this destructive interfer- ence, the store set assignment rules promote store-set merging. The store set assignment rules pertain to when a store-load pair has caused a memory-order violation. The rules are:
If neither the load nor the store has been assigned a store set, one is allocated and assigned to both in- structions. If the load has been assigned a store set, but the store has not, the store is assigned the load’s store set.
If the store has been assigned a store set, but the load has not, the load is assigned the store’s store set,
if both the load and the store have already been as- signed store sets, one of the two store sets is de- clared the ‘tvinner”. The instruction belonging to the loser’s store set is assigned the winner’s store set.
Rule four alludes to an arbitration algorithm that chooses a “winner” among two store sets. The arbitration algorithm should be one that, when asked to choose a win- ner among two specific sets, will always choose the same set. The simple algorithm we employ is choosing the store set with the smaller store set number. This algorithm will converge, and the store sets will be merged after some constant number of traps. Although there are more com- plicated algorithms that we could use, we found that this one works well. Figure 6.2 shows the performance benefit
Figure 6.3: Implementation of Store Sets vs. Perfect
need a store set decrements the counter of an SSIT entry that another load uses to obtain memory dependence in- formation. This results in allowing a significant number of memory-order violations, which degrades performance. The comparison in Figure 6.3 argues against the use of two-bit counters in the SSIT. The extra space and com- plexity of maintaining the counters, and the address com- paritors needed to determine whether a false dependence was imposed, are not worth the minor improvement in applu. Also, xlisp degrades about as much as applu improves, so there is no clear performance advantage to using two-bit counters. Clearing the valid bits of the SSIT on some large regular interval can easily be implemented with two counters, one that specifies a clearing interval, and the other that sweeps through the SSIT, invalidating entries. We look more carefully at the specific case of ap- plu in the analysis section.
6.4 Table Sizes
An important implementation consideration is the size of the SSIT and LFST tables. We used the cyclic clearing implementation described in the last subsection, and var- ied the size of the SSIT and LFST to determine the per- formance/cost curve. Figure 6.4 shows our results for the SSIT sizing. The performance is relative to a configura- tion with sufficiently large SSIT and LFST tables (again, 16K and 512 entries respectively). For the experiments varying the SSIT table size, the LFST table was left suffi-
1
g 0. 5 E 0. b t p”
Q 0. .g 2 0. al K 0.
Figure 6.4: Peformance Sensitivity to Number of htries in SSIT
8K 4K 2K 1K 512 256 128
- ht. Avg --C Fp Avg -A- Worst Case
ciently large. The data shows that a 4K entry SSIT does not compromise performance, and 1K entries is still ac- ceptable. To see the effect of reducing the table size more clearly, we look at the benchmark whose performance is most greatly influenced by the SSIT size, fpppp. Figure 6.5 plots false dependencies for fpppp across the various SSIT table sizes. As the size of the SSIT shrinks, loads and stores begin to alias. False dependencies are imposed be- cause loads and stores that do not require ordering will use the same store-set table entry as those that do. Figure 6. shows that performance is correlated with the .number of false dependencies. Adding tags to the SSIT would effec- tively reduce the number of SSIT entries needed, but would add the cost of a tag array and comparison logic. When the table becomes small, the advantage of the mem- ory dependence predictor is virtually gone, approaching the performance levels of the no-speculation approach as described in Section 3.1. The performance impact resulting from reducing the size of the LFST is similar to that of the SSIT. The number of entries in the LFST limits the total number of store sets. Reducing the number of total store sets causes loads and stores that suffer memory-order violations to share store sets with one another. The number of store set entries needed is much smaller than the number of entries in the SSIT because store sets can be shared more effectively. If two loads share one store set, it is quite possible that one
Figure 6.5: Fpppp - Peform ante vs. km ber of hrtries in SSIT
ul 200 t iiy 150 v- ; 100 8 f 50 d 0
0.8 2
0.7 .$ tii 0.6 2
8K 4K 2K 1K 512 256 128 -A- False Dependencies -)- Relative IFC
Figure 6.6: Peformance Sensitivity to Number of 6Wies in LFST
128 64 32 16 8 4 2
- ht. Avg -m- Fp Avg -A- Worst Case
load’s conflicting stores and the other load’s conflicting stores are never in the processor at the same time. This means that although one store set identifier is shared, tem- porally one load and its stores never intersect with the other load and its stores; therefore no false dependencies are created. Figure 6.6 shows the relative performance of constructing an LFST with varying numbers of entries. Only 128 entries are needed for full performance. This also reduces the size of the SSIT table because the SSIDs will be only 7 bits. Our proposed implementation of store sets memory dependence prediction has a 4K entry SSIT and a 128 en- try LFST, and uses cyclic clearing to invalidate the SSIT every million cycles. The performance comparison to per- fect is shown in Figure 6.7. Since we did not choose to implement the two bit counters, applu suffers a perform- ance loss of 14%. The remaining benchmarks are close to optimal performance. Once again, in rare cases, the perfect model has a slight degradation due to the same reason as mentioned in Section 5.2. For comparison, we’ve included an implementation of the store barrier cache[6] with 32K entries, one for each potential store instruction in a 128K instruction cache. Our store set implementation had an average of 34%, and as high as 100% performance im- provement over the store barrier cache for the benchmarks we tested.
7. Analysis
Of all the benchmarks that we considered when evalu- ating store-set memory dependence prediction, applu had the largest performance degradation compared with a perfect predictor. We looked closely at this benchmark to understand why it was suffering a lo-14% performance degradation. Looking back at Figure 5.2, we observed that the infinite store set predictor was producing a fairly large number of false dependencies. Adding two-bit counters to each store in a store set significantly reduced the number of false dependencils, but a considerable number still re- mained. Also, adding the two-bit counters caused mem- ory-order violations. Although it is a small number (about 1.75 per 1K retired instructions), memory-order traps can have a significant performance penalty. Here, two-bit counters are not predicting memory dependencies well. It turns out that all of the memory-order violations and false dependencies are coming from few load instructions that exhibit a recurring pattern of dependencies. A good example of the difficulty in predicting memory dependencies in applu is found in the routines “bits” and “buts”, both of which contain the following loop:
Example 7. 0 doip=1,
:
tmpl = 1.Od+OO/ tmat(ip,ip) do m = ip+l, 5 3 tmp = tmpl * tmat(m,ip) 4 do I= ip+l, 5 5 tmat(m,l) = tmat(m,l) - tmp * tmat(ip,l)
This triply nested loop creates a scenario where a load and store sometimes conflict. The problem is on line 5. The store instruction that writes tmat(m,l) and the load instruction that reads tmat(ip,l) will sometimes conflict. To see this more clearly, we reduce the problem to:
Example 7. doip= 1, dom=ip+1, do I= ip+l, 5 load tmat[ip,l] ; PC A store tmat[m ,l] ; PC B
Figure 6.7: flnal Store Set Implementation vs. Perfect
0 Store Barrier Cache Store Set hplementation H Perfect
