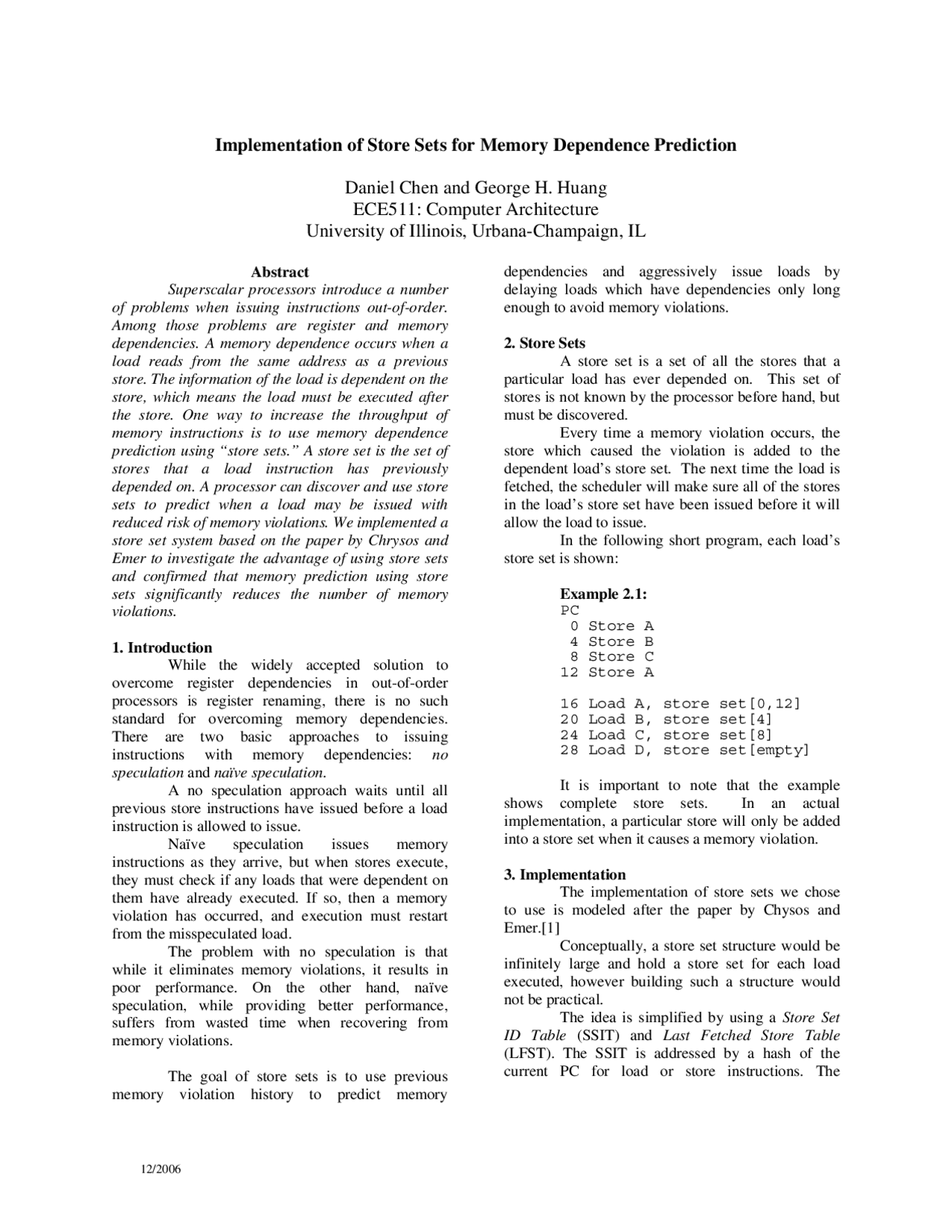

Implementation of Store Sets for Memory Dependence Prediction
Daniel Chen and George H. Huang
ECE511: Computer Architecture
University of Illinois, Urbana-Champaign, IL
Abstract
Superscalar processors introduce a number
of problems when issuing instructions out-of-order.
Among those problems are register and memory
dependencies. A memory dependence occurs when a
load reads from the same address as a previous
store. The information of the load is dependent on the
store, which means the load must be executed after
the store. One way to increase the throughput of
memory instructions is to use memory dependence
prediction using “store sets.” A store set is the set of
stores that a load instruction has previously
depended on. A processor can discover and use store
sets to predict when a load may be issued with
reduced risk of memory violations. We implemented a
store set system based on the paper by Chrysos and
Emer to investigate the advantage of using store sets
and confirmed that memory prediction using store
sets significantly reduces the number of memory
violations.
1. Introduction
While the widely accepted solution to
overcome register dependencies in out-of-order
processors is register renaming, there is no such
standard for overcoming memory dependencies.
There are two basic approaches to issuing
instructions with memory dependencies: no
speculation and naïve speculation.
A no speculation approach waits until all
previous store instructions have issued before a load
instruction is allowed to issue.
Naïve speculation issues memory
instructions as they arrive, but when stores execute,
they must check if any loads that were dependent on
them have already executed. If so, then a memory
violation has occurred, and execution must restart
from the misspeculated load.
The problem with no speculation is that
while it eliminates memory violations, it results in
poor performance. On the other hand, naïve
speculation, while providing better performance,
suffers from wasted time when recovering from
memory violations.
The goal of store sets is to use previous
memory violation history to predict memory
dependencies and aggressively issue loads by
delaying loads which have dependencies only long
enough to avoid memory violations.
2. Store Sets
A store set is a set of all the stores that a
particular load has ever depended on. This set of
stores is not known by the processor before hand, but
must be discovered.
Every time a memory violation occurs, the
store which caused the violation is added to the
dependent load’s store set. The next time the load is
fetched, the scheduler will make sure all of the stores
in the load’s store set have been issued before it will
allow the load to issue.
In the following short program, each load’s
store set is shown:
Example 2.1:
PC
0 Store A
4 Store B
8 Store C
12 Store A
16 Load A, store set[0,12]
20 Load B, store set[4]
24 Load C, store set[8]
28 Load D, store set[empty]
It is important to note that the example
shows complete store sets. In an actual
implementation, a particular store will only be added
into a store set when it causes a memory violation.
3. Implementation
The implementation of store sets we chose
to use is modeled after the paper by Chysos and
Emer.[1]
Conceptually, a store set structure would be
infinitely large and hold a store set for each load
executed, however building such a structure would
not be practical.
The idea is simplified by using a Store Set
ID Table (SSIT) and Last Fetched Store Table
(LFST). The SSIT is addressed by a hash of the
current PC for load or store instructions. The
