The Master Electrician Exam in Michigan is an advanced licensing test for experienced electricians who wish to supervise electrical work and pull permits independently. This rigorous exam covers complex topics such as advanced electrical theory, code application, electrical systems design, troubleshooting, load calculations, and regulatory compliance. It also includes project supervision, inspection readiness, and safety management. Holding a master electrician license is often a prerequisite for owning or operating an electrical contracting business.
Typology: Exams
1 / 194
This page cannot be seen from the preview
Don't miss anything!

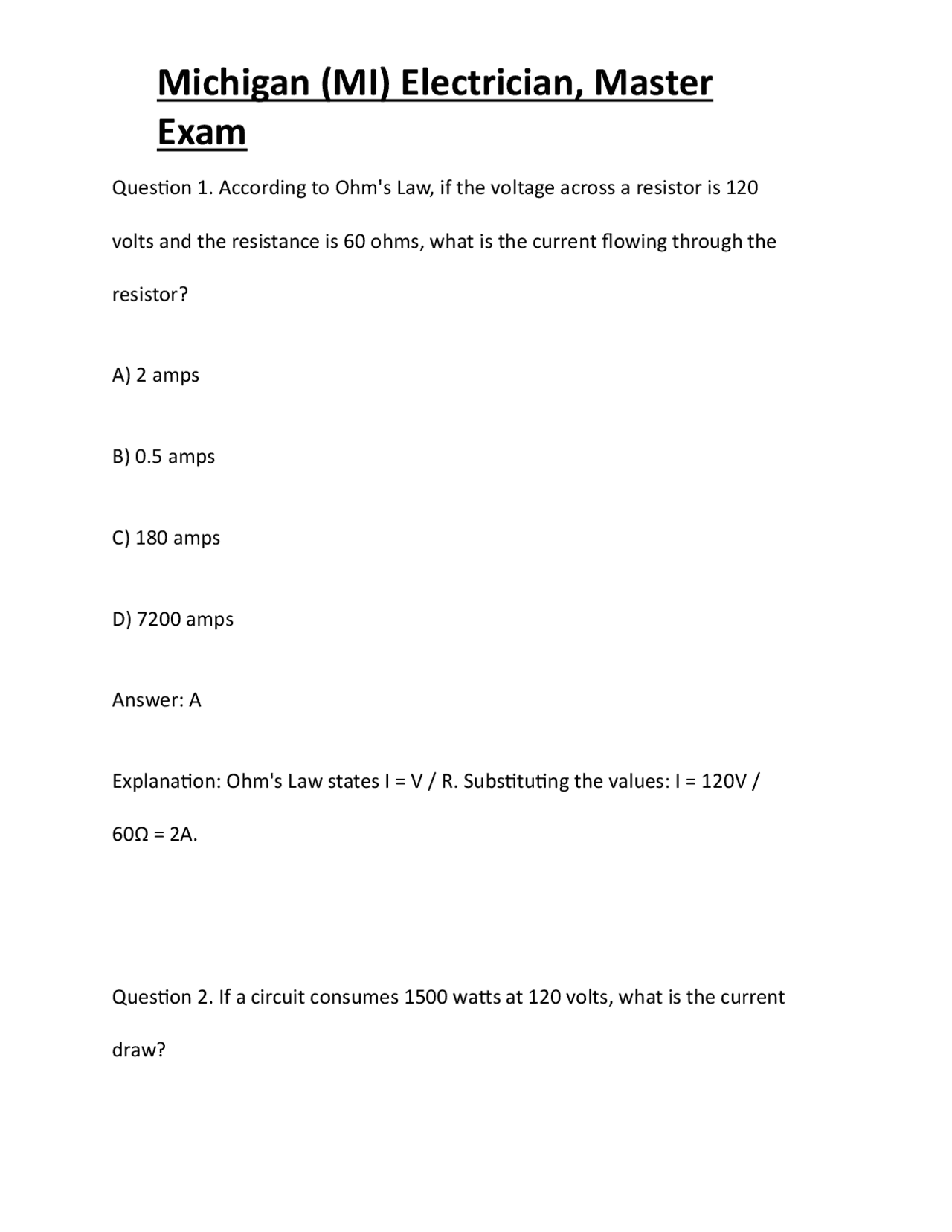

Question 1. According to Ohm's Law, if the voltage across a resistor is 120 volts and the resistance is 60 ohms, what is the current flowing through the resistor? A) 2 amps B) 0.5 amps C) 180 amps D) 7200 amps Answer: A Explanation: Ohm's Law states I = V / R. Substituting the values: I = 120V / 60Ω = 2A. Question 2. If a circuit consumes 1500 watts at 120 volts, what is the current draw?
A) 12.5 amps B) 15 amps C) 20 amps D) 10 amps Answer: A Explanation: Power (P) = V x I, so I = P / V = 1500W / 120V = 12.5A. Question 3. In a series circuit with three resistors of 10Ω, 20Ω, and 30Ω, what is the total resistance? A) 10Ω B) 60Ω C) 20Ω
Explanation: 1 / R_eq = 1 / R1 + 1 / R2 = 1/100 + 1/200 = 0.01 + 0.005 = 0.015, so R_eq = 1 / 0.015 ≈ 66.7Ω. Question 5. A combination circuit has a 10Ω resistor in series with a parallel branch of 20Ω and 40Ω resistors. What is the total resistance? A) 10Ω + (1 / (1/20 + 1/40))Ω = 10Ω + 13.33Ω ≈ 23.33Ω B) 10Ω + 20Ω + 40Ω = 70Ω C) 10Ω + 20Ω / 40Ω = Not applicable D) 10Ω + (20Ω + 40Ω) = 70Ω Answer: A Explanation: Calculate parallel resistance: 1 / R_parallel = 1/20 + 1/40 = 0.
Question 6. Which statement best describes the primary difference between AC and DC circuits? A) DC changes direction periodically; AC flows in one direction. B) AC changes direction periodically; DC flows in one direction. C) Both AC and DC change direction periodically. D) Neither AC nor DC can be used for power distribution. Answer: B Explanation: AC (Alternating Current) periodically reverses direction, while DC (Direct Current) flows steadily in one direction. Question 7. In a single-phase AC system operating at 60Hz, what does the frequency indicate?
D) To store electrical energy Answer: B Explanation: Transformers are used to step voltage up or down in AC systems, maintaining power (minus losses). Question 9. Which type of motor is typically used in household appliances and runs on DC? A) Induction motor B) Synchronous motor C) Universal motor D) Brushed DC motor Answer: D
Explanation: Brushed DC motors are common in household appliances; they operate on direct current. Question 10. In an electromagnetic induction process, what is produced when a conductor moves through a magnetic field? A) Resistance B) Voltage (EMF) C) Capacitance D) Resistance decrease Answer: B Explanation: Moving a conductor within a magnetic field induces voltage, known as electromagnetic induction.
C) To convert AC to DC D) To measure current flow Answer: B Explanation: Motor control circuits regulate starting, stopping, and speed of motors, often using contactors, relays, and switches. Question 13. The purpose of the NEC is to: A) Provide safety standards and electrical installation requirements B) Supply electrical power to consumers C) Design electrical components D) Certify electrical engineers Answer: A
Explanation: The NEC (National Electrical Code) establishes safety standards and regulations for electrical installations. Question 14. According to NEC Chapter 2, what is a GFCI device primarily used for? A) Protecting against overloads B) Protecting people from ground-faults in receptacles C) Limiting short circuits D) Protecting circuit conductors from overheating Answer: B Explanation: GFCI (Ground-Fault Circuit Interrupter) devices detect ground faults and quickly disconnect power to prevent shock.
B) RMC (Rigid Metal Conduit) C) PVC conduit D) Flexible metal conduit Answer: B Explanation: Rigid Metal Conduit (RMC) is sturdy and used in industrial and outdoor applications. Question 17. The NEC requires that boxes and enclosures be supported and secured at intervals not exceeding: A) 12 inches B) 4 feet C) 3 feet D) 6 feet
Answer: C Explanation: NEC typically requires boxes to be supported and secured at intervals not exceeding 3 feet for safety and stability. Question 18. Which of the following appliances generally requires overcurrent protection rated at 15 or 20 amps? A) Small household dishwasher B) Large industrial motor C) Commercial HVAC compressor D) Residential lighting circuit Answer: D Explanation: Residential lighting circuits are typically protected by 15 or 20- amp circuit breakers.
A) Chapter 4 B) Chapter 6 C) Chapter 7 D) Chapter 8 Answer: B Explanation: Chapter 6 covers requirements for special equipment, including pools, spas, and hot tubs. Question 21. A standby system that automatically supplies power during an outage is classified as: A) Optional standby system B) Legally required standby system C) Emergency system
D) Optional emergency system Answer: B Explanation: Legally required standby systems automatically operate during power outages to maintain essential functions. Question 22. In low voltage communication systems, which of the following is NOT typically classified as a power-limited circuit? A) Telephone wiring B) Security alarm wiring C) Lighting branch circuits D) Remote-control wiring Answer: C
Question 24. The purpose of the Electrical Administrative Act is to: A) Establish safety standards for electrical equipment B) Define licensing procedures and enforce regulations for electricians C) Regulate electrical prices D) Provide technical training for electricians Answer: B Explanation: The Act establishes licensing procedures, regulates the administrative functions, and enforces regulations for electricians. Question 25. When performing load calculations for a multi-family dwelling, which factor must be considered? A) Number of bathrooms only B) Total connected load including lighting and appliances
C) Only the size of the main service D) The age of the building Answer: B Explanation: Proper load calculation for multi-family dwellings includes all connected loads such as lighting, receptacles, and appliances. Question 26. To size a conductor for a motor load, which factor is least relevant? A) Motor horsepower B) Starting current C) Motor service factor D) Ambient temperature Answer: C
