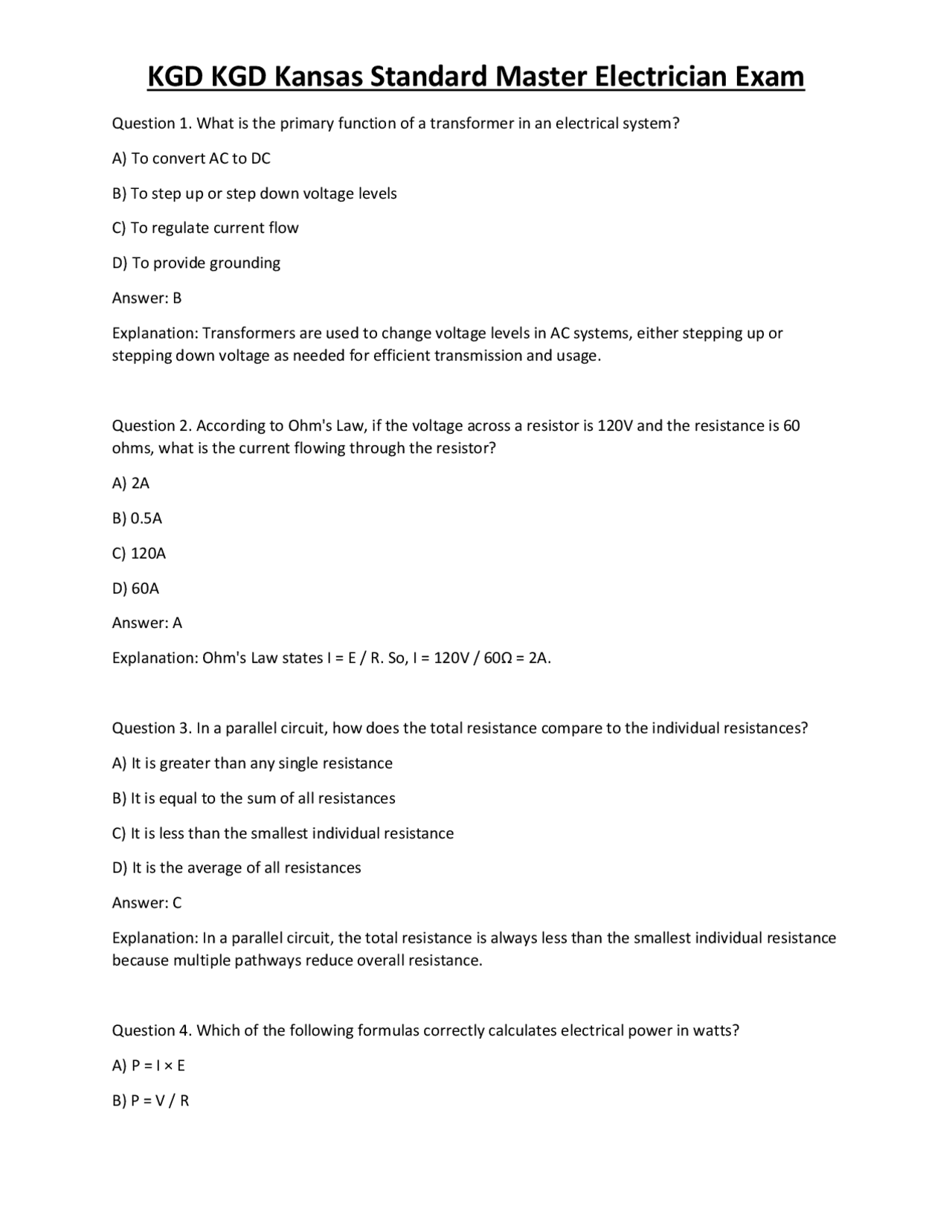

Question 1. What is the primary function of a transformer in an electrical system? A) To convert AC to DC B) To step up or step down voltage levels C) To regulate current flow D) To provide grounding Answer: B Explanation: Transformers are used to change voltage levels in AC systems, either stepping up or stepping down voltage as needed for efficient transmission and usage. Question 2. According to Ohm's Law, if the voltage across a resistor is 120V and the resistance is 60 ohms, what is the current flowing through the resistor? A) 2A B) 0.5A C) 120A D) 60A Answer: A Explanation: Ohm's Law states I = E / R. So, I = 120V / 60Ω = 2A. Question 3. In a parallel circuit, how does the total resistance compare to the individual resistances? A) It is greater than any single resistance B) It is equal to the sum of all resistances C) It is less than the smallest individual resistance D) It is the average of all resistances Answer: C Explanation: In a parallel circuit, the total resistance is always less than the smallest individual resistance because multiple pathways reduce overall resistance. Question 4. Which of the following formulas correctly calculates electrical power in watts? A) P = I × E B) P = V / R
C) P = I² × R
D) P = V × I
Answer: D Explanation: Electrical power in watts is calculated as P = V × I, where V is voltage and I is current. Question 5. What is the primary difference between AC and DC current? A) AC flows in one direction; DC changes direction periodically B) DC flows in one direction; AC changes direction periodically C) AC is used only for low voltage applications D) DC cannot be transformed to higher voltages Answer: B Explanation: AC (Alternating Current) periodically reverses direction, while DC (Direct Current) flows in a single direction. Question 6. When calculating voltage drop, which of the following is most important to determine? A) Total resistance of the circuit B) The color coding of conductors C) The length of the conductor D) The type of load connected Answer: C Explanation: The length of the conductor directly affects voltage drop; longer conductors result in higher voltage drops. Question 7. What does a power factor indicate in an electrical system? A) The efficiency of power transfer B) The total power consumed C) The phase difference between voltage and current D) The resistance of the circuit Answer: C
Question 11. When reading electrical blueprints, what does a symbol resembling a zigzag line typically represent? A) A resistor B) A capacitor C) An inductor D) A switch Answer: A Explanation: A zigzag line symbol in electrical drawings generally indicates a resistor. Question 12. In a residential service calculation, what is the standard load for general lighting and receptacles per square foot according to NEC? A) 1 VA per sq ft B) 3 VA per sq ft C) 1.5 VA per sq ft D) 2 VA per sq ft Answer: A Explanation: The NEC typically uses 1 volt-ampere (VA) per square foot for general lighting and receptacle loads in residential calculations. Question 13. How is available fault current at a service entrance typically determined? A) By measuring the current with a clamp meter B) Using the system impedance and source voltage C) By counting the number of conductors D) Based on the size of the main breaker Answer: B Explanation: Fault current is calculated using system impedance and source voltage, which determines the maximum current that could flow during a fault.
Question 14. When selecting overcurrent protection for service conductors, what is the primary consideration? A) The length of the conductor B) The conductor's ampacity C) The color of the insulation D) The voltage rating of the circuit Answer: B Explanation: Overcurrent protection must be rated to protect conductors based on their ampacity, preventing overheating and damage. Question 15. What is the purpose of grounding a system's grounding electrode conductor? A) To prevent voltage fluctuations B) To provide a low-resistance path to earth for fault currents C) To increase system voltage D) To reduce electrical noise Answer: B Explanation: Grounding provides a low-resistance path to earth for fault currents, enhancing safety and system stability. Question 16. When calculating load for feeders in commercial buildings, which factor is often applied to account for diversity? A) Demand factor B) Load factor C) Power factor D) Safety factor Answer: A Explanation: The demand factor adjusts the calculated load to account for diversity, recognizing not all loads operate simultaneously. Question 17. What is the minimum size of a grounding conductor for a 100-amp residential service according to NEC?
C) 6 feet D) 12 inches Answer: A Explanation: The NEC requires GFCI outlets to be spaced no more than 4 feet apart along countertops for safety. Question 21. Which of the following best describes the purpose of AFCI protection? A) To prevent ground faults B) To detect arcing faults that could cause fires C) To limit current during short circuits D) To regulate voltage fluctuations Answer: B Explanation: AFCIs detect arcing faults that could ignite fires, providing enhanced fire safety. Question 22. What is the typical ampacity of a No. 14 AWG copper conductor in a residential circuit? A) 15A B) 20A C) 10A D) 25A Answer: A Explanation: No. 14 AWG copper conductors are rated for 15A in residential wiring. Question 23. In a three-phase system, what is the typical phase-to-phase voltage if the line-to-neutral voltage is 120V? A) 208V B) 120V C) 240V D) 480V Answer: A
Explanation: In a three-phase system, the phase-to-phase voltage is √3 times the line-to-neutral voltage: 120V × √3 ≈ 208V. Question 24. What is the main reason for derating conductors in bundled cable? A) To reduce electromagnetic interference B) To prevent overheating due to heat buildup C) To improve insulation D) To increase current capacity Answer: B Explanation: Bundling conductors limits heat dissipation, requiring derating to prevent overheating. Question 25. Which article of the NEC provides definitions for electrical terms? A) Article 100 B) Article 110 C) Article 250 D) Article 300 Answer: A Explanation: Article 100 of the NEC contains definitions for common electrical terms used throughout the code. Question 26. When installing a service disconnect, what clearance height must be maintained for operation? A) 6 inches B) 6.5 feet (78 inches) C) 5 feet D) 8 feet Answer: B Explanation: The NEC requires that service disconnects be installed at a height allowing easy operation, typically at least 6.5 feet above the floor.
D) Connecting the conduit to neutral conductors only Answer: B Explanation: Grounding fittings or bushings are used to connect metal conduit systems to the grounding system, ensuring proper grounding. Question 31. What is the maximum allowable voltage drop for branch circuits according to NEC? A) 5% B) 3% C) 2% D) 1% Answer: B Explanation: The NEC recommends maintaining a maximum voltage drop of 3% for branch circuits to ensure proper operation. Question 32. When selecting conductors for a motor circuit, what factor must be considered besides ampacity? A) The motor's starting current B) The color of the conductor insulation C) The length of the conductor D) The type of conduit used Answer: A Explanation: Motor circuits require conductors capable of handling starting currents, which can be significantly higher than running currents. Question 33. Which of the following is a characteristic of a GFCI device? A) It detects and interrupts arcing faults B) It trips when a ground-fault current exceeds 4-6 mA C) It provides surge protection D) It regulates voltage Answer: B
Explanation: GFCIs trip when they detect a ground-fault current exceeding their rated trip level, typically 4 - 6 mA, preventing shock hazards. Question 34. What is the minimum size of a neutral conductor for a 100A residential service? A) 8 AWG B) 6 AWG C) 4 AWG D) 2 AWG Answer: B Explanation: For a 100A service, the neutral conductor is typically sized at 6 AWG, matching the grounding conductor size. Question 35. In the context of electrical plan reading, what does a solid line typically represent? A) A conduit or cable route B) An electrical component C) A wiring connection D) A boundary line Answer: C Explanation: Solid lines in wiring diagrams usually indicate wiring connections or conductors between components. Question 36. When installing conductors in a conduit, what is a common derating factor applied for grouping conductors? A) 80% B) 70% C) 75% D) 65% Answer: C Explanation: The NEC often applies a 75% derating factor when multiple conductors are grouped together in conduit to prevent overheating.
B) Article 300 C) Article 110 D) Article 430 Answer: A Explanation: Article 250 of the NEC specifies all requirements related to grounding and bonding. Question 41. What is the typical voltage rating for residential branch circuits in the United States? A) 120V B) 240V C) 208V D) Both A and B Answer: D Explanation: Residential branch circuits are commonly rated at 120V for lighting and outlets, and 240V for appliances like dryers and ranges. Question 42. When calculating the load for a commercial space, which factor helps account for non- simultaneous use of equipment? A) Diversity factor B) Demand factor C) Load factor D) Power factor Answer: A Explanation: Diversity factor accounts for the likelihood that not all connected loads will be operating simultaneously. Question 43. How should conductors be protected in a branch circuit supplying a motor? A) By an overcurrent device rated for the motor's full load current B) By a fuse only C) By a circuit breaker with a trip setting above the motor's full load current D) By a GFCI
Answer: A Explanation: Motor branch circuits require overcurrent protection rated at or below the motor's full load current to prevent damage. Question 44. What is the appropriate action if a conduit is damaged during installation? A) Repair it with tape B) Replace or properly repair the conduit before energizing C) Cover it with insulation D) Continue installation and fix later Answer: B Explanation: Damaged conduit must be replaced or repaired to ensure safety and code compliance before energizing. Question 45. Which of the following is an example of a non-metallic sheathed cable (NM cable)? A) Romex B) Armored cable (AC) C) Underground feeder cable D) Coaxial cable Answer: A Explanation: Romex is a common name for NM cable, used in residential wiring. Question 46. What is the purpose of a disconnecting means in a circuit? A) To allow safe disconnection for maintenance or emergency B) To increase current flow C) To reduce voltage D) To filter noise Answer: A Explanation: Disconnects provide a means to safely isolate electrical equipment for maintenance or emergency shutdown.
C) Receptacles are not required D) One receptacle for every 6 feet Answer: B Explanation: The NEC requires receptacles to be installed so that no point along the countertop is more than 24 inches from a receptacle, generally meaning outlets are spaced every 4 feet. Question 51. What is the purpose of a grounding electrode conductor? A) To connect the grounding system to the earth B) To connect the neutral to the ground C) To carry current during normal operation D) To connect the hot wires Answer: A Explanation: The grounding electrode conductor connects the system's grounding point to the grounding electrode, providing a path for fault currents to earth. Question 52. Which of the following is a typical material used for grounding electrodes? A) Copper wire B) Rebar or ground rods C) Aluminum conduit D) Plastic pipe Answer: B Explanation: Grounding electrodes are often rebar or ground rods made of materials like copper or steel that provide a conductive path to earth. Question 53. According to the NEC, what is the minimum size of a grounding conductor for a 200A service? A) 4 AWG B) 2 AWG C) 6 AWG D) 1/0 AWG
Answer: A Explanation: For a 200A service, the minimum grounding conductor size is typically 4 AWG, depending on specific code requirements. Question 54. How should conductors for a 3-phase system be identified? A) Different colors for each phase B) All conductors the same color C) Black, red, and blue for phases D) Green for all phases Answer: C Explanation: In a 3-phase system, conductors are typically color-coded as black, red, and blue to identify phases. Question 55. What is the maximum height recommended for installing receptacles above the floor in residential settings? A) 12 inches B) 18 inches C) 24 inches D) 36 inches Answer: C Explanation: The NEC generally recommends installing receptacles at a maximum height of 24 inches above the floor for accessibility. Question 56. Which article of the NEC covers requirements for receptacle outlets? A) Article 210 B) Article 250 C) Article 300 D) Article 430 Answer: A Explanation: Article 210 of the NEC addresses branch circuits and receptacle outlet requirements.
Question 60. What is the recommended conductor temperature rating for general wiring in residential buildings? A) 60°C B) 75°C C) 90°C D) 105°C Answer: C Explanation: Most residential wiring uses conductors rated for 90°C to allow for higher ampacity and safety margin. Question 61. Which type of circuit breaker is typically used for sensitive electronic equipment to prevent power surges? A) Standard circuit breaker B) AFCI breaker C) Surge protective device (SPD) D) GFCI breaker Answer: C Explanation: Surge Protective Devices (SPDs) are used to guard electronic equipment against power surges. Question 62. When installing a new branch circuit, which of the following must be verified before energizing? A) Conductor sizes match the circuit breaker ratings B) The neutral wire is insulated C) The conductors are the same length D) The system is grounded to the water supply Answer: A Explanation: Ensuring conductor sizes are appropriate for the breaker ratings prevents overheating and ensures code compliance.
Question 63. What is the typical minimum clearance required in front of a panelboard for working space? A) 24 inches B) 30 inches C) 36 inches D) 42 inches Answer: C Explanation: The NEC requires a minimum working space of 36 inches in front of panelboards for safe access. Question 64. Which of the following is a requirement for a receptacle installed outdoors? A) It must be GFCI protected B) It must be rated for 125V only C) It can be ungrounded D) It must be installed horizontally only Answer: A Explanation: Outdoor receptacles must be GFCI protected to prevent electrical shocks. Question 65. In a multi-wire branch circuit, what is required to prevent overloading? A) A double-pole breaker B) Separate neutral conductors C) A GFCI breaker D) An AFCI breaker Answer: A Explanation: Multi-wire branch circuits require a double-pole breaker to disconnect all energized conductors simultaneously. Question 66. How should conductors be terminated in a circuit breaker panel? A) Using the proper size and type of terminal lug B) By twisting conductors together
