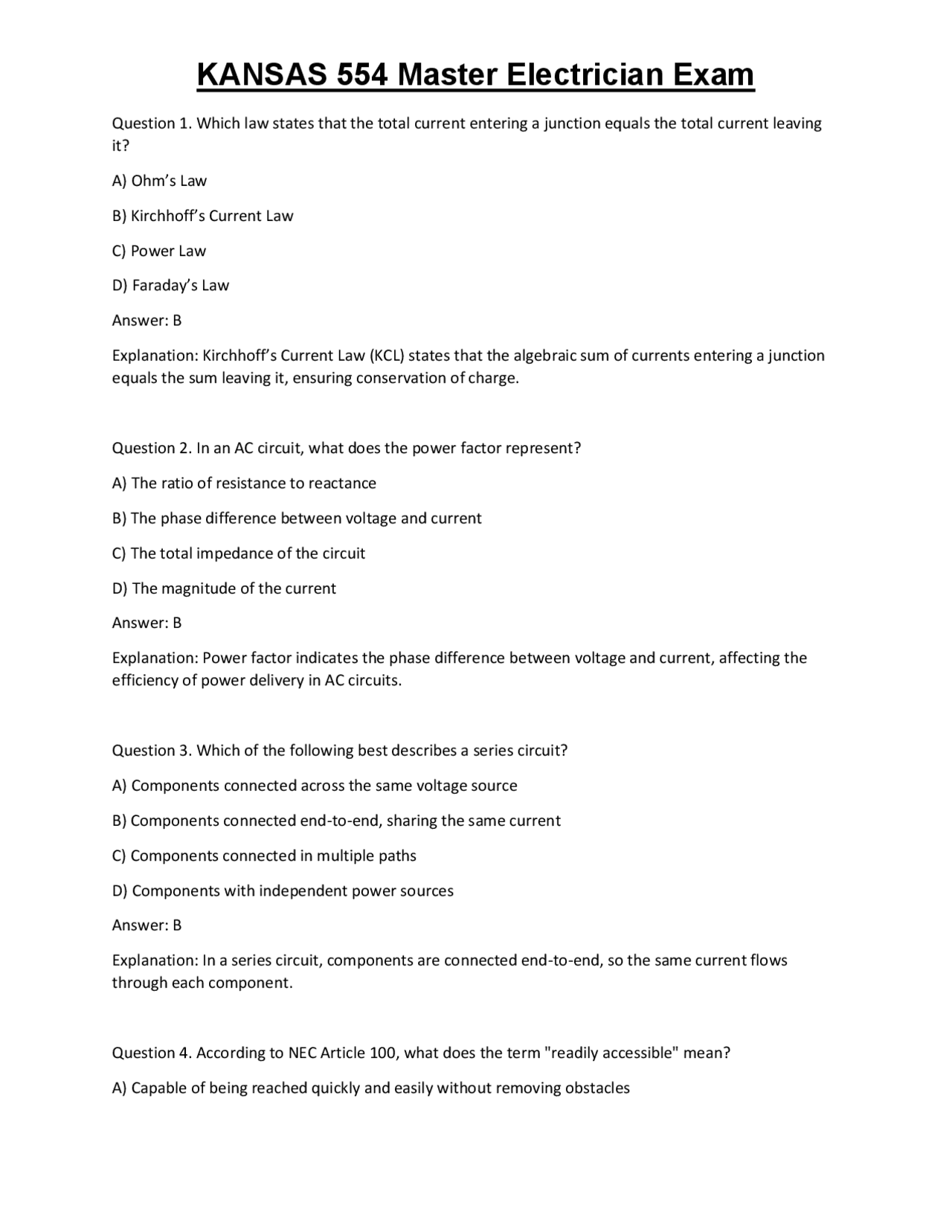

Question 1. Which law states that the total current entering a junction equals the total current leaving it? A) Ohm’s Law B) Kirchhoff’s Current Law C) Power Law D) Faraday’s Law Answer: B Explanation: Kirchhoff’s Current Law (KCL) states that the algebraic sum of currents entering a junction equals the sum leaving it, ensuring conservation of charge. Question 2. In an AC circuit, what does the power factor represent? A) The ratio of resistance to reactance B) The phase difference between voltage and current C) The total impedance of the circuit D) The magnitude of the current Answer: B Explanation: Power factor indicates the phase difference between voltage and current, affecting the efficiency of power delivery in AC circuits. Question 3. Which of the following best describes a series circuit? A) Components connected across the same voltage source B) Components connected end-to-end, sharing the same current C) Components connected in multiple paths D) Components with independent power sources Answer: B Explanation: In a series circuit, components are connected end-to-end, so the same current flows through each component. Question 4. According to NEC Article 100, what does the term "readily accessible" mean? A) Capable of being reached quickly and easily without removing obstacles
B) Located inside a locked enclosure C) Accessible only with special tools D) Positioned behind a wall Answer: A Explanation: "Readily accessible" implies that the equipment or wiring can be reached quickly and easily without having to move obstacles or use tools. Question 5. Which symbol is commonly used to represent a grounding connection in electrical schematics? A) A circle with a plus sign B) A triangle C) A set of horizontal lines decreasing in length D) A zigzag line Answer: C Explanation: The symbol for ground or grounding connection consists of horizontal lines decreasing in length, representing a ground reference point. Question 6. In plan reading, what does a dashed line typically indicate? A) A conduit or wiring path hidden behind walls or ceilings B) A physical boundary C) A lighting fixture D) A plumbing line Answer: A Explanation: Dashed lines often represent concealed wiring, conduit runs, or elements hidden behind surfaces in electrical plans. Question 7. When calculating the service load for a dwelling unit, which NEC article provides the primary guidelines? A) Article 210 B) Article 220
Explanation: The main bonding jumper connects the neutral to the grounding system, establishing an effective ground reference. Question 11. When selecting overcurrent protection for a transformer, what must be considered? A) The transformer’s voltage rating only B) The transformer's full load current and overcurrent device ratings C) The size of the transformer enclosure D) The length of the transformer conductors Answer: B Explanation: Overcurrent devices must be rated considering the transformer's full load current and interrupting capability to protect against faults. Question 12. Which of the following is an NEC requirement for temporary service wiring? A) Use of permanent wiring methods B) Grounding of the temporary system C) No overcurrent protection needed D) No special requirements Answer: B Explanation: Temporary services must be properly grounded and protected by overcurrent devices, similar to permanent systems. Question 13. When calculating feeder loads according to NEC Article 220, what factor reduces the total connected load to account for diversity? A) Demand factor B) Voltage correction factor C) Conductor fill factor D) Power factor correction Answer: A Explanation: Demand factors reduce the calculated load to reflect actual usage, accounting for diversity of load.
Question 14. Which conductor material is generally used for branch circuit wiring in residential applications? A) Aluminum B) Copper C) Steel D) Aluminum-clad steel Answer: B Explanation: Copper conductors are widely used due to their excellent conductivity and flexibility for residential wiring. Question 15. What is the purpose of conduit fill calculations? A) To determine the number of conductors in a conduit without exceeding code limits B) To select the conduit color C) To calculate voltage drop D) To size the circuit breaker Answer: A Explanation: Conduit fill calculations ensure that the number of conductors within a conduit complies with NEC maximum fill ratios for safety and ease of installation. Question 16. Which type of conduit is most suitable for outdoor, corrosive environments? A) EMT B) PVC C) RMC D) IMC Answer: B Explanation: PVC conduit is resistant to corrosion and suitable for outdoor and underground applications.
C) A switch D) A junction point Answer: A Explanation: Such symbols often represent light fixtures in electrical schematics. Question 21. What is the primary function of a panelboard? A) To distribute power and provide overcurrent protection B) To serve as a grounding point C) To serve as a conduit junction D) To act as a transformer enclosure Answer: A Explanation: Panelboards distribute electrical power to branch circuits and include overcurrent protection devices. Question 22. Which of the following is a key consideration when selecting conductors for a circuit? A) The ambient temperature B) The color of the insulation C) The physical size of the conduit D) The length of the service entrance Answer: A Explanation: Ambient temperature affects conductor ampacity; higher temperatures may require derating the conductor size. Question 23. According to NEC, what is the maximum number of conductors permitted in a single conduit connection without derating? A) 3 B) 6 C) 9 D) 12 Answer: C
Explanation: NEC tables specify maximum fill capacities; typically, up to 9 conductors are permitted in certain conduit sizes, but specifics depend on conduit size and conductor diameter. Question 24. Which of the following is a characteristic of a conduit with a bend radius? A) It must be as tight as possible B) It must not be less than the conduit manufacturer’s specified minimum radius C) It can be made arbitrarily tight D) Bending radius is not important Answer: B Explanation: Bends must adhere to the manufacturer’s minimum bend radius to prevent damage to conductors and maintain proper installation. Question 25. Which NEC article covers the requirements for grounding and bonding in separate buildings? A) Article 250 B) Article 300 C) Article 408 D) Article 430 Answer: A Explanation: NEC Article 250 provides detailed requirements for grounding and bonding, including separate structures. Question 26. What is the purpose of a disconnecting means at the service entrance? A) To provide a means to disconnect power for maintenance or emergency B) To limit the current flow C) To serve as a circuit breaker only for the main panel D) To increase voltage levels Answer: A Explanation: The disconnecting means allows safe disconnection of power for servicing or emergencies.
B) To account for simultaneous usage and reduce total calculated load C) To ignore the diversity of load D) To determine conductor voltage ratings Answer: B Explanation: Demand factors reduce the total calculated load to reflect realistic simultaneous usage, avoiding over-sizing. Question 31. In conduit installation, what is the main purpose of expansion fittings? A) To allow for thermal expansion and contraction B) To connect different types of conduit C) To serve as junction boxes D) To reduce conduit size Answer: A Explanation: Expansion fittings accommodate thermal movement in conduit runs, preventing damage. Question 32. Which NEC article covers the installation requirements for panelboards? A) Article 408 B) Article 370 C) Article 250 D) Article 430 Answer: A Explanation: NEC Article 408 provides rules for the installation, mounting, and overcurrent protection of panelboards. Question 33. What is the typical minimum clearance in front of electrical equipment according to NEC 110.26? A) 24 inches B) 30 inches C) 36 inches D) 48 inches
Answer: C Explanation: NEC 110.26 requires a minimum working clearance of 36 inches in front of electrical equipment for safe operation. Question 34. Which conductor insulation type is suitable for wet locations? A) THHN B) XHHW C) NM-B D) USE- 2 Answer: B Explanation: XHHW insulation is rated for wet locations and is suitable for underground and outdoor applications. Question 35. What is the primary reason for using AFCI protection in branch circuits? A) To protect against overloads B) To detect and disconnect arc faults that could cause fires C) To prevent ground faults D) To reduce voltage drop Answer: B Explanation: AFCIs detect arc faults, which are a common cause of electrical fires, and disconnect power to prevent fire hazards. Question 36. When planning wiring for a dwelling unit, how often should receptacles be installed along wall lengths? A) Every 12 feet B) Every 6 feet C) Every 24 inches D) Every 20 feet Answer: A
Question 40. What is the role of a main bonding jumper in a service panel? A) To connect neutral to ground at the main service B) To connect the ground conductor to the equipment enclosure C) To connect the hot bus bars D) To disconnect power during faults Answer: A Explanation: The main bonding jumper connects the neutral bus to the equipment enclosure and grounding system, establishing a path for fault currents. Question 41. Which type of conduit is most suitable for use in seismic zones due to its flexibility? A) Rigid Metal Conduit (RMC) B) Electrical Metallic Tubing (EMT) C) Intermediate Metal Conduit (IMC) D) Flexible metal conduit (FMC) Answer: D Explanation: Flexible metal conduit (FMC) is used where flexibility is needed, such as in seismic zones or where movement is expected. Question 42. Which NEC article primarily addresses the requirements for grounding electrodes? A) Article 250 B) Article 300 C) Article 410 D) Article 430 Answer: A Explanation: NEC Article 250 covers grounding and bonding, including the use of grounding electrodes. Question 43. What is the main consideration when sizing a disconnecting means for a motor? A) The motor’s voltage only B) The motor’s full load current and starting current
C) The size of the motor enclosure D) The length of the wiring run Answer: B Explanation: The disconnect must be rated for the motor’s full load current and inrush (starting) current to ensure safety and code compliance. Question 44. In underground wiring, what is a common method to protect conductors from physical damage? A) Use of PVC conduit or other protective raceways B) Burying conductors directly without protection C) Using only flexible cords D) Avoiding underground installation altogether Answer: A Explanation: Underground conductors are typically protected within conduit or other raceways to prevent physical damage. Question 45. Which of the following is a typical environmental consideration when installing electrical boxes? A) Damp or wet locations require weatherproof covers B) Indoor boxes can be placed outdoors C) All boxes must be painted D) No environmental considerations are necessary Answer: A Explanation: Boxes in damp or wet locations must have weatherproof covers to prevent moisture ingress and ensure safety. Question 46. Which conductor size is generally the minimum for a 15-amp branch circuit in residential wiring? A) 14 AWG B) 12 AWG C) 10 AWG
Explanation: NEC 110.26 specifies a minimum working space of 36 inches in front of panelboards for safe operation. Question 50. Which type of fuse is most commonly used today for branch circuit protection? A) Cartridge fuses B) Blade fuses C) Circuit breakers D) Glass tube fuses Answer: C Explanation: Circuit breakers are the most common overcurrent protective devices for branch circuits due to their reset ability and reliability. Question 51. Which of the following best describes a combination circuit? A) A circuit that combines series and parallel components B) A circuit containing only resistors C) A circuit that uses both AC and DC supplies D) A circuit with multiple power sources Answer: A Explanation: A combination circuit includes elements connected in both series and parallel, reflecting complex real-world wiring. Question 52. In a wiring diagram, what does a zigzag line typically represent? A) A resistor B) A switch C) A diode D) An inductor Answer: A Explanation: A zigzag line symbol generally indicates a resistor in electrical schematics. Question 53. According to the NEC, what is the purpose of a listed and labeled device?
A) To ensure compliance with safety and performance standards B) To identify the manufacturer C) To indicate the device's color D) To specify the installation location Answer: A Explanation: "Listed" and "labeled" devices have been tested and approved for safety and performance per the NEC. Question 54. When interpreting a wiring diagram, what does a double line with a break in the middle typically indicate? A) A switch B) A fuse C) A transformer D) A junction box Answer: A Explanation: A switch is often represented as a break in a line with a symbol indicating a control point. Question 55. Which of the following best describes the purpose of a demand factor? A) To increase the calculated load B) To reduce the estimated load based on typical usage C) To account for future expansion D) To size conductors for the maximum possible load Answer: B Explanation: Demand factors reduce the calculated load to reflect probable simultaneous usage, avoiding overdesign. Question 56. What is the main function of a circuit breaker? A) To open a circuit under overload or short circuit conditions B) To reduce voltage C) To step down voltage
Explanation: For a 100A circuit, NEC Table 250.122 recommends a minimum of 6 AWG for the equipment grounding conductor. Question 60. Which type of conduit is most suitable for outdoor use with the highest resistance to physical damage? A) EMT B) Rigid Metal Conduit (RMC) C) PVC conduit D) Flexible metal conduit Answer: B Explanation: RMC provides excellent protection against physical damage and is suitable for outdoor, industrial, and hazardous locations. Question 61. In electrical plan reading, what is the purpose of a schedule (e.g., lighting schedule)? A) To specify the type, wattage, and location of fixtures B) To list all conductors used C) To show wiring paths D) To indicate the circuit breaker sizes Answer: A Explanation: Schedules provide detailed information about fixtures, lamps, and equipment, including their specifications and locations. Question 62. Which device is used to protect a motor from overload conditions? A) Fuse B) Overcurrent device or motor overload relay C) Circuit breaker D) AFCI Answer: B Explanation: Motor overload relays or properly rated circuit breakers protect motors from damage due to overheating or overload.
Question 63. When calculating voltage drop, which factor is crucial? A) Conductor length and size B) Number of outlets C) Type of conduit D) Number of circuits Answer: A Explanation: Voltage drop depends on conductor length, size, current, and material; longer runs and smaller conductors cause higher voltage drops. Question 64. Which of the following best describes the function of a junction box? A) To provide a safe enclosure for splicing conductors B) To support light fixtures C) To serve as a disconnect D) To house a transformer Answer: A Explanation: Junction boxes protect splices and connections, preventing damage and facilitating maintenance. Question 65. In underground wiring, what is the minimum cover required for conductors in most residential applications? A) 12 inches B) 18 inches C) 24 inches D) 6 inches Answer: B Explanation: NEC typically requires at least 18 inches of cover for underground service conductors in residential areas for safety.
