• BOILING POINT DETERMINATION

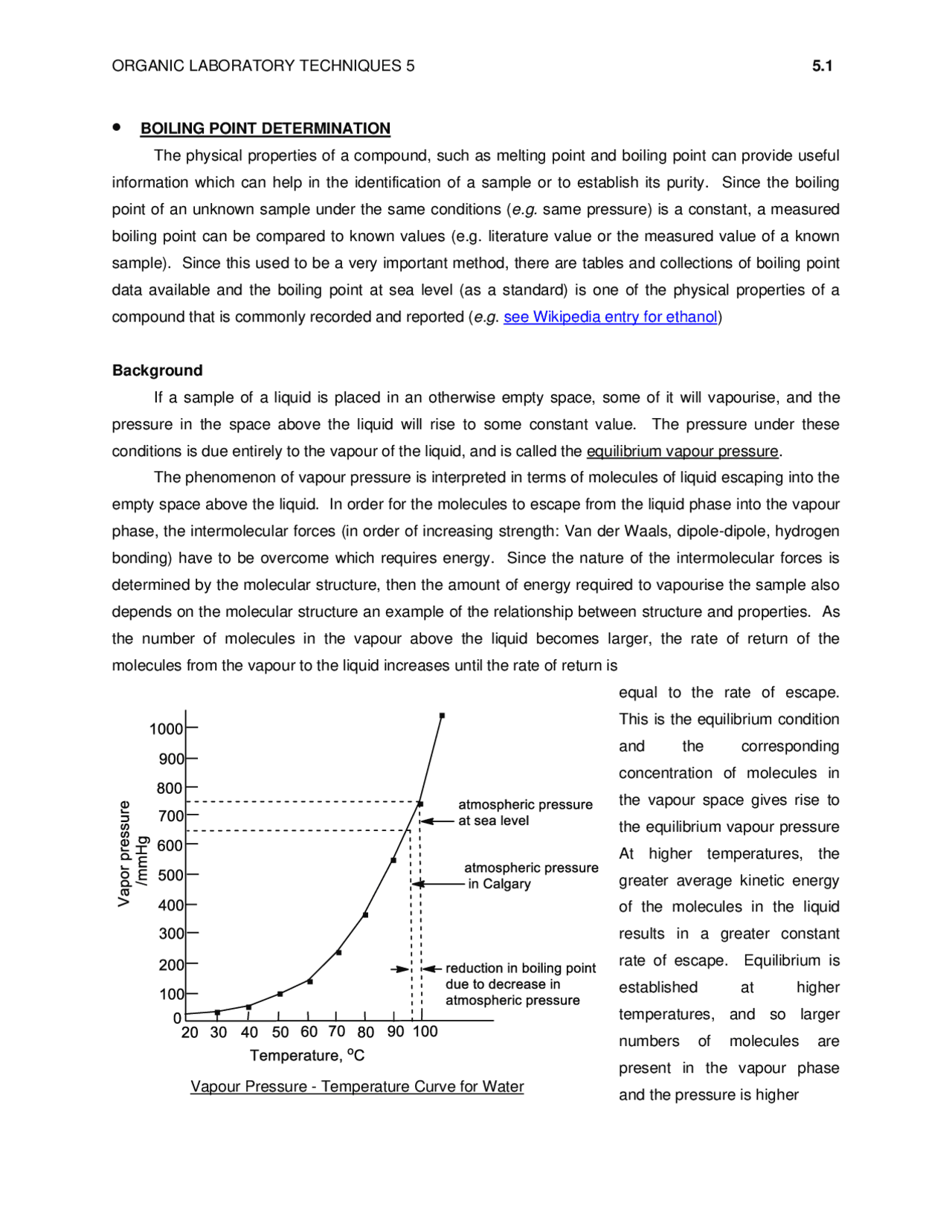

The physical properties of a compound, such as melting point and boiling point can provide useful information which can help in the identification of a sample or to establish its purity. Since the boiling point of an unknown sample under the same conditions ( e.g. same pressure) is a constant, a measured boiling point can be compared to known values (e.g. literature value or the measured value of a known sample). Since this used to be a very important method, there are tables and collections of boiling point data available and the boiling point at sea level (as a standard) is one of the physical properties of a compound that is commonly recorded and reported ( e.g. see Wikipedia entry for ethanol) Background If a sample of a liquid is placed in an otherwise empty space, some of it will vapourise, and the pressure in the space above the liquid will rise to some constant value. The pressure under these conditions is due entirely to the vapour of the liquid, and is called the equilibrium vapour pressure. The phenomenon of vapour pressure is interpreted in terms of molecules of liquid escaping into the empty space above the liquid. In order for the molecules to escape from the liquid phase into the vapour phase, the intermolecular forces (in order of increasing strength: Van der Waals, dipole-dipole, hydrogen bonding) have to be overcome which requires energy. Since the nature of the intermolecular forces is determined by the molecular structure, then the amount of energy required to vapourise the sample also depends on the molecular structure an example of the relationship between structure and properties. As the number of molecules in the vapour above the liquid becomes larger, the rate of return of the molecules from the vapour to the liquid increases until the rate of return is Vapour Pressure - Temperature Curve for Water equal to the rate of escape. This is the equilibrium condition and the corresponding concentration of molecules in the vapour space gives rise to the equilibrium vapour pressure At higher temperatures, the greater average kinetic energy of the molecules in the liquid results in a greater constant rate of escape. Equilibrium is established at higher temperatures, and so larger numbers of molecules are present in the vapour phase and the pressure is higher
When the vapour pressure of a liquid is equal to the atmospheric (or applied) pressure then boiling occurs. The temperature at which this occurs, for a given pressure, is the boiling point. It should be noted, therefore, that the boiling point of a liquid decreases as the atmospheric (or applied) pressure decreases. This is illustrated by the Vapour Pressure-Temperature Curve above. For example, at sea level the atmospheric pressure is 760 mm Hg (also expressed as 760 torr, 101325 Pa, 101.3 kPa, 1013.25 mbar or 14.696 psi) and pure water boils at 100C. However, in Calgary (approx. 105 0m above sea level) the atmospheric pressure is approximately 670 mm Hg, and water boils at about 96.6C. As a rule of thumb, the boiling point of many liquids will drop about 0.5C for a 10 mm decrease in pressure in the vicinity of 760 mm Hg. At lower pressures, a 10 drop in boiling point is observed for each halving of the pressure. An approximate measure that seems to work relatively well in Calgary for calculating the boiling point of a liquid in Calgary is to subtract 1 for every 15 of temperature above 50 C. So, in order to convert an experimental measurement taken in Calgary (which is at higher altitude than sea level and so is at a lower pressure) to that reported for sea level (higher pressure) one needs to ADD a correction factor since the boiling point at sea level is higher than that at higher altitudes. A more scientific method for correcting boiling point requires knowing the atmospheric pressure (in mmHg), Pobs, when and where the boiling point, BPobs is measured: BPcorr = BPobs – (Pobs – 760 mmHg) x 0.045 oC/mmHg This is the method you should use for correcting boiling points. As an example, the boiling point of water at the summit of Mt Temple (3544m, near Lake Louise, summit pressure approximately 500 mmHg), based on 100 oC at sea level would be: 100 oC = BPobs – ( 500 mmHg – 760mmHg) x 0.045 oC/mmHg 100 oC = BPobs – ( – 26 0mmHg) x 0.045 oC/mmHg = BPobs + 11.7 oC/mmHg BPobs = 88.3 oC In order to use this better method for correcting boiling point, one needs to know the atmospheric pressure at the time when the boiling point was measured. Here is the link to the Environment Canada website for that information. This provides you with the required pressure data at the time pf your laboratory session. Note that 1 kP = 7.50062 mmHg. https://calgary.weatherstats.ca/metrics/pressure_station.html
Using a pressure nomograph: Determining the boiling point at 760mm Hg (scale B) for a sample that boils at 100oC (scale A) at 1mm Hg (scale C) Now what temperature would that same compound boil at 10 mm Hg pressure? Now we draw a line that passes through 280oC on scale B (middle scale, the boiling point at 760mm Hg) and to 10mm Hg on scale C. By extending that line to scale A, we can read off the new boiling point on scale A (left side) as being about 140oC. Of course, you don't really have to "draw" the line, it can be done just using the edge of a ruler or something else straight.
Using a pressure nomograph: Determining the boiling point (scale A) at 10mm Hg (scale C) for a sample that boils at 280oC at 760mm Hg (scale B) It is also sometimes necessary to apply a thermometer "stem correction" (due to the small thermal contact area and the difference in the coefficient of expansion of mercury or other liquid in a conventional thermometer and the glass). For more information on the thermometer stem correction, see Pasto and Johnson, "Laboratory Text for Organic Chemistry", Prentice Hall. Boiling point can be determined in a few different ways. If a reasonably large volume of sample is available, then the boiling point of the liquid can be determined using a simple distillation apparatus set- up (see simple distillation, technique T. 6 ). However, when large volumes are not available, alternative experimental procedures have to be used. The micro-boiling point method described below can be carried out with just a few mL of a liquid sample and is a reasonably accurate and convenient way to determine the boiling point.
The equipment will be HOT! Remove the thermometer assembly and remember to wipe off the thermometer. Remove the test tube and stand in a test tube rack and allow to cool. The metal block can be cooled in ice by carefully picking it up with metal tongs (as shown to the left) or with a heat resistant glove. Remember to make sure to remove the magnetic stirrer bar from the boiling point test tube. The explanation of this method is a very simple one. Once a liquid boils, the temperature of the vapour will not increase until all of the liquid has boiled and converted to the vapour phase. Therefore, provided the liquid sample is being heated at reflux, the temperature of the vapour will match the boiling point of the liquid. Two problems are common to this method. The first arises when the liquid sample in the test tube is heated too strongly such that it evaporates or is boiled away. This is more likely to be a problem for liquids with low boiling points. Once the test tube and block have cooled, add more liquid sample to the test tube and resume heating but more gently. Second, for liquids with high boiling points it might be difficult to reach reflux and it might be necessary to move the tip or bulb of the thermometer closer to the liquid surface. Don't forget to apply a correction due to the reduced atmospheric pressure in Calgary (altitude). To ensure accuracy, you should carry out at least two separate boiling point determinations on your unknown sample.
Thiele tube method (quick link to videos : version 1, version 2) Before using a Bunsen burner make sure all flammable materials ( e.g****. solvents) are removed from the area around the Bunsen burner. This means not only your workspace but also all the students near to you. When using the Bunsen burner, make sure that you adjust it to a small flame. If you are unsure of how to set up and use a Bunsen burner, see the “heat sources” techniques document and the video on the Bunsen burner. If only small amounts of liquid material are available for boiling point determination, then a micro boiling point apparatus based on a Theile tube can be used. The Thiele tube is a glass tube designed to contain heating oil and a thermometer to which a micro test tube containing the boiling point sample is attached. The shape of the Thiele tube allows for formation of convection currents in the oil when it is heated. These currents maintain a fairly uniform temperature distribution throughout the oil in the tube. The side arm of the tube is designed to generate these convection currents and thus transfer the heat from the flame evenly and rapidly throughout the heating oil. Don’t clamp the Thiele tube too tightly otherwise it might crack as it expands as it is heated, yet of course it needs to be secure. The sample liquid is introduced by Pasteur pipette into a micro test tube (no more than 0.5ml, which is about 10mm depth in the small test tube), and a piece of melting point capillary tubing (sealed at one end) is dropped in with the open end down. The micro test tube assembly is then attached to a thermometer with a rubber band or a thin slice of rubber tubing. The whole unit is then placed in a Thiele tube.
liquid, the liquid will enter the tube immediately. It will enter the tube because the trapped vapour will have a pressure less than that of the atmosphere. Here are links to two very similar videos showing how to carry out a micro boiling point determination, version 1, version 2 (newer). Don't forget to apply a correction due to the reduced atmospheric pressure in Calgary (altitude). To ensure accuracy, you should carry out at least two separate boiling point determinations on your unknown sample.
