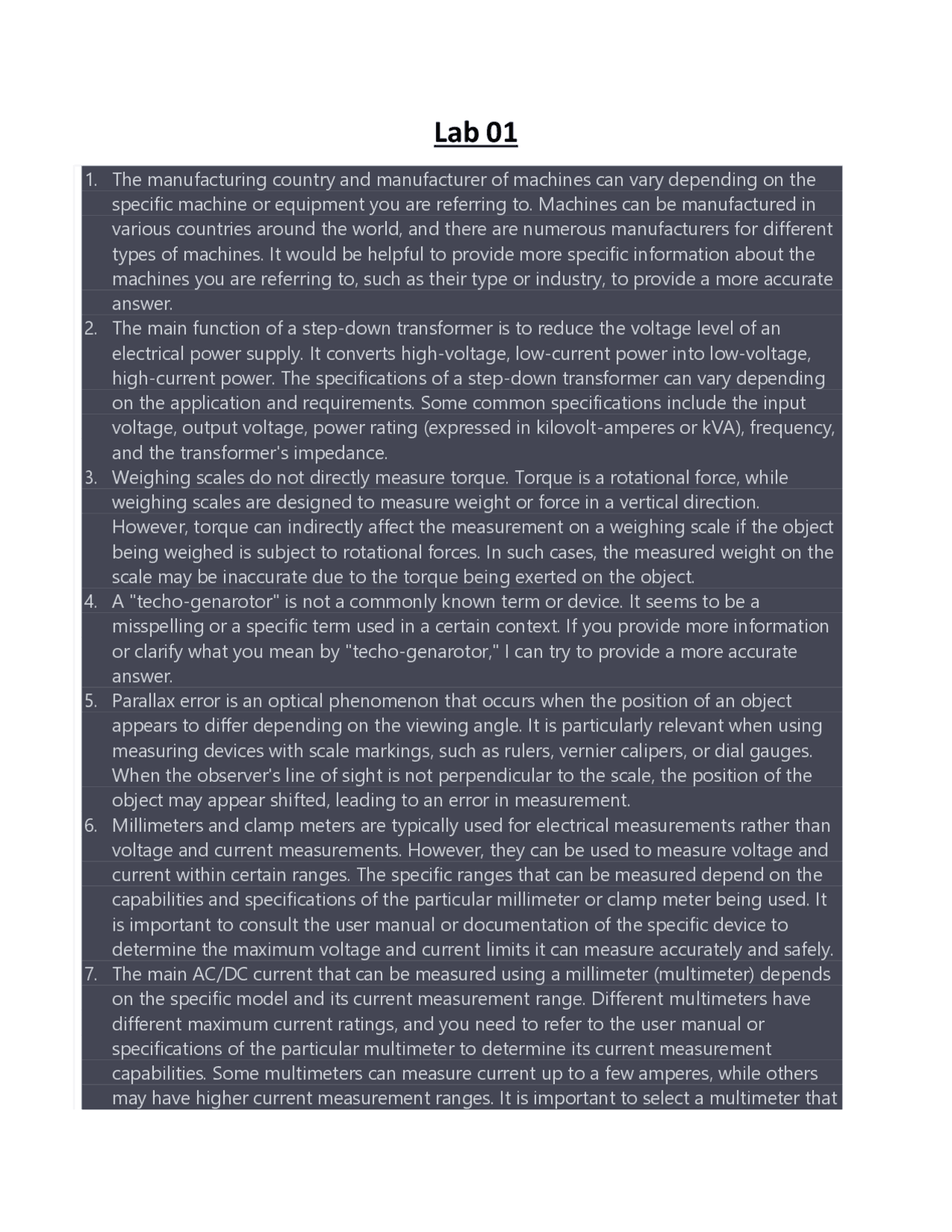

Lab 01
- The manufacturing country and manufacturer of machines can vary depending on the specific machine or equipment you are referring to. Machines can be manufactured in various countries around the world, and there are numerous manufacturers for different types of machines. It would be helpful to provide more specific information about the machines you are referring to, such as their type or industry, to provide a more accurate answer.
- The main function of a step-down transformer is to reduce the voltage level of an electrical power supply. It converts high-voltage, low-current power into low-voltage, high-current power. The specifications of a step-down transformer can vary depending on the application and requirements. Some common specifications include the input voltage, output voltage, power rating (expressed in kilovolt-amperes or kVA), frequency, and the transformer's impedance.
- Weighing scales do not directly measure torque. Torque is a rotational force, while weighing scales are designed to measure weight or force in a vertical direction. However, torque can indirectly affect the measurement on a weighing scale if the object being weighed is subject to rotational forces. In such cases, the measured weight on the scale may be inaccurate due to the torque being exerted on the object.
- A "techo-genarotor" is not a commonly known term or device. It seems to be a misspelling or a specific term used in a certain context. If you provide more information or clarify what you mean by "techo-genarotor," I can try to provide a more accurate answer.
- Parallax error is an optical phenomenon that occurs when the position of an object appears to differ depending on the viewing angle. It is particularly relevant when using measuring devices with scale markings, such as rulers, vernier calipers, or dial gauges. When the observer's line of sight is not perpendicular to the scale, the position of the object may appear shifted, leading to an error in measurement.
- Millimeters and clamp meters are typically used for electrical measurements rather than voltage and current measurements. However, they can be used to measure voltage and current within certain ranges. The specific ranges that can be measured depend on the capabilities and specifications of the particular millimeter or clamp meter being used. It is important to consult the user manual or documentation of the specific device to determine the maximum voltage and current limits it can measure accurately and safely.
- The main AC/DC current that can be measured using a millimeter (multimeter) depends on the specific model and its current measurement range. Different multimeters have different maximum current ratings, and you need to refer to the user manual or specifications of the particular multimeter to determine its current measurement capabilities. Some multimeters can measure current up to a few amperes, while others may have higher current measurement ranges. It is important to select a multimeter that
matches the expected current range to obtain accurate measurements and avoid damaging the device.
Lab 02
Parts of DC Machine
- Stator
- Rotor
- Yoke of DC motor.
- Poles of DC motor.
- Field winding of DC motor.
- Armature winding of DC motor. (Lap winding and wave winding)
- Commutator of DC motor.
- Brushes of DC motor PARTS OF AC MACHINES :
- Enclosure. (Open enclosure and totally enclosed enclosure)
- Stator. (Stator Core and Stator Windings)
- Rotor.
- Bearings. {Deep groove ball bearings, cylindrical, angular, spherical, sleeve (Flange mounted sleeve bearings and Foot mounted sleeve bearings)}
- Conduit Box.
- Eye Bolt. According to these Faraday's laws, "Rate of change of flux linkage with respect to time is directly proportional to the induced EMF in a conductor or coil".
The three main parts of a transformer are
**1. Primary Winding of Transformer
- Magnetic Core of Transformer
- Secondary Winding of Transformer**
Types of Transformers
- Step up/Down
Q.5 Materials used in the construction of various machine parts: Bearings: Common bearing materials include steel, bronze, or ceramic. Shaft: Shafts are typically made of steel or other high-strength alloys. Commutator: Commutators are usually made of copper segments insulated from each other with materials such as mica. Slip rings: Slip rings are commonly made of copper or other conductive materials. Brush Rings: Brush rings are typically made of brass or other conductive materials. Winding: Winding wires in machines are commonly made of copper or aluminum. Core: The core of electrical machines is made of laminated silicon steel sheets to minimize eddy current losses. Yoke: The yoke, which provides mechanical support and completes the magnetic circuit, is often made of cast iron or steel. Q.6 The yoke in electrical machines serves as the outer structure that provides mechanical support and houses the magnetic core. Its main function is to complete the magnetic circuit and guide the magnetic flux produced by the field windings. Q.7 The stator and yoke are different parts in electrical machines: Stator: The stator is the stationary part of the machine and includes the windings, core, and other supporting structures. In AC machines, the stator carries the armature winding, while in DC machines, it carries the field winding. Yoke: The yoke is a part of the machine's magnetic circuit and serves as the outer structure that encloses the core and windings. It provides mechanical support and completes the magnetic path. Q.8 In the case of a DC compound motor, if the shunt field circuit is open, the motor will operate as a series motor. The motor speed will increase uncontrollably with a decrease in load, and it can become dangerous and potentially damage the motor. Q.9 Cores in electrical machines are laminated to reduce eddy current losses. Lamination involves constructing the core from thin insulated layers or laminations of magnetic material. This reduces the formation of eddy currents, which can cause energy loss and heating within the core material. Q.10 Eddy current loss refers to the energy loss that occurs when a conducting material, such as the core of a transformer or the rotor of an electric motor, is subjected to changing magnetic fields. Eddy currents are induced in the material, resulting in resistance and energy dissipation in the form of heat.
Hysteresis loss is another type of energy loss that occurs in magnetic materials due to the reversal of magnetic domains as the magnetic field changes direction. Hysteresis loss results in energy dissipation and heat generation in the material. Q.11 Core-type and shell-type transformers are two common designs: Core-type transformer: In a core-type transformer, the windings surround a substantial portion of the magnetic core. The core is typically constructed with laminated sheets and the windings are placed on both sides of the core. Shell-type transformer: In a shell-type transformer, the core surrounds a substantial portion of the windings. The windings are divided into two or more sections, and the core is constructed by placing laminations between these sections. Q.12 Slip ring motors, also known as wound rotor motors, have external wire-wound rotor windings connected to slip rings. These motors are often used in applications where variable speed and high starting torque are required. On the other hand, squirrel cage motors have a rotor consisting of copper or aluminum bars short-circuited at the ends, forming a cage-like structure. They are simpler in construction, more robust, and commonly used for most general-purpose applications where speed control is not essential.
Lab 03
POLARITY AND RATIO TESTS OF SINGLE PHASE TRANSFORMER Q.1 When AC supply is given to a transformer, the flux depends on the voltage (V) and frequency (f) of the supply. The flux is directly proportional to the voltage and inversely proportional to the frequency. So, the correct answer is "V and f both." Q.2 True. As compared to AC machines, Transformers (T/F) are generally more efficient. Transformers have high efficiency due to their static design, absence of rotating parts, and minimal losses in the core and windings. AC machines, such as induction motors or synchronous machines, have additional losses due to mechanical components and rotor windings, resulting in comparatively lower efficiency. Q.3 The mode of connection between the primary and secondary windings of a transformer can be either series or parallel. In series mode, the primary and secondary windings are connected in series, while in parallel mode, they are connected in parallel.
and frequency response. The output waveform may get distorted due to core saturation effects or high-frequency losses, resulting in waveform deformation or harmonic content. Q.13 Winding conductors in a transformer are insulated with materials such as enamel, paper, or polymer-based insulating materials. These insulating materials provide electrical isolation between the winding turns and prevent short circuits or electrical breakdown. Q.14 Additive and subtractive polarity refer to the orientation of the primary and secondary windings concerning their phase relationship. In additive polarity, the corresponding winding terminals of the primary and secondary windings are connected in the same phase. In subtractive polarity, the corresponding winding terminals are connected in opposite phases, resulting in a phase shift of 180 degrees between primary and secondary voltages. The choice of polarity depends on the desired phase relationship and application requirements.
Lab 04
OPEN CIRCUIT AND SHORT CIRCUIT TEST OF SINGLE PHASE TRANSFORMER AND EFFICIENCY CALCULATIONS Open circuit core loss short circuit copper loss (i) open Circuit Test on Transformer
(ii) Short Circuit Test on Transformer Q.1 If Np=720, Ns=120, IL=12A, Ip=? To find the value of Ip (primary current), we can use the turns ratio equation: Therefore, Ip (primary current) is 72A. Q.2 Vp=2400 V, Vs=230 V, Ns=2000, Np=? To find the value of Np (number of turns on the primary side), we can use the turns ratio equation: Np ≈ 20869
The purpose of this test is to determine the core losses, including hysteresis and eddy current losses, when the transformer operates under no-load conditions. By measuring the input power, current, and voltage, the core losses can be calculated, which provides information about the efficiency and energy consumption of the transformer under no-load conditions.
- Short Circuit Test (S.C. Test): The purpose of this test is to determine the impedance, leakage reactance, and copper losses of the transformer. By measuring the input power, current, and voltage, the copper losses can be calculated, which provides information about the efficiency and energy consumption of the transformer under short-circuit conditions. The S.C. test also helps in determining the equivalent circuit parameters of the transformer, such as the equivalent resistance and reactance, which are useful for analyzing the transformer's behavior under different load conditions.
Lab 05
EFFICIENCY AND VOLTAGE REGULATION OF THE SINGLE-PHASE TRANSFORMER The objective of this experiment is to determine the voltage regulation and efficiency of a transformer by measuring input and output current and voltages Q.5 Why appliances are damaged on Dim Supply? Appliances can be damaged on a dim supply due to several reasons:
- Voltage Drop:
- Insufficient Power:
- Overloading:
- Voltage Fluctuations: Q.6 What is negative voltage regulation? Negative voltage regulation refers to a condition in which the output voltage of a device decreases as the load on the device increases. In other words, as the load draws more current, the output voltage decreases. Q.7 What is positive voltage regulation? Positive voltage regulation refers to a condition in which the output voltage of a device or system remains constant or increases as the load on the device increases. In other words, as the load draws more current, the output voltage remains stable or increases. Q.8 Lagging power factor produces positive voltage regulation. Q.9 Leading power factor produces negative voltage regulation. Q.12 What is the relation between VR and Efficiency? The relation between voltage regulation (VR) and efficiency depends on the specific device or system being considered. In general, there is no direct mathematical relationship between VR and efficiency. Q.13 What is Regulation Up and Regulation Down? Regulation Up refers to an increase in output voltage as the load on the device or system increases.. Regulation Down refers to a decrease in output voltage as the load on the device or system
Lab 06
STARTING, REVERSING THE DIRECTION AND NO LOAD OPERATION OF THE THREE PHASE INDUCTION MOTOR 3 phase induction motors are extensively used for various industrial applications because of their following advantages –
- Similarity between Induction Motor and Transformer: The main similarity between an induction motor and a transformer is that both devices rely on the principle of electromagnetic induction. They both have a primary winding and a secondary winding, which are linked by a magnetic field.
- How Power Factor (p.f) Changes with the Applied Voltage: a) When Voltage Varies with Constant Reactive Load: b) When Voltage Remains Constant with Varying Reactive Load:
Lab 07
MEASUREMENT OF SLIP OF THREE PHASE INDUCTION MOTOr
1 - When a three-phase induction motor is loaded, the rotor experiences a torque opposing the rotation induced by the stator's rotating magnetic field. This torque causes the rotor to slow down, resulting in an increase in slip. As the slip increases, the slip frequency also increases..
- The relationship between speed and slip at overloading conditions in a three-phase induction motor is inversely proportional. As the load on the motor increases, the slip also increases.
- There are several methods to determine the slip of a three-phase induction motor, and the choice of method depends on the available information and measurement capabilities. Two commonly used methods are: a) Direct measurement: b) Indirect measurement using stator quantities:
- The relationship between speed and slip at overloading conditions in a three-phase induction motor is inversely proportional. As the motor becomes overloaded, the mechanical load on the motor increases, causing the rotor to slow down
- The range of starting current of an induction motor also depends on factors such as motor design, size, and application. During starting, the current drawn by an induction motor is typically higher than the rated current.. 9 - A torque measuring device, also known as a torque sensor or torque transducer, is a device used to measure the torque exerted on a rotating shaft or system.
Lab 09
TO FIND LOSSES AND EFFECIENCY OF THE THREE PHASE INDUCTION MOTOR Fixed Losses: Stator Iron Loss, Friction and Windage Loss, Rotor Core Loss Variable Losses: Stator Cu Loss IL 2R,Rotor Cu Losses
The construction of a dynamometer typically involves the following components: Stator:. Rotor:. Bearings: Strain Gauges:. Load Cell Data Acquisition System
- The function of a spring balance in a dynamometer is to measure the applied force or torque.
- The stator resistance of a three-phase induction motor can be measured using various techniques. One common method is the 'two-point method,' which involves
disconnecting the motor from the power supply and using a low-voltage DC source and a known resistance. The steps to measure the stator resistance are as follows: Disconnect the motor from the power supply. Connect the low-voltage DC source across one phase of the stator winding. Connect the known resistance in series with the DC source and stator winding. Measure the voltage drop across the known resistance and the current flowing through the circuit. Calculate the stator resistance using Ohm's law: Resistance = Voltage drop / Current. It's important to note that stator resistance measurement should be performed on a de- energized motor with appropriate safety precautions.
- If one phase line of a three-phase induction motor is opened and the remaining two phases are closed, the motor will not start. This is because a three-phase induction motor requires a balanced three-phase supply to create a rotating magnetic field in the stator.
Lab 10
NO LOAD CHARACTERSTICS OF DC GENERATOR
- What is relationship between line and phase voltage? VLN = VLL / √ In other words, the phase voltage is equal to the line voltage divided by the square root of 3. This relationship holds true in a balanced system because the line-to-neutral voltage is lower than the line-to-line voltage by a factor of the square root of 3.
