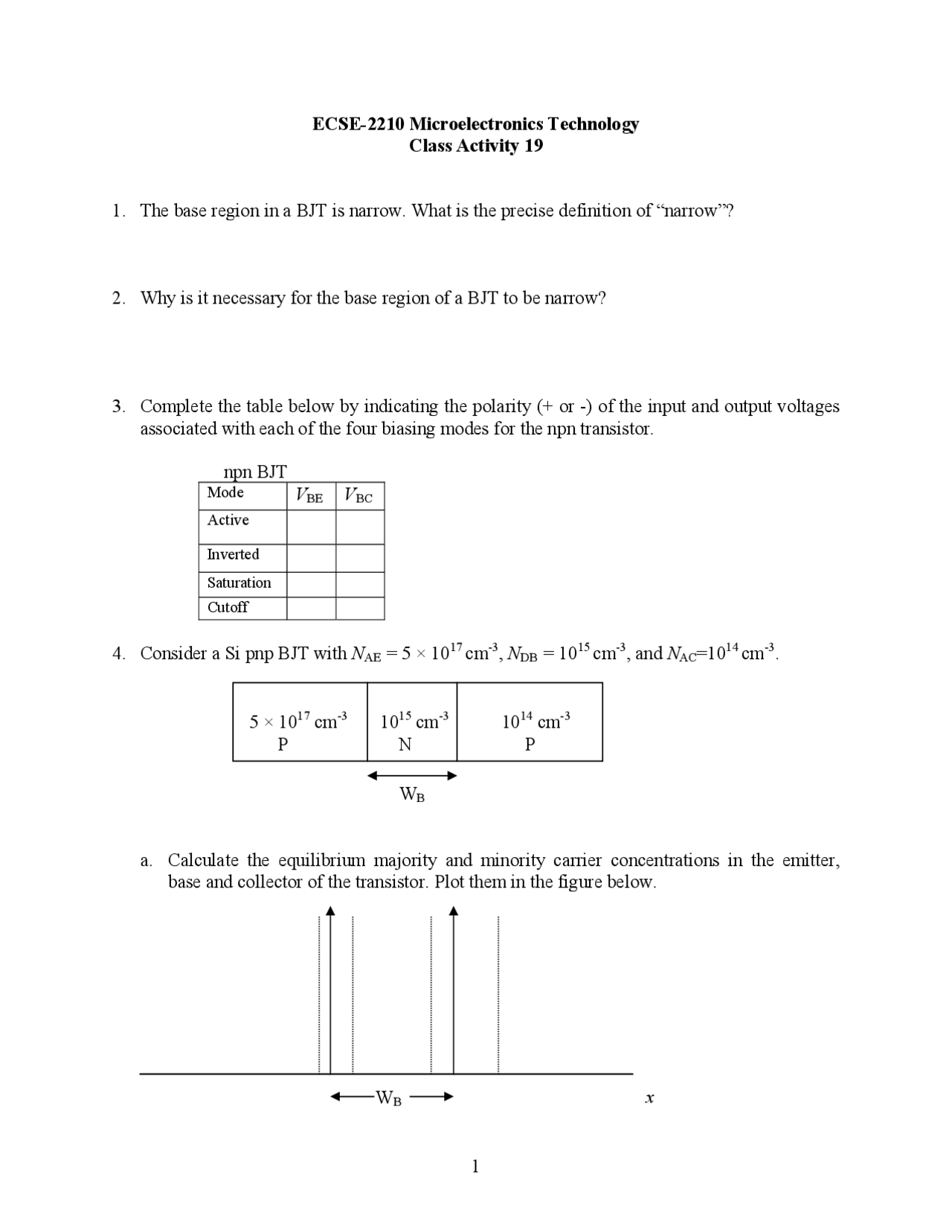

ECSE-2210 Microelectronics Technology
Class Activity 19
1. The base region in a BJT is narrow. What is the precise definition of “narrow”?
2. Why is it necessary for the base region of a BJT to be narrow?
3. Complete the table below by indicating the polarity (+ or -) of the input and output voltages
associated with each of the four biasing modes for the npn transistor.
npn BJT
Mode VBE VBC
Active
Inverted
Saturation
Cutoff
4. Consider a Si pnp BJT with NAE = 5 × 1017 cm-3, NDB = 1015 cm-3, and NAC=1014 cm-3.
a. Calculate the equilibrium majority and minority carrier concentrations in the emitter,
base and collector of the transistor. Plot them in the figure below.
5 × 1017 cm-3 1015 cm-3 1014 cm-3
P N P
W
B
W
B
x
pf2
