bg1
1

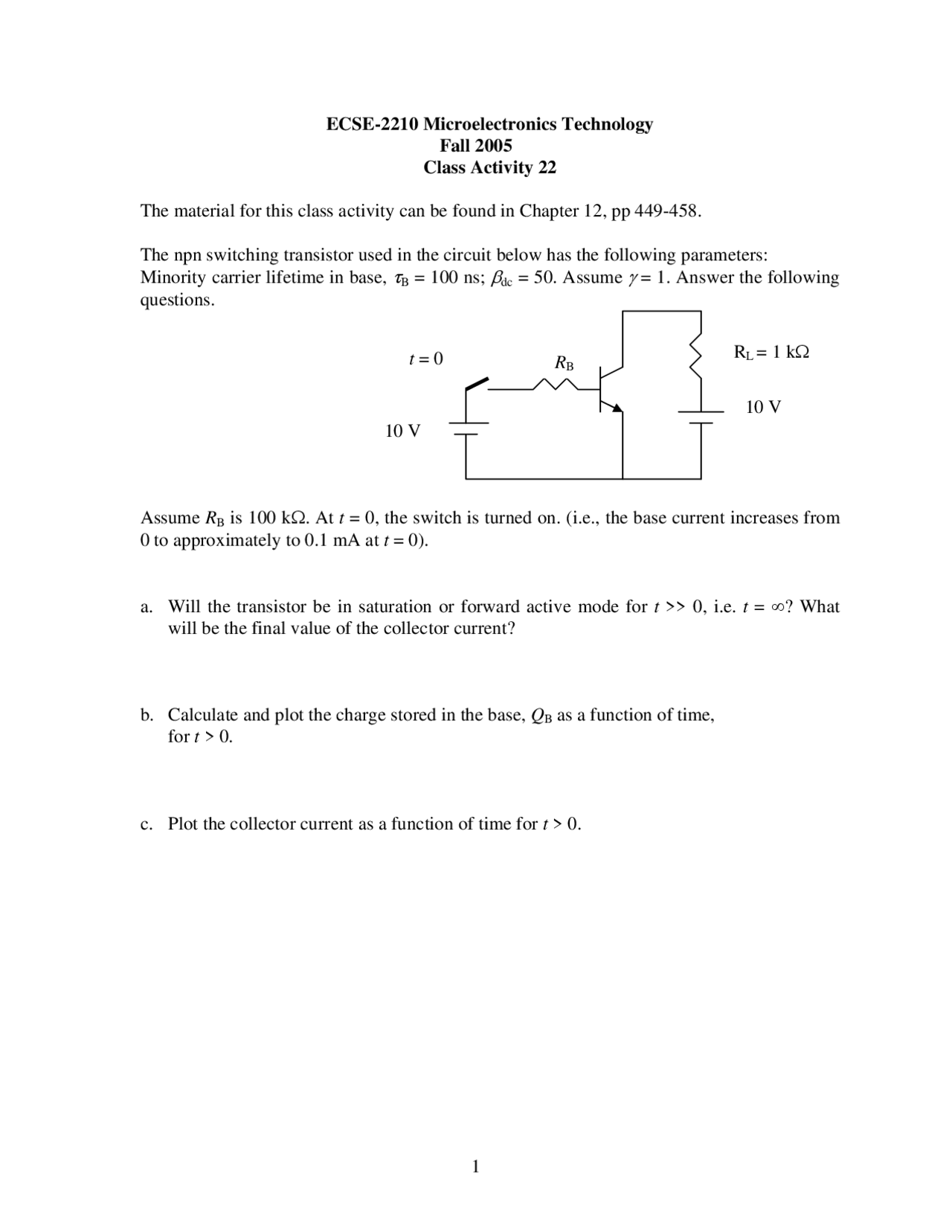

ECSE-2210 Microelectronics Technology
Fall 2005
Class Activity 22
The material for this class activity can be found in Chapter 12, pp 449-458.
The npn switching transistor used in the circuit below has the following parameters:
Minority carrier lifetime in base,
τ
B = 100 ns;
β
dc = 50. Assume
γ
= 1. Answer the following
questions.
Assume RB is 100 k. At t = 0, the switch is turned on. (i.e., the base current increases from
0 to approximately to 0.1 mA at t = 0).
a. Will the transistor be in saturation or forward active mode for t >> 0, i.e. t = ? What
will be the final value of the collector current?
b. Calculate and plot the charge stored in the base, QB as a function of time,
for t > 0.
c. Plot the collector current as a function of time for t > 0.
t = 0 RB
10 V
R
L = 1
k
10 V
pf2

Partial preview of the text

Download Microelectronics Technology: Npn Transistor Behavior Analysis and more Exams Electrical and Electronics Engineering in PDF only on Docsity!

ECSE-2210 Microelectronics Technology Fall 2005 Class Activity 22

The material for this class activity can be found in Chapter 12, pp 449-458.

The npn switching transistor used in the circuit below has the following parameters:

Minority carrier lifetime in base, τB = 100 ns; βdc = 50. Assume γ = 1. Answer the following

questions.

Assume R B is 100 kΩ. At t = 0, the switch is turned on. (i.e., the base current increases from 0 to approximately to 0.1 mA at t = 0).

a. Will the transistor be in saturation or forward active mode for t >> 0, i.e. t = ∞? What will be the final value of the collector current?

b. Calculate and plot the charge stored in the base, Q B as a function of time, for t > 0.

c. Plot the collector current as a function of time for t > 0.

t = 0 (^) R B

10 V

RL = 1 kΩ

10 V

Suppose R B = 25 kΩ. When the switch is turned on at t = 0, the base current switches from 0 to 0.4 mA.

d. Is the transistor in saturation for t >>0?

e. Calculate and plot the collector current as a function of time and sketch it for t > 0.

f. Find the time t r required for collector current to reach steady state value.

Note that by making I B large, we can reduce the turn-on time. However, this will put the transistor into “deep saturation” mode so that the turn-off time will be increased. Often, a “Schottky diode clamp” is used to bypass the base current when the transistor is in saturation. This greatly reduces the saturation-mode build up of stored charge, and hence the turn-off time.
