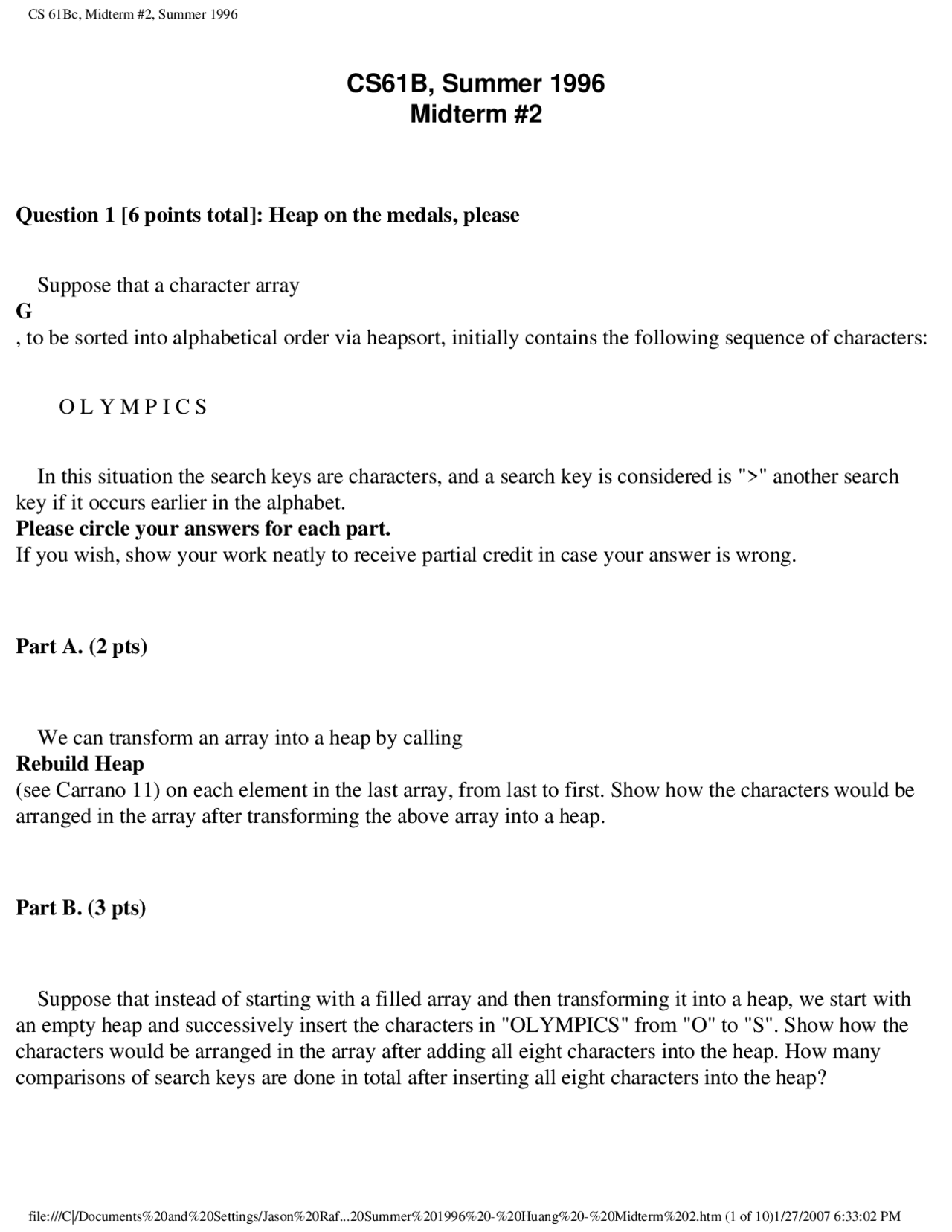

CS61B, Summer 1996
Midterm
Question 1 [6 points total]: Heap on the medals, please
Suppose that a character array G , to be sorted into alphabetical order via heapsort, initially contains the following sequence of characters:
O L Y M P I C S
In this situation the search keys are characters, and a search key is considered is ">" another search key if it occurs earlier in the alphabet. Please circle your answers for each part. If you wish, show your work neatly to receive partial credit in case your answer is wrong.
Part A. (2 pts)
We can transform an array into a heap by calling Rebuild Heap (see Carrano 11) on each element in the last array, from last to first. Show how the characters would be arranged in the array after transforming the above array into a heap.
Part B. (3 pts)
Suppose that instead of starting with a filled array and then transforming it into a heap, we start with an empty heap and successively insert the characters in "OLYMPICS" from "O" to "S". Show how the characters would be arranged in the array after adding all eight characters into the heap. How many comparisons of search keys are done in total after inserting all eight characters into the heap?
Part C. (1 pt)
Using the heap from Part B, show how the characters would be arranged in the array after removing the first two items from the heap.
Question 2 [7 points total] Let's hash this out
This problem contains three independent parts that all concern hash table. You should assume for this problem that there are no problems with arithmetic overflows. i.e., that the machine can handle arbitrarily large numerical values.
Part A. (2 pts)
Suppose that we implement a hash table using a character array of size 13 to store the keys themselves. Show the contents of the array when the keys S I L V E R M E D A L are inserted in that order into an empty hash table with linear probing to resolve conflicts. Use h(k) = k mod 13 as the hash function for the k th letter of the alphabet. (Note: S = 19th letter of alphabet, I = 9th, L = 12th, V = 2nd, E = 5th, R = 19th, M = 13th, E = 5th, D = 4th, A = 1st, L = 12th.) Circle those keys that encountered collisions when they were inserted into the table.
Part B. (3 pts)
Suppose you wish to make a hash table of all the computer science students at UC Berkeley using as the key each student's ID number, and suppose you have decided to implement the hash table using an unsigned long integer array of size 499, with quadratic probing to resolve conflicts. (by the way, both 4999 and 997 are prime numbers.)
For each of the following three possible hash functions, say whether it is a good or bad choice, and
mod 4999:
Part C. (2 pts)
Of the different hashing approaches that were discussed in lecture (simple array with linear probing, simple array with quadratic probing, simple array with double hashing, buckets, and separate chaining), which approach would be most appropriate for an application in which many equal keys are likely to be present? In at most two sentences, explain why.
Question 3 [7 points total] All you negative folks, go over there
For this problem, your job is to write a function, rearrange , that takes two arguments: A , an array of integers, and n , the size of the array. rearrange shouldn't return anything, but it should rearrange the integers in A so that all the negative integers precede the nonnegative intergers. It should require only a constant amount of additional memory to run, regardless of the size of A (you should not, for instance, allocate space for a complete copy of A ), and it should be as efficient as possible.
As an example, rearrange might be given n = 10 and this array A :
[1 10 -5 14 -9 -3 88 -1000 0 4]
It would rearrange these so that the negative integers come before the nonnegative integers (the order of the integers in each group doesn't matter). For example, it might rearrange A to be:
[-9 -5 -1000 -3 4 10 0 1 88 14]
Part A. (6 pts)
Write your rearrange function here:
Part B. (1 pt)
What is the order of growth of your algorithm?
Question 4 [7 points total] Sorting out sorting
AFter taking CS 61B, Amy knows that mergesort is typically faster than bubblesort.
Part A. (1 pt)
In one sentence, explain what theoretical evidence she has of this.
, that corresponds to the preorder and postorder vectors listed below. Please circle your answer for each part. the relevant C++ code from the solutions is reproduced on the next page.
preorder = [ 15 9 99 36 66 16 50 81 28 71 42 3 10 7 11 13 12 ]
postorder = [ 99 36 9 16 50 28 71 81 66 42 10 3 11 13 12 7 15 ]
Part A. (1 pt)
What is the value at the root node of Oak ?
Part B. (3 pts)
What are the values at the child nodes of the root node? You should list them in correct order, from leftmost child to rightmost child.
Part C. (3 pts)
One of the nodes in Oak has value 66. In the space below, draw the subtree of Oadk that is rooted at this node. You should draw this subtree as a regular general tree. (Don't use the binary tree representation of general trees that is described in homework #3.)
void makeGeneral (binTree &T, Vector&PreorderV, Vector&PostorderV, bool
&Succeeded)
{
if (PreorderV.size() == 0) {
Succeeded = true; return;
} else {
// Set the root node. It should be equal to PostOrderV[PostorderV.size()-1] T.SetRootDate (PreorderV[0]);
// search for each child from last to first int pre_index = PreorderV.size() -1; int post_index = PostorderV.size() - 2; while (post_index >=0) {
int i; for (i = pre_index; PreorderV[i] != PostorderV[post_index]; -- i) {
if (i <= 0) { Succeeded = false; return; }
//make the subtree and attach it int length = pre_index - i + 1; binTree new_child; int pre_start = pre_index - length + 1; int post_start = post_index - length + 1; Vector< int > pre_subv (length, 0), post_subv(length, 0); for (i = pre_start; i <= pre_index; ++i) { pre_subv[i-pre_start] = PreorderV[i]; } for (i = post_start; i <= post_index; ++i) { post_subv[i-post_start] = PostorderV[i]; } // recursively call makeGeneral to generate subtree
or no credit will be given for incorrect answers to this problem.
For this problem, your job is to write a function, median , that takes two arguments: A , an array of integers, and n , the size of the array. median should return the value of the median integer in the list, and it should run in linear time .
As an example, median might be given n = 9 and this array A :
[1 10 -5 14 -9 -3 88 -1000 4]
In this case, median should return 1 since that is the middle value in the list. If the list has even length, it should return the smaller of the two middle values.
Write your median function here:
Posted by HKN (Electrical Engineering and Computer Science Honor Society) University of California at Berkeley If you have any questions about these online exams please contact mailto:[email protected]
