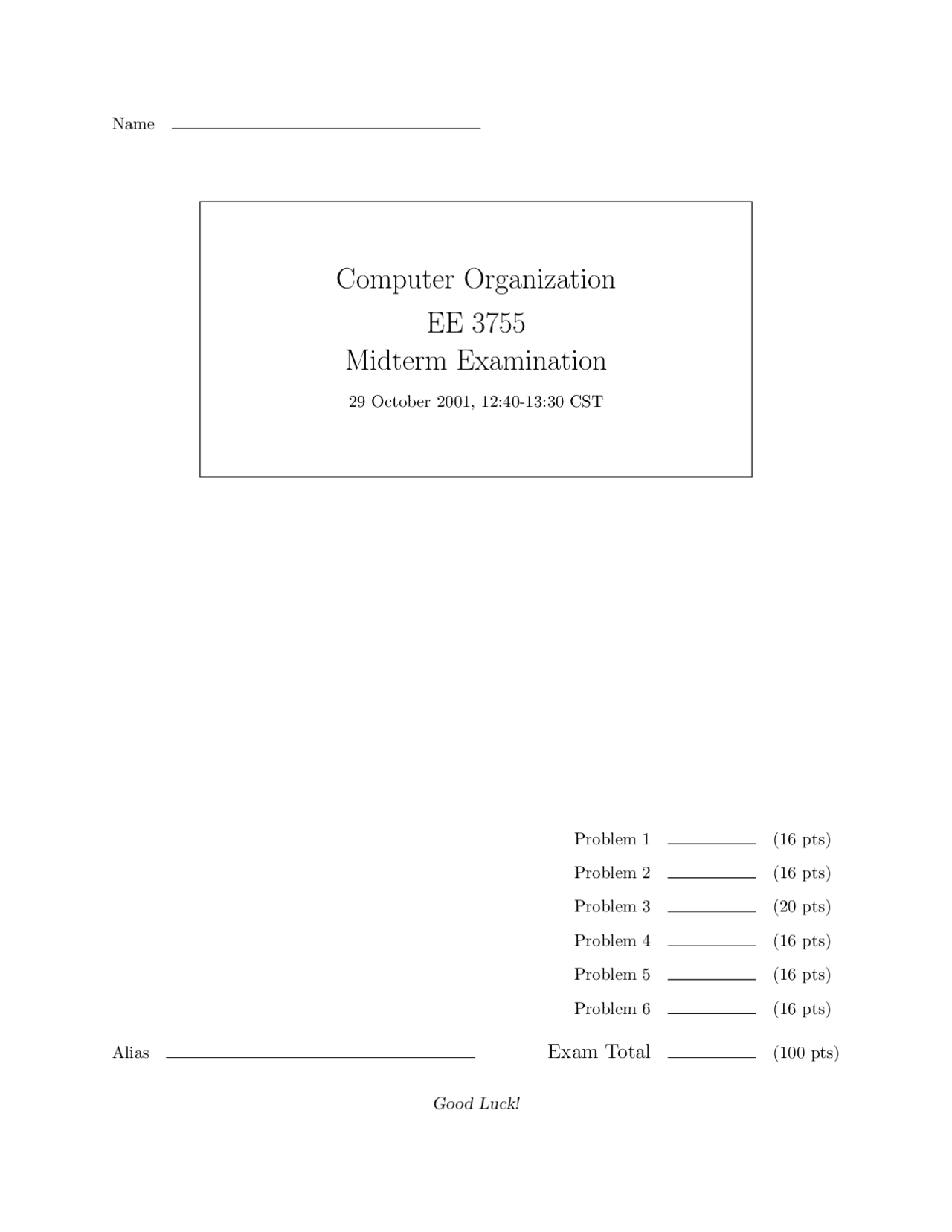

Name
Computer Organization
EE 3755
Midterm Examination
29 October 2001, 12:40-13:30 CST
Alias
Problem 1 (16 pts)
Problem 2 (16 pts)
Problem 3 (20 pts)
Problem 4 (16 pts)
Problem 5 (16 pts)
Problem 6 (16 pts)
Exam Total (100 pts)
Good Luck!
pf3
pf4
pf5

Partial preview of the text

Download Midterm Examination - Computer Organization | EE 3755 and more Exams Electrical and Electronics Engineering in PDF only on Docsity!

Name

Computer Organization

EE 3755

Midterm Examination

29 October 2001, 12:40-13:30 CST

Alias

Problem 1 (16 pts)

Problem 2 (16 pts)

Problem 3 (20 pts)

Problem 4 (16 pts)

Problem 5 (16 pts)

Problem 6 (16 pts)

Exam Total (100 pts)

Good Luck!

Problem 1: Add Verilog code to the 32-bit carry-lookahead adder module below for the carry[5]

wire. Use the generate and propagate signals.

(16 pts)

module cla_32(sum,a,b); input [31:0] a, b; output [32:0] sum;

wire [31:0] g, p, carry;

// Code for other carry signals omitted. // // Start answer here ↓

assign carry[5] =

cla_slice s0(sum[0],g[0],p[0],a[0],b[0],carry[0]); cla_slice s1(sum[1],g[1],p[1],a[1],b[1],carry[1]); cla_slice s2(sum[2],g[2],p[2],a[2],b[2],carry[2]); // Code for other cla_slices omitted. cla_slice s5(sum[5],g[5],p[5],a[5],b[5],carry[5]); // Code for other cla_slices omitted.

endmodule

Problem 3: The module below examines a bit sequence one bit per clock cycle, as did the module

in Homework 2 Problem 2. The input bit is valid on the positive edge of clk, that bit is the first of a new sequence if reset is high. The output, lrun, must be the longest number of consecutive 1 ’s encountered since the last time reset was 1. For example, after 00111010 is received the output should be 3 since that is the length of the longest run of 1 ’s. Also see the example timing below. As in Homework 2 the module must synthesize to sequential logic. (20 pts)

0 1 2 3 0 1

0 40 80 120

/tlr/lrun 0 1 2 3 0 1 /tlr/bit /tlr/clk /tlr/reset

module longest_run(lrun,bit,reset,clk); output [31:0] lrun; input bit, reset, clk;

endmodule

Problem 4: Show the hardware that the module below will synthesize in to. Indicate the types

(edge- or level-triggered) of any registers synthesized.

(16 pts)

module syn(x,r,a,b,m,neg); input [31:0] a, b; input m, neg; output [31:0] x, r;

reg [31:0] x, r, bn;

always @( a or b or m or neg ) begin

if( neg ) bn = -b; else bn = b;

x = a + bn;

if( m ) r = x + b;

end

endmodule

Problem 6: The high-radix Booth multiplier is faster than the radix-2 multipliers (for example,

the streamlined signed multiplier). (16 pts)

(a) Compared to the streamlined signed multiplier, what additional hardware is needed for a high- radix Booth multiplier?

(b) Name two advantages that a high-radix Booth multiplier has over an ordinary high-radix mul- tiplier.
