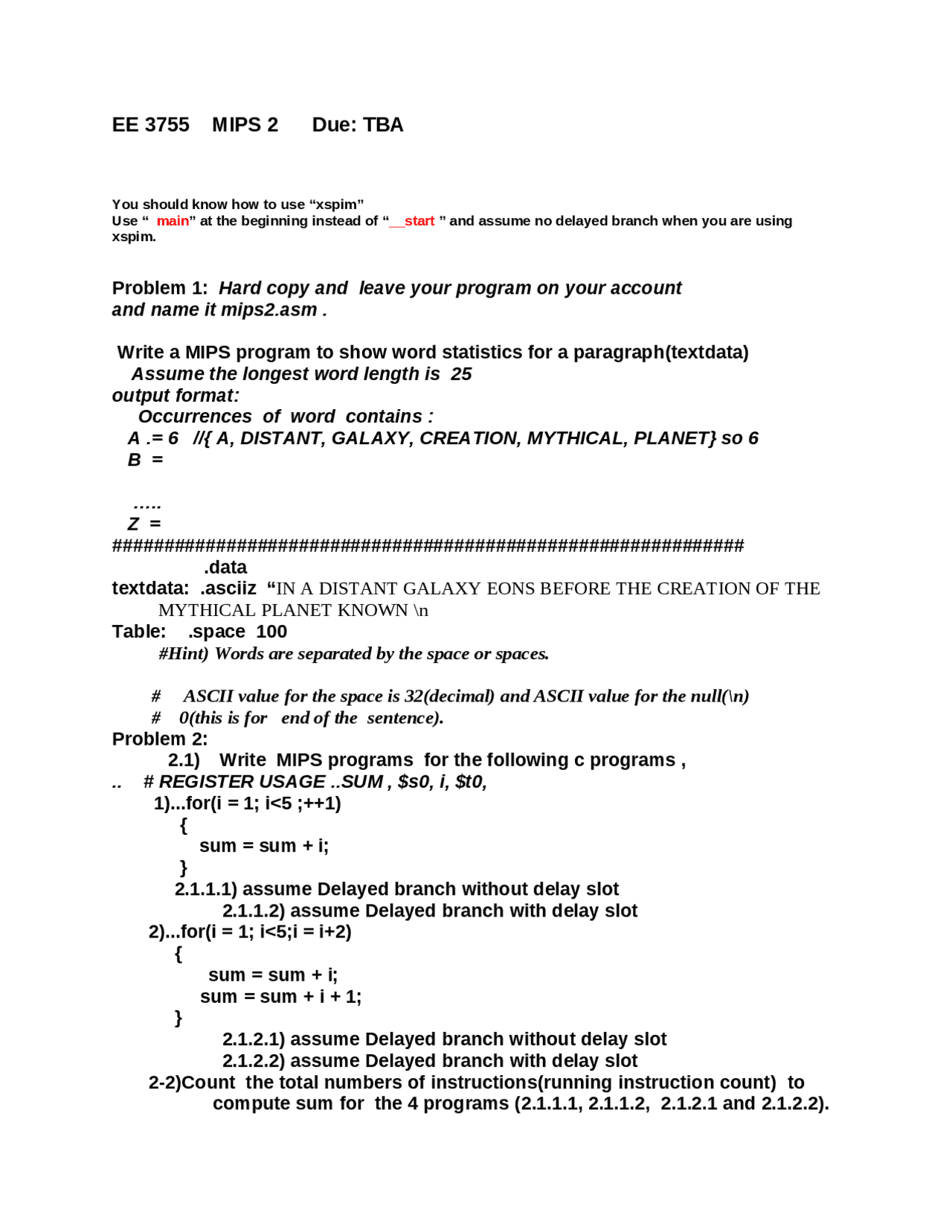

EE 3755 MIPS 2 Due: TBA
You should know how to use “xspim”
Use “ main” at the beginning instead of “__start ” and assume no delayed branch when you are using
xspim.
Problem 1: Hard copy and leave your program on your account
and name it mips2.asm .
Write a MIPS program to show word statistics for a paragraph(textdata)
Assume the longest word length is 25
output format:
Occurrences of word contains :
A .= 6 //{ A, DISTANT, GALAXY, CREATION, MYTHICAL, PLANET} so 6
B =
…..
Z =
#############################################################
.data
textdata: .asciiz “IN A DISTANT GALAXY EONS BEFORE THE CREATION OF THE
MYTHICAL PLANET KNOWN \n
Table: .space 100
#Hint) Words are separated by the space or spaces.
# ASCII value for the space is 32(decimal) and ASCII value for the null(\n)
# 0(this is for end of the sentence).
Problem 2:
2.1) Write MIPS programs for the following c programs ,
.. # REGISTER USAGE ..SUM , $s0, i, $t0,
1)...for(i = 1; i<5 ;++1)
{
sum = sum + i;
}
2.1.1.1) assume Delayed branch without delay slot
2.1.1.2) assume Delayed branch with delay slot
2)...for(i = 1; i<5;i = i+2)
{
sum = sum + i;
sum = sum + i + 1;
}
2.1.2.1) assume Delayed branch without delay slot
2.1.2.2) assume Delayed branch with delay slot
2-2)Count the total numbers of instructions(running instruction count) to
compute sum for the 4 programs (2.1.1.1, 2.1.1.2, 2.1.2.1 and 2.1.2.2).
