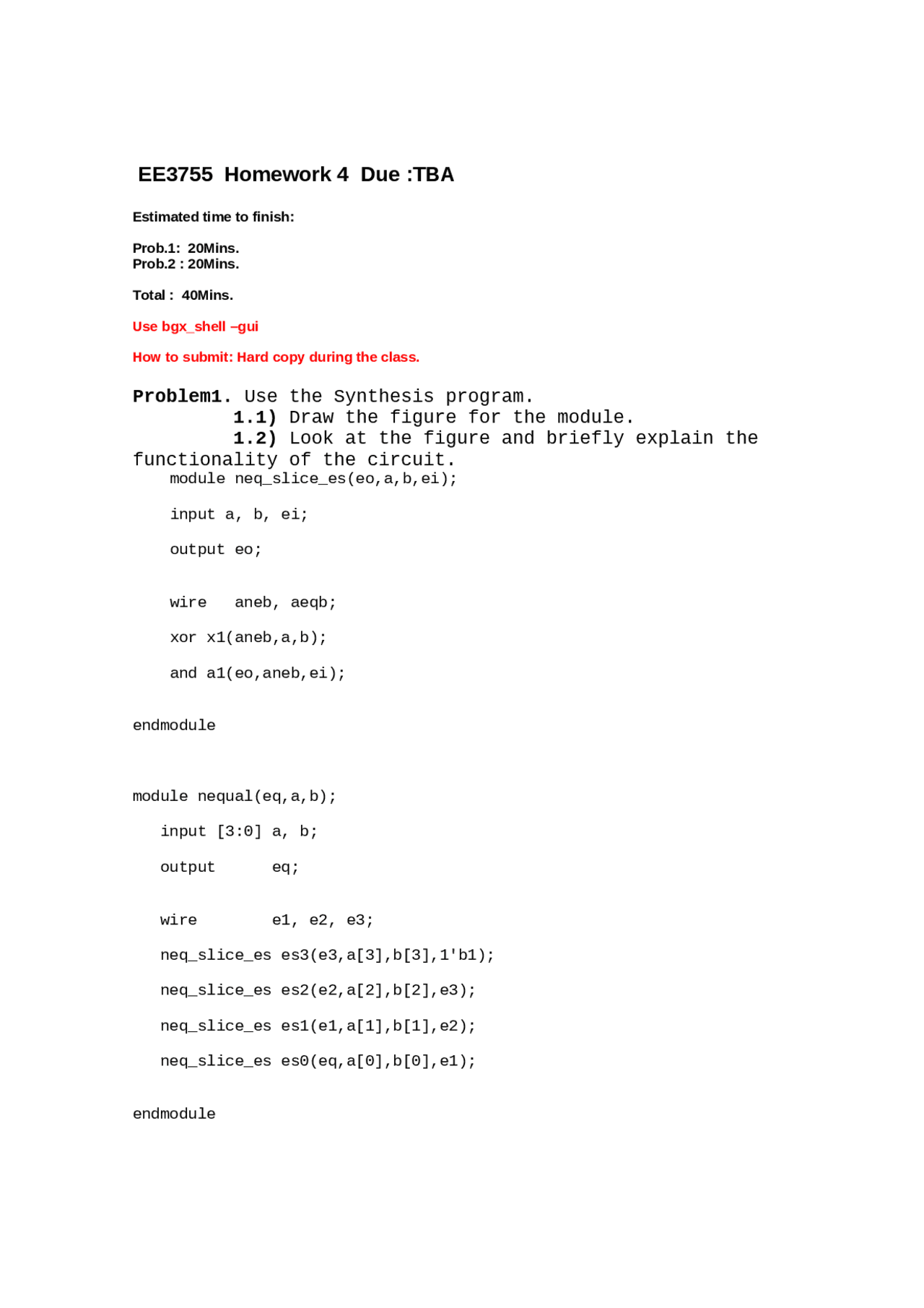

EE3755 Homework 4 Due :TBA
Estimated time to finish:
Prob.1: 20Mins.
Prob.2 : 20Mins.
Total : 40Mins.
Use bgx_shell –gui
How to submit: Hard copy during the class.
Problem1. Use the Synthesis program.
1.1) Draw the figure for the module.
1.2) Look at the figure and briefly explain the
functionality of the circuit.
module neq_slice_es(eo,a,b,ei);
input a, b, ei;
output eo;
wire aneb, aeqb;
xor x1(aneb,a,b);
and a1(eo,aneb,ei);
endmodule
module nequal(eq,a,b);
input [3:0] a, b;
output eq;
wire e1, e2, e3;
neq_slice_es es3(e3,a[3],b[3],1'b1);
neq_slice_es es2(e2,a[2],b[2],e3);
neq_slice_es es1(e1,a[1],b[1],e2);
neq_slice_es es0(eq,a[0],b[0],e1);
endmodule
