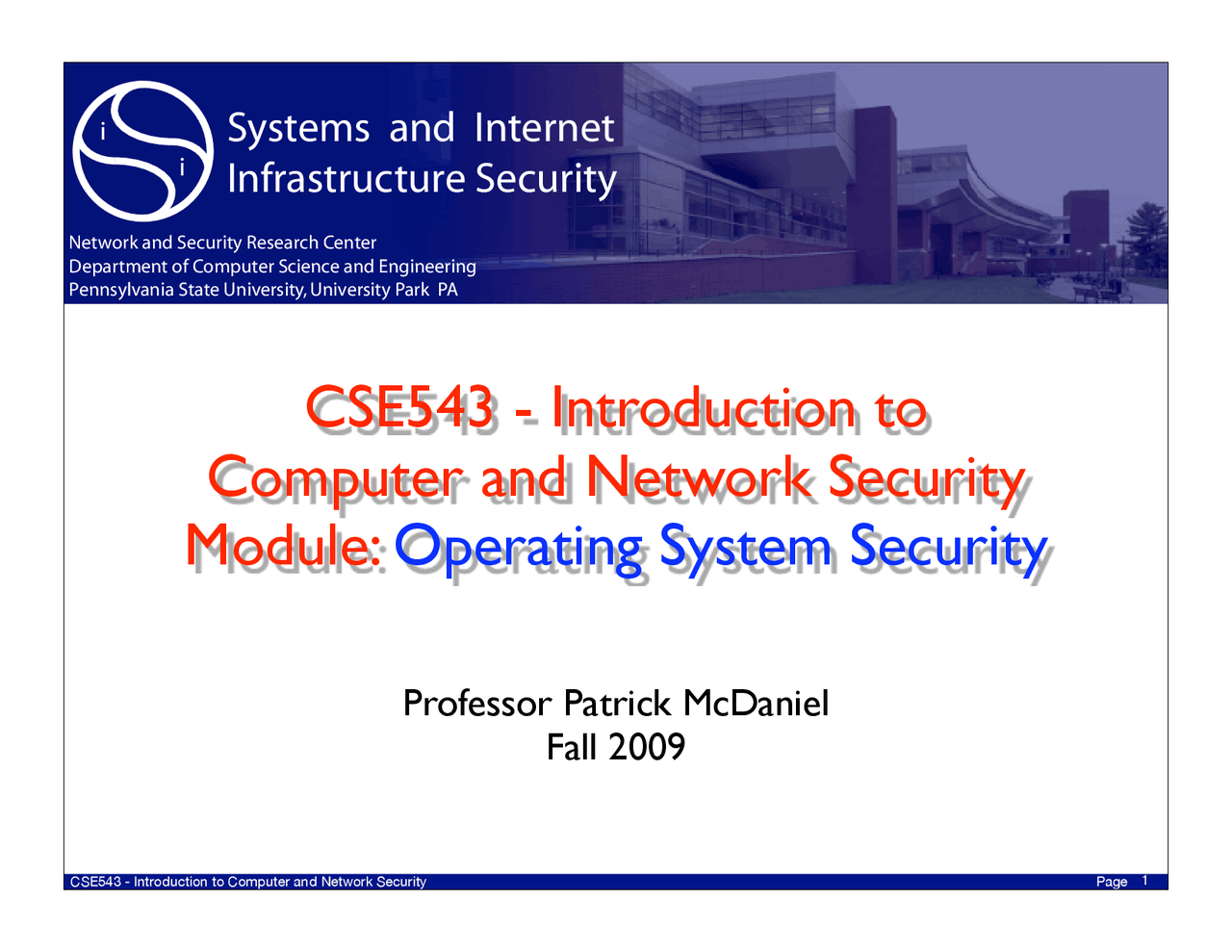

3YSTEMSAND)NTERNET )NFRASTRUCTURE3ECURITY I I .ETWORKAND3ECURITY2ESEARCH#ENTER $EPARTMENTOF#OMPUTER3CIENCEAND%NGINEERING 0ENNSYLVANIA3TATE5NIVERSITY 5NIVERSITY0ARK0!

CSE543 - Introduction to

Computer and Network Security

Module: Operating System Security

Professor Patrick McDaniel Fall 2009 1

OS Security

• An secure OS should provide (at least) the

following mechanisms

‣ Memory protection

‣ File protection

‣ General object protection

‣ Access authentication

• How do we go about designing a trusted OS?

• “Trust” in this context means something

different from “Secure”

2

Access Control Lists

  • (^) ACL: a list of the principals that are authorized to have access to some object.
  • (^) Eg., O 2 S 1 Y S 2 Y S 3 Y
  • Or more correctly: O 1 : S 1 O 2 : S 1 , S 2 , S 3 O 3 : S 3
  • We are going to see a lot of examples of these throughout the semester. 4

ACL in systems

  • (^) ACLs are typically used to implement discretionary access control
  • (^) For example: you define the UNIX file system ACLs using the chmod utility …. 5

UNIX filesystem rights …

  • (^) There are three rights in the UNIX filesystem ‣ (^) READ - allows the subject (process) to read the contents of the file. ‣ (^) WRITE - allows the subject (process) to alter the contents of the file. ‣ (^) EXECUTE - allows the subject (process) to execute the contents of the file (e.g., shell program, executable, …)
  • Q: why is execute a right?
  • (^) Q: does the right to read a program implicitly give you 7

The UNIX FS access policy

  • (^) Really, this is a bit string encoding an access matrix
  • (^) E.g.,

rwx rwx rwx

  • (^) And a policy is encoded as “r”, “w”, “x” if enabled, and “-” if not, e.g,

rwxrw--x

  • Says user can read, write and execute, group can read and write, and world can execute only. World Group Owner 8

Windows grows up ...

  • (^) Windows 2000 marked the beginning of real OS security for the windows systems ... 10

Tokens

  • (^) Like the UID/GID in a UNIX process ‣ (^) User ‣ Group ‣ (^) Aliases ‣ Privileges (predefined sets of rights)
  • (^) May be specific to a domain
  • (^) Composed into global SID
  • Subsequent processes inherit access tokens ‣ Different processes may have different rights 11

Access Checking with ACEs

  • (^) Example 13

Window Vista Integrity

  • (^) Integrity protection for writing
  • Defines a series of protection level of increasing protection ‣ untrusted (lowest) ‣ low (Internet) ‣ medium (user) ‣ (^) high (admin) ‣ system ‣ installer (highest)
  • Semantics: If subject’s (process’s) integrity level dominates the object’s integrity level, then the write is allowed 14

And now back to UNIX ...

16

UID Transition: Setuid

  • (^) A special bit in the mode bits
  • (^) Execute file ‣ Resulting process has the effective (and fs) UID/GID of file owner
  • (^) Enables a user to escalate privilege ‣ For executing a trusted service
  • Downside: User defines execution environment ‣ (^) e.g., Environment variables, input arguments, open descriptors, etc.
  • Service must protect itself or user can gain root access
  • (^) All UNIX services involves root processes -- many via setuid 17

Other Vulnerabilities

  • (^) Objects w/o sufficient control ‣ Windows registry, network
  • (^) Libraries ‣ Load order permits malware defined libraries
  • (^) Executables are everywhere ‣ (^) Web content, Email, Documents (Word)
  • (^) Labeling is wrong ‣ Mount a new file system; device
  • Malware can modify your permissions ‣ (^) Inherent to discretionary model 19

Sandboxing

  • (^) An execution environment for programs that contains a limited set of rights ‣ A subset of your permissions (meet secrecy and integrity goals) ‣ Cannot be changed by the running program (mandatory) 20
