CSE543 Computer (and Network) Security - Fall 2007 - Professor Jaeger

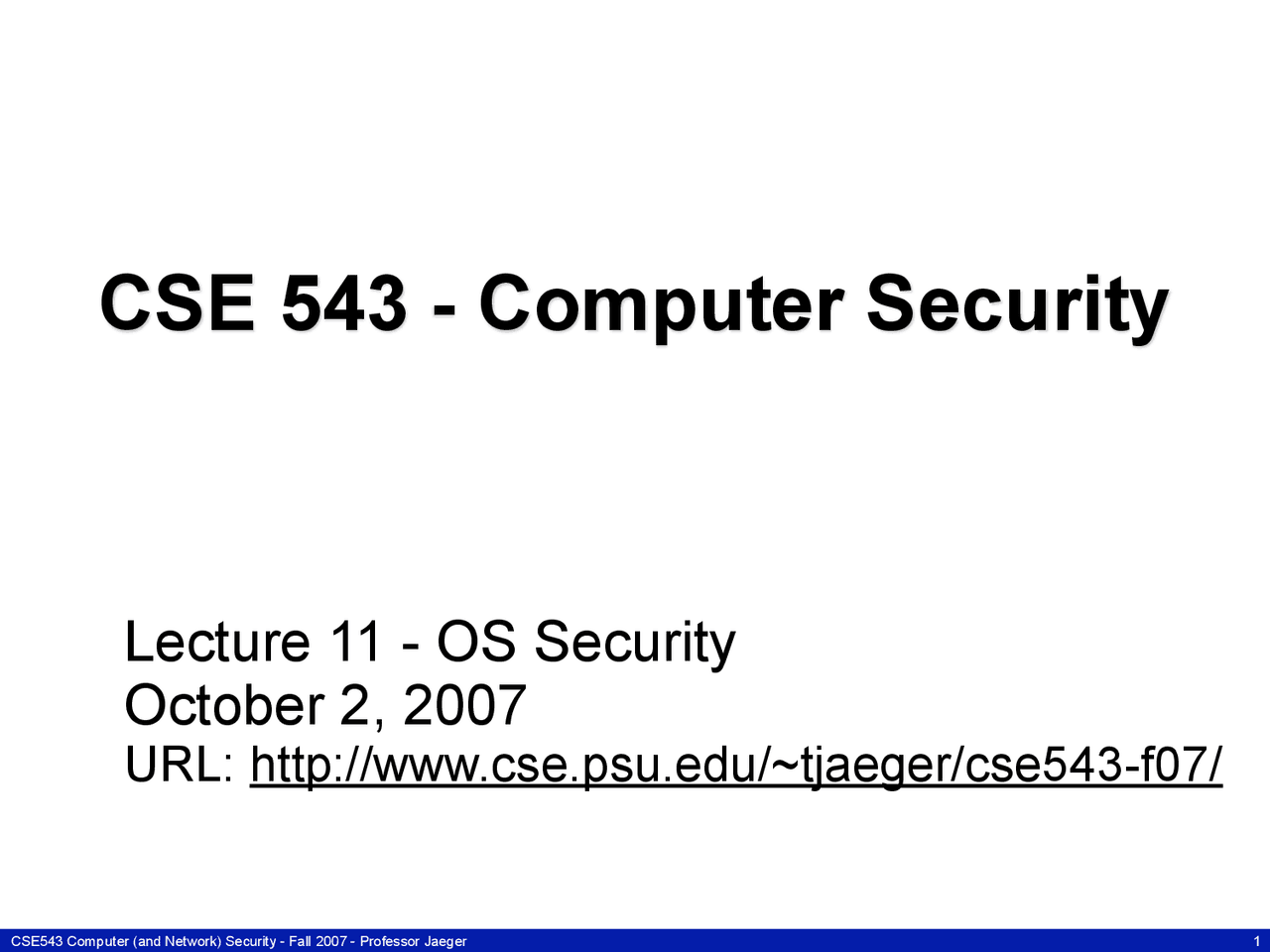

CSE 543 - Computer Security

Lecture 11 - OS Security

October 2, 2007

URL: http://www.cse.psu.edu/~tjaeger/cse543-f07/ 1

OS Security

• An secure OS should provide the following mechanisms - Memory protection - File protection - General object protection - Access authentication
• How do we go about designing a trusted OS?
• “Trust” in this context means something different from “Secure”

Access Control Lists

• ACL: a list of the principals that are authorized to have access to some object.
• Eg., O 2 S 1 Y S 2 Y S 3 Y
• Or more correctly: O 1

: S

1 O 2

: S

1

, S

2

, S

3 O 3

: S

3

• We are going to see a lot of examples of these throughout the semester.

ACL in systems

• ACLs are typically used to implement discretionary access control
• For example: you define the UNIX file system ACLs using the chmod utility ….

UNIX filesystem rights …

• There are three rights in the UNIX filesystem
  • READ - allows the subject (process) to read the contents of the file.
  • WRITE - allows the subject (process) to alter the contents of the file.
  • EXECUTE - allows the subject (process) to execute the contents of the file (e.g., shell program, executable, …)
• Q: why is execute a right?
• Q: does the right to read a program implicitly give you the right to execute it?

The UNIX FS access policy

• Really, this is a bit string encoding an access matrix
• E.g., rwx rwx rwx
• And a policy is encoded as “r”, “w”, “x” if enabled, and “-” if not, e.g, rwxrw--x
• Says user can read, write and execute, group can read and write, and world can execute only. World Group Owner

Windows 2000 Security Model

• Windows uses an ACL model too
  • But, its model is more general
• Subjects
  • Tokens: Can describe users, groups, arbitrary privileges and retract privileges (restricted contexts)
• Objects
  • Types: An extensible set of object types can be defined
• Operations
  • General operations : Fixed set supported by all types
  • Per type operations : Operations with semantics specific to the type may be defined
• Negative rights
• Result : Any combination of rights can be described

CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger Page

Tokens

• Like the UID/GID in a UNIX process
  • User
  • Group
  • Aliases
  • Privileges (predefined sets of rights)
• May be specific to a domain
• Composed into global SID
• Subsequent processes inherit access tokens
  • Different processes may have different rights 11

CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger Page

Access Checking with ACEs

• Example 13

CSE497b Introduction to Computer and Network Security - Spring 2007 - Professor Jaeger Page

Window Vista Integrity

• Integrity protection for writing
• Defines a series of protection level of increasing protection - untrusted (lowest) - low (Internet) - medium (user) - high (admin) - system - installer (highest)
• Semantics: If the subject’s (process’s) integrity level dominates the object’s integrity level, then the write is allowed 14

UID Transition: Setuid

• A special bit in the mode bits
• Execute file
  • Resulting process has the effective (and fs) UID/GID of file owner
• Enables a user to escalate privilege
  • For executing a trusted service
• Downside: User defines execution environment
  • e.g., Environment variables, input arguments, open descriptors, etc.
• Service must protect itself or user can gain root access
• All UNIX services involves root processes -- many via setuid

/tmp Vulnerability

• creat(pathname, mode)
• O_EXCL flag
  • if file already exists this is an error
• Potential attack
  • Attacker creates file in shared space (/tmp)
  • Give it a filename used by a higher authority service
  • Make sure that service has permission to the file
  • If creat is used without O_EXCL, then can share the file with the higher authority process

Sandboxing

• An execution environment for programs that contains a limited set of rights - A subset of your permissions (meet secrecy and integrity goals) - Cannot be changed by the running program (mandatory)

UNIX Chroot

• Create a domain in which a process is confined
  • Process can only read/write within file system subtree
  • Applies to all descendant processes
  • Can carry file descriptors in ‘chroot jail’
