Electrician Exam

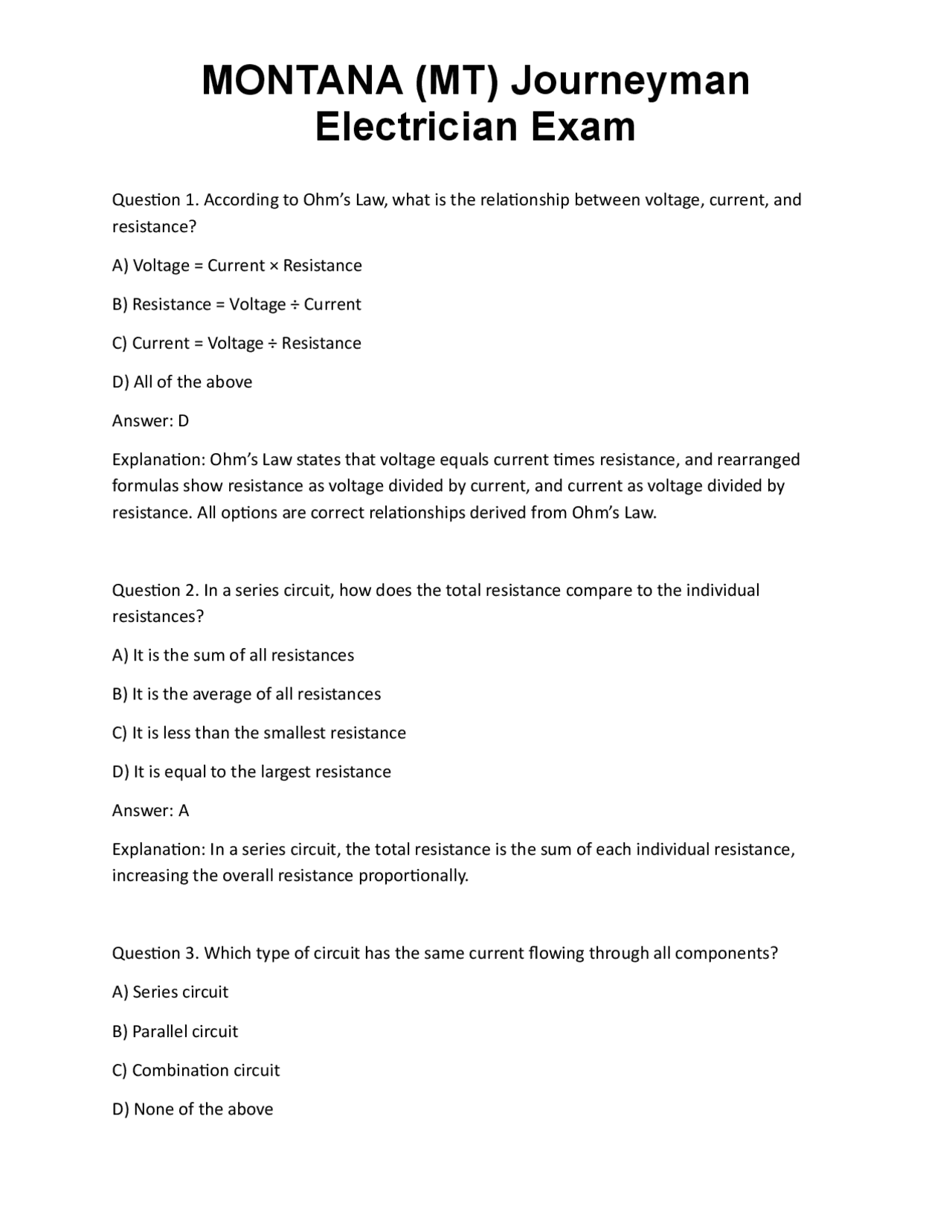

Question 1. According to Ohm’s Law, what is the relationship between voltage, current, and resistance? A) Voltage = Current × Resistance B) Resistance = Voltage ÷ Current C) Current = Voltage ÷ Resistance D) All of the above Answer: D Explanation: Ohm’s Law states that voltage equals current times resistance, and rearranged formulas show resistance as voltage divided by current, and current as voltage divided by resistance. All options are correct relationships derived from Ohm’s Law. Question 2. In a series circuit, how does the total resistance compare to the individual resistances? A) It is the sum of all resistances B) It is the average of all resistances C) It is less than the smallest resistance D) It is equal to the largest resistance Answer: A Explanation: In a series circuit, the total resistance is the sum of each individual resistance, increasing the overall resistance proportionally. Question 3. Which type of circuit has the same current flowing through all components? A) Series circuit B) Parallel circuit C) Combination circuit D) None of the above
Electrician Exam
Answer: A Explanation: In a series circuit, the same current flows through all components because there is only one path for current flow. Question 4. What is the primary difference between AC and DC circuits? A) AC flows in one direction; DC alternates direction B) DC flows in one direction; AC alternates direction C) AC only supplies residential power; DC only supplies industrial power D) DC is safer than AC in all situations Answer: B Explanation: DC (Direct Current) flows in a single direction, while AC (Alternating Current) periodically reverses direction, which is fundamental to their applications and characteristics. Question 5. What is the primary function of a transformer? A) Convert electrical energy into mechanical energy B) Step-up or step-down voltage levels C) Store electrical energy D) Protect circuits from overloads Answer: B Explanation: Transformers are devices that change voltage levels—either increasing (step-up) or decreasing (step-down)—without changing the frequency. Question 6. According to the NEC, what is the purpose of an overcurrent protective device? A) To increase current flow in a circuit B) To limit current to prevent overheating and damage C) To provide a ground fault path
Electrician Exam
C) It controls motor speed D) It limits short-circuit currents Answer: B Explanation: GFCI (Ground Fault Circuit Interrupter) detects small leakage currents to ground and rapidly disconnects power to prevent shocks. Question 10. When selecting conduit size, which factor must be considered besides conductor ampacity? A) The number of conductors (fill capacity) B) The color of the conduit C) The type of insulation D) The length of the conduit Answer: A Explanation: Conduit fill calculations ensure the number of conductors does not exceed the conduit’s capacity, which is critical for safety and code compliance. Question 11. Which type of wiring method is most suitable for outdoor, wet locations? A) NM cable B) AC cable C) UF cable D) SE cable Answer: C Explanation: UF (Underground Feeder) cable is designed for direct burial and wet locations, providing moisture resistance and durability. Question 12. What is the primary purpose of a circuit breaker’s trip characteristic?
Electrician Exam
A) To adjust the circuit voltage B) To protect wiring from overcurrent by disconnecting the circuit C) To increase current flow during overloads D) To change the circuit’s polarity Answer: B Explanation: Circuit breakers trip when overcurrent conditions develop, disconnecting the circuit to prevent damage or fire. Question 13. Which of the following best describes a multiwire branch circuit? A) A circuit that supplies multiple outlets with a shared neutral B) A circuit that supplies only lighting loads C) A circuit with multiple circuit breakers sharing a neutral bus D) Both A and C Answer: D Explanation: Multiwire branch circuits have two or more ungrounded conductors sharing a neutral, with proper disconnecting means, which can be configured with shared neutrals and multiple breakers. Question 14. When sizing a motor overload protection device, what must be considered? A) Motor full-load current (FLC) B) The motor’s starting torque C) The color of the motor housing D) The motor’s efficiency rating Answer: A Explanation: Overload protection must be sized according to the motor’s FLC to prevent damage during overload conditions while allowing normal operation.
Electrician Exam
Answer: A Explanation: NEC Article 220 provides guidelines for calculating the electrical load for residential dwellings. Question 18. Which device is used to protect a motor from short circuits and ground faults? A) Overcurrent device rated for the motor’s FLC B) A fuse or circuit breaker with a trip setting suitable for motor application C) A GFCI device D) An individual disconnect switch only Answer: B Explanation: Properly rated fuses or circuit breakers protect motors from short circuits and ground faults by interrupting excessive current flows. Question 19. What is the purpose of a phasor diagram in AC circuit analysis? A) To visualize the phase relationships between voltage and current B) To calculate resistance values C) To determine the physical location of wiring D) To measure the physical size of conductors Answer: A Explanation: Phasor diagrams graphically represent the magnitude and phase angle of sinusoidal voltages and currents, helping analyze power factor and reactive components. Question 20. In the context of the NEC, what is meant by “conductor fill” in a box? A) The amount of insulation on the conductor B) The number of conductors that can safely fit in a box without exceeding its capacity C) The cross-sectional area of the conductors
Electrician Exam
D) The length of conductors in a box Answer: B Explanation: Conductor fill refers to the number of conductors that can be installed in an electrical box based on volume and code limits to prevent overcrowding. Question 21. Which type of motor is typically used in applications requiring precise speed control and synchronization? A) Induction motor B) Synchronous motor C) Universal motor D) Universal motor with brushes Answer: B Explanation: Synchronous motors operate at a constant speed synchronized with the supply frequency, suitable for precise applications. Question 22. How does a capacitor affect an AC circuit? A) It resists current flow equally at all times B) It stores energy and creates a phase shift between voltage and current C) It converts AC to DC D) It provides a direct path to ground Answer: B Explanation: Capacitors store electrical energy and cause a phase shift, affecting power factor and reactive power in AC circuits. Question 23. What is the main function of a one-line diagram? A) To illustrate the physical layout of wiring
Electrician Exam
A) Article 250 B) Article 300 C) Article 410 D) Article 220 Answer: A Explanation: Article 250 of the NEC specifies requirements for grounding and bonding to ensure electrical safety. Question 27. In a hospital, what type of circuit protection is typically required for patient care areas? A) GFCI protection B) AFCI protection C) No special protection is required D) Only circuit breaker protection Answer: A Explanation: GFCI protection is required in healthcare settings to protect patients from electrical shock hazards. Question 28. When performing a load calculation for a commercial kitchen, which factor must be considered? A) The total connected load of cooking equipment and appliances B) The number of lighting fixtures only C) The length of wiring runs D) The color of the appliances Answer: A Explanation: Commercial load calculations include the total connected load of all equipment, appliances, and lighting to determine circuit and service size.
Electrician Exam
Question 29. What is the primary purpose of an AFCI device? A) To protect against arc faults that can cause fires B) To prevent ground faults C) To limit short circuit current D) To protect against overloads only Answer: A Explanation: AFCI (Arc Fault Circuit Interrupter) detects arc faults in wiring and disconnects power to prevent fire hazards. Question 30. Which material is most suitable for conductors in overhead power lines? A) Copper B) Aluminum C) Steel D) Brass Answer: B Explanation: Aluminum is lightweight, cost-effective, and has good conductivity, making it suitable for overhead power lines. Question 31. In the context of the NEC, what does the term “raceway” refer to? A) A pathway for conductors that provides physical protection and supports wiring B) A type of circuit breaker C) An electrical connector used in junction boxes D) A method of wiring that uses open conductors Answer: A
Electrician Exam
Answer: A Explanation: Motor starters control the starting and stopping of motors and include overload protection. Question 35. How is the load current for a motor generally calculated? A) By using the motor’s FLC from the nameplate B) By measuring the voltage only C) By estimating based on the motor size D) By summing the current of all connected loads Answer: A Explanation: The motor’s full-load current (FLC) from the nameplate provides the basis for selecting overcurrent protection and conductors. Question 36. Which of the following best describes an isolation transformer? A) It steps up voltage for long-distance transmission B) It isolates the secondary circuit from the primary to prevent direct electrical connection C) It converts AC to DC D) It provides instant overcurrent protection Answer: B Explanation: Isolation transformers have no direct electrical connection between primary and secondary, used for safety and noise reduction. Question 37. What is the main purpose of a wiring diagram? A) To show the physical location of outlets and switches B) To depict electrical connections and wiring details schematically C) To provide a customer’s bill of materials
Electrician Exam
D) To instruct on circuit operation during faults Answer: B Explanation: Wiring diagrams schematically represent how components are interconnected, aiding installation and troubleshooting. Question 38. Which of the following is a typical characteristic of an AFCI circuit breaker? A) It trips on detection of arc faults, preventing fires B) It provides ground fault protection C) It limits short circuit currents D) It is used only in commercial buildings Answer: A Explanation: AFCI breakers detect arcing conditions that could lead to fires and trip to prevent hazards. Question 39. What is the primary function of a master disconnect switch in a building’s electrical system? A) To disconnect all power for maintenance or emergency B) To control individual appliances C) To regulate voltage levels D) To act as a backup in case of power failure Answer: A Explanation: A master disconnect switch allows complete disconnection of power supply for safety during maintenance or emergencies. Question 40. When calculating voltage drop, which factor is most influential? A) Conductor length and size
Electrician Exam
A) It provides a neutral point and allows both line-to-line and line-to-neutral voltages B) It only supplies single-phase loads C) It is used exclusively for step-up transformers D) It eliminates the need for grounding Answer: A Explanation: Wye (Y) connections provide a neutral point, enabling the supply of both three- phase and single-phase loads. Question 44. Which NEC article covers requirements for box fill calculations? A) Article 314 B) Article 300 C) Article 406 D) Article 430 Answer: A Explanation: Article 314 addresses box fill, including calculations to ensure boxes are not overcrowded with conductors and devices. Question 45. What is the typical purpose of a lockout/tagout procedure? A) To ensure circuits are de-energized and cannot be accidentally energized during maintenance B) To lock electrical panels for security reasons C) To prevent unauthorized access to electrical systems D) To improve circuit efficiency Answer: A Explanation: Lockout/tagout procedures are safety protocols to prevent accidental energization during maintenance work.
Electrician Exam
Question 46. Which type of transformer connection is commonly used in three-phase power distribution systems? A) Delta B) Wye (Y) C) Both A and B depending on application D) Neither A nor B Answer: C Explanation: Both delta and wye connections are used in three-phase systems depending on voltage, load, and application requirements. Question 47. What is the main safety concern associated with arc flash hazards? A) Sudden release of energy causing burns and injuries B) Electric shock only during maintenance C) Overcurrent leading to equipment failure D) Interference with communication signals Answer: A Explanation: Arc flash hazards involve the sudden release of energy from an electrical arc, which can cause severe burns, injuries, and fatalities. Question 48. Which NEC article provides guidelines for lighting outlets and switches? A) Article 410 B) Article 404 C) Article 410 and 404 D) Article 220 Answer: C
Electrician Exam
D) It acts as a perfect conductor Answer: A Explanation: Inductors oppose changes in current and introduce inductive reactance, affecting phase and power factor in AC circuits. Question 52. What is the function of a circuit breaker’s trip unit? A) To detect overcurrent and initiate disconnection B) To adjust the circuit voltage C) To provide visual indication only D) To increase current flow during faults Answer: A Explanation: The trip unit detects overcurrent conditions and triggers the breaker to disconnect the circuit, protecting wiring and equipment. Question 53. Which of the following methods is used to determine the minimum conduit size for a specific number of conductors? A) NEC fill tables B) Voltmeter readings C) Visual estimation D) Manufacturer specifications only Answer: A Explanation: NEC provides fill tables to determine conduit size based on the number and size of conductors. Question 54. When performing a motor load calculation, which factor may reduce the initial estimated load? A) Diversity factor
Electrician Exam
B) Power factor correction C) Voltage regulation D) Conductor size Answer: A Explanation: Diversity factors account for the fact that not all motors or loads operate at full capacity simultaneously, reducing the total calculated load. Question 55. In blueprint reading, what does a circle with a line through it typically represent? A) A light fixture or lamp B) A switch C) A junction box D) A conduit bend Answer: A Explanation: In electrical symbols, a circle with a line often represents a light fixture or lamp. Question 56. Which type of wiring method is most suitable for a concealed, interior residential application? A) NM cable (non-metallic sheathed cable) B) Rigid metal conduit C) Liquid-tight flexible conduit D) Bare conductors in open air Answer: A Explanation: NM cable is commonly used in interior residential wiring due to its ease of installation and code compliance.
