Electrician Exam

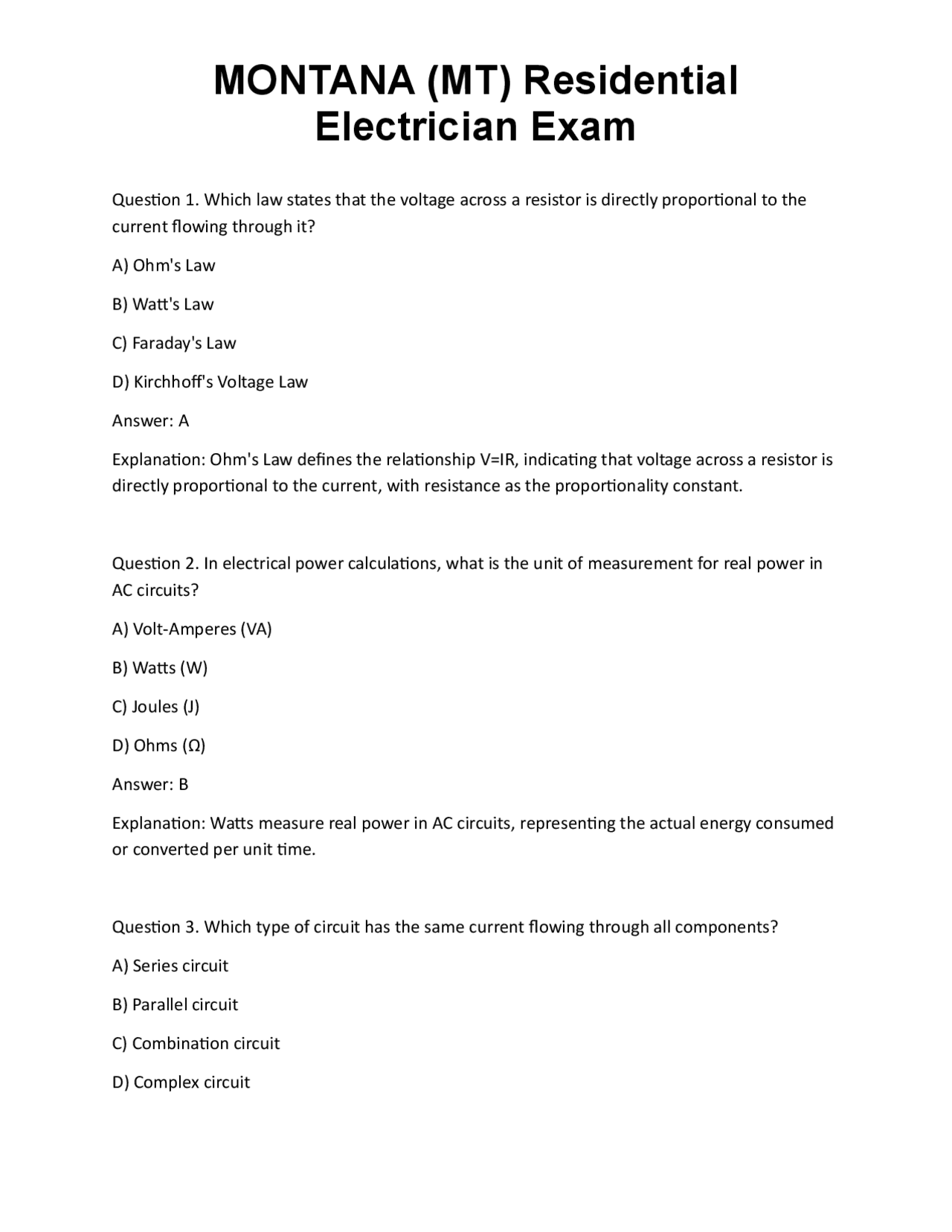

Question 1. Which law states that the voltage across a resistor is directly proportional to the current flowing through it? A) Ohm's Law B) Watt's Law C) Faraday's Law D) Kirchhoff's Voltage Law Answer: A Explanation: Ohm's Law defines the relationship V=IR, indicating that voltage across a resistor is directly proportional to the current, with resistance as the proportionality constant. Question 2. In electrical power calculations, what is the unit of measurement for real power in AC circuits? A) Volt-Amperes (VA) B) Watts (W) C) Joules (J) D) Ohms (Ω) Answer: B Explanation: Watts measure real power in AC circuits, representing the actual energy consumed or converted per unit time. Question 3. Which type of circuit has the same current flowing through all components? A) Series circuit B) Parallel circuit C) Combination circuit D) Complex circuit
Electrician Exam
Answer: A Explanation: In a series circuit, the current remains constant through all components, while voltage divides among them. Question 4. Which of the following is characteristic of direct current (DC)? A) Flows in a single direction B) Varies sinusoidally over time C) Alternates direction periodically D) Is primarily used in power transmission over long distances Answer: A Explanation: DC flows in a single, steady direction, unlike AC which alternates direction periodically. Question 5. Electromagnetism is the relationship between which two phenomena? A) Electricity and magnetism B) Voltage and resistance C) Current and power D) Capacitance and inductance Answer: A Explanation: Electromagnetism describes how electric currents produce magnetic fields and how changing magnetic fields induce electric currents. Question 6. Which electrical term describes the measure of opposition to current flow? A) Voltage B) Resistance C) Power
Electrician Exam
D) Provide tax incentives for electricians Answer: A Explanation: The NEC establishes safety standards for electrical installations to protect persons and property. Question 10. Which organization enforces the National Electrical Code? A) Local authority having jurisdiction (AHJ) B) OSHA C) EPA D) Department of Energy Answer: A Explanation: Local AHJs enforce the NEC, ensuring compliance with electrical safety standards. Question 11. What is the primary function of an AFCI device? A) Detect and disconnect arc faults B) Protect against ground faults C) Limit overcurrent D) Isolate short circuits Answer: A Explanation: AFCIs detect arcing conditions that could lead to fires and disconnect power to prevent hazards. Question 12. Which type of wiring is most suitable for underground outdoor installations? A) NM cable B) UF cable C) AC cable
Electrician Exam
D) MC cable Answer: B Explanation: UF (Underground Feeder) cable is designed for direct burial and outdoor use. Question 13. What is the maximum ampacity for a #12 AWG copper conductor in typical residential wiring? A) 15 amps B) 20 amps C) 30 amps D) 50 amps Answer: B Explanation: #12 AWG copper conductors are rated for 20 amps in residential settings, considering standard conditions. Question 14. Which insulation type is identified by the marking THHN? A) Thermoplastic High Heat-resistant Nylon B) Thermoplastic Heavy Gauge C) Thermoset High Heat Nominal D) Thermoplastic High Heat-resistant Nylon Answer: D Explanation: THHN is a common insulation marking indicating thermoplastic high heat-resistant nylon. Question 15. Which cable type is permitted for use in wet locations and underground? A) NM cable B) UF cable
Electrician Exam
C) Reduce voltage fluctuations D) Enable circuit switching Answer: A Explanation: Grounding provides a safe path for fault current, reducing shock risk and protecting equipment. Question 19. Which type of grounding electrode system involves a metal rod driven into the earth? A) Ground rod electrode B) Concrete-encased electrode C) Plate electrode D) Ufer ground Answer: A Explanation: A ground rod is a metal rod driven into the earth, serving as a grounding electrode. Question 20. According to the NEC, what size grounding conductor is required for a 100-ampere service? A) 8 AWG copper B) 6 AWG copper C) 4 AWG copper D) 2 AWG copper Answer: B Explanation: For a 100-amp service, the NEC typically requires a 6 AWG copper grounding conductor to ensure adequate safety. Question 21. What is a typical use for a junction box?
Electrician Exam
A) Enclose splices and connections B) Mount switches and receptacles C) House circuit breakers D) Support conduit bends Answer: A Explanation: Junction boxes provide a protected enclosure for splicing wires and making connections. Question 22. When calculating box fill, which of the following must be considered? A) Number of conductors B) Number of devices and fittings C) Volume of conductors and devices D) All of the above Answer: D Explanation: Box fill calculations account for conductors, devices, fittings, and their combined volume to prevent overcrowding. Question 23. Which conduit type is known for being lightweight and easy to install? A) EMT (Electrical Metallic Tubing) B) Rigid metal conduit (RMC) C) PVC conduit D) FMC (Flexible Metal Conduit) Answer: A Explanation: EMT is lightweight, easy to bend, and commonly used in residential and commercial wiring.
Electrician Exam
Question 27. Which component is essential in a lighting fixture to regulate the current flowing through the lamp? A) Ballast B) Transformer C) Fuse D) Resistor Answer: A Explanation: Ballasts are used to regulate current and voltage in certain types of lamps, such as fluorescent fixtures. Question 28. In residential wiring, what is the typical disconnecting means for a fixed appliance such as a dishwasher? A) Dedicated disconnect switch or circuit breaker B) GFCI outlet C) Light switch D) Dimmer switch Answer: A Explanation: Fixed appliances require a dedicated disconnecting means, often a circuit breaker or a dedicated switch. Question 29. Which motor component is designed to protect against overload conditions? A) Overload relay or device B) Capacitor C) Contact start switch D) Thermostat
Electrician Exam
Answer: A Explanation: Overload relays or devices monitor motor current and disconnect power during overload conditions to prevent damage. Question 30. For a residential HVAC system, what is the typical wiring method for the disconnecting means? A) Nonmetallic-sheathed cable (NM) B) Rigid conduit with a disconnect switch C) Flexible metal conduit (FMC) D) Underground feeder cable (UF) Answer: B Explanation: Rigid conduit with a disconnect switch is standard for HVAC systems to allow safe disconnection for servicing. Question 31. Which of the following is a characteristic of a three-phase power system? A) Provides smoother power delivery in industrial applications B) Used exclusively in residential wiring C) Has a single alternating voltage cycle D) Cannot be used with motors Answer: A Explanation: Three-phase systems provide continuous power, ideal for industrial applications and large motors. Question 32. Which type of conductor is preferred for long-distance power transmission due to its lower resistance? A) Copper B) Aluminum
Electrician Exam
B) Limit overcurrent conditions C) Suppress electrical noise D) Reduce electromagnetic interference Answer: A Explanation: GFCIs detect imbalance in current flow and trip quickly to protect against ground faults. Question 36. Which material is most commonly used for residential branch circuit wiring conductors? A) Copper B) Aluminum C) Steel D) Brass Answer: A Explanation: Copper is the most common conductor material due to its excellent conductivity and flexibility. Question 37. Which of the following is an acceptable method to support conduit in a residential installation? A) Conduit straps or hangers installed at intervals specified by the NEC B) Tying to drywall with nails C) Suspended by electrical tape D) Supported only at the ends Answer: A Explanation: NEC requires conduit to be supported at regular intervals using approved straps or hangers.
Electrician Exam
Question 38. In wiring, what is the purpose of a conduit bender? A) To create precise bends in conduit for proper routing B) To cut conduit to length C) To thread conduit for fittings D) To support conduit during installation Answer: A Explanation: A conduit bender is used to make accurate bends, ensuring proper installation and code compliance. Question 39. Which of the following is a typical requirement for installing nonmetallic-sheathed cable (NM)? A) Secure within 12 inches of an outlet or box B) Run in wet locations without protection C) Support at least every 4.5 feet D) All of the above Answer: A Explanation: NEC requires NM cable to be securely fastened within 12 inches of boxes and at intervals of no more than 4.5 feet. Question 40. What is the function of a device box in electrical wiring? A) Protect and connect electrical devices and conductors B) Serve as a conduit support C) Enclose circuit breakers D) Support lighting fixtures only Answer: A Explanation: Device boxes provide a safe enclosure for connections, switches, and receptacles.
Electrician Exam
Answer: A Explanation: PVC conduit is corrosion-resistant and suitable for underground outdoor applications. Question 44. Which of the following is NOT a typical feature of armored cable (AC)? A) Metallic armor providing physical protection B) Usually installed in commercial applications C) Suitable for direct burial without additional conduit D) Conductors insulated and enclosed within armor Answer: C Explanation: While AC provides protection, it generally requires additional measures for direct burial in some cases, and NEC guidelines specify installation conditions. Question 45. What is the purpose of a box fill calculation? A) To ensure the box is not overcrowded with conductors and devices B) To determine the length of wire needed C) To calculate voltage drop D) To size the circuit breaker Answer: A Explanation: Box fill calculations prevent overcrowding, reducing heat and fire hazards. Question 46. Which device is used to disconnect power to a motor for servicing? A) Motor disconnect switch B) GFCI outlet C) Circuit breaker D) Fuse
Electrician Exam
Answer: A Explanation: A motor disconnect switch provides a visible disconnect for safety during maintenance. Question 47. In residential wiring, what is the typical overcurrent protection rating for a branch circuit serving general lighting and receptacles? A) 15 or 20 amps B) 30 amps C) 40 amps D) 50 amps Answer: A Explanation: Standard branch circuits for general use are protected at either 15 or 20 amps according to NEC. Question 48. Which of the following is an example of a combination circuit? A) A circuit with both series and parallel components B) A circuit with only series components C) A circuit with only parallel components D) A circuit with no resistors Answer: A Explanation: A combination circuit includes elements of both series and parallel wiring. Question 49. Which type of circuit wiring is most efficient for household lighting circuits? A) Parallel circuit B) Series circuit C) Series-parallel circuit
Electrician Exam
Answer: A Explanation: NM refers to nonmetallic-sheathed cable, commonly used in residential wiring for branch circuits. Question 53. Which of the following is a common type of wiring device used to connect portable appliances? A) Cord connector B) Junction box C) Fixed switch D) Rigid conduit Answer: A Explanation: Cord connectors are used to attach flexible cords to devices or outlets, providing a secure connection. Question 54. What is the typical voltage rating for residential branch circuits in the United States? A) 120/240 volts B) 208 volts C) 277 volts D) 480 volts Answer: A Explanation: Residential circuits in the U.S. are typically 120/240 volts, with 120V for general lighting and receptacles, and 240V for appliances. Question 55. Which of the following is the correct method for supporting cables in a residential installation? A) Secured within 12 inches of boxes and at intervals not exceeding 4.5 feet
Electrician Exam
B) Tied loosely with string C) Supported only at the ends D) Suspended freely without support Answer: A Explanation: NEC requires cables to be properly supported at specific intervals and near connections to prevent damage. Question 56. Which type of circuit breaker is designed to trip upon detection of an arc fault? A) AFCI (Arc-Fault Circuit Interrupter) B) GFCI (Ground-Fault Circuit Interrupter) C) Standard thermal breaker D) Magnetic breaker only Answer: A Explanation: AFCI breakers detect arcing conditions typical of electrical fires and disconnect power to prevent hazards. Question 57. The purpose of a bonding jumper is to: A) Connect metal parts to the grounding system B) Increase circuit capacity C) Reduce voltage drop D) Isolate circuits for safety Answer: A Explanation: Bonding jumpers connect non-current-carrying metal parts to the grounding system, ensuring they are at the same potential.
