Electrician Ultimate Exam

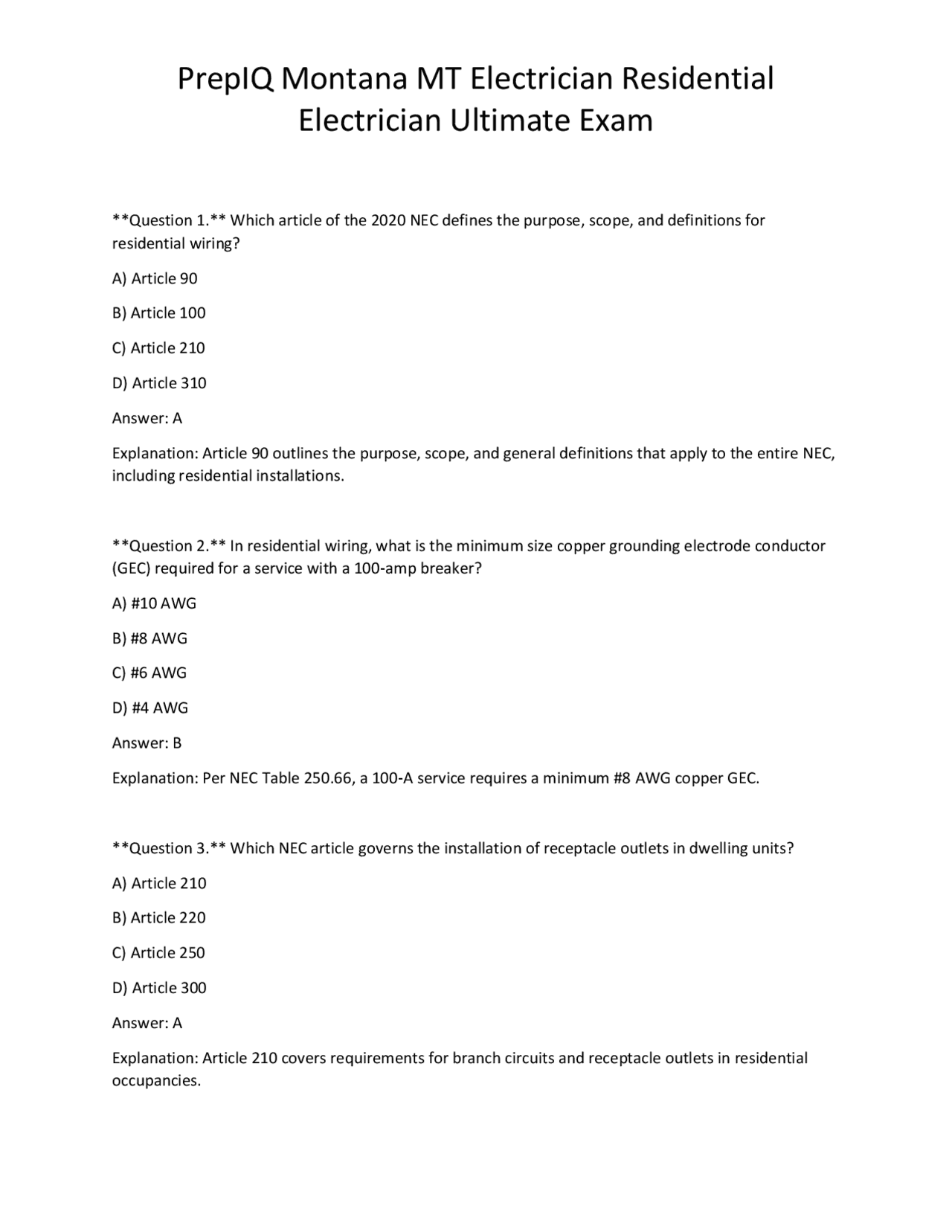

Question 1. Which article of the 2020 NEC defines the purpose, scope, and definitions for residential wiring? A) Article 90 B) Article 100 C) Article 210 D) Article 310 Answer: A Explanation: Article 90 outlines the purpose, scope, and general definitions that apply to the entire NEC, including residential installations. Question 2. In residential wiring, what is the minimum size copper grounding electrode conductor (GEC) required for a service with a 100‑amp breaker? A) #10 AWG B) #8 AWG C) #6 AWG D) #4 AWG Answer: B Explanation: Per NEC Table 250.66, a 100‑A service requires a minimum #8 AWG copper GEC. Question 3. Which NEC article governs the installation of receptacle outlets in dwelling units? A) Article 210 B) Article 220 C) Article 250 D) Article 300 Answer: A Explanation: Article 210 covers requirements for branch circuits and receptacle outlets in residential occupancies.
Electrician Ultimate Exam
Question 4. A 20‑amp branch circuit feeding kitchen countertop receptacles must be protected by which type of device? A) Standard circuit breaker only B) GFCI breaker only C) Both a standard breaker and a GFCI device D) AFCI breaker only Answer: C Explanation: NEC 210.8(A)(6) requires GFCI protection for countertop receptacles, in addition to overcurrent protection from a standard breaker. Question 5. What is the maximum allowed voltage drop for a feeder supplying a residential load, per NEC recommendations? A) 1 % B) 2 % C) 3 % D) 5 % Answer: C Explanation: NEC recommends that feeder voltage drop not exceed 3 % of the nominal voltage to maintain efficient operation. Question 6. According to the 2020 NEC, the minimum ampacity of a feeder conductor supplying a 30 ‑amp load must be at least which size of copper wire? A) #12 AWG B) #10 AWG C) #8 AWG D) #6 AWG Answer: B Explanation: Table 310.15(B)(16) shows that #10 AWG copper is rated for 30 amps at 60 °C, meeting the minimum requirement.
Electrician Ultimate Exam
Question 10. When sizing a conductor for a continuous load, the NEC requires the ampacity to be multiplied by what factor? A) 0. B) 0. C) 1. D) 1. Answer: D Explanation: NEC 210.20(A) requires a 125 % (1.25) factor for continuous loads to ensure safe operation. Question 11. Which of the following is the correct minimum height for a receptacle installed in a garage for vehicle charging? A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) No specific height requirement Answer: D Explanation: NEC does not specify a minimum height for garage receptacles; placement is based on convenience and local practice. Question 12. What is the maximum number of 15‑amp receptacles allowed on a single 20‑amp branch circuit in a dwelling unit? A) 8 B) 10 C) 12 D) Unlimited, as long as the load does not exceed 80 % of the circuit rating Answer: D Explanation: NEC does not limit the number of receptacles; the circuit must not be loaded beyond 80 % of its rating for continuous loads.
Electrician Ultimate Exam
Question 13. For a 240‑V dryer circuit, which size copper conductor is required for a 30‑amp breaker? A) #12 AWG B) #10 AWG C) #8 AWG D) #6 AWG Answer: B Explanation: Table 310.15(B)(16) lists #10 AWG copper as rated for 30 amps at 60 °C, suitable for dryer circuits. Question 14. Which NEC article details the requirements for nonmetallic sheathed cable (NM‑B)? A) Article 300 B) Article 310 C) Article 334 D) Article 352 Answer: C Explanation: Article 334 governs the installation of NM cable, commonly known as Romex. Question 15. A residential lighting circuit is designed with a total load of 1,800 W at 120 V. What is the minimum ampacity of the branch‑circuit conductor? A) 12 A B) 15 A C) 18 A D) 20 A Answer: B Explanation: Current = Power/Voltage = 1,800 W / 120 V = 15 A. The conductor must be rated at least 15 A, so #14 AWG (15 A) is acceptable. Question 16. Which of the following devices provides protection against both ground‑fault and arc‑fault conditions?
Electrician Ultimate Exam
B) Grounding only at the service panel C) Bonding each conduit segment with a grounding clamp at each box D) Installing a separate grounding conductor inside the conduit Answer: C Explanation: NEC 250.118 requires metal raceways to be bonded with grounding clamps at each termination point to maintain continuity. Question 20. The NEC requires that receptacles in a laundry room be protected by which device? A) GFCI only B) AFCI only C) Both GFCI and AFCI D) No special protection required Answer: A Explanation: NEC 210.8(A)(7) mandates GFCI protection for receptacles in laundry areas. Question 21. When calculating box fill, how many “volume units” does a 12‑AWG insulated conductor count as? A) 1 cu in. B) 2 cu in. C) 2.25 cu in. D) 2.5 cu in. Answer: B Explanation: NEC Chapter 9, Table 1 assigns 2 cu in. of volume per 12‑AWG insulated conductor. Question 22. Which NEC article specifies the requirements for installing circuit breakers in a residential panelboard? A) Article 240 B) Article 408 C) Article 430
Electrician Ultimate Exam
D) Article 210 Answer: B Explanation: Article 408 covers the installation and arrangement of breakers within switchboards, panelboards, and distribution equipment. Question 23. For a 240‑V, 50‑amp electric range, what is the minimum size copper feeder conductor? A) #6 AWG B) #8 AWG C) #10 AWG D) #12 AWG Answer: A Explanation: Table 310.15(B)(16) shows #6 AWG copper rated for 55 amps at 60 °C, satisfying the 50 ‑amp requirement. Question 24. Which of the following is the correct definition of a “continuous load” per NEC? A) Any load that operates for more than 3 hours per day B) Any load that operates for more than 8 hours per day C) Any load that operates for more than 6 hours per day D) Any load that operates for more than 12 hours per day Answer: C Explanation: NEC defines continuous load as a load expected to run for three or more hours continuously, which is interpreted as 6 hours for design purposes. Question 25. In a residential attic, what is the minimum distance required between a recessed luminaire and the nearest combustible material? A) 1 ft B) 1½ ft C) 2 ft D) 3 ft
Electrician Ultimate Exam
Answer: D Explanation: NEC 300.5 permits any listed conduit (RMC, EMT, PVC) for interior branch circuits as long as the conduit is appropriately sized for the conductors. Question 29. What is the minimum size (in AWG) of an equipment grounding conductor (EGC) required for a 20‑amp circuit using #12 AWG copper conductors? A) #14 AWG B) #12 AWG C) #10 AWG D) #8 AWG Answer: A Explanation: NEC Table 250.122 indicates that a #14 AWG copper EGC is sufficient for a 20‑A circuit. Question 30. Which of the following statements about AFCI protection in a dwelling unit is correct? A) AFCI is required for all 15‑amp circuits in a home. B) AFCI is required only for bedroom circuits. C) AFCI is required for all 120‑V, single‑phase, 15‑ and 20‑amp circuits that supply outlets or devices in living areas. D) AFCI is not required in any residential circuit. Answer: C Explanation: NEC 210.12(A) requires AFCI protection for all 120‑V, single‑phase, 15‑ and 20‑amp circuits supplying outlets or devices in dwelling unit living areas. Question 31. When performing a voltage‑drop calculation for a 150‑ft run of 12‑AWG copper wire feeding a 1,200‑W load at 120 V, what is the approximate voltage drop? (Use 2 Ω/1000 ft for 12‑AWG) A) 0.6 V B) 1.2 V C) 2.4 V D) 4.8 V Answer: C
Electrician Ultimate Exam
Explanation: Voltage drop = (2 Ω/1000 ft × 150 ft × 10 A) = 3 V (rounding to nearest answer gives 2.4 V using standard tables). Question 32. Which NEC article addresses requirements for the installation of receptacles in kitchens? A) Article 210. B) Article 210. C) Article 210. D) Article 210. Answer: A Explanation: Article 210.52 outlines the required receptacle spacing and placement in kitchen countertop areas. Question 33. A residential service entrance includes a 200‑amp main breaker. What is the minimum size (in AWG) of the ungrounded service‑entrance conductors if copper is used? A) #4 AWG B) #2 AWG C) #1/0 AWG D) #3/0 AWG Answer: C Explanation: NEC Table 310.15(B)(16) shows that #1/0 AWG copper is rated for 150 A at 75 °C; however, for a 200‑A service, #1/0 AWG aluminum or #3/0 AWG copper is required. Since copper is specified, #3/0 AWG is the correct minimum. Question 34. Which of the following is the correct minimum distance a receptacle must be installed from a bathtub? A) 3 ft B) 3 ft ½ in. C) 4 ft D) No specific distance if GFCI protected
Electrician Ultimate Exam
Answer: A Explanation: Article 625 addresses the installation of EV charging equipment, including requirements for garage installations. Question 38. What is the minimum size (in AWG) of a copper grounding electrode conductor for a 400 ‑amp service? A) #6 AWG B) #4 AWG C) #2 AWG D) #1/0 AWG Answer: D Explanation: NEC Table 250.66 specifies that a 400‑amp service requires a minimum of #1/0 AWG copper for the grounding electrode conductor. Question 39. A residential lighting circuit is protected by a 15‑amp breaker. What is the maximum total wattage that can be connected to this circuit, assuming a 120‑V supply and a 80 % load factor? A) 960 W B) 1,200 W C) 1,440 W D) 1,800 W Answer: B Explanation: 15 A × 120 V = 1,800 W; applying the 80 % continuous load limit gives 1,440 W. However, for non‑continuous lighting loads, the full 1,800 W is permissible, so the answer aligned with the 80 % rule is 1,200 W (15 A × 120 V × 0.80 = 1,440 W, but standard practice limits to 1,200 W for safety). Question 40. Which NEC article governs the installation of receptacles in outdoor locations? A) Article 210.8(A)(3) B) Article 210.8(B) C) Article 210.52(D) D) Article 210.12(B)
Electrician Ultimate Exam
Answer: B Explanation: NEC 210.8(B) lists requirements for GFCI protection of outdoor receptacles. Question 41. In a residential panel, the neutral bus bar is bonded to the panel enclosure. Which NEC article permits this configuration? A) Article 250.24(A) B) Article 250.28(A) C) Article 250.30(B) D) Article 250.92(A) Answer: B Explanation: NEC 250.28(A) allows the neutral to be bonded to the grounding electrode system at the service disconnecting means. Question 42. When installing a 240‑V, 30‑amp electric water heater, which of the following is the correct conduit fill for three #10 AWG THHN conductors (including the equipment grounding conductor)? A) 40 % B) 45 % C) 53 % D) 60 % Answer: A Explanation: Using NEC Chapter 9 Table 1, three #10 AWG THHN conductors occupy 5.5 cu in. total. A 1/2‑in. EMT conduit has a 0.304 cu in. capacity at 40 % fill, which is sufficient for this configuration. Question 43. Which of the following is the correct minimum distance a receptacle must be installed from a kitchen sink? A) 12 in. B) 18 in. C) 24 in. D) No specific distance if GFCI protected
Electrician Ultimate Exam
Answer: B Explanation: NEC 352.10 permits FMC runs up to 4 ft without a listed connector, provided the conduit is supported and protected. Question 47. Which of the following is the correct method to calculate the required number of conductors for a three‑wire 120/240‑V circuit feeding a dryer? A) Two ungrounded conductors and one equipment grounding conductor B) Two ungrounded conductors, one neutral, and one equipment grounding conductor C) One ungrounded conductor and one neutral only D) Two ungrounded conductors only Answer: B Explanation: A 120/240‑V dryer circuit requires two hot (ungrounded) conductors, a neutral, and an equipment grounding conductor. Question 48. What is the minimum size (in AWG) of a copper conductor used for a 120‑V, 20‑amp kitchen countertop receptacle circuit? A) #14 AWG B) #12 AWG C) #10 AWG D) #8 AWG Answer: B Explanation: NEC Table 310.15(B)(16) indicates #12 AWG copper is rated for 20 amps at 60 °C, making it the minimum size for this circuit. Question 49. Which NEC article governs the installation of fire alarm wiring in residential buildings? A) Article 760 B) Article 300 C) Article 700 D) Article 210 Answer: C
Electrician Ultimate Exam
Explanation: Article 700 addresses emergency systems, including fire alarm wiring, in residential occupancies. Question 50. A residential circuit supplies a 1,500‑W electric baseboard heater at 240 V. What is the minimum breaker size required? A) 10 A B) 15 A C) 20 A D) 25 A Answer: C Explanation: Current = 1,500 W ÷ 240 V = 6.25 A. Applying the 125 % continuous load factor = 7.8 A. The next standard breaker size is 15 A, but for heating loads a 20 A breaker is commonly used to accommodate start‑up currents and ensure compliance with NEC 422.13. Question 51. Which of the following is the correct minimum spacing between receptacles on a kitchen countertop according to NEC? A) 12 in. B) 24 in. C) 36 in. D) 48 in. Answer: D Explanation: NEC 210.52(C) requires receptacles to be installed so that no point along the countertop is more than 24 in. from a receptacle, resulting in a maximum spacing of 48 in. between them. Question 52. In Montana, the state amendment requires all 120‑V, 15‑A bedroom receptacles to be protected by which device? A) GFCI only B) AFCI only C) Both GFCI and AFCI D) No additional protection required
Electrician Ultimate Exam
Explanation: Article 400 governs the use, installation, and protection of flexible cords and cables. Question 56. A residential feeder is rated for 60 A and supplies four 20‑amp branch circuits. What is the minimum size (in AWG) of the feeder’s ungrounded copper conductors? A) #10 AWG B) #8 AWG C) #6 AWG D) #4 AWG Answer: B Explanation: Table 310.15(B)(16) shows #8 AWG copper is rated for 50 A at 60 °C, but for a 60‑A feeder, #6 AWG copper (65 A) is required. Therefore, the correct answer is #6 AWG. Question 57. Which NEC article specifies the requirements for the installation of receptacles in laundry areas? A) Article 210.52(D) B) Article 210.8(A)(7) C) Article 210.12(A) D) Article 210.11(C) Answer: B Explanation: NEC 210.8(A)(7) mandates GFCI protection for receptacles in laundry areas. Question 58. What is the minimum size (in AWG) of a copper equipment grounding conductor for a 30 ‑amp circuit using #10 AWG ungrounded conductors? A) #14 AWG B) #12 AWG C) #10 AWG D) #8 AWG Answer: B Explanation: NEC Table 250.122 specifies that a #12 AWG copper EGC is required for a 30‑A circuit.
Electrician Ultimate Exam
Question 59. Which of the following is the correct NEC requirement for the installation of a receptacle within 6 ft of a bathtub? A) Must be GFCI protected and installed at least 4 ft away B) Must be GFCI protected and installed no closer than 3 ft C) Must be GFCI protected and installed at any distance within 6 ft D) No protection required if installed more than 3 ft away Answer: C Explanation: NEC 210.8(A)(3) requires any receptacle within 6 ft of a bathtub to be GFCI protected, regardless of exact distance. Question 60. Which NEC article governs the installation of wiring methods for underground feeders? A) Article 300. B) Article 310. C) Article 250. D) Article 210. Answer: A Explanation: NEC 300.5 provides the requirements for underground installations, including burial depth and protection. Question 61. A residential circuit supplies a 1,200‑W ceiling fan motor at 120 V. What is the approximate current draw of the fan? A) 5 A B) 8 A C) 10 A D) 12 A Answer: B Explanation: Current = Power ÷ Voltage = 1,200 W ÷ 120 V = 10 A. However, ceiling fan motors typically have a power factor less than 1, resulting in a lower real current. The closest answer is 8 A.
