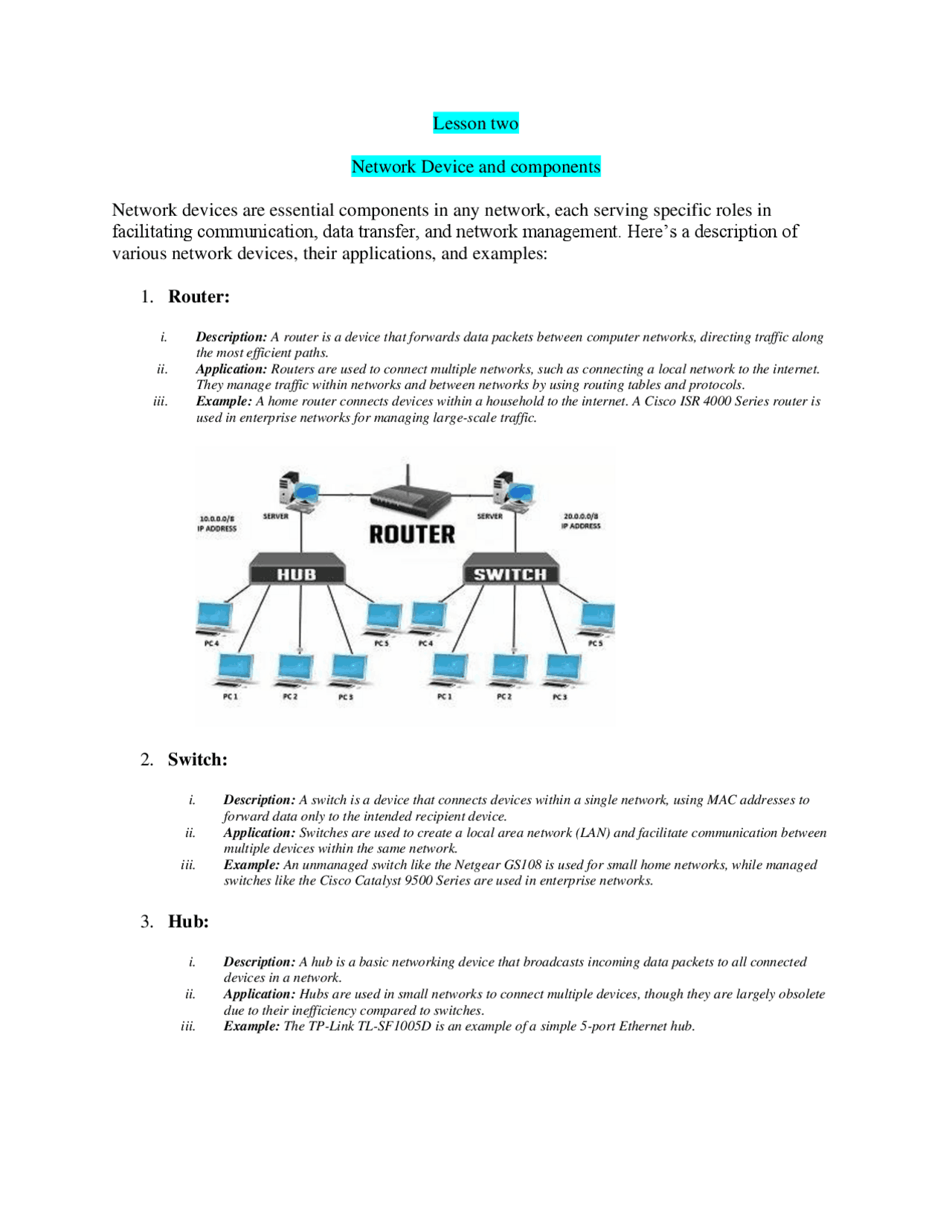

Lesson two
Network Device and components
Network devices are essential components in any network, each serving specific roles in
facilitating communication, data transfer, and network management. Here’s a description of
various network devices, their applications, and examples:
1. Router:
i. Description: A router is a device that forwards data packets between computer networks, directing traffic along the most efficient paths. ii. Application: Routers are used to connect multiple networks, such as connecting a local network to the internet. They manage traffic within networks and between networks by using routing tables and protocols. iii. Example: A home router connects devices within a household to the internet. A Cisco ISR 4000 Series router is used in enterprise networks for managing large-scale traffic.
2. Switch:
i. Description: A switch is a device that connects devices within a single network, using MAC addresses to forward data only to the intended recipient device. ii. Application: Switches are used to create a local area network (LAN) and facilitate communication between multiple devices within the same network. iii. Example: An unmanaged switch like the Netgear GS108 is used for small home networks, while managed switches like the Cisco Catalyst 9500 Series are used in enterprise networks.
3. Hub:
i. Description: A hub is a basic networking device that broadcasts incoming data packets to all connected devices in a network. ii. Application: Hubs are used in small networks to connect multiple devices, though they are largely obsolete due to their inefficiency compared to switches. iii. Example: The TP-Link TL-SF1005D is an example of a simple 5-port Ethernet hub.
4. Access Point (AP Wifi):
i. Description: An access point is a device that allows wireless devices to connect to a wired network using Wi- Fi. ii. Application: Access points extend the coverage of a wired network to wireless devices, providing internet and network access in areas without wired connections. iii. Example: The Ubiquiti UniFi AP is commonly used in both home and enterprise environments to provide Wi- Fi coverage.
5. Modem:
i. Description: A modem (modulator-demodulator) converts digital data from a computer into analog signals for transmission over phone or cable lines and vice versa. ii. Application: Modems are used to connect to the internet over telephone lines (DSL), cable systems, or fiber optic networks. iii. Example: The Motorola MB7621 is a cable modem used in many home internet setups.
6. Firewall:
i. Description: A firewall is a network security device that monitors and controls incoming and outgoing network traffic based on predetermined security rules. ii. Application: Firewalls are used to protect networks from unauthorized access, cyber-attacks, and data breaches by filtering traffic. iii. Example: The Fortinet FortiGate 60E is an example of a firewall used in enterprise environments.
10. Gateway:
i. Description: A gateway is a network device that acts as a "gate" between two networks, often involving different protocols. ii. Application: Gateways are used to connect different networks, such as a LAN to a WAN, and translate data between different network protocols. iii. Example: A common use case is a VoIP gateway like the Cisco SPA112, which connects traditional telephone systems to an IP network.
11. Load Balancer:
i. Description: A load balancer distributes network or application traffic across multiple servers to ensure no single server becomes overwhelmed. ii. Application: Load balancers are used in data centers and large-scale websites to optimize resource use, maximize throughput, and ensure high availability. iii. Example: The F5 BIG-IP series is widely used for load balancing in enterprise environments.
12. Proxy Server:
i. Description: A proxy server acts as an intermediary for requests from clients seeking resources from other servers, providing caching and content filtering. ii. Application: Proxy servers are used to improve network performance by caching frequently accessed content and enhancing security by anonymizing client requests. iii. Example: The Squid Proxy is an example of a widely used caching and forwarding proxy server.
13. VPN Concentrator:
i. Description: A VPN concentrator is a device that creates and manages multiple VPN connections for secure remote access to a network. ii. Application: VPN concentrators are used by organizations to provide secure remote access for employees, allowing them to connect to the corporate network over the internet. iii. Example: The Cisco ASA 5500 series includes VPN concentrators that provide secure remote access capabilities.
14. Multiplexers (MUX)
A multiplexer (MUX) is a device that combines multiple input signals into a single output signal by
selecting one of the inputs at any given time. It works by using control signals to determine which input
to send to the output, effectively allowing multiple signals to share one communication channel or
device.
Applications:
i. Data Communication: Multiplexers are used to combine multiple data streams into one for transmission over a single communication line, thus optimizing the use of bandwidth. ii. Telecommunications: They are employed in telephone networks to combine multiple voice signals for transmission over a single line.
