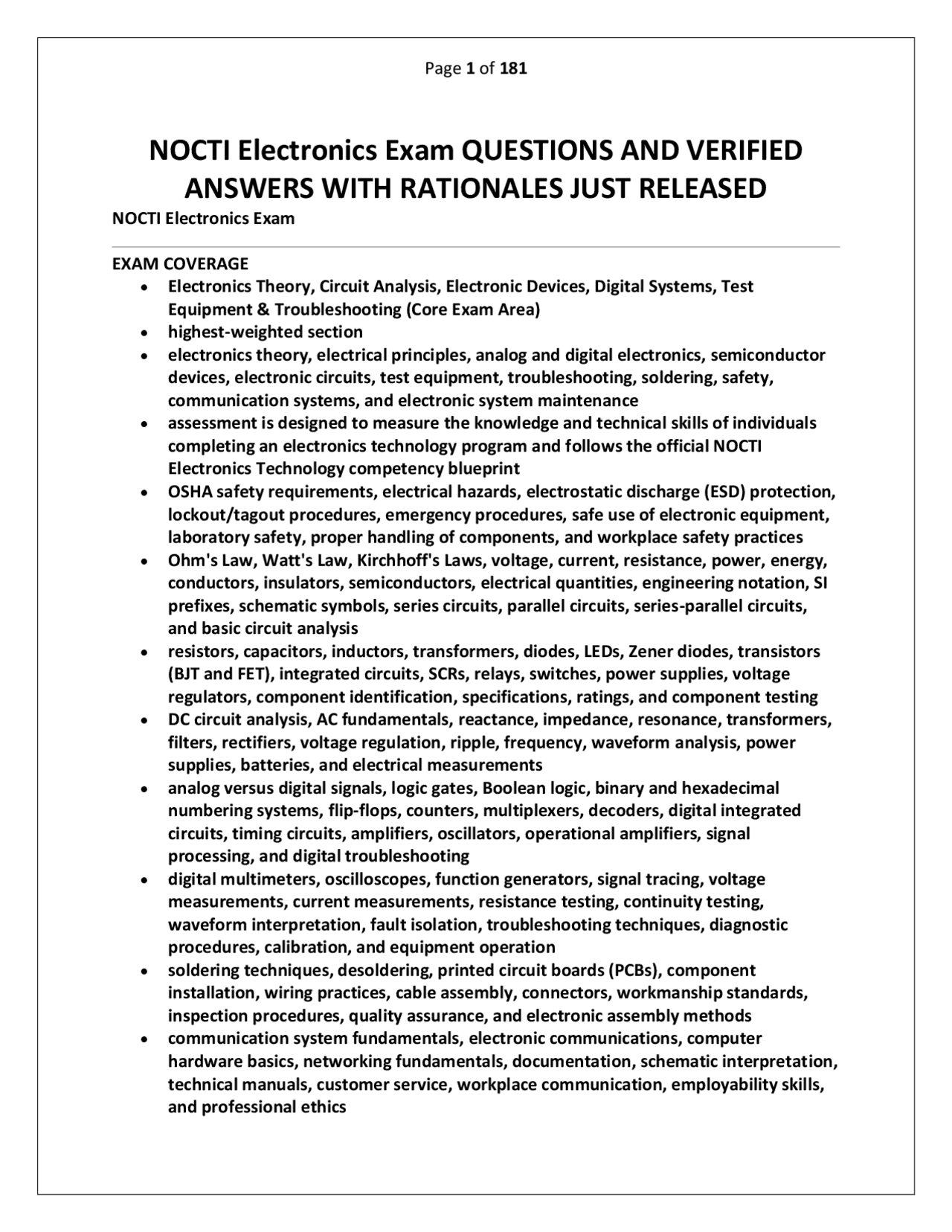

NOCTI Electronics Exam QUESTIONS AND VERIFIED

ANSWERS WITH RATIONALES JUST RELEASED

NOCTI Electronics Exam

EXAM COVERAGE

• Electronics Theory, Circuit Analysis, Electronic Devices, Digital Systems, Test

Equipment & Troubleshooting (Core Exam Area)

• highest-weighted section

• electronics theory, electrical principles, analog and digital electronics, semiconductor

devices, electronic circuits, test equipment, troubleshooting, soldering, safety,

communication systems, and electronic system maintenance

• assessment is designed to measure the knowledge and technical skills of individuals

completing an electronics technology program and follows the official NOCTI

Electronics Technology competency blueprint

• OSHA safety requirements, electrical hazards, electrostatic discharge (ESD) protection,

lockout/tagout procedures, emergency procedures, safe use of electronic equipment,

laboratory safety, proper handling of components, and workplace safety practices

• Ohm's Law, Watt's Law, Kirchhoff's Laws, voltage, current, resistance, power, energy,

conductors, insulators, semiconductors, electrical quantities, engineering notation, SI

prefixes, schematic symbols, series circuits, parallel circuits, series-parallel circuits,

and basic circuit analysis

• resistors, capacitors, inductors, transformers, diodes, LEDs, Zener diodes, transistors

(BJT and FET), integrated circuits, SCRs, relays, switches, power supplies, voltage

regulators, component identification, specifications, ratings, and component testing

• DC circuit analysis, AC fundamentals, reactance, impedance, resonance, transformers,

filters, rectifiers, voltage regulation, ripple, frequency, waveform analysis, power

supplies, batteries, and electrical measurements

• analog versus digital signals, logic gates, Boolean logic, binary and hexadecimal

numbering systems, flip-flops, counters, multiplexers, decoders, digital integrated

circuits, timing circuits, amplifiers, oscillators, operational amplifiers, signal

processing, and digital troubleshooting

• digital multimeters, oscilloscopes, function generators, signal tracing, voltage

measurements, current measurements, resistance testing, continuity testing,

waveform interpretation, fault isolation, troubleshooting techniques, diagnostic

procedures, calibration, and equipment operation

• soldering techniques, desoldering, printed circuit boards (PCBs), component

installation, wiring practices, cable assembly, connectors, workmanship standards,

inspection procedures, quality assurance, and electronic assembly methods

• communication system fundamentals, electronic communications, computer

hardware basics, networking fundamentals, documentation, schematic interpretation,

technical manuals, customer service, workplace communication, employability skills,

and professional ethics

Partial preview of the text

Download NOCTI Electronics Exam QUESTIONS AND VERIFIED ANSWERS WITH RATIONALES JUST RELEASED.pdf is and more Exams Electronics engineering in PDF only on Docsity!

NOCTI Electronics Exam QUESTIONS AND VERIFIED

ANSWERS WITH RATIONALES JUST RELEASED

NOCTI Electronics Exam EXAM COVERAGE

Electronics Theory, Circuit Analysis, Electronic Devices, Digital Systems, Test Equipment & Troubleshooting (Core Exam Area)
highest-weighted section
electronics theory, electrical principles, analog and digital electronics, semiconductor devices, electronic circuits, test equipment, troubleshooting, soldering, safety, communication systems, and electronic system maintenance
assessment is designed to measure the knowledge and technical skills of individuals completing an electronics technology program and follows the official NOCTI Electronics Technology competency blueprint
OSHA safety requirements, electrical hazards, electrostatic discharge (ESD) protection, lockout/tagout procedures, emergency procedures, safe use of electronic equipment, laboratory safety, proper handling of components, and workplace safety practices
Ohm's Law, Watt's Law, Kirchhoff's Laws, voltage, current, resistance, power, energy, conductors, insulators, semiconductors, electrical quantities, engineering notation, SI prefixes, schematic symbols, series circuits, parallel circuits, series-parallel circuits, and basic circuit analysis
resistors, capacitors, inductors, transformers, diodes, LEDs, Zener diodes, transistors (BJT and FET), integrated circuits, SCRs, relays, switches, power supplies, voltage regulators, component identification, specifications, ratings, and component testing
DC circuit analysis, AC fundamentals, reactance, impedance, resonance, transformers, filters, rectifiers, voltage regulation, ripple, frequency, waveform analysis, power supplies, batteries, and electrical measurements
analog versus digital signals, logic gates, Boolean logic, binary and hexadecimal numbering systems, flip-flops, counters, multiplexers, decoders, digital integrated circuits, timing circuits, amplifiers, oscillators, operational amplifiers, signal processing, and digital troubleshooting
digital multimeters, oscilloscopes, function generators, signal tracing, voltage measurements, current measurements, resistance testing, continuity testing, waveform interpretation, fault isolation, troubleshooting techniques, diagnostic procedures, calibration, and equipment operation
soldering techniques, desoldering, printed circuit boards (PCBs), component installation, wiring practices, cable assembly, connectors, workmanship standards, inspection procedures, quality assurance, and electronic assembly methods
communication system fundamentals, electronic communications, computer hardware basics, networking fundamentals, documentation, schematic interpretation, technical manuals, customer service, workplace communication, employability skills, and professional ethics

Section 1: Safety Practices (Questions 1-25) Question 1 Which class of fire extinguisher should be used on an electrical fire involving energized electronic equipment? A) Class A B) Class B C) Class C D) Class D Answer: C) Class C Rationale: Class C fire extinguishers are specifically rated for fires involving energized electrical equipment. Class A is for ordinary combustibles (wood, paper), Class B for flammable liquids, and Class D for combustible metals. Using the wrong extinguisher can create a shock hazard or be ineffective. Question 2

Answer: A) Occupational Safety and Health Administration; to set and enforce worksite safety and health standards Rationale: OSHA is the government organization whose purpose is to set and enforce worksite safety and health standards. OSHA regulations apply to all workplaces, including electronics laboratories and manufacturing facilities. Question 4 In residential structures, GFCIs are required by the NEC in which of the following locations? A) Living rooms B) Bedrooms C) Kitchens D) Hallways Answer: C) Kitchens Rationale: GFCI (Ground-Fault Circuit Interrupter) protection is required by the National Electrical Code (NEC) in areas where water and electricity may come into contact, including kitchens (countertops), bathrooms, garages, outdoor areas, and near pools. They are not generally required in living rooms or bedrooms, though local codes may vary.

Question 5 A Safety Data Sheet (SDS) provides information about first aid measures, stability and reactivity, and which of the following? A) Product cost B) Handling and storage C) Warranty information D) Manufacturing date Answer: B) Handling and storage Rationale: SDS documents provide comprehensive information about chemical hazards, including safe handling and storage procedures, first aid measures, reactivity data, and disposal considerations. They are required by OSHA for all hazardous chemicals in the workplace. Question 6 What does the term "arc flash" refer to? A) A static discharge that occurs when touching a doorknob B) A short-circuit through the air between energized conductors that produces intense heat and light

Rationale: Lockout/Tagout procedures apply to all types of hazardous energy sources, including electrical, mechanical, hydraulic, pneumatic, chemical, thermal, and potential (stored) energy. Any unexpected release of these energies could cause serious injury. Question 8 What is the primary hazard of working on a live circuit? A) The possibility of creating a short circuit B) The risk of electric shock, arc flash, and fire C) The potential to damage test equipment D) The need to wear heavy rubber gloves Answer: B) The risk of electric shock, arc flash, and fire Rationale: Working on energized circuits exposes the worker to the risk of electric shock (which can cause cardiac arrest, burns, and fall injuries) and arc flash (explosion of superheated air and molten metal). All live work should be avoided if possible, and only performed with proper PPE and safe work practices. Question 9 What color tag is typically used for lockout/tagout devices?

A) Red B) Orange C) Yellow D) It varies, but tags must be standardized, durable, and include the worker's identification Answer: D) It varies, but tags must be standardized, durable, and include the worker's identification Rationale: While lockout tags are often red or yellow for high visibility, OSHA does not specify a specific color. The key requirements are that tags are standardized, durable, include the worker's identification, and clearly warn against energizing the equipment. Question 10 Which of the following is an effective method for controlling electrostatic discharge (ESD) in an electronics lab? A) Wearing a wool sweater B) Using a grounded ESD wrist strap C) Working on a carpeted floor D) Touching a metal object before handling components Answer: B) Using a grounded ESD wrist strap

to verify it is still functioning. Lockout/tagout must also be applied to prevent accidental re- energization. Question 12 A person with a serious electrical injury should be moved: A) Immediately to a comfortable position B) Only if they are in immediate danger C) To the nearest hospital D) To a seated position Answer: B) Only if they are in immediate danger Rationale: A person with a serious electrical injury should be moved only if they are in immediate danger. Moving an injured person unnecessarily can worsen spinal or other injuries. Emergency medical services should be called immediately. Question 13 What does ESD stand for and why is it important in electronics? A) Electrical System Design; it ensures circuit functionality B) Electrostatic Discharge; it can damage sensitive electronic components

C) Electronic Signal Detection; it measures signal strength D) Energy Supply Distribution; it manages power delivery Answer: B) Electrostatic Discharge; it can damage sensitive electronic components Rationale: ESD stands for Electrostatic Discharge, which is the sudden flow of electricity between two electrically charged objects. It can damage or destroy sensitive electronic components such as integrated circuits, transistors, and microprocessors. ESD protection is critical in electronics manufacturing and repair. Question 14 Which of the following would likely NOT require a GFCI per current building codes? A) A basement wall outlet B) A laundry room outlet C) An outdoor outlet D) A garage outlet Answer: A) A basement wall outlet Rationale: Current NEC codes require GFCI protection for laundry rooms, garages, outdoor areas, and basements. However, basements are typically required to have GFCI protection as well; the only exception might be a dedicated outlet for a sump pump.

Answer: B) Prevent the unexpected energization or startup of machinery during maintenance Rationale: Lockout/Tagout procedures are designed to prevent the unexpected energization, startup, or release of stored energy that could cause injury during maintenance and servicing activities. It is a critical safety requirement in all industrial and electronic repair settings. Question 17 Which of the following is the correct procedure for using a soldering iron? A) Wipe the tip on a damp sponge before and after use, and apply a small amount of fresh solder (tinning) to the tip before storage B) File the tip to remove oxidation C) Leave the tip dry to prevent corrosion D) Dip the tip in flux after every use Answer: A) Wipe the tip on a damp sponge before and after use, and apply a small amount of fresh solder (tinning) to the tip before storage Rationale: Tinning the soldering iron tip (applying a small amount of fresh solder) before storage or before beginning soldering prevents oxidation and maintains proper heat transfer. Filing the tip damages the plating and should be avoided.

Question 18 What is the purpose of an isolation transformer when working on electronic equipment? A) To increase voltage for testing B) To separate earth ground from chassis ground for safety C) To convert AC to DC D) To amplify signals Answer: B) To separate earth ground from chassis ground for safety Rationale: An isolation transformer is used to separate earth ground from chassis ground, providing protection from electric shock when working on "hot chassis" equipment. It prevents the chassis from being at line voltage relative to ground. Question 19 What should a technician do to safely discharge electronic equipment before servicing? A) Short-circuit all capacitors with a screwdriver B) Use a properly rated discharge tool and follow established safety procedures C) Wait for the equipment to discharge itself D) Remove all fuses Answer: B) Use a properly rated discharge tool and follow established safety procedures

A) Work alone to minimize distractions B) Use insulated tools and follow lockout/tagout procedures C) Wear rubber-soled shoes only D) Keep one hand in your pocket at all times Answer: B) Use insulated tools and follow lockout/tagout procedures Rationale: Working on high-voltage equipment requires insulated tools, proper lockout/tagout procedures, and appropriate PPE. The "one hand in pocket" rule helps prevent current from passing through the heart, but it is not sufficient protection on its own. Question 22 What is the first step in responding to an electrical fire? A) Call the fire department B) Use a fire extinguisher C) De-energize the equipment if it is safe to do so D) Evacuate the area Answer: C) De-energize the equipment if it is safe to do so

Rationale: The first step in responding to an electrical fire is to de-energize the equipment if it is safe to do so. Once de-energized, the fire can be treated as a Class A fire. If it cannot be de- energized, a Class C fire extinguisher should be used. Question 23 Which of the following is a common cause of electrical shock in a workshop? A) Using insulated tools B) Working on energized circuits without proper precautions C) Wearing rubber-soled shoes D) Using a GFCI outlet Answer: B) Working on energized circuits without proper precautions Rationale: Working on energized circuits without proper precautions is a common cause of electrical shock. All live work should be avoided if possible, and only performed with proper PPE and safe work practices. Question 24 What is the purpose of a Safety Data Sheet (SDS) in an electronics workshop?

Rationale: Spill cleanup procedures should follow the specific guidance provided in the Safety Data Sheet (SDS) for the chemical involved. Using improper cleanup methods can create additional hazards. Section 2: Fundamental Electrical Principles & Circuit Theory (Questions 26-100) Question 26 Which law states that current through a conductor between two points is directly proportional to the voltage across the two points? A) Watt's Law B) Ohm's Law C) Kirchhoff's Voltage Law D) Kirchhoff's Current Law Answer: B) Ohm's Law Rationale: Ohm's Law states that the current through a conductor between two points is directly proportional to the voltage across the two points, provided the temperature remains constant. The formula is V = I × R, where V is voltage, I is current, and R is resistance.

Question 27 Using Ohm's Law, how much current is flowing through a circuit with 15.5 volts and 5 ohms of resistance? A) 0.32 amps B) 3.1 amps C) 5 amps D) 15.5 amps Answer: B) 3.1 amps Rationale: Using Ohm's Law, I = V / R. 15.5 volts ÷ 5 ohms = 3.1 amps. Question 28 What is the power dissipated by a resistor with a voltage drop of 12 volts and a current of 2 amps? A) 6 watts B) 12 watts C) 24 watts D) 48 watts Answer: C) 24 watts
