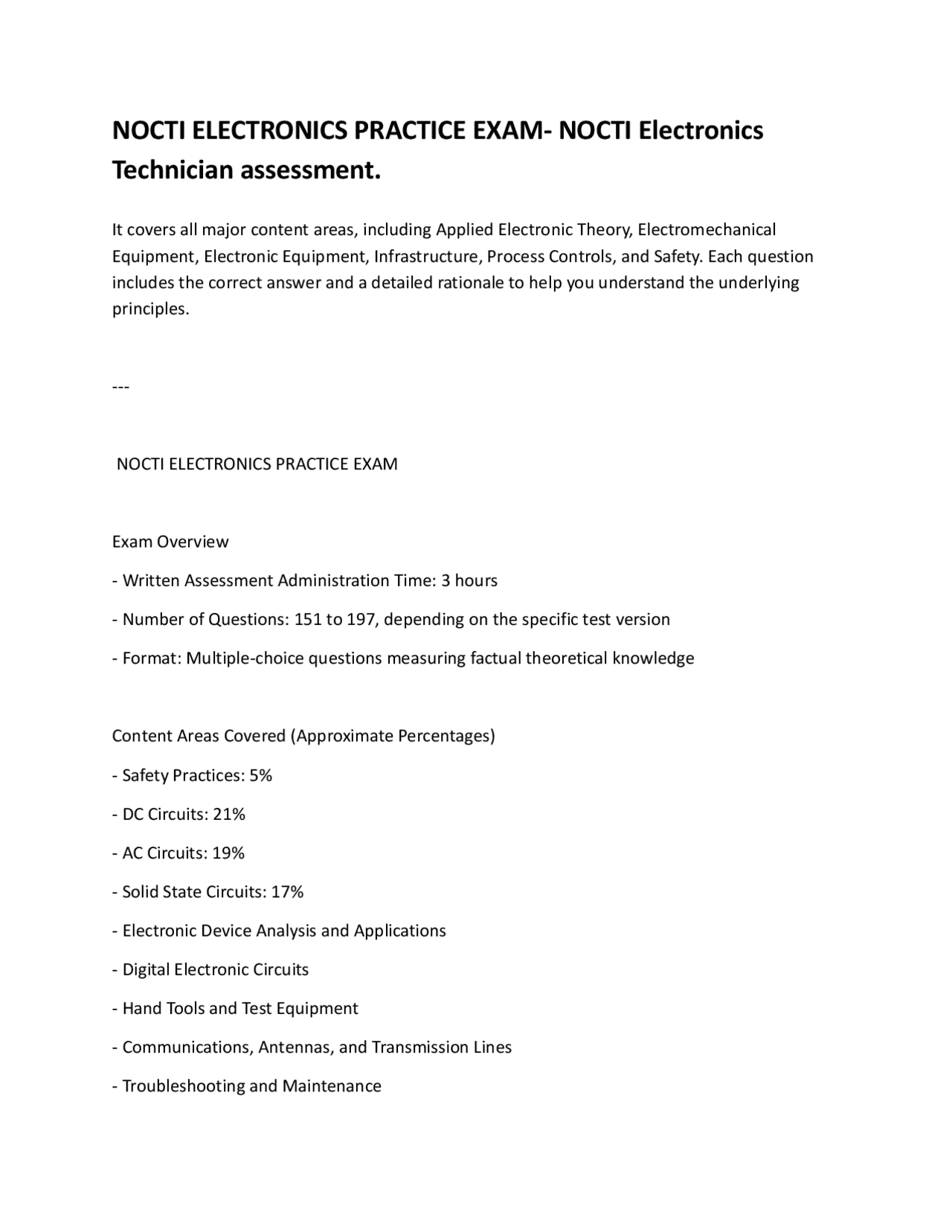

NOCTI ELECTRONICS PRACTICE EXAM- NOCTI Electronics
Technician assessment.
It covers all major content areas, including Applied Electronic Theory, Electromechanical Equipment, Electronic Equipment, Infrastructure, Process Controls, and Safety. Each question includes the correct answer and a detailed rationale to help you understand the underlying principles.
NOCTI ELECTRONICS PRACTICE EXAM Exam Overview
- Written Assessment Administration Time: 3 hours
- Number of Questions: 151 to 197, depending on the specific test version
- Format: Multiple-choice questions measuring factual theoretical knowledge Content Areas Covered (Approximate Percentages)
- Safety Practices: 5%
- DC Circuits: 21%
- AC Circuits: 19%
- Solid State Circuits: 17%
- Electronic Device Analysis and Applications
- Digital Electronic Circuits
- Hand Tools and Test Equipment
- Communications, Antennas, and Transmission Lines
- Troubleshooting and Maintenance
Section 1: Safety Practices (Questions 1-20) Q1. Which class of fire extinguisher should be used on an electrical fire? A) Class A B) Class B C) Class C D) Class D Correct Answer: C Rationale: Class C fire extinguishers are specifically rated for fires involving energized electrical equipment. Class A is for ordinary combustibles (wood, paper), Class B for flammable liquids, and Class D for combustible metals. Using the wrong extinguisher can create a shock hazard or be ineffective. Q2. A __________ fire extinguisher is used for ordinary combustible materials such as paper, wood, cardboard, and most plastics. A) Class A B) Class B C) Class C D) Class D Correct Answer: A Rationale: Class A extinguishers are designed for fires involving ordinary solid combustibles. The "A" is often remembered as standing for "Ash," indicating materials that leave ash when they burn.
A) Wipe the tip on a damp sponge before and after use, and apply a small amount of fresh solder (tinning) to the tip before storage. B) File the tip to remove oxidation. C) Leave the tip dry to prevent corrosion. D) Dip the tip in flux after every use. Correct Answer: A Rationale: Tinning the soldering iron tip (applying a small amount of fresh solder) before storage or before beginning soldering prevents oxidation and maintains proper heat transfer. Filing the tip damages the plating and should be avoided. Q6. Personal Protective Equipment (PPE) in electronics includes: A) Safety glasses B) ESD wrist straps C) Heat-resistant gloves for soldering D) All of the above Correct Answer: D Rationale: PPE for electronics technicians is essential for safety and includes safety glasses for eye protection, ESD wrist straps to protect sensitive components from electrostatic discharge, and appropriate gloves for specific tasks like soldering. Q7. Conducting a magnetic field around a circuit or device is called: A) shielding B) permeability C) hysteresis D) flux
Correct Answer: D Rationale: Magnetic flux is the measure of the total magnetic field passing through a given area. It represents the "flow" of the magnetic field around a circuit or device. Q8. A motor __________ is a motor controller that includes overload protection. A) drive B) starter C) relay D) contactor Correct Answer: B Rationale: A motor starter is a contactor (electrically operated switch) with integrated overload protection that controls and protects electric motors. The starter provides switching, overload protection, and low-voltage protection. Q9. What article in the National Electrical Code (NEC) covers motors, motor branch-circuit and feeder conductors, and their protection? A) Article 250 B) Article 300 C) Article 310 D) Article 430 Correct Answer: D Rationale: Article 430 of the National Electrical Code (NEC) covers the installation requirements for motors, motor branch-circuit and feeder conductors, motor control centers, and motor overload and short-circuit protection. It is a critical reference for anyone working with motor systems.
C) warranty information D) manufacturing date Correct Answer: B Rationale: SDS documents provide comprehensive information about chemical hazards, including safe handling and storage procedures, first aid measures, reactivity data, and disposal considerations. They are required by OSHA for all hazardous chemicals in the workplace. Q13. What does the term "arc flash" refer to? A) A static discharge that occurs when touching a doorknob. B) A short-circuit through the air between energized conductors that produces intense heat and light. C) A gradual loss of power in a transmission line. D) The flash from a camera phone. Correct Answer: B Rationale: An arc flash is a short circuit through the air between energized conductors or between a conductor and ground. It produces an extremely intense and dangerous event with temperatures reaching up to 35,000°F, causing severe burns, blast pressure, and molten metal. Q14. Which of the following is an example of a hazardous energy source that must be controlled during Lockout/Tagout? A) Electrical energy B) Mechanical energy (e.g., flywheels, springs) C) Thermal energy (high temperature) D) All of the above Correct Answer: D
Rationale: Lockout/Tagout procedures apply to all types of hazardous energy sources, including electrical, mechanical, hydraulic, pneumatic, chemical, thermal, and potential (stored) energy. Any unexpected release of these energies could cause serious injury. Q15. What is the primary hazard of working on a live circuit? A) The possibility of creating a short circuit. B) The risk of electric shock, arc flash, and fire. C) The potential to damage test equipment. D) The need to wear heavy rubber gloves. Correct Answer: B Rationale: Working on energized circuits exposes the worker to the risk of electric shock (which can cause cardiac arrest, burns, and fall injuries) and arc flash (explosion of superheated air and molten metal). All live work should be avoided if possible, and only performed with proper PPE and safe work practices. Q16. What color tag is typically used for lockout/tagout devices? A) Red B) Orange C) Yellow D) It varies, but tags must be standardized, durable, and include the worker's identification. Correct Answer: D Rationale: While lockout tags are often red or yellow for high visibility, OSHA does not specify a specific color. The key requirements are that tags are standardized, durable, include the worker's identification, and clearly warn against energizing the equipment.
C) Using a humidifier to increase humidity. D) Wearing a wool sweater. Correct Answer: D Rationale: Wool sweaters are notorious for generating static electricity and should be avoided in electronics labs. Anti-static mats, grounded wrist straps, and increased humidity (above 40% RH) are all effective methods for controlling ESD. Q20. A technician is about to start working on a de-energized panel. The correct safety procedure is to: A) Assume the panel is de-energized and start work. B) Double-check that the panel is de-energized using a properly rated voltage tester, check that the tester is functioning on a known live source before and after testing the circuit, and apply lockout/tagout. C) Wear arc-rated clothing and proceed. D) Test the circuit for voltage using a non-contact voltage tester. Correct Answer: B Rationale: The proper procedure is "Live, Dead, Live." Test the voltage tester on a known live source, test the circuit to ensure it is de-energized, then test the tester again on the known live source. This verifies the tester is working correctly. Non-contact testers are not reliable for confirming zero energy.
Section 2: DC Circuits (Questions 21-60) Q21. What is the unit of electrical resistance?
A) Ampere B) Volt C) Ohm D) Watt Correct Answer: C Rationale: The ohm (Ω) is the unit of electrical resistance. One ohm is the resistance that allows one ampere of current to flow when one volt is applied. Q22. A circuit has a resistance of 10 ohms and a voltage of 120 volts. What is the current? A) 0.083 A B) 1.2 A C) 12 A D) 120 A Correct Answer: C Rationale: Using Ohm's Law, I = V / R. Therefore, 120 V / 10 Ω = 12 A. Q23. According to Ohm's Law, if resistance increases while voltage remains constant, current will: A) Increase B) Decrease C) Stay the same D) Change unpredictably Correct Answer: B
C) 36 watts D) 48 watts Correct Answer: C Rationale: Power can be calculated using P = V² / R = (12 × 12) / 4 = 144 / 4 = 36 watts. Q27. What is the voltage drop across a 1 kΩ resistor if 2 mA of current flows through it? A) 0.5 volts B) 2 volts C) 5 volts D) 2000 volts Correct Answer: B Rationale: Using Ohm's Law, V = I × R. 1 kΩ = 1,000 Ω. 2 mA = 0.002 A. V = 0.002 A × 1000 Ω = 2 volts. Q28. The sum of the voltage drops in a closed loop is equal to the source voltage. This describes: A) Ohm's Law B) Kirchhoff's Current Law C) Kirchhoff's Voltage Law D) Faraday's Law Correct Answer: C Rationale: Kirchhoff's Voltage Law (KVL) states that the sum of all voltage rises and drops around a closed loop is zero. In a simple series circuit, the sum of the voltage drops across the loads equals the source voltage.
Q29. The total current entering a junction equals the total current leaving the junction. This is known as: A) Ohm's Law B) Kirchhoff's Current Law C) Kirchhoff's Voltage Law D) Watt's Law Correct Answer: B Rationale: Kirchhoff's Current Law (KCL) states that the sum of currents entering a node (or junction) is equal to the sum of currents leaving the node. This is based on the principle of conservation of charge. Q30. A 12-volt battery has an internal resistance of 0.1 ohm. What is the terminal voltage when it is delivering 10 amps? A) 0 volts B) 11 volts C) 12 volts D) 13 volts Correct Answer: B Rationale: The voltage drop across the internal resistance is Vₐᵣ = I × Rᵢₙₜ = 10 A × 0.1 Ω = 1 V. The terminal voltage is the battery EMF (12 V) minus the internal drop (1 V) = 11 V. Q31. If a resistor's color code is brown, black, red, gold, what is its nominal resistance and tolerance? A) 10 ohms, ±5% B) 100 ohms, ±5%
Rationale: A potentiometer is a three-terminal variable resistor used to adjust voltage levels. A related component is the rheostat, which is a two-terminal variable resistor used to adjust current. Q34. The current in a series circuit is: A) different at each point, depending on the resistance. B) the same at all points. C) inversely proportional to the square of the voltage. D) the sum of the individual branch currents. Correct Answer: B Rationale: In a series circuit, there is only one path for current flow. Therefore, the current is the same at all points in the circuit. Q35. In a parallel circuit, the voltage across each branch is: A) different, depending on the resistance. B) the same across all branches. C) directly proportional to the branch resistance. D) inversely proportional to the branch current. Correct Answer: B Rationale: In a parallel circuit, each branch is connected directly across the same two points, so the voltage is the same across each branch. This is a fundamental property of parallel circuits. Q36. A cell that cannot be recharged is classified as a: A) primary cell B) secondary cell
C) solar cell D) lithium-ion cell Correct Answer: A Rationale: A primary cell is a non-rechargeable battery where the electrochemical reaction is not easily reversible. Common examples include alkaline, carbon-zinc, and lithium metal batteries. Secondary cells are rechargeable. Q37. A charge of 2 coulombs passes through a point in a circuit every second. What is the current? A) 0.5 A B) 1 A C) 2 A D) 4 A Correct Answer: C Rationale: Current is defined as the rate of flow of charge. I = Q / t. Therefore, 2 coulombs / 1 second = 2 amperes. Q38. The opposition to current flow in a DC circuit is called: A) Impedance B) Inductance C) Capacitance D) Resistance Correct Answer: D
B) parallel circuits only C) series-parallel circuits D) all circuits Correct Answer: B Rationale: In a parallel circuit, the total resistance is always less than the smallest individual resistor. This occurs because adding more parallel paths reduces the overall opposition to current. Q42. The unit of conductance is the: A) ohm B) henry C) farad D) siemens (mho) Correct Answer: D Rationale: Conductance is the reciprocal of resistance, measured in siemens (S) or mhos (℧). It represents how easily current flows. Q43. What is the primary advantage of using a Wheatstone bridge circuit? A) It can measure very small resistances with high precision. B) It can generate high voltages. C) It is used to measure inductance. D) It is a type of power supply. Correct Answer: A
Rationale: A Wheatstone bridge is a precision measurement circuit used to measure unknown resistances by balancing two legs of a bridge circuit. It can measure small resistances accurately, especially when used with a null detector. Q44. A technician needs to reduce a 12 V supply to 5 V to power a small circuit. What component would be most efficient for this task? A) A series resistor B) A Zener diode regulator C) A buck (step-down) switching regulator D) A linear voltage regulator Correct Answer: C Rationale: A buck switching regulator is highly efficient (often 85-95%) compared to linear regulators (which dissipate excess voltage as heat) and simple resistor dividers (which are inefficient and load-dependent). Buck converters are ideal for battery-powered applications. Q45. A color code of orange, orange, orange represents a resistance of: A) 330 ohms B) 3,300 ohms C) 33,000 ohms D) 330,000 ohms Correct Answer: C Rationale: Orange = 3, orange = 3, orange multiplier = 1,000. 33 × 1,000 = 33,000 ohms, or 33 kΩ. Q46. Which of the following statements about a short circuit is true? A) It has infinite resistance.
