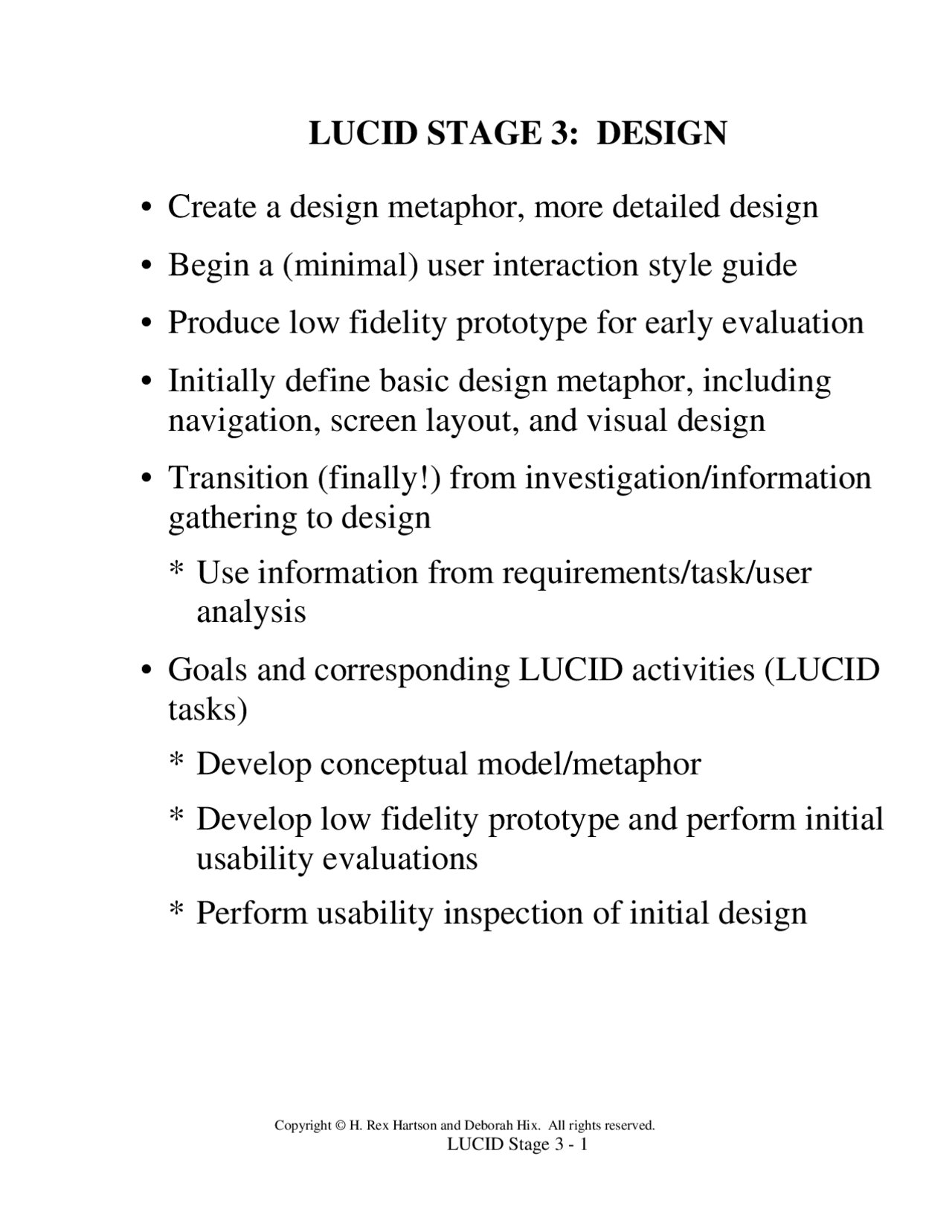

LUCID STAGE 3: DESIGN

  • Create a design metaphor, more detailed design
  • Begin a (minimal) user interaction style guide
  • Produce low fidelity prototype for early evaluation
  • Initially define basic design metaphor, including navigation, screen layout, and visual design
  • Transition (finally!) from investigation/information gathering to design
    • Use information from requirements/task/user analysis
  • Goals and corresponding LUCID activities (LUCID tasks)
    • Develop conceptual model/metaphor
    • Develop low fidelity prototype and perform initial usability evaluations
    • Perform usability inspection of initial design

CONCEPTUAL MODEL/METAPHOR

  • Conceptual model/metaphor is basis for specific UI design
    • Metaphor is optional, model required
      • Conceptual model, intuitively, is what product system is and does.
      • Metaphor is analogy with something existing in real world with similarities that can be leveraged for learning new system
    • Helps designers and therefore users develop mental map of UI design
  • Conceptual model vs. technical model
    • Technical model — implementation of software architecture (widgets, data structures, files, etc.)
    • User interaction design vs. user interface software design, revisited

PARTICIPATORY DESIGN

  • PICTIVE (Plastic interface for collaborative technology initiatives through video exploration) — example of participatory design technique
    • Users actually sketch UI design
    • Then use paper, plastic, tape, sticky notes, etc. to create low-fidelity prototype
    • Users then perform scenario walkthrough, which is recorded using video camera
    • Video can be shown to other users and designers, managers

WHAT CAN WE GET FROM TALKING WITH

USERS?

  • Outside of participatory design:
    • You don't get design
    • It's not about whether users know what's best for them – you're not asking that
    • You are asking what they do
      • Most of what users talk about is often not quite the right stuff
      • You have to build the picture of what they need via task analysis and scenarios
      • Then test to see if it works

CONCEPTUAL INTERACTION DESIGN

  • Example of conceptual model/metaphor for Y2K Calendar: A paper calendar, but extend it to include views of day, week, month, and year (which a single paper calendar cannot do) plus direct searching
  • Can have more than one design concept
  • Design concept(s) can iterate and change, sometimes dramatically
  • Design concept(s) may be controversial
  • Concept description accompanied by screen sketches to show key aspects of proposed design
    • As these are initial design, want them to encourage comment and iteration
  • Evaluate design concept(s) by discussion with team and key users (including different user classes)
  • Choose design concept from evaluation results
    • Could mean merging parts of two or more concepts

CONCEPTUAL INTERACTION DESIGN

- Goal: * To create a high-level (independent of appearance) design model with a metaphor - Activities: * Identify application objects, their properties, and relationships among them * Decide how objects will be viewed conceptually (not details of appearance) in interaction design * Decide how user will access those objects * Determine operations to be performed on the objects as a result of user tasks * Decide how to invoke and carry out those operations

CONCEPTUAL INTERACTION DESIGN

  • Conceptual design model continued
    • Access methods : How users get at the objects
    • Accessing an existing appointment
      • By viewing, possibly preceded by search or navigation through views
    • Invoking and carrying out operations on objects
      • Menu? Pull-down?
      • Small, fixed number of commands
      • Implication for interaction style: Buttons or icons?

INITIAL SCREEN DESIGN

- Goal: * To develop together an initial design/layout for the screen(s) and other interaction objects - Assumption: * Generic desktop platform (not specific to Windows, Mac, etc.) - Activities: * Draw pictures of screens, including menus, buttons, icons, application objects * Label objects with behavior as appropriate

EXERCISE:

ITERATE CONCEPTUAL DESIGN MODEL

  • Conceptual design model revisited
    • Access methods to appointment objects by:
      • Selection and navigation on desk top
      • Search on content (user types string to match)
    • Decisions about container objects
      • Default display: Several months overlapped, with current month on top
      • In higher level objects user can select lower level objects (view control)
      • Try to show as much appointment information at each level as possible (page preview idea)
    • Appointment editing
      • Keep it simple (it’s not a word processor)
      • Do only at appointment slot (hour) level
      • For add, modify, delete

ITERATE INITIAL SCREEN DESIGN

  • Month level (current month is default)

3DVW0RQWK

6HDUFK +HOS )XWXUH0RQWK 0D\ 'HOHWH$SSRLQWPHQW 0DUFK$SULO 681 021 78( :(' 7+8 )5, 6$       (^)      (^)    (^)  681 021 78( :(' 7+8 )5, 6$7

     6$785'$<0$5&+

6HOHFW:HHN 6HOHFW:HHN 6HOHFW:HHN

ITERATE INITIAL SCREEN DESIGN

  • Week level :HHNRI^ :HHNRI :HHNRI (^681021) 78(6:(' 0RQWKYLVLEOH IRUVHOHFWLRQ $SSRLQWPHQWVIRUZHHN DUHIRUPDWWHGWRILWVTXHH]HG LQ
  • Format of week can use improvement
  • Day level 1RFORVHER[NHHS RQGHVNWRS

6FUROOXSRUGRZQWRPLGQLJKW

^ 021'$<2&72%(5

+(/3 (^)  '(/(7($33 7

&OLFNKHUHWRHGLW W\SH

  • Appointments saved when deselect

USER INTERACTION STYLE GUIDE

  • Style guide documents visual design decisions and other general design decisions, to help ensure consistency
  • Used by interaction designers and developers
  • If long, should contain an "overview" sheet up front that includes the most important design decisions for most frequently-used interaction design elements
  • Style guide should include details of:
    • Font and text usage
    • Color usage, background graphics, other common design elements
    • Icon usage, position, and design
    • "Widget" usage, position, and design – dialogue boxes, menus, message windows, toolbar, etc.

SCENARIO-BASED DESIGN

  • Design situations are fluid; written specifications are rigid
  • Scenario-based design is bottom-up design; needs to be mixed with some top-down structuring
  • Where do scenarios come from?
    • Brainstorming
    • Ethnographic field studies
    • Participatory design
    • Reuse of similar designs
    • Don't forget to include error and recovery scenarios
  • Scenarios reveal requirements
    • Scenarios can reveal how tasks will be carried out and how system will enable functionality for tasks

SCENARIO-BASED DESIGN

  • Scenarios should capture and make obvious in your design:
    • Tasks
    • Task threads
    • User interface objects/artifacts
    • User actions on objects
    • User planning, thoughts, and reactions to system
  • It works well to sketch screen designs to go with the scenarios as you go along
