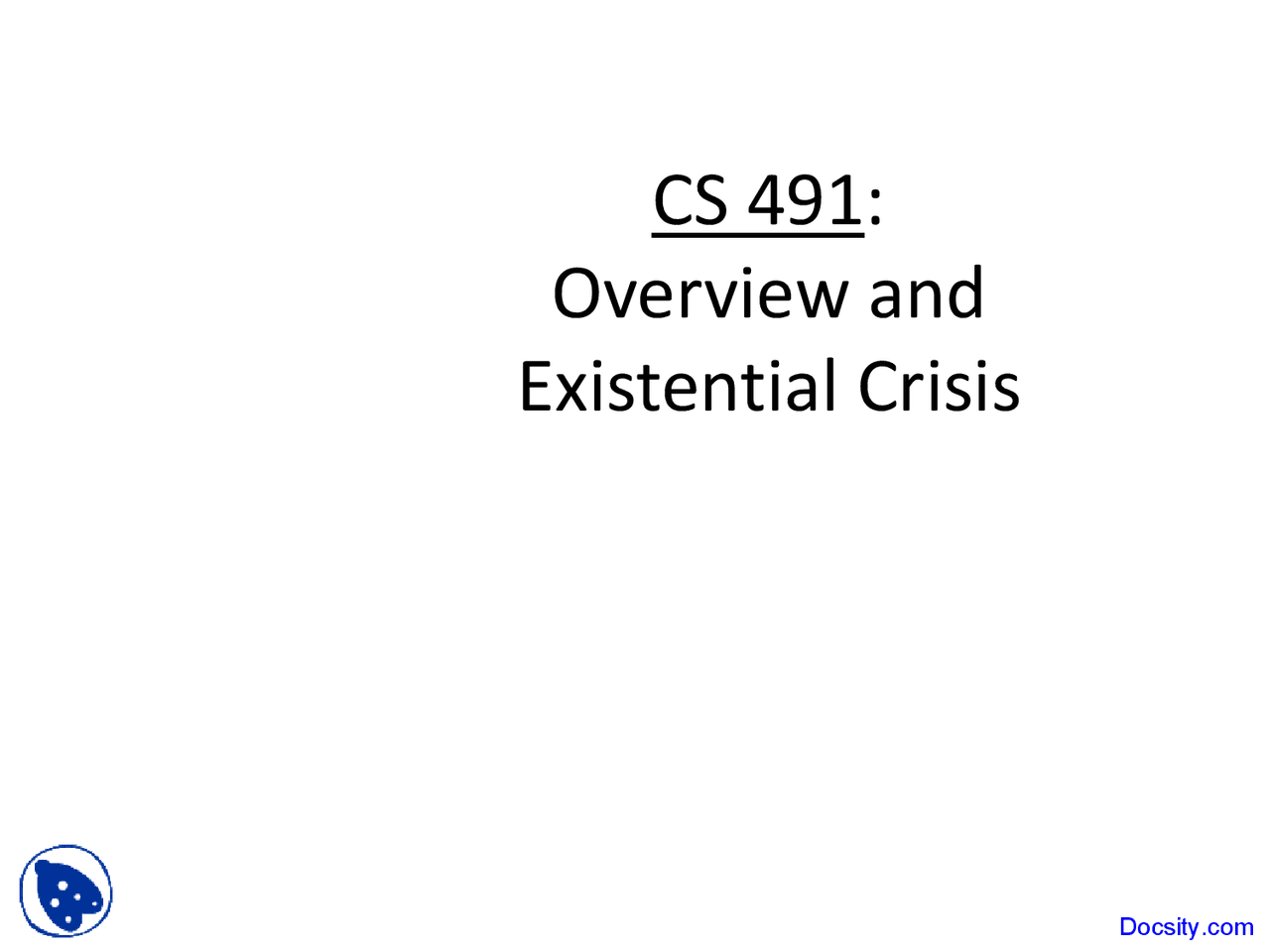

CS 491:

Overview and

Existential Crisis

“Parallel & Distributed Computing”

• What does it mean to you?
  • Coordinating Threads
  • Supercomputing
  • Multi-core Processors
  • Beowulf Clusters
  • Cloud Computing
  • Grid Computing
  • Client-Server
  • Scientific Computing
• All contexts for “splitting up work” in an

explicit way

What is Supercomputing?

• Supercomputing is the biggest, fastest computing right this minute.
• Likewise, a supercomputer is one of the biggest, fastest computers right this minute. - The definition of supercomputing is, therefore, constantly changing.
• A Rule of Thumb: A supercomputer is typically at least 100 times as powerful as a PC.
• Jargon: Supercomputing is also known as High Performance Computing (HPC) or High End Computing (HEC) or Cyberinfrastructure (CI).

Fastest Supercomputer vs. Moore

Fastest Supercomputer in the World

1

10

100

1000

10000

100000

1000000

10000000

1992 1997 2002 2007 Year

Speed in GFLOPs

Fastest Moore

GFLOPs : billions of calculations per second

Over recent years, supercomputers have benefitted directly from microprocessor performance gains, and have also gotten better at coordinating their efforts.

Hold the Phone

• Why should we care?
• What useful thing actually takes a long time to run anymore? (especially long enough to warrant investing 6/7/8/9 figures on a supercomputer)
• Important: It’s usually not about getting something done faster, but about getting a harder thing done in the same amount of time - This is often referred to as capability computing

What Is HPC Used For?

• Simulation of physical phenomena, such as
  • Weather forecasting
  • Galaxy formation
  • Oil reservoir management
• Data mining: finding needles of information in a haystack of data, such as: - Gene sequencing - Signal processing - Detecting storms that might produce tornados (want forecasting, not retrocasting…)
• Visualization: turning a vast sea of data into pictures that a scientist can understand - Oak Ridge National Lab has a 512-core cluster devoted entirely to visualization runs

Tornadic Storm

May 3 1999[2]

[3]

[1]

What is Supercomputing About?

• Size: Many problems that are interesting™ can’t fit on a PC – usually because they need more than a few GB of RAM, or more than a few 100 GB of disk.
• Speed: Many problems that are interesting™ would take a very very long time to run on a PC: months or even years. But a problem that would take a month on a PC might take only a few hours on a supercomputer.

Supercomputing Issues

• Parallelism: doing multiple things at the same

time

• finding and coordinating this can be challenging
• The tyranny of the storage hierarchy
• The hardware you’re running on matters
• Moving data around is often more expensive than

actually computing something

Parallel Processing

• The term parallel processing is

usually reserved for the situation in

which a single task is executed on

multiple processors

• Discounts the idea of simply running separate tasks onseparate processors – a common thing to do to get high throughput, but not really parallel processing

Key questions in hardware design:

1. How do parallel processors share data and communicate?

• shared memory vs distributed memory 2. How are the processors connected?
  • single bus vs network
• The number of processors is determined by a combination of #1 and #

How is Data Shared?

• Shared Memory Systems
  • All processors share one memory address space and can access it
  • Information sharing is often implicit
• Distributed Memory Systems ( AKA

“Message Passing Systems”)

• Each processor has its own memory space
• All data sharing is done via programming primitives to pass messages - i.e. “Send data value to processor 3”
• Information sharing is always explicit

Shared Memory Systems

• Processors all operate independently, but operate out of the same logical memory.
• Data structures can be read by any of the processors
• To properly maintain ordering in our programs, synchronization primitives are needed! (locks/semaphores)

Cache

Processor

Cache

Processor

Cache

Processor

Single bus

Memory I/O

Connecting Multiprocessors

The Cache Coherence Problem

I/O devices

Memory

P 1

$ $ $

P 2 P 3

1 2

4 5 3

u =? u =?

u:

u:

u:

u = 7

Cache Coherence Solutions

• Two most common variations:
  • “snoopy” schemes
    • rely on broadcast to observe all coherence traffic
    • well suited for buses and small-scale systems
    • example: SGI Challenge or Intel x
  • directory schemes
    • uses centralized information to avoid broadcast
    • scales well to large numbers of processors
    • example: SGI Origin/Altix
