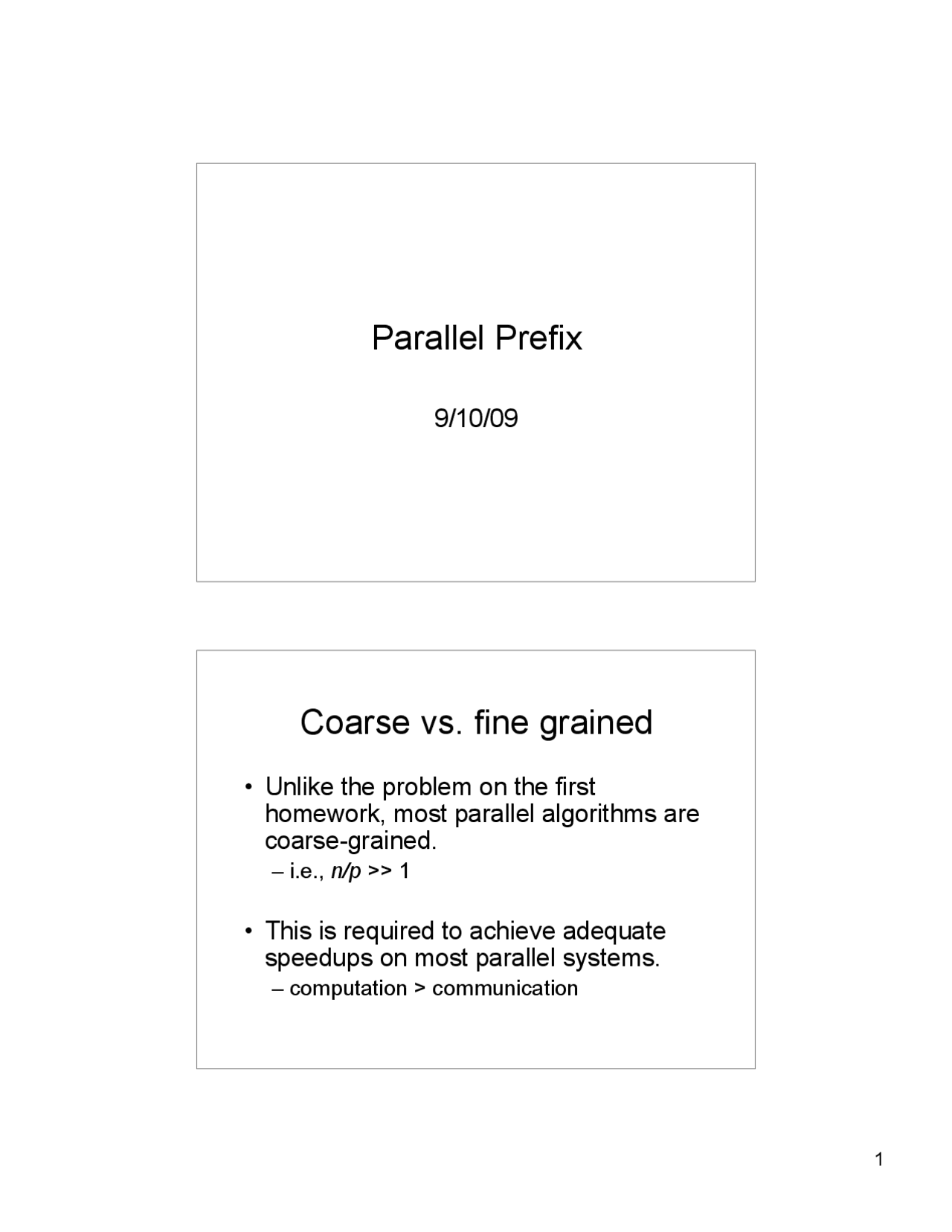

Parallel Prefix

9/10/09

Coarse vs. fine grained

• Unlike the problem on the first

homework, most parallel algorithms are

coarse-grained.

– i.e., n/p >> 1

• This is required to achieve adequate

speedups on most parallel systems.

– computation > communication

Discover Study notes of Computer Science University of Notre Dame

Partial preview of the text

Download Parallel Prefix Algorithms: Coarse-Grained vs. Fine-Grained Approaches for Prefix Sums and more Study notes Computer Science in PDF only on Docsity!

Parallel Prefix

Coarse vs. fine grained

Unlike the problem on the first

homework, most parallel algorithms are

coarse-grained.

i.e., n/p >> 1
This is required to achieve adequate

speedups on most parallel systems.

computation > communication

Algorithm design

Many parallel algorithms have sequential and parallel modules.
The best case approach is to design a fine-grained algorithm where p = n. - This would guarantee efficiency for all p < n , which is a more typical situation because efficiency always scales down (within a constant).
We will discuss a specfic example of this today.

Prefix sums

We are given n elements x 0 , x 1 , …, xn-

and a binary associative operator ⊗

Computing the partial sums s 0 , s 1 , …,

sn-1 , where si = x 0 ⊗ x 1 ⊗ … ⊗ xi , is

called the prefix sum problem.

Serial algorithm is Ω( n ).

Parallel Prefix

We would like to develop a parallel algorithm to compute prefix sums.
In addition, it turns out that many different problems can be solved efficiently using this parallel algorithm. - e.g., max or min operation
Often called a scan or sweep operation.

Example

Parallel prefix ([1,2,3,4,5,6,7,8], sum)
- Returns [1, 3, 6, 10, 15, 21, 28, 36]
Although we will focus on sums today,

many other operators can be used to

solve an assortment of problems.

Examples will be in the next homework problem set handed out Tues.

Return to parallel sums

In class, we discussed an algorithm for sums where one processor received the answer.
For your homework, you were asked to develop an alternative were all processors got the result. - This can be achieved by exchanging values instead of unidirectional communication.

One answer

For i = 0 to d - 1 do
- Send sum to the processor obtained by inverting the i th^ bit
- Receive sum from the processor obtained by inverting the i th^ bit
- Add received sum to local sum

Illustration

Input vector Prefix sums of 1st half Prefix sums of 2nd half (Requires log p time) Analysis from Aluru Chapter 1

Improving this further

Suppose that we calculate both the

prefix sums and the total sums on each

of the two partitions.

This will add slightly more memory but

result in a substantial improvement as

we will see.

Illustration

Input vector Prefix sums of 1st half Prefix sums of 2nd half (Requires one hypercubic permutation)

Non-recursive algorithm

Set prefix sum to be element on this processor.
Set total sum to be prefix sum.
For i = 0 to d - 1
- Send total sum to processor obtained by inverting the i th^ bit of self id and receive back
- Add received sum to total sum
- If exchange occurs between processor with a smaller id, add received sum to prefix sum

Efficiency

This algorithm is as efficient as adding n numbers. - Only a constant amount of additional work is required during the parallel algorithm.
Further, we can compute all prefix sums in the time it takes to compute the last prefix sum Sn-1 , which is also the total sum.

Details

In the non-recursive algorithm, we maintain two variables: - Prefix sum - Total sum
The algorithm contains log p phases, each of which requiring O(1) computation and one communication. - Worse case is two adds when it communication occurs with a processor with a lower rank.

Analysis of algorithm

Where p = n
- Computation time = O (log p )
- Communication time = O((τ + μ) log p )
Where p > n
- Computation time = O( n/p + log p )
- Communication time = O((τ + μ) log p )

Example

Suppose we want to calculate the rank of a processor given “marked” and “unmarked” processors.
Rank = # of preceeding processors with mark if and only if this processor is marked.
How would you solve this problem?
