EECS 117A, Midterm #2, Fall 1998
EECS 117A, Fall 1998
Midterm
Professor S.E. Schwarz
Problem #1 (40 points)

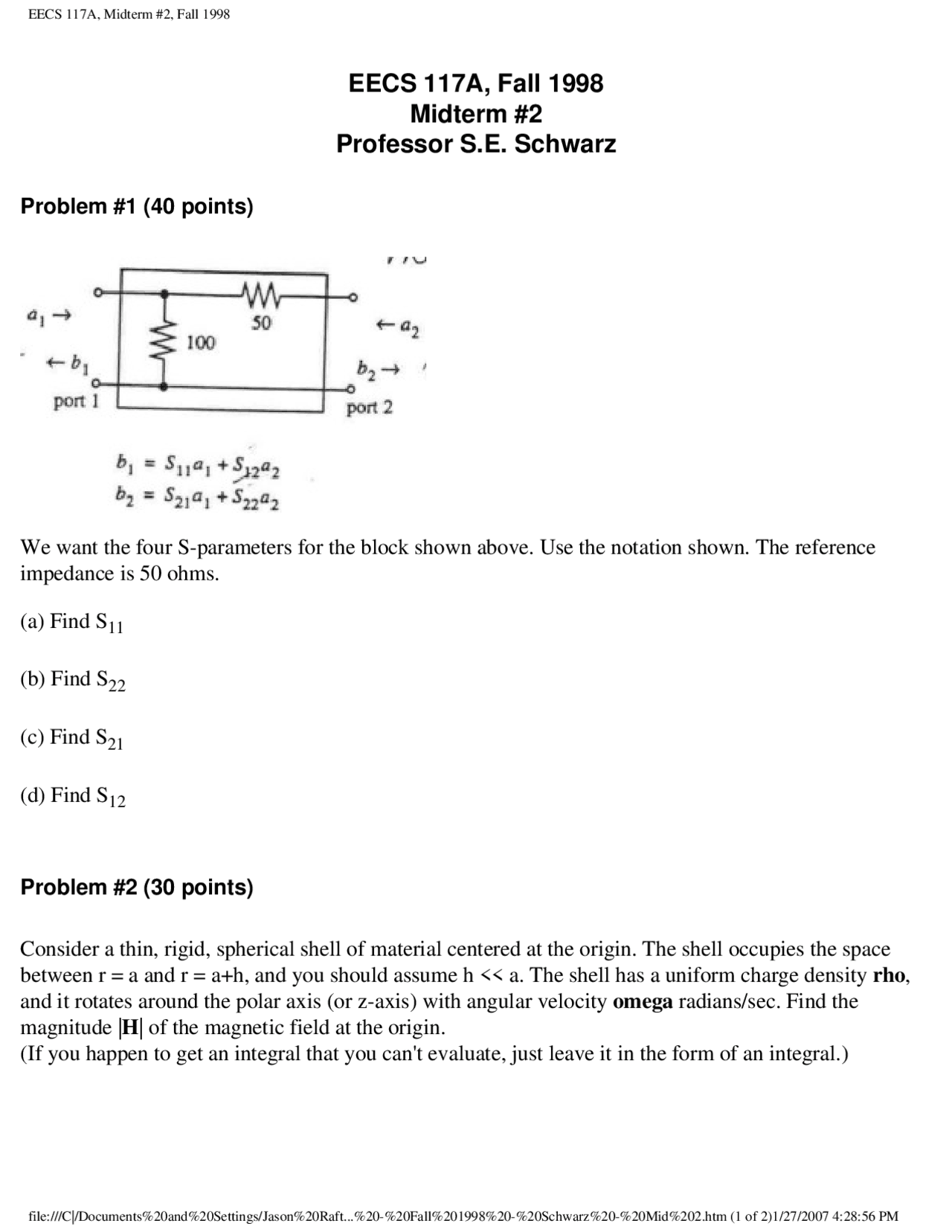

We want the four S-parameters for the block shown above. Use the notation shown. The reference impedance is 50 ohms.
(a) Find S (^11)
(b) Find S 22
(c) Find S 21
(d) Find S 12
Problem #2 (30 points)
Consider a thin, rigid, spherical shell of material centered at the origin. The shell occupies the space between r = a and r = a+h, and you should assume h << a. The shell has a uniform charge density rho , and it rotates around the polar axis (or z-axis) with angular velocity omega radians/sec. Find the magnitude | H | of the magnetic field at the origin. (If you happen to get an integral that you can't evaluate, just leave it in the form of an integral.)
file:///C|/Documents%20and%20Settings/Jason%20Raft...%20-%20Fall%201998%20-%20Schwarz%20-%20Mid%202.htm (1 of 2)1/27/2007 4:28:56 PM
EECS 117A, Midterm #2, Fall 1998
Problem #3 (30 points)
The boundary between two electrically conductive materials lies in the x = 0 plane. Material 1 has epsilon 1 , sigma E1, mu 1 and material 2 has epsilon 2 , sigma E2, mu 2. Let epsilon 2 = 2 epsilon 1 , sigma E2 =
3 sigma E1 , mu 2 = 5 mu 1. There is an electrostatic field E 1 in Region 1, which makes an angle of 45o
with the normal to the interface, as shown. Find theta 2 , the angle between the electrostatic field and the
normal on the right side of the boundary.
Answer: theta = ____________ degrees
