Er. Ujwal Kumar (Physics Mentor for NEET/ JEE-Mains, Adv/ KVPY/OLYMPIAD/CBSE)
352
CLASS – 12
WORKSHEET- SEMICONDUCTOR DEVICES AND DIGITAL CIRCUITS
A. SEMICONDUCTOR MATERIAL
(1 Mark Questions)
1. Give the ratio of holes and the number of conduction electrons in an intrinsic
semiconductor.
Sol. The ratio of the number of holes to the number of conduction electrons in an intrinsic
semiconductor is 1.
2. How does the forbidden energy gap of an intrinsic semiconductor vary with increase in
temperature?
Sol. As we increase the temp, electrons from the top of the valence band would gain thermal
energy and gets excited into the C.B, so band gap would decrease with increase in temp.
Hence forbidden energy gap of a semiconductor decreases with increase in temperature.
3. How does the energy gap in an intrinsic semiconductor vary, when doped with a
pentavalent impurity?
Sol. When an intrinsic semiconductor is doped with the impurity atoms of valence five like
As, P or Sb, some addition energy levels are produced, situation in the energy gap
slightly below the conduction band which are called donor energy levels. Due to
it, energy gap in semiconductor decreases
4. Is the ratio of number of holes and number of conduction electrons in a p-type
semiconductor more than, less than or equal to 1?
Sol. The ratio of number of holes and number of conduction electrons in a p-type
semiconductor is less than 1.

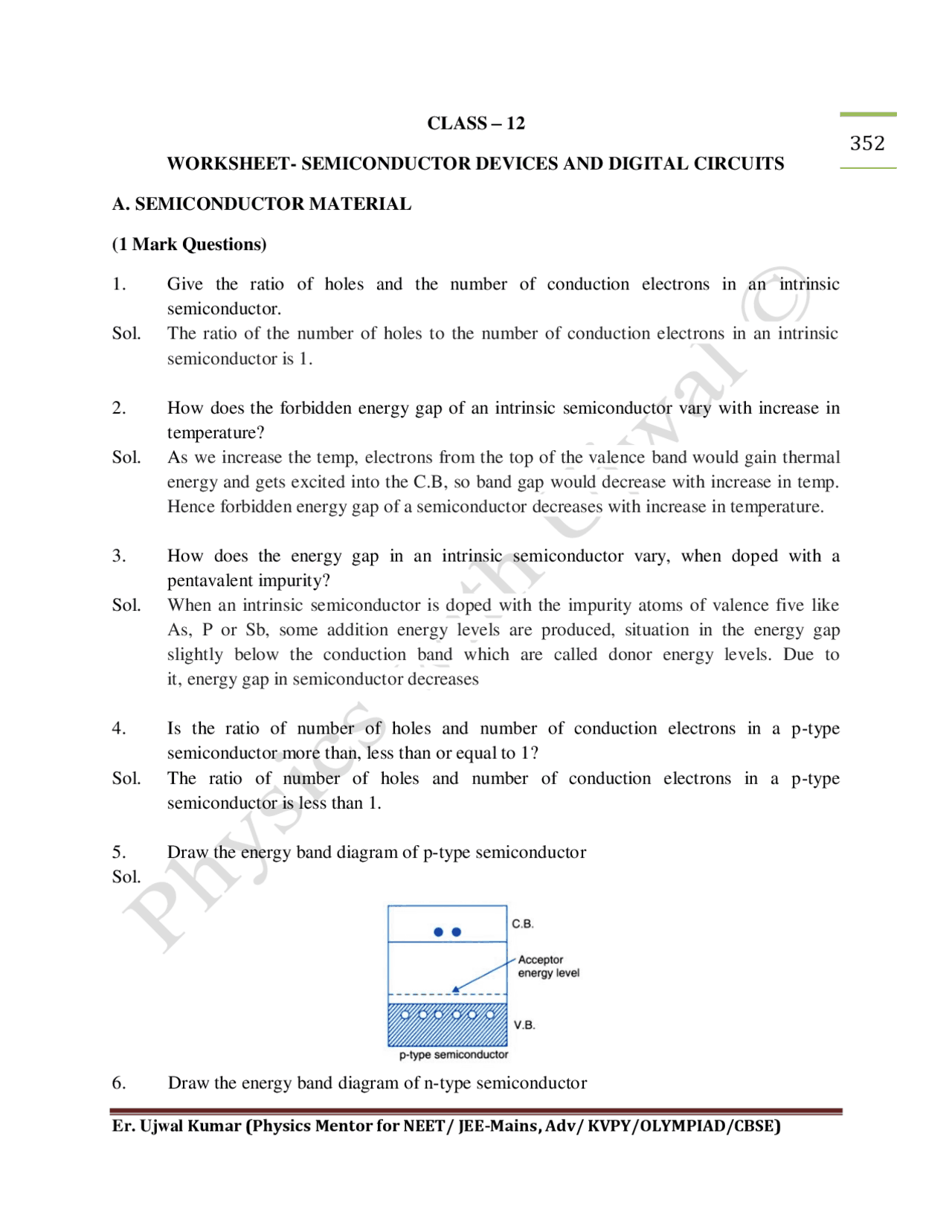

5. Draw the energy band diagram of p-type semiconductor
Sol.
6. Draw the energy band diagram of n-type semiconductor
pf3
pf4
pf5
pf8
pf9
pfa
pfd
pfe
pff
pf12
pf13
pf14
pf15
pf16
pf17
pf18
pf19
pf1a
pf1b
pf1c
pf1d
pf1e
pf1f
pf20
pf21
pf22
pf23
pf24
pf25
pf26
pf27
pf28
