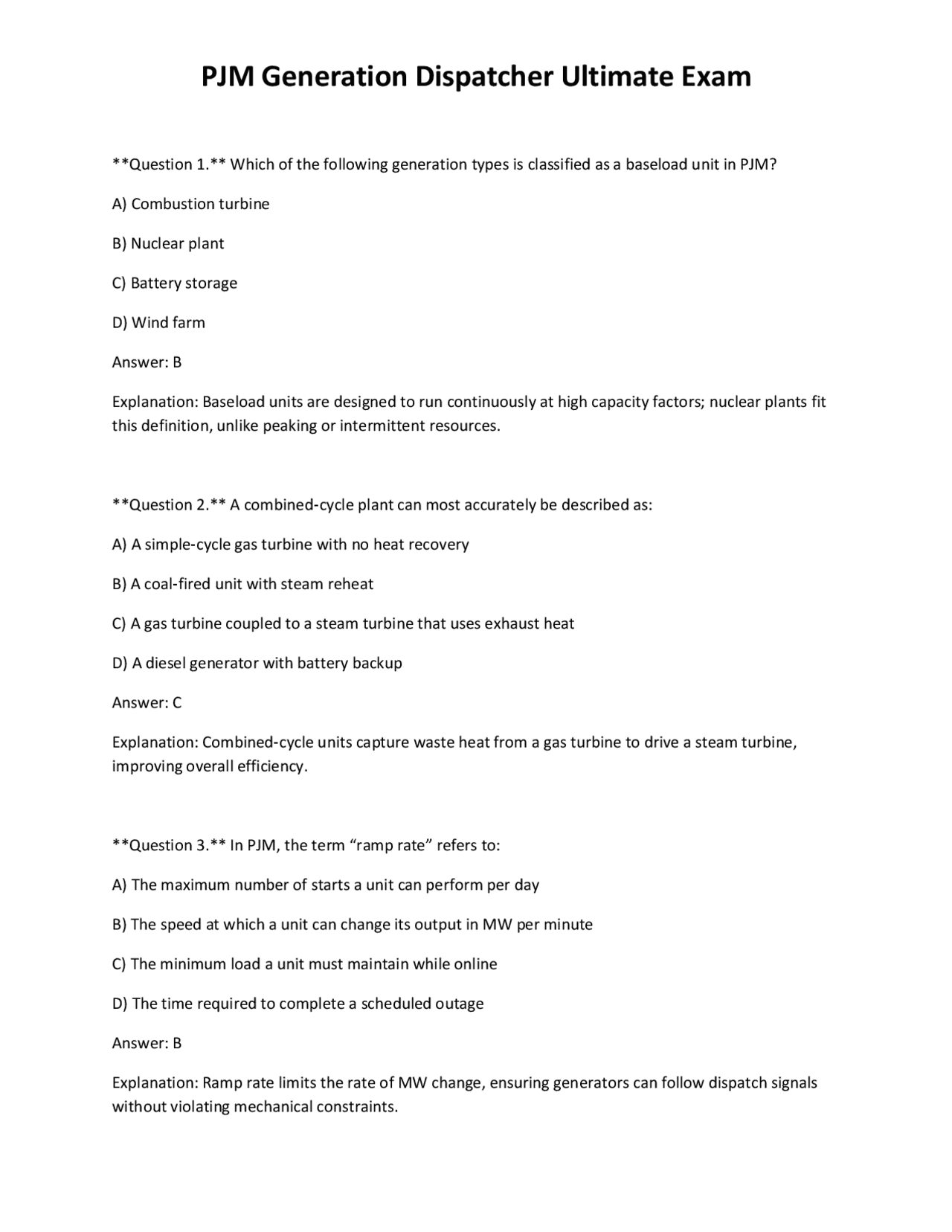

Question 1. Which of the following generation types is classified as a baseload unit in PJM? A) Combustion turbine B) Nuclear plant C) Battery storage D) Wind farm Answer: B Explanation: Baseload units are designed to run continuously at high capacity factors; nuclear plants fit this definition, unlike peaking or intermittent resources. Question 2. A combined‑cycle plant can most accurately be described as: A) A simple‑cycle gas turbine with no heat recovery B) A coal‑fired unit with steam reheat C) A gas turbine coupled to a steam turbine that uses exhaust heat D) A diesel generator with battery backup Answer: C Explanation: Combined‑cycle units capture waste heat from a gas turbine to drive a steam turbine, improving overall efficiency. Question 3. In PJM, the term “ramp rate” refers to: A) The maximum number of starts a unit can perform per day B) The speed at which a unit can change its output in MW per minute C) The minimum load a unit must maintain while online D) The time required to complete a scheduled outage Answer: B Explanation: Ramp rate limits the rate of MW change, ensuring generators can follow dispatch signals without violating mechanical constraints.
Question 4. Which start‑up state requires the longest notification time before a unit can be brought online? A) Hot start B) Warm start C) Cold start D) Intermediate start Answer: C Explanation: A cold start begins from a fully shut down condition, needing fuel, lubrication, and thermal preparation, thus the longest lead time. Question 5. Minimum down‑time for a coal‑fired unit is primarily imposed to: A) Protect the turbine from thermal shock B) Allow time for fuel delivery trucks to arrive C) Satisfy environmental permitting limits D) Avoid excessive wear on the boiler’s burners Answer: A Explanation: Coal plants need a minimum off‑line period to prevent thermal stress when restarting, preserving equipment life. Question 6. Which of the following is an economic limit for a generator in PJM? A) Emergency maximum MW B) Minimum MW for frequency regulation C) Normal operating range set by the market D) Maximum MW allowed during a load‑shed event Answer: C
Answer: B Explanation: Non‑synchronized reserves are offline resources that can start and load within the 10 ‑minute window, unlike synchronized reserves which are already online. Question 10. The component of LMP that reflects the cost of moving electricity across congested lines is: A) System energy component B) Congestion component C) Marginal loss component D) Ancillary service component Answer: B Explanation: The congestion component captures the cost of transmission constraints that force generation to be dispatched away from the cheapest location. Question 11. In Security‑Constrained Economic Dispatch (SCED), the primary objective is to: A) Maximize renewable output regardless of cost B) Minimize total generation cost while respecting transmission limits C) Schedule all units at their minimum MW D. Provide maximum spinning reserve at all times Answer: B Explanation: SCED optimizes dispatch cost while ensuring that no transmission line exceeds its thermal or stability limits. Question 12. Which PJM tool is used for reporting and tracking generator outages? A) eDART B) DCA
C) EMS‑A
D. SCADA‑Link Answer: A Explanation: eDART (Electronic Dispatch and Reporting Tool) is the system for logging planned and forced outages. Question 13. A “forced outage” is defined as: A) An outage scheduled in advance for maintenance B) An unplanned loss of generation due to equipment failure C) A voluntary shutdown to reduce emissions D. A temporary reduction in output for fuel cost savings Answer: B Explanation: Forced outages occur unexpectedly, typically because of a malfunction or external event. Question 14. The Day‑Ahead Market (DAM) clears at what time relative to the operating day? A) Midnight of the operating day B) 12:00 PM (noon) the day before C) 6:00 AM the day of operation D. 3:00 PM the day before Answer: B Explanation: The DAM clears at noon (12:00 PM) the day prior, establishing schedules for the next operating day. Question 15. Which of the following best describes “cranking power” in a black‑start sequence? A) The power needed to start a turbine’s auxiliary systems
Question 18. The “V‑Q curve” of a generator illustrates the relationship between: A) Voltage magnitude and reactive power output B) Real power output and fuel consumption C) Frequency deviation and reserve activation time D. Load factor and emissions rate Answer: A Explanation: The V‑Q (voltage‑reactive) curve shows the limits of reactive power a generator can supply at various terminal voltages. Question 19. Which of the following is NOT a typical emergency limit for a generator? A) Emergency minimum MW B) Emergency maximum MW C) Normal economic minimum MW D. Emergency ramp rate limit Answer: C Explanation: Normal economic limits apply during routine operation; emergency limits are only invoked under abnormal conditions. Question 20. During a “capacity emergency,” PJM may issue a Maximum Generation Alert that requires generators to: A) Increase output to the maximum economic limit B) Reduce output to a pre‑determined emergency minimum C) Shut down completely for load shedding D. Transfer all output to the ancillary service market Answer: B Explanation: A Maximum Generation Alert directs units to lower output to preserve system reliability.
Question 21. The primary purpose of a “Manual Load Dump” (MLD) is to: A) Increase system frequency by shedding load B) Reduce emissions from coal plants C) Provide spinning reserve for the next hour D. Enable battery storage to charge during peak demand Answer: A Explanation: MLD is an emergency load‑shedding action to quickly raise system frequency. Question 22. Which of the following best defines “conservative operations” in PJM? A) A mode where all generators run at minimum MW to conserve fuel B) A state entered during severe weather or threats, limiting dispatch to essential resources C) An economic dispatch strategy that favors renewable resources D. A scheduling method that ignores transmission constraints Answer: B Explanation: Conservative operations are invoked under extreme conditions to preserve system stability, limiting dispatch to critical units. Question 23. A “black‑start capable” unit must be able to: A) Start without external power and provide at least 5 MW of cranking power B) Operate only at reduced output during emergencies C. Synchronize with the grid within 30 seconds of a disturbance D. Provide ancillary services while offline Answer: A
Answer: B Explanation: Pumped‑storage stores potential energy by pumping water uphill and releases it to generate when needed. Question 27. A “fuel constraint” for a natural‑gas‑fired unit most commonly arises from: A) Limited pipeline capacity delivering gas to the plant B) Exhaust emissions limits imposed by the EPA C. Insufficient cooling water availability D. Restrictions on turbine start‑up time Answer: A Explanation: Natural‑gas pipeline limits can restrict the amount of fuel a plant can burn, affecting its dispatchability. Question 28. The component of LMP that reflects the cost of marginal losses is: A) System energy component B) Congestion component C) Marginal loss component D. Ancillary service component Answer: C Explanation: Marginal loss component accounts for the incremental cost of transmission losses associated with delivering an additional MW. Question 29. Which of the following best describes the “frequency bias” factor used in ACE calculations? A) A constant that represents the relationship between frequency deviation and MW error for a control area
B) The maximum allowable frequency deviation before load shedding occurs C. The percentage of total generation that must be reserved for frequency regulation D. The rate at which generators can change output to correct frequency Answer: A Explanation: Frequency bias is a predefined constant (MW/0.1 Hz) that translates frequency deviation into an MW error term in ACE. Question 30. In PJM, a “planned outage” must be submitted at least how many hours before the intended start time? A) 12 hours B) 24 hours C) 48 hours D. 72 hours Answer: D Explanation: PJM requires a minimum of 72‑hour notice for planned outages to assess system impacts. Question 31. Which of the following resources is most likely to have a very fast ramp rate (≥ 50 MW/min)? A) Nuclear unit B) Coal‑fired steam plant C) Simple‑cycle combustion turbine D. Pumped‑storage hydro (discharge) Answer: C Explanation: Simple‑cycle combustion turbines can change output rapidly, often exceeding 50 MW per minute.
Explanation: Load‑following describes the capability of a unit to vary output in response to changing system demand. Question 35. In PJM’s Real‑Time Market, a deviation from the Day‑Ahead schedule that results in a net import of 10 MW is settled at: A) The Day‑Ahead LMP B) The Real‑Time LMP for the location of the deviation C. The average of the Day‑Ahead and Real‑Time LMPs D. The System Marginal Price (SMP) only Answer: B Explanation: Real‑Time deviations are settled at the Real‑Time LMP prevailing at the node where the deviation occurs. Question 36. Which of the following best describes “voltage reduction actions” during a capacity emergency? A) Raising system frequency to 61 Hz B) Lowering voltage setpoints to reduce load and improve stability C. Increasing reactive power output from all generators D. Shutting down all non‑essential generators Answer: B Explanation: Reducing voltage limits can lower demand (especially for voltage‑sensitive loads) and help maintain system stability. Question 37. A “forced outage” that results from a geomagnetic disturbance would be classified as: A) An internal unit trip B) An external disturbance
C. A planned outage D. A market‑driven outage Answer: B Explanation: Geomagnetic disturbances affect the grid externally, causing outages not originating from the generator itself. Question 38. Which of the following data elements is NOT required to be reported in real‑time to PJM’s EMS? A) MW output of each unit B. MVAR output of each unit C. Breaker status of key transmission elements D. Internal employee schedules at the plant Answer: D Explanation: Real‑time telemetry includes power and status data; staffing schedules are not part of the EMS data feed. Question 39. The “congestion component” of LMP can be eliminated by: A) Building additional transmission capacity to relieve the bottleneck B. Increasing the fuel price at the congested location C. Reducing the generator’s ramp rate D. Operating all units at their minimum output Answer: A Explanation: Adding transmission capacity removes the physical constraint, thereby eliminating congestion costs.
Explanation: A primary reserve warning signals that available reserve is low, prompting actions to preserve reliability. Question 43. A “load‑shed” event in PJM is most directly triggered by: A) A sudden increase in renewable output B. Frequency dropping below the under‑frequency load shedding (UFLS) trigger point C. An unexpected increase in fuel prices D. A scheduled maintenance outage on a transmission line Answer: B Explanation: UFLS automatically disconnects load when frequency falls below a preset threshold to stabilize the system. Question 44. Which of the following is true about “battery storage” participation in PJM’s regulation market? A) Batteries can provide both upward and downward regulation simultaneously B. Batteries are limited to providing only upward regulation C. Batteries must maintain a minimum SOC of 80 % at all times D. Batteries cannot participate in regulation due to lack of inertia Answer: A Explanation: Batteries can quickly increase or decrease output, making them ideal for both upward and downward regulation services. Question 45. The “notification time” for a planned outage of a peaking combustion turbine is typically: A) 12 hours B) 24 hours
C. 48 hours D. 72 hours Answer: C Explanation: PJM generally requires a 48‑hour notice for peaking units, reflecting their higher operational flexibility. Question 46. When a generator reaches its “emergency maximum MW” limit, it may: A) Continue to increase output if market prices are high B. Remain at that level only until the emergency condition is cleared C. Export excess power to neighboring interconnections without restriction D. Automatically provide additional spinning reserve Answer: B Explanation: Emergency limits are temporary and must be released once the system returns to normal conditions. Question 47. In the context of PJM, “load‑following” capability is most critical for which type of resource? A) Nuclear baseload plant B. Wind farm with variable output C) Battery storage D. Pumped‑storage hydro (charging mode) Answer: B Explanation: Wind farms experience rapid output changes and need to follow load variations to maintain balance. Question 48. Which of the following statements about “frequency regulation” is correct?
Question 51. A “voltage‑support” instruction to a generator typically involves adjusting: A) Fuel flow rate B. Excitation system to change reactive power output C. Turbine inlet temperature D. Cooling water flow Answer: B Explanation: Voltage support is achieved by varying the generator’s excitation, thereby altering its MVAR output. Question 52. Which type of outage would most likely cause a transmission constraint impact assessment in PJM? A) Planned maintenance on a 500‑kV line crossing a congested corridor B. A short‑term fuel supply interruption at a coal plant C. A software upgrade at the control center D. A scheduled employee training session Answer: A Explanation: Outages on heavily loaded transmission paths directly affect congestion and must be evaluated for system impact. Question 53. The “real‑time market” in PJM clears every: A) 5 minutes B. 15 minutes C. 60 minutes D. 24 hours Answer: A
Explanation: PJM’s real‑time market runs on a 5‑minute interval, allowing rapid adjustments to actual system conditions. Question 54. Which of the following is NOT a typical component of the PJM “Regulation” service? A) Up‑regulation (increasing generation) B) Down‑regulation (decreasing generation) C. Frequency bias correction D. Long‑term capacity procurement Answer: D Explanation: Regulation is a short‑term service; capacity procurement is a separate market function. Question 55. The “minimum MW” for a generator in the regulation market is set to ensure: A) The unit can always provide upward regulation without violating its lower operating limit B. The unit can shut down completely during low‑price periods C. The unit never exceeds its emergency maximum D. The unit provides reactive power at all times Answer: A Explanation: Minimum MW defines the lowest output at which a unit can still increase output for upward regulation. Question 56. In PJM, “load‑following” and “frequency regulation” differ primarily in: A) Timescale – load‑following addresses hour‑ahead variations, regulation works on seconds to minutes B. Both are identical services with different names C. Load‑following provides voltage support, regulation does not D. Regulation is only for renewable resources
