ECE 2030B 1:00pm Computer Engineering Fall 2009
4 problems, 5 pages Exam Two Solutions 4 March 2009

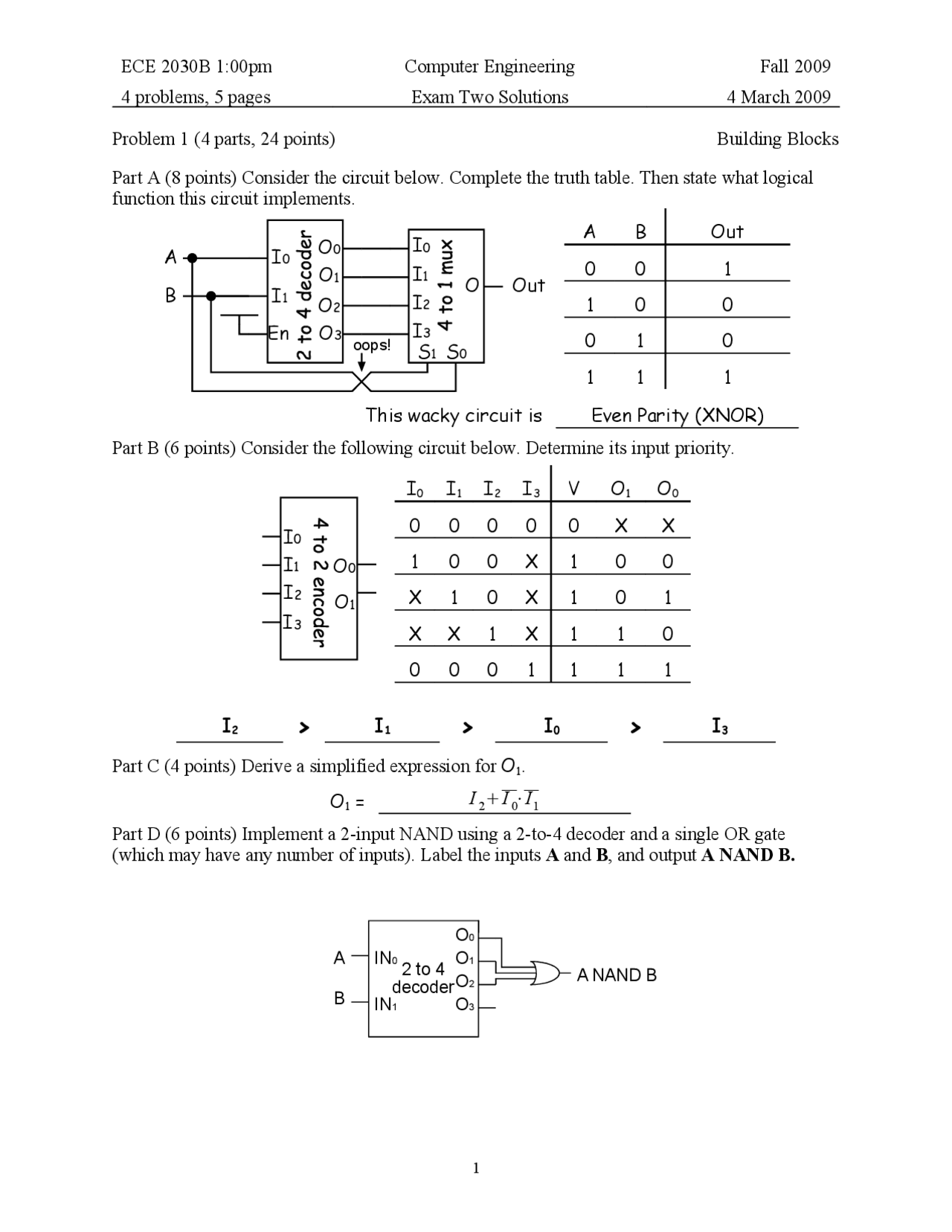

Problem 1 (4 parts, 24 points) Building Blocks
Part A (8 points) Consider the circuit below. Complete the truth table. Then state what logical
function this circuit implements.
A
BOut
I
0
I
1
I
2
I
3
O
S
1
S
0
O
3
O
2
O
1
O
0
I
1
I
0
En
oops!
A B Out
0 0 1
1 0 0
0 1 0
1 1 1
This wacky circuit is Even Parity (XNOR)
Part B (6 points) Consider the following circuit below. Determine its input priority.
I
3
I
2
I
1
I
0
O
1
O
0
I0I1I2I3V O1O0
0 0 0 0 0 X X
1 0 0 X 1 0 0
X 1 0 X 1 0 1
X X 1 X 1 1 0
0 0 0 1 1 1 1
I2>I1>I0>I3
Part C (4 points) Derive a simplified expression for O1.
O1 =
I2๎‚ƒI0
โ‹…I1
Part D (6 points) Implement a 2-input NAND using a 2-to-4 decoder and a single OR gate
(which may have any number of inputs). Label the inputs A and B, and output A NAND B.
IN
0
O
0
2 to 4
decoder
IN
1
O
1
O
2
O
3
A
B
A NAND B
1
pf3
pf4
