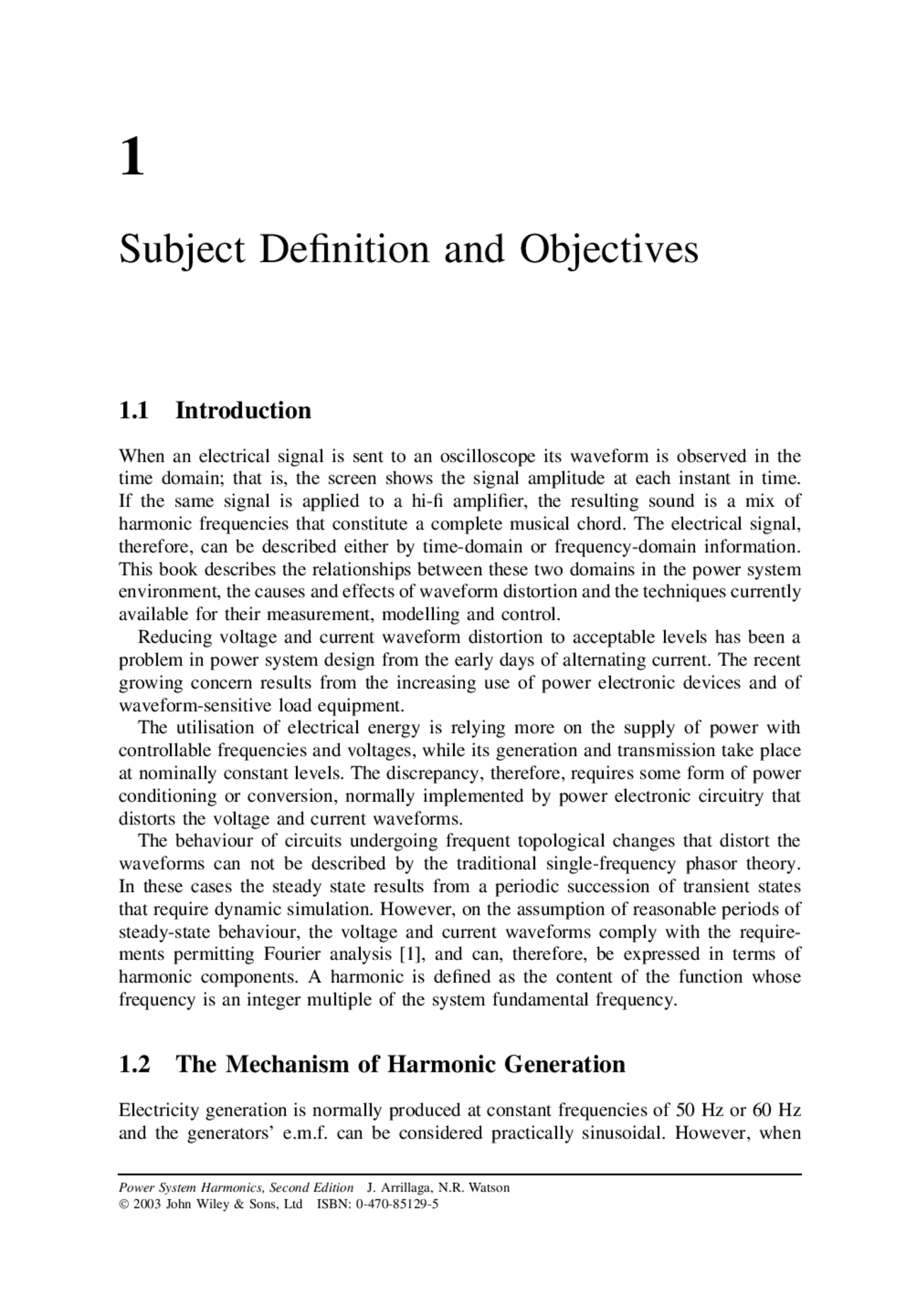

Subject Definition and Objectives
1.1 Introduction
When an electrical signal is sent to an oscilloscope its waveform is observed in the time domain; that is, the screen shows the signal amplitude at each instant in time. If the same signal is applied to a hi-fi amplifier, the resulting sound is a mix of harmonic frequencies that constitute a complete musical chord. The electrical signal, therefore, can be described either by time-domain or frequency-domain information. This book describes the relationships between these two domains in the power system environment, the causes and effects of waveform distortion and the techniques currently available for their measurement, modelling and control. Reducing voltage and current waveform distortion to acceptable levels has been a problem in power system design from the early days of alternating current. The recent growing concern results from the increasing use of power electronic devices and of waveform-sensitive load equipment. The utilisation of electrical energy is relying more on the supply of power with controllable frequencies and voltages, while its generation and transmission take place at nominally constant levels. The discrepancy, therefore, requires some form of power conditioning or conversion, normally implemented by power electronic circuitry that distorts the voltage and current waveforms. The behaviour of circuits undergoing frequent topological changes that distort the waveforms can not be described by the traditional single-frequency phasor theory. In these cases the steady state results from a periodic succession of transient states that require dynamic simulation. However, on the assumption of reasonable periods of steady-state behaviour, the voltage and current waveforms comply with the require- ments permitting Fourier analysis [1], and can, therefore, be expressed in terms of harmonic components. A harmonic is defined as the content of the function whose frequency is an integer multiple of the system fundamental frequency.
1.2 The Mechanism of Harmonic Generation
Electricity generation is normally produced at constant frequencies of 50 Hz or 60 Hz and the generators’ e.m.f. can be considered practically sinusoidal. However, when
Power System Harmonics, Second Edition J. Arrillaga, N.R. Watson 2003 John Wiley & Sons, Ltd ISBN: 0-470-85129-
2 SUBJECT DEFINITION AND OBJECTIVES
a source of sinusoidal voltage is applied to a nonlinear device or load, the resulting current is not perfectly sinusoidal. In the presence of system impedance this current causes a non-sinusoidal voltage drop and, therefore, produces voltage distortion at the load terminals, i.e. the latter contains harmonics. To provide an intuitive view of this phenomenon let us consider the circuit of Figure 1.1, where generator G feeds a purely resistive load Rl through a line with impedance (Rs + jX (^) s ) and a static converter. The generator supplies power (Pg 1 ) to the point of common coupling (PCC) of the load with other consumers. Figure 1.1(a) shows that most of this power (Pl 1 ) is transferred to the load, while a relatively small part of it (Pc 1 ) is converted to power at different frequencies in the static converter. Besides, there is some additional power loss (Ps 1 ) at the fundamental frequency in the resistance of the transmission and generation system (Rs 1 ). Figure 1.1(b) illustrates the harmonic power flow. As the internal voltage of the generator has been assumed perfectly sinusoidal, the generator only supplies power at the fundamental frequency and, therefore, the generator’s e.m.f. is short-circuited in this diagram, i.e. the a.c. line and generator are represented by their harmonic impedances (R sh + jX (^) sh ) and (R gh + jX (^) gh ), respectively. In this diagram the static converter appears as a source of harmonic currents. A small proportion of fundamental power (Pc 1 ) is transformed into harmonic power: some of this power (P sh + P gh ) is consumed in the system (R sh ) and generator (R gh ) resistances and the rest (Plh) in the load. Thus the total power loss consists of the fundamental frequency component (Ps 1 ) and the harmonic power caused by the presence of the converter (P sh + P gh + P lh ).
P (^) s 1
P (^) g 1
R (^) s + jX (^) s
R (^) sh + jX (^) sh
R^ gh
jX
gh
P (^) c 1 P (^) l 1 R (^) l
R (^) l
G ~
(a)
(b)
Psh P l h
I (^) h
Pgh
Figure 1.1 (a) Power flow at the fundamental frequency; (b) harmonic power flow
4 SUBJECT DEFINITION AND OBJECTIVES
ω t 2 π
v
π
(a)
2 π ω t
vT
− E a b
(b)
ω t 2 π
vA E
a b
(c)
ω t 2 π
i
a b (d)
Figure 1.3 Waveforms of the circuit of Figure 1.2: (a) voltage source; (b) voltage across the thyristor; (c) load voltage; (d) current
R
i L
E
vA 1 vAh vA 0
Figure 1.4 Load voltage components of the circuit of Figure 1.
DEFINITIONS AND STANDARDS 5
I 0 =
Vdc − E R
Next let us consider the energy aspects. The active power generated by the source is
PG = V 1 I 1 cosξ 1 ( 1. 8 )
and the power supplied to the load
PA = PA 1 + P Ah + PA 0 ( 1. 9 )
where
PA 1 = V (^) A 1 I 1 cos(θ 1 − ξ 1 ) = I 12 R ( 1. 10 )
is the power supplied to the fundamental component,
P Ah =
∑^ n
h= 2
V Ah I (^) h cos(θ (^) h − ξ (^) h ) =
∑^ n
h= 2
I (^) h^2 R ( 1. 11 )
is the power supplied to the harmonics, and
PA 0 = VdcI 0 = EI 0 + I 02 R ( 1. 12 )
is the d.c. power. Therefore the thyristor behaves like an energy converter, i.e. the ideal voltage source combines with the fundamental component of the current waveform to generate the total power PG. As the thyristor losses have been ignored PG = PA and the following relation- ship applies:
PG = PA = I 2 R + EI (^) 0 ( 1. 13 )
where
I =
√I 2
0 +^ I^
2 1 +
∑^ n
h= 2
I (^) h^2
is the current root mean square (r.m.s.) value
1.3 Definitions and Standards
Power system harmonics are defined as sinusoidal voltage and currents at frequencies that are integer multiples of the main generated (or fundamental) frequency. They constitute the major distorting components of the mains voltage and load current waveforms. However, the increasing content of power system inter-harmonics, i.e.
DEFINITIONS AND STANDARDS 7
1.3.1 Factors Influencing the Development of Standards
The development of harmonic standards is centred around the following issues:
- description and characterisation of the phenomenon;
- major sources of harmonic problems;
- impact on other equipment and on the power system;
- mathematical description of the phenomenon using indices or statistical analysis to provide a quantitative assessment of its significance;
- measurement techniques and guidelines;
- emission limits for different types and classes of equipment;
- immunity or tolerance level of different types of equipment;
- testing methods and procedures for compliance with the limits;
- mitigation guidelines.
The standards themselves may be either system standards, connection standards or, more usually, some combination of the two. In a system standard the emphasis is on the levels of harmonics that can be tolerated in the system, with little or no reference within the body of the standard to the source of harmonics. Details of the harmonic sources, and their likely influence on system harmonic content, are usually given as associated material in appendices. The limits may be expressed as absolute levels of current or voltage, which may not be exceeded, or as incremental limits allowing small changes to the harmonic source with limited consideration of system effects. The former approach usually permits the connection of certain types and ratings of distorting loads (e.g. converters) to the system without reference to existing harmonic levels. With higher converter ratings the existing harmonic content needs to be established prior to connection, and the proposed additional harmonic source considered in relation to these levels, in order to determine if the limits are likely to be exceeded. The application of absolute harmonic current limits for individual consumers would seem to provide equal rights for all consumers, large or small. However, this may be considered an unfair distribution by a large consumer connected to a PCC together with a number of small consumers, as it takes no account of their share of the total load. If, instead, the limit is expressed in a way which takes account of the consumer’s share of the total load, then this may well be seen as overly restrictive, particularly if a large consumer has little or no disturbing load. If the limits are expressed in terms of the levels of harmonic voltage at the PCC, then consumers connected to a strong PCC may well benefit relative to a consumer connected to a weak PCC. The adoption of harmonic voltage limits may also mean that, where existing levels are high, new consumers may be forced to install expensive additional circuitry before, connection is permitted. This latter situation constitutes the ‘first come, first served’ approach. In considering the type and nature of the limits to be adopted, the different problems presented by the various types of load must be taken into account; the two extremes are groups of small distributed disturbing loads (normally domestic) and large industrial loads. An industrial consumer may also have a number of individual components of
8 SUBJECT DEFINITION AND OBJECTIVES
plant, each capable of generating significant harmonic content. Such a consumer is faced with the double problem of ensuring that no harmonic-induced effects occur within its own system, and maintaining the levels at the PCC within the prescribed limits. Experience shows that in many instances where high harmonic levels exist at points within the consumer’s own network, these levels do not necessarily penetrate to the external system. The way in which the harmonics from a number of sources interact on the power system is governed by the random nature of such sources and the variation of their distribution throughout the system, both physically and with time. The random nature of the sources can be accounted for by introducing a diversity factor. This changes the actual ratings of the disturbing loads into an effective rating, which is then used in assessing its relationship with the standard.
1.3.2 Existing Harmonic Standards
The organisation widely recognised as the curator of electric power quality standards is the IEC (International Electrotechnical Commission or Commission Electrotechnique Internationale), based in Geneva. The IEC has defined a series of standards, called Electromagnetic Compatibility (EMC) Standards, to deal with power quality issues. The IEC 61000 series [2] includes harmonics and inter-harmonics as one of the conducted low-frequency electromagnetic phenomena. A widespread alternative to the IEC series is the IEEE 519–1992 document [3], which provides guidelines on harmonics. There are also standards dealing with specific equipment under the influence of harmonic distortion, such as those of references [4–7], and their relevance will be discussed in Chapter 4. While the international standards are used as a basis for global co-ordination, individ- ual countries make their own adjustments to accommodate various national priorities. These are normally motivated by the special characteristics of their power system con- figuration and load management (e.g. the use of ripple control in some countries). Consider as an illustration the power systems of the UK and New Zealand. In the UK a highly interconnected power system with distributed generation serves a large num- ber of load centres, always relatively close to the points of generation. This contrasts with the New Zealand situation, where remote generation centres provide supply to a few, widely separated, major load centres and a large number of scattered small loads. The resulting long transmission lines and comparatively low fault levels increase the vulnerability of the system to harmonic penetration. These factors, taken together with the extensive use made of ripple control, present very different problems than those encountered in the UK to their respective standards committees. The European Union, through the Electromagnetic Compatibility Directive, has sought to ensure the removal of technical barriers to trade by requiring equipment to operate satisfactorily in its specified electromagnetic environment, and by protect- ing the public electricity distribution from disturbances emitted by equipment through limiting these emissions. Engineering recommendation ER G5/4 came into force in the UK in March 2001 to ensure that the objectives of the Directive are met for harmonic disturbances. In the revised recommendation planning levels for individual harmonics and for total harmonic distortion (THD) are given for all system voltages from 400 V to 400 kV.
10 SUBJECT DEFINITION AND OBJECTIVES
IEC 61000 3-12 Provides limits for the harmonic currents produced by equipment connected to low-voltage systems with input currents equal to and below 75 A per phase and subject to restricted connection.
IEC 61000 4-7 This is perhaps the most important document of the series, covering the subject of testing and measurement techniques. It is a general guide on harmonic and inter-harmonic measurements and instrumentation for power systems and equipment connected thereto. The application of this document is discussed in Chapter 5.
IEC 61000 4-13 This is also a document on testing and measurement techniques with reference to harmonics and inter-harmonics, including mains signalling at a.c. power ports as well as low-frequency immunity tests.
IEEE 519-1992 [3] Document IEEE 519-1992 identifies the major sources of har- monics in power systems. The harmonic sources described in this standard include power converters, arc furnaces, static VAR compensators, inverters of dispersed gener- ation, electronic phase control of power, cycloconverters, switch mode power supplies and pulse-width modulated (PWM) drives. The document illustrates the typical dis- torted wave shapes, the harmonic order numbers and the level of each harmonic component in the distortion caused by these devices. It also describes how the sys- tem may respond to the presence of harmonics. The discussion on responses comprise parallel resonance, series resonance and the effect of system loading on the magnitude of these resonances. Based on typical characteristics of low-voltage distribution sys- tems, industrial systems and transmission systems, this document discusses the general response of these systems to harmonic distortion. The effects of harmonic distortion on the operation of various devices or loads are also included in the standard. These devices comprise motors and generators, transform- ers, power cables, capacitors, electronic equipment, metering equipment, switchgear, relays and static power converters. Interference to the telephone networks as a result of harmonic distortion in the power systems is discussed with reference to the C-message weighting system created jointly by Bell Telephone Systems and Edison Electric Institute (described in Chapter 4). The standard outlines several possible methods of reducing the amount of telephone interference caused by harmonic distortion in the power system. This standard also describes the analysis methods and measurement requirements for assessing the levels of harmonic distortion in the power system. It summarises the methods for the calculation of harmonic currents, system frequency responses and modelling of various power system components for the analysis of harmonic prop- agation. The section on measurements highlights their importance and lists various harmonic monitors that are currently available. It describes the accuracy and selec- tivity (the ability to distinguish one harmonic component from others) requirements on these monitors; it also describes the averaging or snap-shot techniques that can be used to ‘smooth-out’ the rapidly fluctuating harmonic components and thus reduce the overall data bandwidth and storage requirements. The standard describes methods for designing reactive compensation for systems with harmonic distortion. Various types of reactive compensation schemes are dis- cussed, indicating that some of the equipment, such as TCR and TSC, are themselves
DEFINITIONS AND STANDARDS 11
sources of harmonic distortion. It also outlines the various techniques for reducing the amount of harmonic current penetrating into the a.c. systems. Recommended practices are suggested to both individual consumers and utilities for controlling the harmonic distortion to tolerable levels. This standard concludes with recommendations for eval- uating new harmonic sources by measurements and detailed modelling and simulation studies. It provides several examples to illustrate how these recommendations can be implemented effectively in practical systems. Notching, the distortion caused on the line voltage waveform by the commutation process between valves in some power electronic devices, is described in detail. The document analyses the converter commutation phenomenon and describes the notch depth and duration with respect to the system impedance and load current. Limits are outlined in terms of the notch depth, THD of supply voltage and notch area for different supply systems.
1.3.3 General Harmonic Indices
The most common harmonic index, which relates to the voltage waveform, is the THD, which is defined as the root mean square (r.m.s.) of the harmonics expressed as a percentage of the fundamental component, i.e.
THD =
∑N
n= 2
V (^) n^2
V 1
where V (^) n is the single frequency r.m.s. voltage at harmonic n, N is the maximum harmonic order to be considered and V 1 is the fundamental line to neutral r.m.s. voltage. For most applications, it is sufficient to consider the harmonic range from the 2nd to the 25th, but most standards specify up to the 50th. Current distortion levels can also be characterised by a THD value but it can be misleading when the fundamental load current is low. A high THD value for input current may not be of significant concern if the load is light, since the magnitude of the harmonic current is low, even though its relative distortion to the fundamental frequency is high. To avoid such ambiguity a total demand distortion (TDD) factor is used instead, defined as:
TDD =
∑N
n= 2
I (^) n^2
I R
This factor is similar to THD except that the distortion is expressed as a percentage of some rated or maximum load current magnitude, rather than as a percentage of the fundamental current. Since electrical power supply systems are designed to withstand the rated or maximum load current, the impact of current distortion on the system will be more realistic if the assessment is based on the designed values, rather than on a reference that fluctuates with the load levels.
RELEVANCE OF THE TOPIC 13
however, more disastrous effects, such as the maloperation of important control and protection equipment and the overloading of power plant. Very often the presence of harmonics is only detected following an expensive casualty (like the destruction of power factor correction capacitors). Normally these components have to be replaced, and the equipment protected by filters, at the customer’s expense. In recent times there have been considerable developments in industrial processes that rely on controlled rectification for their operation, and therefore generate harmonic currents. The design of such equipment often assumes the existence of a symmetrical voltage source free of harmonic distortion, a situation that only occurs in the absence of other harmonic sources or when the supply system is very strong (i.e. of negligible impedance). Consequently, the smaller industrial users of electricity are being subjected to increasing operating difficulties as a result of the harmonic interaction of their own control equipment with the power supply. With open electricity markets, the number of players will increase considerably. The competitive electricity trade should not degrade the level of security, for which the requirements of clients are likely to be more stringent. A general power quality standard, although difficult to define, must be guaranteed by the system operator. How- ever, power quality can raise complicated problems that require detailed information and technical skills to find adequate solutions. Although interruptions and voltage dips can, to a certain extent, be mastered by the system operator, harmonic voltage fluctuations cannot, since they are generally customers’ emissions. It is not clear, then, who should take the risk of ensuring spec- ified levels of harmonic distortion. The obvious thing to do is to put standards on emission limits, but the question is to decide who will control the users’ voltage dis- turbance emissions and who will charge them for this. An innovative approach is for the distribution companies to be responsible for supplying electricity to any user with defined disturbances levels, with a system of penalisation or compensation if these levels are exceeded. Utilities are likely to accept different levels of compromise between security and cost, and the consequence of this difference is that the party with stricter standards might be left to solve its neighbours’ ‘problems’. In practice, the party with relaxed standards will rely on others for the provision of support services. If it is not pos- sible to harmonise the power quality standards between the interconnected utilities, proper commercial arrangements will be needed to reflect the consequences of these differences. While it may seem obvious that hardware and software systems should be installed to monitor performance and delivery of agreed service provision, in reality these are not always available. Power quality awareness in general, and waveform distortion in particular, is likely to increase with deregulation as the competitive environment will try to drive to the limit the use of existing facilities and networks with as little expenditure as possible. The risk of harmonic resonances and their effect on shunt capacitor destruction is well documented. However, some of the negative consequences of this approach may not be immediately obvious, particularly the effect of harmonics on equipment overloading. For instance, the life of a transformer will be considerably reduced by the extra current loading imposed by harmonics. Thus there is a need to adapt existing recommenda- tions, put in place appropriate commercial arrangements and, most of all, monitor their implementation more rigorously than in the past.
14 SUBJECT DEFINITION AND OBJECTIVES
In pre-deregulation days, the allocation of responsibilities to maintain adequate standards, largely determined by the supply companies, given the inadequate simula- tion and monitoring tools available, could not be technically challenged effectively. Deregulation will encourage the use of advanced simulation and assessment tools for the customer to make informed decisions when dealing with the power supply companies. The competitive electricity market has made utilities more conscious of the need to satisfy their customers’ needs and not simply to supply them with electricity. For instance, Electricit´e de France conducts surveys to analyse customers’ expec- tations. The new environment provides a considerable challenge that will force the utilities to ensure that individual customer’s needs are met. This implies developing comple- mentary services taking into account the customer’s specific requirements. The lack of enforceable harmonic standards in the past did not encourage the use of expensive monitoring, testing and software tools. The development of such tools has accelerated with the acceptance of more stringent standards. Deregulation is leading to more transparent considerations of power quality issues and to a more contestable environment, where the independent parties can be adequately represented. In this environment, information about harmonics itself has become a valuable commodity, giving rise to profitable consulting services. This presents an important problem for the system operators, that of maintaining power quality when the parties are reluctant to provide all the necessary information. In the competitive environment, waveform distortion can be jeopardised by excessive confidentiality. To allow the interconnected network to maintain adequate harmonic levels at low cost, this must be given priority over confidentiality. To ensure this policy, it is essential that the system operator obtains information and makes it gen- erally available to all market participants. Determining limits on harmonic levels is a difficult exercise. Current knowledge is still insufficient to ascertain the extent to which any given power system can sustain a particular level of harmonics and remain viable in terms of the functions that the system has to perform. Two major impediments to such understanding are the ability to make accurate measurements (discussed in Chapter 5) and the state of computer simulation (discussed in Chapters 7 and 8). It is relatively easy, though expensive, to keep the harmonic contribution of large nonlinear plant components such as HVd.c. converters under control, normally by the connection of passive filters. The situation is less straightforward in power distribution systems, where the exact location and/or operating characteristics of the dispersed loads are not well defined. Moreover, the harmonic distortion levels of distribution systems appear to be increasing at a consistent rate. A report [8] on extensive field tests carried out in several New England Power Service Co. distribution feeders indicated an increase in THD of the order of 0.1% per year, with the fifth harmonic causing the greatest concern. There is a need for more global planning for the limitation of harmonic distortion in distribution systems. Concern for waveform distortion must be shared by all the parties involved in order to establish the right balance between exercising control by distortion and keeping distortion under control. Early co-ordination between the interested parties is essential to achieve acceptable economic solutions.
Harmonic Analysis
2.1 Introduction
The voltage and current waveforms at points of connection of nonlinear devices can either be obtained from appropriate transducers or calculated for a given operating condition, from knowledge of the devices’ nonlinear characteristics. In 1822 J.B.J. Fourier [1] postulated that any continuous function repetitive in an interval T can be represented by the summation of a d.c. component, a fundamental sinusoidal component and a series of higher-order sinusoidal components (called harmonics ) at frequencies which are integer multiples of the fundamental frequency. Harmonic analysis is then the process of calculating the magnitudes and phases of the fundamental and higher-order harmonics of the periodic waveform. The resulting series, known as the Fourier series, establishes a relationship between a time-domain function and that function in the frequency domain. The Fourier series of a general periodic waveform is derived in the first part of this chapter and its characteristics discussed with reference to simple waveforms. More generally, the Fourier transform and its inverse are used to map any func- tion in the interval from −∞ to ∞, in either the time or frequency domain. The Fourier series therefore represents the special case of the Fourier transform applied to a periodic signal. In practice, data is often available in the form of a sampled time function, represented by a time series of amplitudes, separated by fixed time intervals of limited duration. When dealing with such data, a modification of the Fourier transform, the discrete Fourier transform (DFT), is used. The implementation of the DFT by means of the so-called Fast Fourier transform (FFT) forms the basis of most modern spectral and harmonic analysis systems. The voltage and current waveforms captured from the power system, however, may contain transient or time-varying components. Even stationary signals when viewed from limited data (due to finite sampling) will introduce errors in the frequency spec- trum of the signal. A variety of techniques have been developed to derive the frequency spectrum under those conditions. The chapter ends with a brief review of these alter- native techniques.
Power System Harmonics, Second Edition J. Arrillaga, N.R. Watson 2003 John Wiley & Sons, Ltd ISBN: 0-470-85129-
18 HARMONIC ANALYSIS
2.2 Fourier Series and Coefficients [2,3]
The Fourier series of a periodic function x(t) has the expression
x(t) = a 0 +
n= 1
an cos
2 πnt T
2 πnt T
This constitutes a frequency-domain representation of the periodic function. In this expression a 0 is the average value of the function x(t), while an and bn, the coefficients of the series, are the rectangular components of the nth harmonic. The corresponding nth harmonic vector is
An φn = an + jb n ( 2. 2 )
with magnitude
An =
a^2 n + b^2 n
and phase angle
φn = tan−^1
bn an
For a given function x(t), the constant coefficient, a 0 , can be derived by integrating both sides of equation (2.1) from −T /2 to T /2 (over a period T ):
∫ (^) T / 2
−T / 2
x(t)dt =
∫ T / 2
−T / 2
[
a 0 +
n= 1
an cos
2 πnt T
2 πnt T
)]
dt ( 2. 3 )
The Fourier series of the right-hand side can be integrated term by term, giving
∫ (^) T / 2
−T / 2
x(t)dt = a 0
∫ T / 2
−T / 2
dt +
n= 1
[
an
∫ T / 2
−T / 2
cos
2 πnt T
dt
∫ T / 2
−T / 2
sin
2 πnt T
dt
]
The first term on the right-hand side equals Ta 0 , while the other integrals are zero. Hence, the constant coefficient of the Fourier series is given by
a 0 = 1 /T
∫ T / 2
−T / 2
x(t) dt ( 2. 5 )
which is the area under the curve of x(t) from −T /2 to T /2, divided by the period of the waveform, T.
20 HARMONIC ANALYSIS
Equations (2.5), (2.8) and (2.9) are often expressed in terms of the angular frequency as follows:
a 0 =
2 π
∫ (^) π
−π
x(ωt) d(ωt) (2.10)
an =
π
∫ (^) π
−π
x(ωt) cos(nωt) d(ωt) (2.11)
bn =
π
∫ (^) π
−π
x(ωt) sin(nωt) d(ωt) (2.12)
so that
x(t) = a 0 +
n= 1
[an cos(nωt) + bn sin(nωt)] ( 2. 13 )
2.3 Simplifications Resulting From Waveform
Symmetry [2,3]
Equations (2.5), (2.8) and (2.9), the general formulas for the Fourier coefficients, can be represented as the sum of two separate integrals:
an =
T
∫ T / 2
0
x(t) cos
2 πnt T
dt +
T
−T / 2
x(t) cos
2 πnt T
dt (2.14)
bn =
T
∫ T / 2
0
x(t) sin
2 πnt T
dt +
T
−T / 2
x(t) sin
2 πnt T
dt (2.15)
Replacing t by −t in the second integral of equation (2.14), and changing the limits produces
an =
T
∫ T / 2
0
x(t) cos
2 πnt T
dt +
T
+T / 2
x(−t) cos
− 2 πnt T
d(−t)
T
∫ T / 2
0
[x(t) + x(−t)] cos
2 πnt T
dt (2.16)
Similarly,
bn =
T
∫ T / 2
0
[x(t) − x(−t)] sin
2 πnt T
dt ( 2. 17 )
Odd Symmetry The waveform has odd symmetry if x(t) = −x(−t). Then the an terms become zero for all n, while
bn =
T
∫ T / 2
0
x(t) sin
2 πnt T
dt ( 2. 18 )
SIMPLIFICATIONS RESULTING FROM WAVEFORM SYMMETRY 21
The Fourier series for an odd function will, therefore, contain only sine terms.
Even Symmetry The waveform has even symmetry if x(t) = x(−t). In this case bn = 0 for all n and
an =
T
∫ T / 2
0
x(t) cos
2 πnt T
dt ( 2. 19 )
The Fourier series for an even function will, therefore, contain only cosine terms. Certain waveforms may be odd or even depending on the time reference position selected. For instance, the square wave of Figure 2.1, drawn as an odd function, can be transformed into an even function by shifting the origin (vertical axis) by T /2.
Halfwave Symmetry A function x(t) has halfwave symmetry if
x(t) = −x(t + T / 2 ) ( 2. 20 )
i.e. the shape of the waveform over a period t + T /2 to t + T is the negative of the shape of the waveform over the period t to t + T /2. Consequently, the square wave function of Figure 2.1 has halfwave symmetry. Using equation (2.8) and replacing (t) by (t + T /2) in the interval (−T /2,0)
an =
T
∫ T / 2
0
x(t) cos
2 πnt T
dt +
T
∫ 0 +T / 2
−T / 2 +T / 2
x(t + T / 2 ) cos
2 πn(t + T / 2 ) T
dt
T
∫ T / 2
0
x(t)
[
cos
2 πnt T
− cos
2 πnt T
)]
dt (2.21)
since by definition x(t) = −x(t + T /2).
x ( t )
t
k
− k
− t − T /2 T /
Figure 2.1 Square wave function
