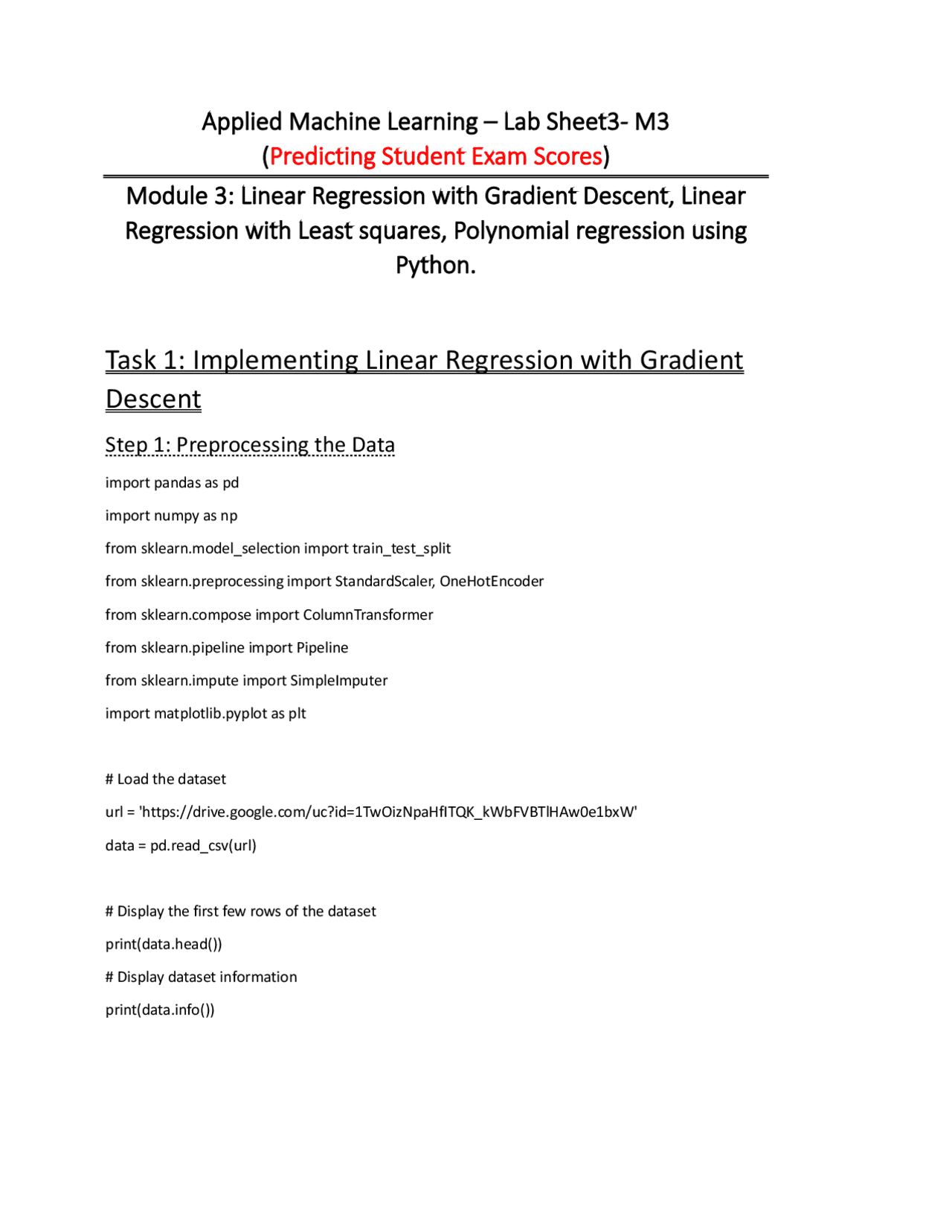

Applied Machine Learning – Lab Sheet3- M
(Predicting Student Exam Scores)
Module 3: Linear Regression with Gradient Descent, Linear
Regression with Least squares, Polynomial regression using
Python.
Task 1: Implementing Linear Regression with Gradient
Descent
Step 1: Preprocessing the Data
import pandas as pd import numpy as np from sklearn.model_selection import train_test_split from sklearn.preprocessing import StandardScaler, OneHotEncoder from sklearn.compose import ColumnTransformer from sklearn.pipeline import Pipeline from sklearn.impute import SimpleImputer import matplotlib.pyplot as plt
Load the dataset
url = 'https://drive.google.com/uc?id=1TwOizNpaHfITQK_kWbFVBTlHAw0e1bxW' data = pd.read_csv(url)
Display the first few rows of the dataset
print(data.head())
Display dataset information
print(data.info())
Check for missing values
print(data.isnull().sum())
Separate features and target
X = data.drop('Exam_Scores', axis=1) y = data['Exam_Scores']
Identify categorical and numeric columns
categorical_features = ['Parental_Education', 'Ethnicity'] numeric_features = ['Hours_Studied', 'Previous_Exams']
Preprocessing pipeline
numeric_transformer = Pipeline(steps=[ ('imputer', SimpleImputer(strategy='mean')), ('scaler', StandardScaler())]) categorical_transformer = Pipeline(steps=[ ('imputer', SimpleImputer(strategy='most_frequent')),
Step 3: Defining the Cost Function
def compute_cost(X, y, weights, bias): m = X.shape[0] predictions = X.dot(weights) + bias cost = (1 / (2 * m)) * np.sum((predictions - y) ** 2) return cost initial_cost = compute_cost(X_train, y_train, weights, bias) print("Initial cost:", initial_cost)
Step 4: Implementing Gradient Descent
def gradient_descent(X, y, weights, bias, learning_rate, iterations): m = X.shape[0] cost_history = [] for i in range(iterations): predictions = X.dot(weights) + bias error = predictions - y dW = (1 / m) * X.T.dot(error)
db = (1 / m) * np.sum(error) weights - = learning_rate * dW bias - = learning_rate * db cost = compute_cost(X, y, wei ghts, bias) cost_history.append(cost) if i % 100 == 0: print(f"Iteration {i}: Cost {cost}") return weights, bias, cost_history
Hyperparameters
learning_rate = 0. iterations = 1000
Training the model
weights, bias, cost_history = gradient_descent(X_train, y_train, weights, bias, learning_rate, iterations) print("Final weights:", weights) print("Final bias:", bias)
Task 2: Implementing Linear Regression with the Least
Squares Method
Adding a bias term (intercept) to the preprocessed training and validation sets
X_train_b = np.c_[np.ones((X_train.shape[0], 1)), X_train] X_val_b = np.c_[np.ones((X_val.shape[0], 1)), X_val]
Closed-form solution for least squares
weights_b = np.linalg.inv(X_train_b.T.dot(X_train_b)).dot(X_train_b.T).dot(y_train) print("Weights (including bias):", weights_b)
Predict on the validation set
y_pred_ls = X_val_b.dot(weights_b)
Calculate MSE
mse_ls = mean_squared_error(y_val, y_pred_ls) print("MSE (Least Squares):", mse_ls)
Task 3: Implementing Polynomial Regression
Ridge Regression to handle singular matrix issue
from sklearn.linear_model import Ridge from sklearn.preprocessing import PolynomialFeatures
Define the degree of the polynomial
degree = 2
Generate polynomial features
poly = PolynomialFeatures(degree) X_poly_train = poly.fit_transform(X_train) X_poly_val = poly.transform(X_val)
Apply Ridge Regression with a small alpha to reduce overfitting
ridge_reg = Ridge(alpha=0.01) ridge_reg.fit(X_poly_train, y_train)
Predict on the validation set
y_pred_poly_ridge = ridge_reg.predict(X_poly_val)
Calculate MSE
mse_poly_ridge = mean_squared_error(y_val, y_pred_poly_ridge) print(f"MSE (Polynomial Regression with Ridge, degree={degree}):", mse_poly_ridge)
Visualize the predictions vs actual scores
plt.scatter(y_val, y_pred_poly_ridge, c='orange', label='Predicted') plt.plot([y_val.min(), y_val.max()], [y_val.min(), y_val.max()], 'r--', lw=2, label='Actual')
Task 4: Evaluating and Comparing Performance
Using Ridge Regression
from sklearn.linear_model import Ridge from sklearn.preprocessing import PolynomialFeatures
Define the degree of the polynomial
degree = 2
Generate polynomial features
poly = PolynomialFeatures(degree) X_poly_train = poly.fit_transform(X_train) X_poly_val = poly.transform(X_val)
Apply Ridge Regression
ridge_reg = Ridge(alpha=0.01) # You can adjust the alpha (regularization strength) ridge_reg.fit(X_poly_train, y_train)
Predict on the validation set
y_pred_poly_ridge = ridge_reg.predict(X_poly_val)
Calculate MSE
mse_poly_ridge = mean_squared_error(y_val, y_pred_poly_ridge) print(f"MSE (Polynomial Regression with Ridge, degree={degree}):", mse_poly_ridge)
Update the MSE printing section
print("MSE Comparison:") print(f"Gradient Descent: {mse_gd}") print(f"Least Squares: {mse_ls}") print(f"Polynomial Regression (Ridge, degree={degree}): {mse_poly_ridge}")
Plotting predicted vs actual exam scores for each model
plt.figure(figsize=(15, 5))
Gradient Descent
plt.subplot(1, 3, 1) plt.scatter(y_val, y_pred, c='blue', label='Predicted') plt.plot([y_val.min(), y_val.max()], [y_val.min(), y_val.max()], 'r--', lw=2, label='Actual') plt.xlabel('Actual Exam Scores') plt.ylabel('Predicted Exam Scores') plt.title('Linear Regression (Gradient Descent)') plt.legend()
Least Squares
plt.subplot(1, 3, 2) plt.scatter(y_val, y_pred_ls, c='green', label='Predicted') plt.plot([y_val.min(), y_val.max()], [y_val.min(), y_val.max()], 'r--', lw=2, label='Actual') plt.xlabel('Actual Exam Scores') plt.ylabel('Predicted Exam Scores') plt.title('Linear Regression (Least Squares)') plt.legend()
Polynomial Regression with Ridge
plt.subplot(1, 3, 3) plt.scatter(y_val, y_pred_poly_ridge, c='orange', label='Predicted') plt.plot([y_val.min(), y_val.max()], [y_val.min(), y_val.max()], 'r--', lw=2, label='Actual') plt.xlabel('Actual Exam Scores') plt.ylabel('Predicted Exam Scores') plt.title(f'Polynomial Regression with Ridge (degree={degree})') plt.legend()
Task 5: Providing Insights
from sklearn.metrics import mean_squared_error from sklearn.linear_model import LinearRegression from sklearn.pipeline import Pipeline, make_pipeline
Define the LinearRegressionGD class
class LinearRegressionGD: def init(self, learning_rate=0.01, n_iterations=1000): self.learning_rate = learning_rate self.n_iterations = n_iterations def fit(self, X, y): self.m, self.n = X.shape self.theta = np.zeros(self.n) self.bias = 0 self.cost_history = [] for _ in range(self.n_iterations): y_pred = np.dot(X, self.theta) + self.bias cost = (1/(2self.m)) * np.sum((y_pred - y)*2) self.cost_history.append(cost) d_theta = (1/self.m) * np.dot(X.T, (y_pred - y)) d_bias = (1/self.m) * np.sum(y_pred - y) self.theta - = self.learning_rate * d_theta self.bias - = self.learning_rate * d_bias
def predict(self, X): return np.dot(X, self.theta) + self.bias
Initialize and train the gradient descent model
model_gd = LinearRegressionGD(learning_rate=0.01, n_iterations=1000) model_gd.fit(X_train, y_train)
Make predictions
y_pred_gd = model_gd.predict(X_val)
Evaluate the model
mse_gd = np.mean((y_pred_gd - y_val) ** 2) print("Mean Squared Error (Gradient Descent):", mse_gd)
Print coefficients and intercept for gradient descent
print("Coefficients (Gradient Descent):", model_gd.theta) print("Intercept (Gradient Descent):", model_gd.bias)
Initialize and train the least squares model
model_ls = LinearRegression() model_ls.fit(X_train, y_train)
Make predictions
y_pred_ls = model_ls.predict(X_val)
Evaluate the model
mse_ls = np.mean((y_pred_ls - y_val) ** 2) print("Mean Squared Error (Least Squares):", mse_ls)
Print coefficients and intercept for least squares
