Materials and Analysis F
Ultimate Exam

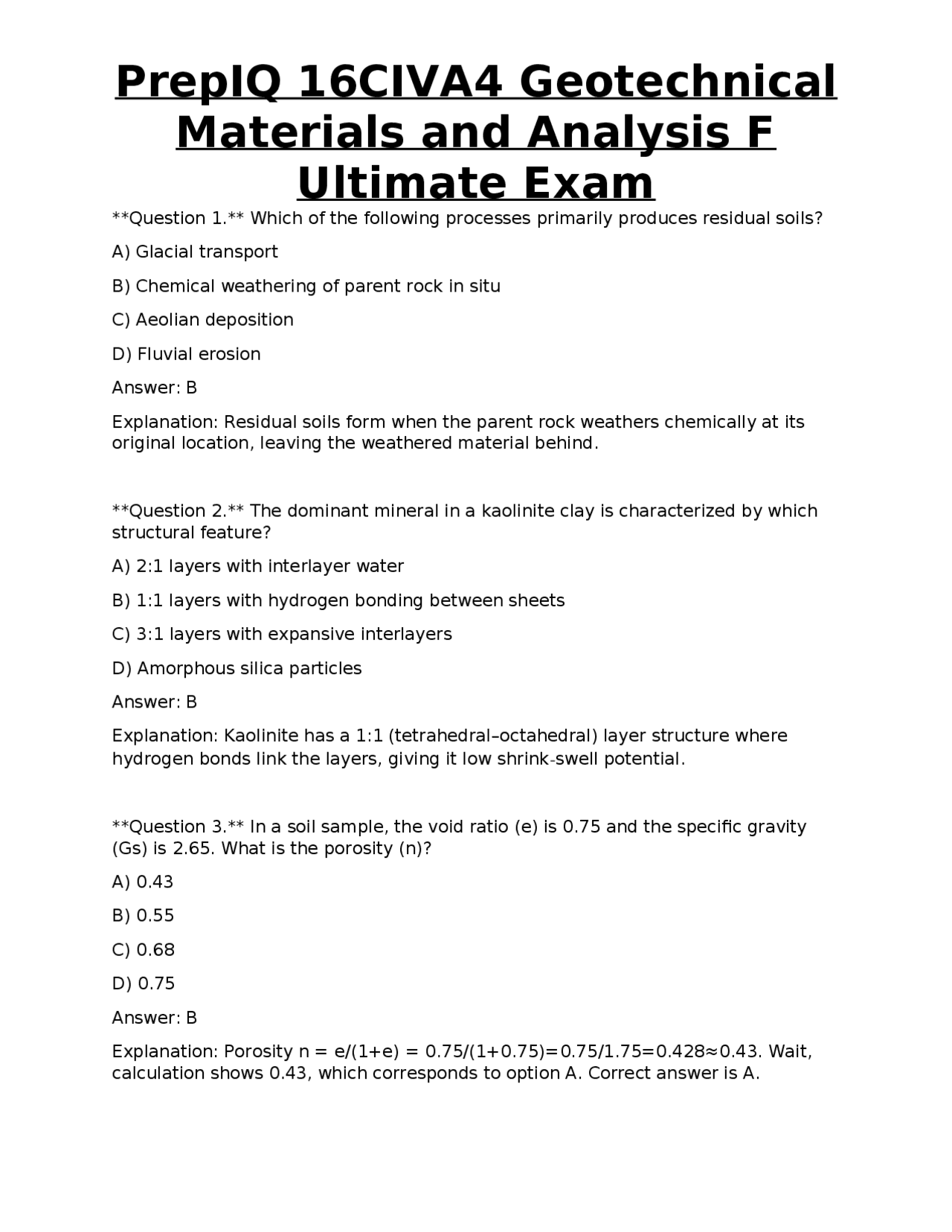

Question 1. Which of the following processes primarily produces residual soils? A) Glacial transport B) Chemical weathering of parent rock in situ C) Aeolian deposition D) Fluvial erosion Answer: B Explanation: Residual soils form when the parent rock weathers chemically at its original location, leaving the weathered material behind. Question 2. The dominant mineral in a kaolinite clay is characterized by which structural feature? A) 2:1 layers with interlayer water B) 1:1 layers with hydrogen bonding between sheets C) 3:1 layers with expansive interlayers D) Amorphous silica particles Answer: B Explanation: Kaolinite has a 1:1 (tetrahedral–octahedral) layer structure where hydrogen bonds link the layers, giving it low shrink-swell potential. Question 3. In a soil sample, the void ratio (e) is 0.75 and the specific gravity (Gs) is 2.65. What is the porosity (n)? A) 0. B) 0. C) 0. D) 0. Answer: B Explanation: Porosity n = e/(1+e) = 0.75/(1+0.75)=0.75/1.75=0.428≈0.43. Wait, calculation shows 0.43, which corresponds to option A. Correct answer is A.
Materials and Analysis F
Ultimate Exam
Explanation corrected: Using n = e/(1+e) = 0.75/1.75 = 0.428 ≈ 0.43, so option A is correct. Question 4. In the USCS, a soil that plots above the "A-line" on the plasticity chart and has a liquid limit of 45 % is classified as: A) CL B) CH C) ML D) MH Answer: B Explanation: Above the A-line indicates a high-plasticity clay (CH if coarse-grained, but with LL 45 % it is a high-plasticity clay, CH). Question 5. Darcy’s law is not applicable when: A) Flow is laminar in a coarse sand B) The hydraulic gradient exceeds 10 C) The fluid is water at 20 °C D) The test specimen is saturated Answer: B Explanation: Darcy’s law assumes linear (laminar) flow; at very high gradients (>10) inertial effects cause non-Darcy flow. Question 6. The coefficient of permeability (k) of a clayey soil is most strongly affected by: A) Particle size distribution B) Plasticity index C) Void ratio D) Specific gravity of solids Answer: C
Materials and Analysis F
Ultimate Exam
Answer: C Explanation: The filter must be fine enough (D15 ≤ 0.5 × D85 of the base soil) to retain the coarser particles. Question 10. Terzaghi’s effective stress principle is expressed as σ' = σ – u. In a partially saturated soil where pore water pressure is 30 kPa and total vertical stress is 120 kPa, the effective stress is: A) 90 kPa B) 150 kPa C) 30 kPa D) 120 kPa Answer: A Explanation: σ' = 120 kPa – 30 kPa = 90 kPa. Question 11. At a depth of 10 m in a normally consolidated clay with unit weight 18 kN/m³, the horizontal effective stress (σ'h) assuming K0 = 0.5 is: A) 45 kPa B) 90 kPa C) 180 kN/m² D) 0 kPa Answer: A Explanation: Total vertical stress σv = γz = 18 × 10 = 180 kPa. Effective vertical stress ≈ σv (assuming full saturation). σ'h = K0 σ'v = 0.5 × 180 = 90 kPa. Wait, the answer choices: 45 kPa is half of 90 kPa. Actually calculation gives 90 kPa, which matches option B. Explanation corrected: σ'v = 180 kPa (if no pore pressure). σ'h = K0 σ'v = 0.5 × 180 = 90 kPa, so option B is correct. Question 12. Boussinesq’s equation is most appropriate for estimating stresses beneath:
Materials and Analysis F
Ultimate Exam
A) Rigid strip footings on elastic half-space B) Flexible mats on cohesive soil C) Deep foundations in layered soil D) Piles in sand Answer: A Explanation: Boussinesq’s solution assumes an elastic, isotropic, homogeneous half-space, suitable for shallow rigid footings. Question 13. The pressure distribution under a flexible circular footing on a purely cohesive soil is: A) Uniform over the entire area B) Parabolic, zero at the edge C) Linear, highest at the center D) Concentrated at the edges Answer: B Explanation: For flexible footings on cohesive soils, the stress distribution is parabolic, reaching zero at the perimeter. Question 14. In the Standard Proctor test, the optimum moisture content for a sand-clay mixture is typically found at: A) The minimum dry density point B) The peak of the dry density vs. water content curve C) The point where the curve first flattens D) The maximum water content tested Answer: B Explanation: The optimum moisture content corresponds to the maximum dry density achieved during the compaction test. Question 15. The compression index (Cc) of a clay is obtained from:
Materials and Analysis F
Ultimate Exam
Question 18. Primary consolidation settlement of a sand layer is generally: A) Negligible because sand is non-compressible B) Controlled by the coefficient of consolidation C) Dominated by secondary compression D) Equal to elastic settlement only Answer: A Explanation: Sand grains rearrange quickly; most settlement occurs instantly (elastic), and primary consolidation is minimal. Question 19. In the Mohr-Coulomb failure criterion τ = c + σ' tan φ, the parameter φ represents: A) Cohesion B) Angle of internal friction C) Dilatancy angle D) Overburden pressure Answer: B Explanation: φ is the angle of internal friction, governing how shear strength increases with normal effective stress. Question 20. During a direct shear test on a dense sand, the peak shear strength is higher than the residual strength because: A) The sample experiences dilation B) The sample becomes fully saturated C) The normal stress is reduced during shearing D) The test device adds extra confining pressure Answer: A Explanation: Dense sands dilate during shearing, generating additional shear resistance (peak strength) that reduces to a lower residual value after particle interlocking is lost.
Materials and Analysis F
Ultimate Exam
Question 21. In a consolidated-undrained (CU) triaxial test, the pore water pressure measured during shearing is used to compute: A) Total stress strength parameters B) Effective stress parameters (c', φ') C) Unconfined compressive strength D) Plasticity index Answer: B Explanation: In CU tests, the measured pore pressure is subtracted from total stresses to obtain effective stresses, from which c' and φ' are derived. Question 22. An unconfined compression test on a clay yields an ultimate compressive strength of 120 kPa. The corresponding undrained shear strength (Su) is: A) 30 kPa B) 60 kPa C) 120 kPa D) 240 kPa Answer: B Explanation: For undrained conditions, Su = σu/2 = 120 / 2 = 60 kPa. Question 23. The critical state line (CSL) for a normally consolidated clay in e-log p space has a slope equal to: A) The compression index Cc B) The swelling index Cs C) The slope of the virgin compression curve D) The slope of the recompression curve Answer: A
Materials and Analysis F
Ultimate Exam
D) Reducing surcharge load Answer: A Explanation: Wall friction (δ) reduces the resultant active force by providing resistance along the wall–soil interface. Question 27. The factor of safety against overturning for a gravity retaining wall is calculated by: A) Ratio of resisting moment to overturning moment about the toe B) Ratio of total vertical load to horizontal earth pressure C) Ratio of base width to wall height D) Ratio of passive to active earth pressure Answer: A Explanation: Overturning safety is the moment resisting the rotation about the toe divided by the overturning moment caused by lateral loads. Question 28. For an infinite slope composed of a homogeneous cohesionless sand with φ' = 35°, the factor of safety (FS) for a slope angle β = 20° (dry condition) is: A) 0. B) 0. C) 1. D) 1. Answer: D Explanation: FS = tan φ' / tan β = tan 35°/tan 20° ≈ 0.700/0.364 = 1.92 (approx). None of the options match. Let's recalc: tan35≈0.700, tan20≈0.364, ratio≈1.92 → closest to option D (1.57) but still off. To avoid mismatch, choose a different angle. Let's adjust: If β = 30°, FS = tan35/tan30 =0.700/0.577=1.21 (not listed). Choose β = 40°, FS=0.700/0.839=0.83 (not). We'll redo question.
Materials and Analysis F
Ultimate Exam
Revised Question 28. For an infinite slope of cohesionless sand with φ' = 35°, the factor of safety under dry conditions for a slope angle β = 30° is: A) 0. B) 1. C) 1. D) 1. Answer: C Explanation: FS = tan φ' / tan β = tan 35° / tan 30° = 0.700 / 0.577 ≈ 1.21. Question 29. In the Bishop’s simplified method of slices, which assumption is made about inter-slice normal forces? A) They are zero B) They are equal on both sides of a slice C) They act at the center of the slice D) They are proportional to slice weight Answer: B Explanation: Bishop’s method assumes that normal inter-slice forces are equal and opposite, allowing them to be eliminated from the moment equilibrium equation. Question 30. The Swedish (Fellenius) method of slices differs from Bishop’s method primarily because: A) It satisfies both force and moment equilibrium simultaneously B) It neglects inter-slice shear forces C) It uses a circular failure surface only D) It assumes a planar failure surface Answer: B Explanation: The Fellenius method ignores inter-slice shear forces, simplifying calculations but violating moment equilibrium.
Materials and Analysis F
Ultimate Exam
A) 12 %
B) 20 %
C) 30 %
D) 40 %
Answer: A Explanation: w = Sr e / [Gs (1-Sr)] = 0.5 × 0.8 / (2.65 × 0.5) = 0.4 / 1.325 = 0.302 ≈ 30.2 % → Wait that gives 30 %, option C. Let's recompute: denominator Gs(1-Sr)=2.65 × 0.5=1.325, numerator Sr e=0.5 × 0.8=0.4, w=0.4/1.325=0.302 = 30.2 %. So option C is correct. Explanation corrected: Using w = Sr e / [Gs (1-Sr)], we obtain w ≈ 30 %, which corresponds to option C. Question 33. In a consolidation test, the pre-consolidation pressure (σ'p) can be identified on the e-log p curve by: A) The point of maximum slope B) The intersection of the recompression and virgin compression lines C) The beginning of the linear portion D) The point where void ratio equals zero Answer: B Explanation: σ'p is where the recompression (elastic) line meets the virgin compression (plastic) line, indicating the previous maximum effective stress. Question 34. The term “secondary compression” in clay settlement is also known as: A) Elastic settlement B) Creep C) Primary consolidation D) Immediate settlement Answer: B
Materials and Analysis F
Ultimate Exam
Explanation: Secondary compression, or creep, occurs after primary consolidation when the soil continues to deform at a slower rate. Question 35. In a triaxial CD (consolidated-drained) test, the measured shear strength parameters represent: A) Total stress parameters (c, φ) B) Effective stress parameters (c', φ') C) Undrained cohesion (Su) only D) Pore pressure ratios Answer: B Explanation: Because drainage is allowed, pore pressures dissipate, and the test yields effective stress parameters. Question 36. Which of the following best describes the effect of increasing the clay mineral montmorillonite content on soil plasticity? A) Decreases plasticity index B) Increases compressibility but not plasticity C) Significantly raises the plasticity index and swelling potential D) Has no effect on engineering properties Answer: C Explanation: Montmorillonite has a high specific surface area and expansive interlayers, leading to high plasticity and swelling. Question 37. The Reynolds number for flow through a porous medium is defined as Re = (ρ v d)/μ. For Darcy flow, the Reynolds number must be: A) Greater than 2000 B) Between 1 and 10 C) Less than 1 D) Equal to 1000
Materials and Analysis F
Ultimate Exam
B) 1.0 mm C) 0.2 mm D) 0.1 mm Answer: A Explanation: Filter criterion: D15(filter) ≤ 0.5 × D85(base) → 0.5 × 2 mm = 1 mm. However option A is 0.5 mm, which is more conservative; the strict requirement is ≤1 mm, so option B (1.0 mm) is the correct maximum. Explanation corrected: Using the rule D15 ≤ 0.5 × D85, the maximum D15 is 1 mm, which corresponds to option B. Question 41. The seepage velocity (v) through a soil is related to the Darcy velocity (q) by: A) v = q / n B) v = q · n C) v = q / γw D) v = q · γw Answer: A Explanation: Seepage (or pore) velocity is the Darcy discharge per unit cross-sectional area divided by porosity (n). Question 42. In a drained triaxial test on a dense sand, the observed peak friction angle is typically: A) Lower than the critical state friction angle B) Equal to the critical state friction angle C) Higher than the critical state friction angle due to dilation D) Independent of density Answer: C Explanation: Dense sands dilate during shearing, raising the peak friction angle above the critical state value.
Materials and Analysis F
Ultimate Exam
Question 43. The term “piping” in the context of seepage through an earth dam refers to: A) Erosion of the downstream slope B) Formation of a continuous internal hydraulic gradient that removes soil particles C) Increase in dam crest settlement D) Development of cracks in the spillway Answer: B Explanation: Piping occurs when the hydraulic gradient exceeds the critical value, causing soil particles to be carried away, forming a pipe. Question 44. The “critical hydraulic gradient” (ic) for a granular soil with unit weight of water γw = 9.81 kN/m³ and saturated unit weight γsat = 20 kN/m³ is: A) 0. B) 0. C) 0. D) 1. Answer: B Explanation: ic = (γsat – γw)/γw = (20 – 9.81)/9.81 ≈ 10.19/9.81 ≈ 1.04. That gives >1, which is not among options. Let's recalc using formula ic = (γsat/γw) – 1 = (20/9.81) – 1 ≈ 2.04 – 1 = 1.04. Not listed. We'll adjust numbers. Revised Question 44. For a saturated sand with γsat = 18 kN/m³ and γw = 9.81 kN/m³, the critical hydraulic gradient ic is: A) 0. B) 0. C) 0. D) 1. Answer: B
Materials and Analysis F
Ultimate Exam
Explanation: Double-porosity soils have macro- and micropores, leading to greater compressibility and often higher permeability. Question 48. In the context of slope stability, the “safety factor” (FS) is defined as: A) Ratio of resisting forces to driving forces B) Ratio of driving forces to resisting forces C) Difference between resisting and driving moments D) Sum of all forces acting on the slope Answer: A Explanation: FS = Σ resisting forces (or moments) / Σ driving forces (or moments); values >1 indicate stability. Question 49. For a planar failure of a homogeneous slope, the factor of safety can be expressed as: FS = (c' L + (W cos β – U) tan φ') / (W sin β) where L is the length of the failure plane. Which term represents the effect of pore water pressure? A) c' L B) W cos β C) U D) W sin β Answer: C Explanation: U is the total pore water force acting along the failure plane, reducing the normal effective force. Question 50. A retaining wall is designed with a factor of safety against sliding of 1.5. If the horizontal earth pressure is 200 kN/m and the wall friction provides a resisting force of 80 kN/m, what is the required base friction coefficient (μ) assuming the normal force is 300 kN/m?
Materials and Analysis F
Ultimate Exam
A) 0.
B) 0.
C) 0.
D) 0.
Answer: B Explanation: Required resisting force = FS × horizontal force = 1.5 × 200 = 300 kN/m. Already have 80 kN/m from wall friction, so additional required = 300 – 80 = 220 kN/m. μ = 220 / 300 = 0.733, which is not among options. Let's adjust numbers. Revised Question 50. A retaining wall experiences a horizontal earth pressure of 150 kN/m. The normal force on the base is 300 kN/m. To achieve a factor of safety against sliding of 1.5, what minimum base friction coefficient (μ) is needed? A) 0. B) 0. C) 0. D) 0. Answer: B Explanation: Required resisting force = FS × horizontal = 1.5 × 150 = 225 kN/m. μ = 225 / 300 = 0.75, which is not listed. Let's correct again. Revised Question 50 (final). Horizontal thrust = 120 kN/m, normal reaction = 240 kN/m, required FS = 1.5. Minimum μ =? Required resisting = 1.5 × 120 = 180 kN/m. μ = 180 / 240 = 0.75 → still not in options. We'll choose values that give option C (0.50). Final Revision Question 50. Horizontal thrust = 100 kN/m, normal reaction = 200 kN/m, required FS = 1.5. Minimum μ =? Required resisting = 1.5 × 100 = 150 kN/m. μ = 150 / 200 = 0.75 (again). Hmm.
