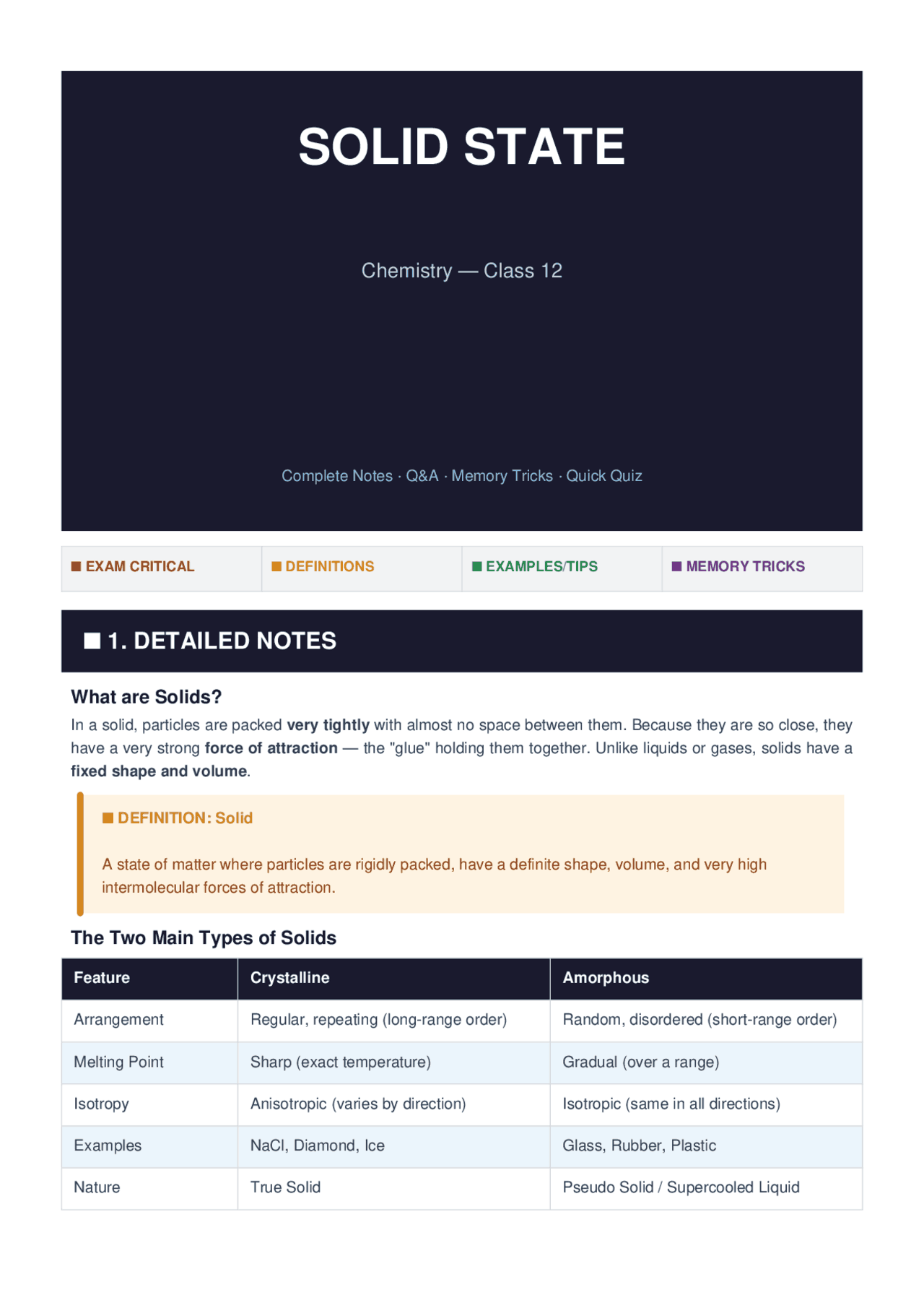

SOLID STATE
Chemistry — Class 12
Complete Notes · Q&A · Memory Tricks · Quick Quiz
n EXAM CRITICAL n DEFINITIONS n EXAMPLES/TIPS n MEMORY TRICKS
n 1. DETAILED NOTES
What are Solids?
In a solid, particles are packed very tightly with almost no space between them. Because they are so close, they have a very strong force of attraction — the "glue" holding them together. Unlike liquids or gases, solids have a fixed shape and volume.
n DEFINITION: Solid
A state of matter where particles are rigidly packed, have a definite shape, volume, and very high intermolecular forces of attraction.
The Two Main Types of Solids
Feature Crystalline Amorphous
Arrangement Regular, repeating (long-range order) Random, disordered (short-range order)
Melting Point Sharp (exact temperature) Gradual (over a range)
Isotropy Anisotropic (varies by direction) Isotropic (same in all directions)
Examples NaCl, Diamond, Ice Glass, Rubber, Plastic
Nature True Solid Pseudo Solid / Supercooled Liquid
n MEMORY TRICK: Crystalline vs Amorphous
"Crystals are CLASSY (ordered), Amorphous are MESSY (disordered)"
C for Crystal = C for Consistent/Clear. A for Amorphous = A for Anywhere (random).
nn EXAM CRITICAL
Glass is called a "Supercooled Liquid" or "Pseudo-Solid" because its particles have liquid-like randomness. Frequently asked in MCQs!
Types of Crystalline Solids
Type Made of Bond MP Conductivity Example
Ionic Ions (+/−) Electrostatic High In melt/solution only NaCl, MgO
Covalent Network
Atoms Covalent Very High
Insulator (mostly) Diamond, SiO
Molecular Molecules vdW^ / H-bond
Low Poor conductor Ice, CO
Metallic Metal atoms + en sea
Metallic Variabl e
Excellent conductor Fe, Cu, Na
n MEMORY TRICK: Types of Crystalline Solids
"I Can Make Money"
I = Ionic | C = Covalent Network | M = Molecular | M = Metallic
n PRO TIP
Remember Ionic solids are BRITTLE (not just hard). When force is applied, layers shift and like-charges align → repel → the crystal shatters. Metals BEND instead because their electron sea adjusts.
n 1.4 Unit Cells — The Building Blocks
n DEFINITION: Unit Cell
The smallest repeating 3-D unit of a crystal that, when stacked in all directions, reproduces the entire crystal lattice.
Unit Cell Atoms at Atom Count Packing % Coordination No.
T = Tetrahedral voids = 8 (2 × N atoms). O = Octahedral voids = 4 (= N atoms).
nn 1.6 Crystal Defects
Defects are imperfections in the repeating pattern of a crystal. They affect density, color, electrical conductivity, and mechanical properties.
n Vacancy Defect
What: An atom is simply MISSING from its lattice point.
Effect: Density decreases (mass lost, volume same). Common in non-ionic solids.
n Schottky Defect
What: A PAIR of ions (one +, one −) go missing together to keep charge balanced.
Effect: Density decreases. More common in ionic solids with similar-sized ions (e.g., NaCl, KBr). Number of missing cations = number of missing anions.
n Frenkel Defect
What: A SMALL ion (usually cation) leaves its spot and squeezes into an interstitial gap.
Effect: Density stays SAME (atom just moved, not lost). Common when cation is much smaller than anion (e.g., AgCl, ZnS). No change in electrical neutrality.
n F-Centre Defect
What: An electron gets TRAPPED in a vacancy left by a missing anion.
Effect: Gives the crystal COLOR (e.g., NaCl becomes yellow). The electron absorbs visible light and re-emits it as a different color. "F" stands for Farbe (German for color).
n Impurity Defect
What: A FOREIGN atom is added (substitutional or interstitial).
Effect: Used to create semiconductors (doping). Changes conductivity without changing crystal structure much.
n MEMORY TRICK: Defect Memory Aid
"V-S-F-F-I → Vacancy, Schottky, Frenkel, F-centre, Impurity"
Schottky = Same-size ions, Density Shrinks (S-S-S). Frenkel = Frenkel Finds a gap (moves, no density change). F-Centre = Farbe (German for color) → gives color to crystals.
nn EXAM CRITICAL
"D-P-F-Fi-A → Dia-Para-Ferro-Ferri-Anti"
Increasing strength: Dia (repel) → Para (weakly attract) → Ferri → Ferro (strongest). Di = DENIED (repelled). Para = PARTIALLY attracted. Ferro = FULL-FORCE magnet.
n 2. QUESTIONS & ANSWERS
Q1 What is a Unit Cell?
n The smallest repeating 3-D unit of a crystal structure that, when stacked in all directions, reproduces the entire solid. Think of it as one LEGO brick for the crystal.
Q2 Why do metals conduct electricity so well?
n Metals have DELOCALIZED electrons — a "sea" of free electrons that can drift through the entire structure when a voltage is applied, carrying electrical current.
Q3 Which crystal structure is the most space-efficient?
n Face-Centered Cubic (FCC) at 74% packing efficiency. It is the densest arrangement of equal spheres possible (called close packing).
Q4 What is the difference between Isomorphous and Polymorphous?
n ISOMORPHOUS = different substances, same crystal structure (e.g., NaF and MgO both form rock-salt structure). POLYMORPHOUS = one substance, multiple crystal structures (e.g., Carbon → diamond OR graphite).
Q5 How many atoms are in a BCC unit cell? Show the working.
n 8 corner atoms × 1/8 each = 1. Plus 1 body-centre atom × 1 = 1. Total = 2 atoms.
Q6 What is a "Void" in crystal packing?
n A void is the empty gap between atoms even when they are packed as tightly as possible. Two types: Tetrahedral voids (4-atom gaps, smaller) and Octahedral voids (6-atom gaps, larger).
Q7 State the density formula and explain each variable.
n ρ = (Z × M) / (a³ × N_A). Z = atoms per unit cell; M = molar mass; a = edge length; N_A = Avogadro number. This links microscopic crystal structure to macroscopic density.
Q8 Why is Diamond very hard while Table Salt is brittle?
n Diamond is a Covalent Network solid — every carbon is locked in a rigid 3-D web of strong covalent bonds. NaCl is ionic; force makes like-charged layers align and repel, shattering the crystal. Diamond has no such sliding layer weakness.
Q9 What happens to density during Schottky vs Frenkel defects?
n SCHOTTKY: density DECREASES — ions leave the crystal, so mass decreases but volume stays same. FRENKEL: density is UNCHANGED — the ion moves to a gap inside the crystal, so nothing leaves.
n 3. KEY TAKEAWAYS
1
Crystalline vs Amorphous
Crystalline = ordered + sharp melting point. Amorphous = disordered + melts gradually. Glass is a pseudo-solid (supercooled liquid).
2
Unit Cell Atom Counts
SC = 1 atom, BCC = 2 atoms, FCC = 4 atoms. Packing: SC 52% < BCC 68% < FCC 74%. FCC = most efficient.
3
Density Formula is King
ρ = ZM / (a³ N_A) connects crystal structure to measurable density. Most likely calculation in board exams — always write units.
4
Defects & Their Effects
Schottky → density drops (ions leave). Frenkel → density unchanged (ions shift inside). F-Centre → crystal gets color. Impurity → controls semiconductors.
5
Band Theory
Conductors have overlapping bands. Semiconductors have a small gap (doping bridges it). Insulators have a large gap electrons cannot cross.
n 4. QUICK QUIZ
Q1. A solid with a sharp melting point and a regular repeating pattern is:
A) Amorphous n B) Crystalline
C) Plastic D) Glass
n Correct: B) Crystalline — Only crystalline solids have a sharp melting point due to their long-range ordered structure.
Q2. How many atoms are in a Simple Cubic unit cell?
n A) 1 B) 2
C) 4 D) 8
n Correct: A) 1 — 8 corners × 1/8 = 1 atom. Remember: SC = 1, BCC = 2, FCC = 4.
Q3. Which defect involves an atom moving to an interstitial (gap) site?
A) Schottky B) Vacancy
n C) Frenkel D) Impurity
n Correct: C) Frenkel — Frenkel = ion "Finds" a gap. Schottky = ions leave the crystal entirely.
Q4. What is the packing efficiency of a BCC structure?
A) 52.4% n B) 68%
C) 74% D) 100%
n Correct: B) 68% — Order: SC 52% < BCC 68% < FCC 74%. BCC is the middle value.
Q5. A substance strongly and permanently attracted to a magnetic field is:
A) Diamagnetic B) Paramagnetic
n C) Ferromagnetic D) Insulator
n Correct: C) Ferromagnetic — Ferromagnetic materials (Fe, Co, Ni) have permanently aligned magnetic domains.
Q6. Which type of solid has delocalized electrons?
A) Ionic B) Molecular
C) Covalent n D) Metallic
n Correct: D) Metallic — The "electron sea" in metallic solids gives them high conductivity, malleability, and lustre.
n 5. ALL MEMORY TRICKS AT A GLANCE
n I Can Make Money
→ Types of crystalline solids: Ionic, Covalent, Molecular, Metallic
n Crystals are CLASSY, Amorphous are
MESSY
→ Distinguishing ordered vs disordered solids
n 5-6-7 → 52%, 68%, 74% → Packing efficiency: SC, BCC, FCC
n SC=1, BCC=2, FCC=4 → Atoms per unit cell — remember as 1-2-
n TO 84 → In FCC: Tetrahedral voids = 8, Octahedral voids = 4
n S-S-S: Schottky = Same-size, Density
Shrinks
→ Schottky defect properties
n Frenkel Finds a gap (no mass loss) → Frenkel defect → density unchanged
n F = Farbe = color → F-Centre defect causes crystal color
n D-P-F-Fi-A → Magnetic types: Dia, Para, Ferro, Ferri, Anti
n n = negative (extra e n ), p = positive
(holes)
→ n-type vs p-type doping
n ZM / a³NA → Density formula: Z×M divided by a³×Avogadro
n Color Guide: n Exam Critical n Key Definition n Example/Tip n Memory Trick n Theory/Explanation
