Markings Technician II Ultimate
Exam

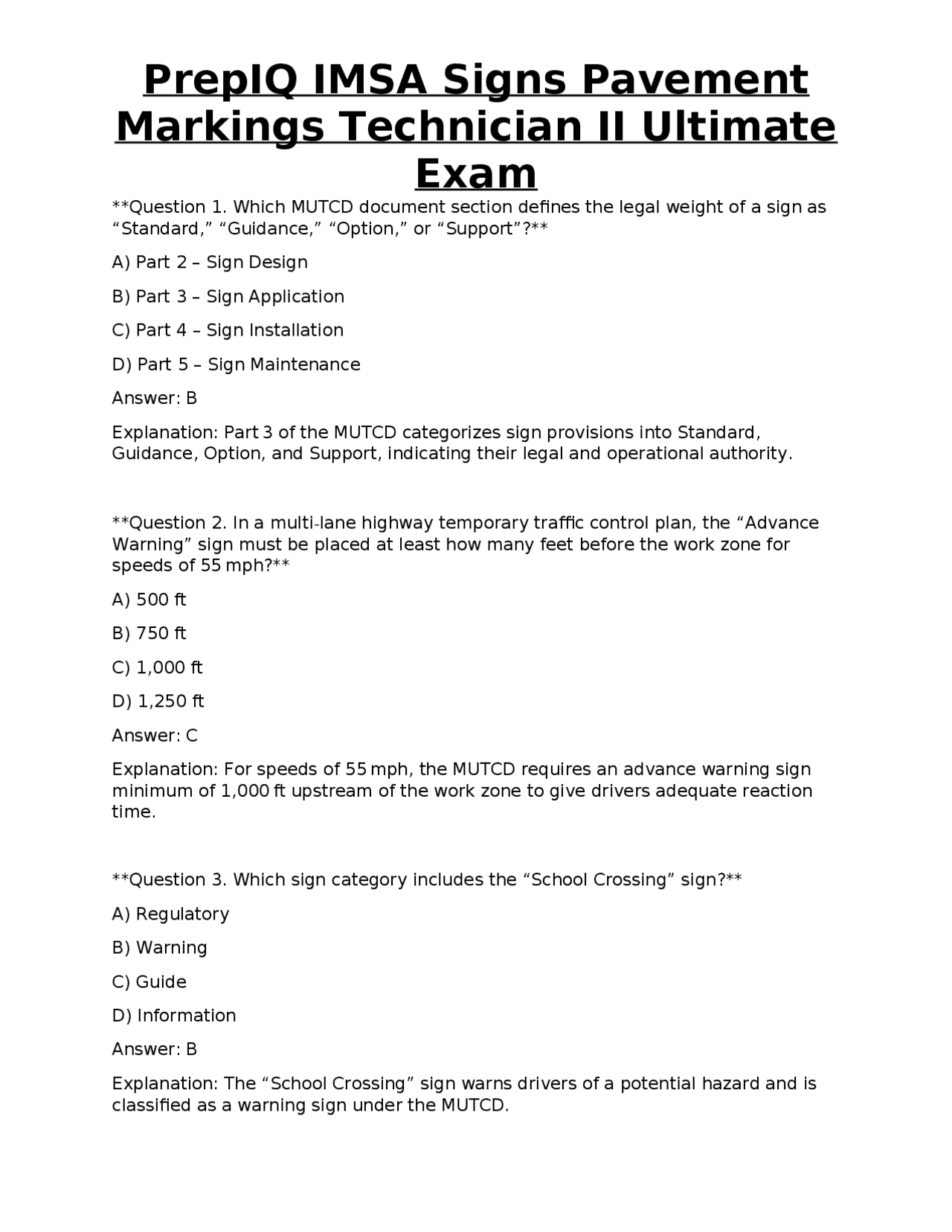

Question 1. Which MUTCD document section defines the legal weight of a sign as “Standard,” “Guidance,” “Option,” or “Support”? A) Part 2 – Sign Design B) Part 3 – Sign Application C) Part 4 – Sign Installation D) Part 5 – Sign Maintenance Answer: B Explanation: Part 3 of the MUTCD categorizes sign provisions into Standard, Guidance, Option, and Support, indicating their legal and operational authority. Question 2. In a multi-lane highway temporary traffic control plan, the “Advance Warning” sign must be placed at least how many feet before the work zone for speeds of 55 mph? A) 500 ft B) 750 ft C) 1,000 ft D) 1,250 ft Answer: C Explanation: For speeds of 55 mph, the MUTCD requires an advance warning sign minimum of 1,000 ft upstream of the work zone to give drivers adequate reaction time. Question 3. Which sign category includes the “School Crossing” sign? A) Regulatory B) Warning C) Guide D) Information Answer: B Explanation: The “School Crossing” sign warns drivers of a potential hazard and is classified as a warning sign under the MUTCD.
Markings Technician II Ultimate
Exam
Question 4. When installing a “Bicycle Route” sign, which part of the MUTCD provides the required legend and layout specifications? A) Part 6 – Pavement Markings B) Part 7 – School Zones C) Part 9 – Bicycles D) Part 12 – Sign Construction Answer: C Explanation: Part 9 of the MUTCD addresses bicycle facilities, including sign legends, dimensions, and placement. Question 5. What is the minimum thickness for an aluminum sign substrate used on a federal-aid highway? A) 0.040 in B) 0.055 in C) 0.080 in D) 0.100 in Answer: B Explanation: Federal-aid specifications require a minimum aluminum thickness of 0.055 in to ensure durability and resistance to deformation. Question 6. Which retroreflective sheeting type provides the highest night-time visibility on high-speed freeways? A) Type II (Open-Cell) B) Type III (Closed-Cell) C) Type IV (High-Intensity Prismatic) D) Type XI (Full-Cube Diamond Grade) Answer: D
Markings Technician II Ultimate
Exam
Answer: B Explanation: Polyurea systems cure within minutes, allowing rapid traffic reopening, whereas epoxy typically requires several hours. Question 10. In thermoplastic marking, which resin type provides better resistance to UV degradation? A) Hydrocarbon resin B) Alkyd resin C) Acrylic resin D) Phenolic resin Answer: A Explanation: Hydrocarbon-based thermoplastic resins have superior UV resistance compared to alkyd resins, making them suitable for sunny climates. Question 11. When applying a pre-formed thermoplastic “Stop” symbol, the recommended minimum temperature of the substrate is: A) 150 °F B) 180 °F C) 210 °F D) 250 °F Answer: C Explanation: Pre-formed thermoplastic adheres properly when the pavement surface is at least 210 °F, ensuring melt and bond. Question 12. Which glass bead type is specified for “double-drop” retroreflectivity systems to improve wet-night performance? A) Type I (Standard) B) Type II (Open-Cell) C) Type III (Closed-Cell)
Markings Technician II Ultimate
Exam
D) Type IV (High-Intensity Prismatic) Answer: D Explanation: Type IV beads have a high refractive index and are used in double-drop systems to maximize night-time visibility, especially when wet. Question 13. For a long-line pavement marking, the control point offset method typically uses a baseline measured from which reference? A) Centerline of the roadway B) Edge of the pavement C) Existing curb line D) Surveyed stake line Answer: D Explanation: Offsets are taken from a surveyed stake line (baseline) to accurately locate markings relative to the design geometry. Question 14. When estimating thermoplastic material needs, which factor is NOT required? A) Line width B) Wet film thickness (WFT) C) Ambient temperature D) Length of line Answer: C Explanation: Material volume is calculated from line width, length, and WFT; ambient temperature influences application but not the quantity estimate. Question 15. The FHWA minimum retroreflectivity level for daytime pavement markings on a high-speed road is: A) 30 cd/lx/m² B) 45 cd/lx/m²
Markings Technician II Ultimate
Exam
B) Proximate cause C) Duty of care D) Actual notice Answer: C Explanation: “Duty of care” is the obligation to act reasonably to avoid causing harm, forming the first element of a negligence claim. Question 19. Constructive notice of a missing sign is established when: A) The agency’s inspection report documents the absence. B) A driver reports the missing sign. C) The sign is missing for more than 30 days. D) The sign is not visible from a distance of 500 ft. Answer: A Explanation: Constructive notice arises when official records (e.g., inspection reports) indicate a defect, regardless of actual driver awareness. Question 20. Which PPE item is required when applying hot-melt thermoplastic using a handheld extrusion gun? A) Respirator with organic vapor cartridges B) Heat-resistant gloves rated to 500 °F C) Ear protection for noise >85 dB D) Fall protection harness Answer: B Explanation: Heat-resistant gloves protect hands from the high temperatures of molten thermoplastic during extrusion. Question 21. Under NPDES regulations, runoff from a marking operation containing solvent-based paints must be treated before discharge because: A) It may cause aquatic toxicity.
Markings Technician II Ultimate
Exam
B) It can increase road surface temperature. C) It reduces pavement friction. D) It interferes with traffic signal operation. Answer: A Explanation: Solvent-based paints contain volatile organic compounds that can be toxic to aquatic life, requiring treatment per NPDES. Question 22. Which sign substrate material provides the best corrosion resistance in coastal environments? A. 0.040-in aluminum with a clear coat B. 0.055-in aluminum with a zinc-aluminum alloy coating C. Marine-grade plywood treated with epoxy D. Composite polymer sheet with UV inhibitor Answer: B Explanation: Zinc-aluminum alloy (Z-Al) coated aluminum resists corrosion from salty air better than untreated aluminum or wood. Question 23. What is the standard minimum letter spacing (kerning) for a regulatory sign on a freeway? A) 0.5 in B) 0.75 in C) 1.0 in D) 1.25 in Answer: C Explanation: The MUTCD specifies a minimum of 1.0 in spacing between characters on regulatory signs to ensure legibility at speed. Question 24. Which of the following is a primary advantage of digital printing over screen printing for sign legends?
Markings Technician II Ultimate
Exam
Question 27. Which type of retroreflective bead is most suitable for cold-weather applications where the pavement surface may be icy? A) Type I (Standard) B) Type II (Open-Cell) C) Type III (Closed-Cell) D) Type IV (High-Intensity Prismatic) Answer: C Explanation: Closed-cell (Type III) beads retain air pockets under ice, maintaining reflectivity better than open-cell beads. Question 28. When calibrating a pneumatic spray gun for water-borne paint, the recommended nozzle pressure for a 4-inch line width is: A) 30 psi B) 45 psi C) 60 psi D) 75 psi Answer: C Explanation: A pressure of 60 psi provides sufficient atomization for a 4-inch line while minimizing overspray. Question 29. Which documentation is considered the most legally defensible if a sign failure results in an accident? A) Daily work log with timestamps B) Photographs of the installed sign C) Signed inspection checklist D) All of the above combined Answer: D Explanation: A complete record (log, photos, and signed checklist) demonstrates compliance and due diligence, providing the strongest defense.
Markings Technician II Ultimate
Exam
Question 30. The “Option” classification in the MUTCD indicates that a sign provision is: A) Mandatory for all roadways. B) Recommended but not required. C) Allowed only when a local agency adopts it. D) Deprecated and should not be used. Answer: C Explanation: “Option” signs are permitted only if a jurisdiction adopts the provision; they are not universally mandatory. Question 31. Which of the following is the primary function of a “Guide” sign? A) To warn drivers of hazards. B) To regulate driver behavior. C) To provide directional information. D) To indicate pavement markings. Answer: C Explanation: Guide signs give navigational information such as routes, destinations, and distances. Question 32. The standard minimum retroreflectivity for nighttime pavement markings on a rural arterial is: A) 80 cd/lx/m² B) 100 cd/lx/m² C) 120 cd/lx/m² D) 150 cd/lx/m² Answer: B Explanation: FHWA requires at least 100 cd/lx/m² for nighttime retroreflectivity on rural arterials to ensure driver detection.
Markings Technician II Ultimate
Exam
Explanation: The MUTCD requires flagger shelters to be positioned at a minimum of 30 ft from the work zone edge to protect flaggers while maintaining visibility. Question 36. Which of the following best describes “constructive notice” in the context of sign maintenance? A) Actual visual observation by a driver. B) A formal written notice sent to the agency. C) Knowledge inferred from public records or inspections. D) An oral warning given by a supervisor. Answer: C Explanation: Constructive notice arises when a defect is documented in official records, implying the agency should have known. Question 37. The primary benefit of using a “Full-Cube” retroreflective sheeting (Type XI) on a sign in foggy conditions is: A) Increased color saturation. B) Higher durability against abrasion. C) Superior light return at low incident angles. D) Lower installation cost. Answer: C Explanation: Full-Cube sheeting returns more light at shallow angles, improving visibility in fog where light is scattered. Question 38. For a highway with a design speed of 70 mph, the minimum letter height for a “Stop” sign is: A) 6 in B) 9 in C) 12 in D) 15 in
Markings Technician II Ultimate
Exam
Answer: D Explanation: High-speed roads require larger legends; a 15-in letter height ensures legibility at 70 mph. Question 39. When performing a retroreflectometer survey, the acceptable tolerance between two successive measurements on the same sign is: A) ±5 % B) ±10 % C) ±15 % D) ±20 % Answer: B Explanation: FHWA guidelines allow a ±10 % variance between repeat measurements to account for instrument and environmental factors. Question 40. Which of the following is a key environmental consideration when using water-based paints for pavement markings? A) High VOC emissions B) Potential for runoff contamination with pigments C) Increased glare for drivers D) Rapid degradation under UV light Answer: B Explanation: Water-based paints can leach pigments into stormwater; proper containment or runoff controls are required. Question 41. The “Option” sign for “Truck Route” is designated under which MUTCD part? A) Part 2 – Sign Design B) Part 4 – Sign Installation C) Part 6 – Pavement Markings
Markings Technician II Ultimate
Exam
D) 500 ft Answer: B Explanation: The MUTCD sets a minimum of 300 ft between successive “Yield” signs to avoid driver confusion. Question 45. Which of the following is the most common cause of retroreflectivity loss in pavement markings? A) UV radiation exposure B) Temperature fluctuations C) Traffic abrasion D) Moisture absorption Answer: C Explanation: Traffic abrasion physically wears down the reflective surface, leading to the greatest loss of retroreflectivity. Question 46. When applying a thermoplastic “H” marking at an intersection, the recommended minimum length of each stem is: A) 4 ft B) 6 ft C) 8 ft D) 10 ft Answer: B Explanation: A minimum stem length of 6 ft ensures sufficient visual guidance for turning movements. Question 47. In a TTC plan, the “Flagger’s Primary Sign” must be placed at what distance behind the work zone for a speed limit of 45 mph? A) 50 ft B) 75 ft
Markings Technician II Ultimate
Exam
C) 100 ft D) 125 ft Answer: C Explanation: For speeds up to 45 mph, the flagger’s primary sign must be at least 100 ft behind the work zone to give drivers time to react. Question 48. Which of the following PPE is required when grinding a concrete pavement to remove old markings? A) Respirator with P100 filters B) Heat-resistant gloves C) Eye protection with side shields D) Both A and C Answer: D Explanation: Grinding generates dust requiring a P100 respirator, and eye protection is essential to guard against particles. Question 49. The “Guide” sign “Exit” must have a minimum character height of: A) 6 in B) 9 in C) 12 in D) 15 in Answer: C Explanation: Guide signs such as “Exit” require a minimum 12-in character height for legibility at typical approach speeds. Question 50. Which part of the MUTCD outlines requirements for “Bicycle Route” signs? A) Part 2 – Sign Design B) Part 4 – Sign Installation
Markings Technician II Ultimate
Exam
B) Serve as a reference for aligning markings with design geometry. C) Measure traffic volume. D) Calibrate marking equipment. Answer: B Explanation: Control points provide spatial references to ensure markings are placed accurately according to the engineering plan. Question 54. In a sign inventory GIS database, which attribute is most useful for prioritizing replacement? A) Sign height above ground B) Installation date C) Manufacturer’s name D) Latitude coordinate Answer: B Explanation: The installation date indicates age, allowing agencies to prioritize signs approaching the end of their service life. Question 55. Which of the following is considered a “Standard” sign in the MUTCD? A) “No Parking” sign in a residential area B) “Speed Limit” sign on a federal-aid highway C) “Detour” sign for a temporary road closure D) “Park and Ride” sign near a transit facility Answer: B Explanation: “Speed Limit” signs are standard provisions required by the MUTCD on all applicable roadways. Question 56. The minimum required retroreflectivity for daytime markings on a major arterial is:
Markings Technician II Ultimate
Exam
A) 30 cd/lx/m² B) 45 cd/lx/m² C) 60 cd/lx/m² D) 80 cd/lx/m² Answer: B Explanation: FHWA standards set a minimum of 45 cd/lx/m² for daytime retroreflectivity on major arterials. Question 57. When applying a water-borne paint line, the recommended ambient temperature range is: A) 32- 50 °F B) 50- 70 °F C) 70- 90 °F D) 90- 110 °F Answer: B Explanation: Water-borne paints cure properly between 50 °F and 70 °F; lower temperatures impede drying, higher temperatures cause rapid drying and reduced adhesion. Question 58. Which of the following is a primary factor in determining the required width of a “Bike Lane” pavement marking? A) Vehicle speed limit B) Expected bicycle traffic volume C) Available roadway width D) All of the above Answer: D Explanation: Bike lane width is influenced by speed, bicycle volume, and overall roadway geometry.
