Markings Technician I Ultimate
Exam

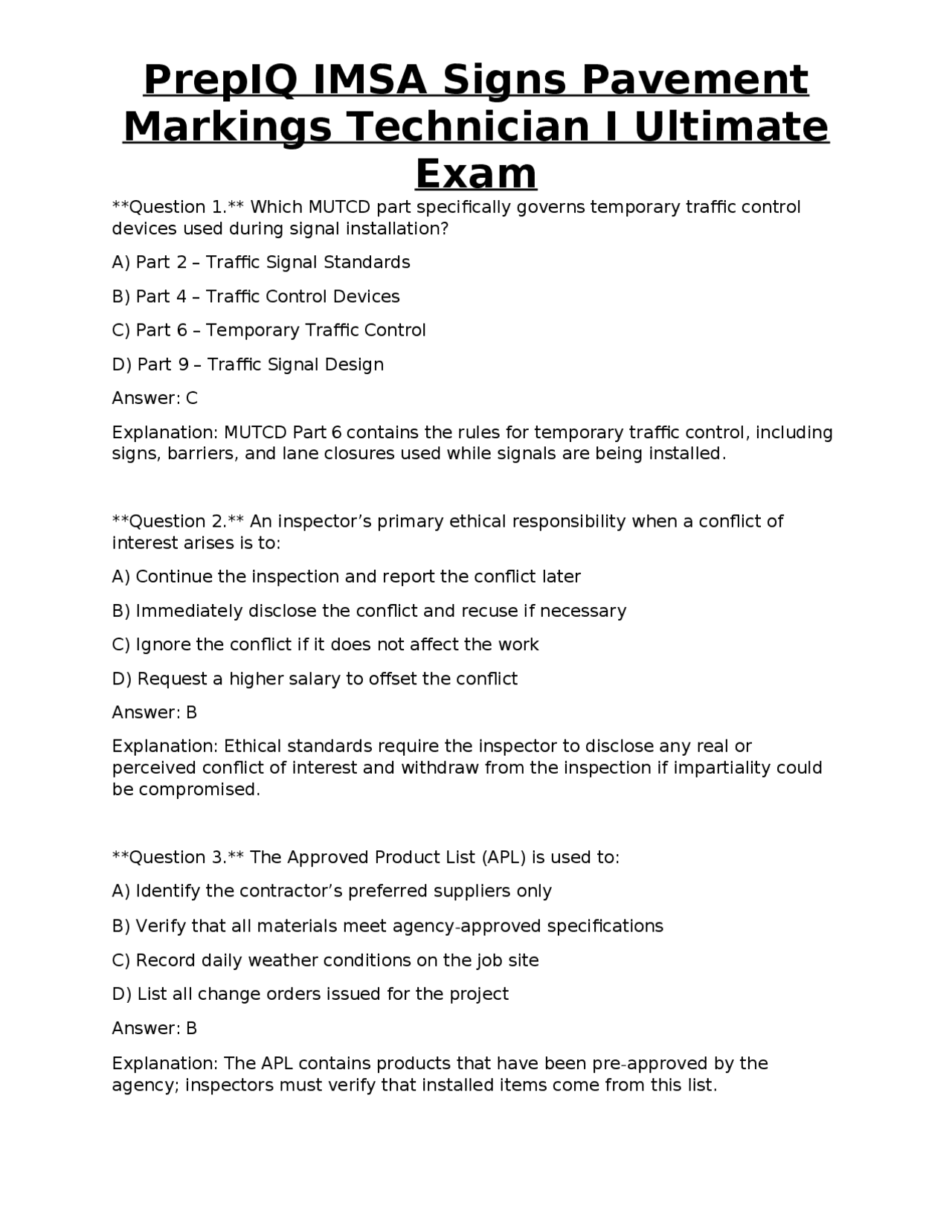

Question 1. Which MUTCD part specifically governs temporary traffic control devices used during signal installation? A) Part 2 – Traffic Signal Standards B) Part 4 – Traffic Control Devices C) Part 6 – Temporary Traffic Control D) Part 9 – Traffic Signal Design Answer: C Explanation: MUTCD Part 6 contains the rules for temporary traffic control, including signs, barriers, and lane closures used while signals are being installed. Question 2. An inspector’s primary ethical responsibility when a conflict of interest arises is to: A) Continue the inspection and report the conflict later B) Immediately disclose the conflict and recuse if necessary C) Ignore the conflict if it does not affect the work D) Request a higher salary to offset the conflict Answer: B Explanation: Ethical standards require the inspector to disclose any real or perceived conflict of interest and withdraw from the inspection if impartiality could be compromised. Question 3. The Approved Product List (APL) is used to: A) Identify the contractor’s preferred suppliers only B) Verify that all materials meet agency-approved specifications C) Record daily weather conditions on the job site D) List all change orders issued for the project Answer: B Explanation: The APL contains products that have been pre-approved by the agency; inspectors must verify that installed items come from this list.
Markings Technician I Ultimate
Exam
Question 4. In a Daily Work Report (DWR), which of the following items is NOT typically recorded? A) Number of personnel on site B) Weather conditions during the shift C) Detailed design calculations of the signal controller D) Equipment used for the day’s work Answer: C Explanation: Detailed design calculations belong in design documents, not in daily field reports, which focus on activities, personnel, equipment, and conditions. Question 5. Which PPE item is required for an inspector working within 10 feet of active traffic? A) Steel-toed boots only B) High-visibility safety vest meeting ANSI 107 standards C) Ear plugs D) Respirator mask Answer: B Explanation: High-visibility clothing per ANSI 107 is mandatory when working near traffic to ensure the inspector is seen by drivers and equipment operators. Question 6. The National Electrical Code (NEC) requirement for grounding traffic signal cabinets is to achieve a ground resistance of: A) ≤ 5 Ω B) ≤ 25 Ω C) ≤ 10 Ω D) ≤ 1 Ω Answer: C
Markings Technician I Ultimate
Exam
Explanation: Directional boring minimizes surface disturbance and is ideal for rocky or environmentally sensitive soils where open trenching would be problematic. Question 10. A pull box rated Tier 22 is required when the anticipated load is: A) Up to 1 kN B) Up to 4 kN C) Up to 9 kN D) Up to 15 kN Answer: C Explanation: Tier 22 pull boxes are designed for loads up to 9 kN, providing higher impact resistance than Tier 15 (4 kN). Question 11. Which of the following practices helps prevent water accumulation in a handhole? A) Installing a flat concrete slab over the handhole B) Grading the surrounding area to slope away from the handhole C) Using only metal handhole covers D) Filling the handhole with sand after work is complete Answer: B Explanation: Proper grading directs surface water away, reducing the risk of water pooling in the handhole. Question 12. During concrete placement for a signal foundation, the slump test result of 4–5 inches indicates: A) Too dry, may cause cracking B) Proper workability for most foundation pours C) Excessively wet, leading to segregation D) That the concrete is not suitable for traffic loads Answer: B
Markings Technician I Ultimate
Exam
Explanation: A slump of 4–5 inches is typical for structural concrete, providing adequate workability without excessive water content. Question 13. The recommended curing time before removing formwork from a traffic signal concrete pad in moderate climate is: A) 6 hours B) 12 hours C) 24 hours D) 48 hours Answer: C Explanation: Standard practice is to allow at least 24 hours of curing before stripping forms to achieve sufficient strength. Question 14. Anchor bolt patterns for a signal pedestal must be checked to ensure: A) They are all stainless steel B) The spacing matches the engineering drawing within ± ½ inch C) They are installed at a 45° angle D) They are painted the same color as the pole Answer: B Explanation: Correct bolt spacing is critical for structural integrity; tolerances are typically ± ½ inch per the design drawing. Question 15. Exothermic welding (Cadweld) is preferred over mechanical clamps for grounding because: A) It is cheaper B) It provides a permanent, low-impedance connection C) It can be removed easily for maintenance D) It does not require a certified welder
Markings Technician I Ultimate
Exam
D) At the edge of the lane marking Answer: A Explanation: Proper aiming places the red lens centered over the lane to ensure drivers see the signal clearly from all positions within the lane. Question 19. A solid backplate is used on a signal head primarily to: A) Reduce glare from sunlight B) Provide a mounting surface for a tether wire C) Prevent water ingress into the housing D) Increase the signal’s illumination intensity Answer: C Explanation: Solid backplates protect the signal housing from moisture, whereas louvered plates allow airflow but are more vulnerable to water entry. Question 20. The IMS (International Mounted Signal) cable specification requires a minimum conductor size of: A) 12 AWG B) 14 AWG C) 16 AWG D) 18 AWG Answer: A Explanation: IMS cables must meet a minimum of 12 AWG copper to handle the current demands of signal heads and detection equipment. Question 21. During cable pulling, a “drip loop” is installed to: A) Increase the tensile strength of the cable B) Prevent water from traveling down the cable into connections C) Reduce electromagnetic interference D) Provide a visual cue for cable routing
Markings Technician I Ultimate
Exam
Answer: B Explanation: A drip loop creates a low point that stops water from flowing into terminations, protecting the electrical connections. Question 22. A nick in the insulation of a signal cable during installation must be: A) Ignored if less than 1 mm deep B) Covered with heat-shrink tubing and tape C) Replaced with a new cable segment D) Documented but left in place if the conductor is still intact Answer: B Explanation: Minor nicks should be repaired with heat-shrink and tape to maintain the integrity of the insulation and prevent moisture ingress. Question 23. The typical number of turns for an inductive loop detector in a single lane is: A) 2–3 turns B) 4–6 turns C) 8–10 turns D) 12–14 turns Answer: B Explanation: MUTCD recommends 4–6 turns for a standard lane-width inductive loop to achieve sufficient detection sensitivity. Question 24. Sealant applied over an inductive loop must cure for at least: A) 30 minutes B) 1 hour C) 2 hours D) 24 hours
Markings Technician I Ultimate
Exam
Answer: C Explanation: A 60° × 60° FOV is typical, covering the approach lane while limiting detection of adjacent traffic. Question 28. ADA-compliant pedestrian pushbuttons must be installed at a maximum height of: A) 36 inches above the finished floor B) 42 inches above the finished floor C) 48 inches above the finished floor D) 54 inches above the finished floor Answer: B Explanation: The ADA requires pedestrian pushbuttons to be no higher than 42 inches to be reachable by users in wheelchairs. Question 29. The clear floor space required around an accessible pedestrian signal (APS) pushbutton is: A) 24 in × 24 in B) 30 in × 30 in C) 36 in × 36 in D) 48 in × 48 in Answer: C Explanation: ADA standards specify a minimum clear floor space of 36 inches square to allow wheelchair maneuvering. Question 30. An APS audible tone frequency must be: A) 500 Hz ± 50 Hz B) 800 Hz ± 50 Hz C) 1 kHz ± 100 Hz D) 1.5 kHz ± 150 Hz
Markings Technician I Ultimate
Exam
Answer: B Explanation: The recommended APS audible tone is 800 Hz (± 50 Hz) to be easily distinguishable from ambient traffic noise. Question 31. The controller cabinet should be oriented so the technician can see the intersection while working. This orientation is known as: A) “Field-facing” orientation B) “Operator-facing” orientation C) “Signal-facing” orientation D) “North-facing” orientation Answer: C Explanation: “Signal-facing” orientation positions the cabinet door toward the intersection, allowing the technician visual access during wiring and testing. Question 32. Inside the controller cabinet, the conflict monitor (MMU) is primarily used to: A) Store spare signal heads B) Detect and log phase-conflict situations in real time C) Provide power to the pedestrian pushbuttons D) House the cabinet’s HVAC system Answer: B Explanation: The MMU monitors phase conflicts (e.g., overlapping green phases) and records them for troubleshooting and compliance verification. Question 33. Surge protection devices (SPDs) in a signal controller cabinet are required to protect against: A) Over-temperature conditions only B) Voltage transients up to 10 kV C) Lightning-induced surges and switching spikes
Markings Technician I Ultimate
Exam
C) The final as-built drawing revisions D) The weather conditions on the day of inspection Answer: B Explanation: A Punch List captures deficiencies or incomplete work that must be resolved before final acceptance. Question 37. During the “Flash” test, the signal is observed in flash mode to verify: A) The controller’s memory capacity B) Correct color orientation and lens integrity before full operation C) The timing of pedestrian phases only D) The power consumption of each signal head Answer: B Explanation: Flash mode shows each signal head’s color and orientation, allowing the inspector to ensure correct installation before normal operation. Question 38. Yellow change interval (YCI) is the time between the end of the green indication and the start of the red clearance interval. According to the approved timing sheet, the YCI must be: A) Exactly 2 seconds for all intersections B) Within ± 1 second of the calculated value based on approach speed C) No more than 5 seconds regardless of approach speed D) Determined by the contractor’s discretion on site Answer: B Explanation: YCI is calculated from approach speed and must be within a tolerance of ± 1 second of the approved value to ensure safety and compliance. Question 39. The burn-in observation period for a new traffic signal is typically required to be: A) 12 hours
Markings Technician I Ultimate
Exam
B) 24 hours C) 48–72 hours D) 7 days Answer: C Explanation: Agencies usually require a 48–72 hour continuous operation period to verify reliability before final acceptance. Question 40. As-built drawings must reflect: A) Only the original design, regardless of field changes B) All field modifications, including cable routes and hardware locations C) Only the locations of signal heads D) The contractor’s preferred aesthetic choices Answer: B Explanation: As-built drawings are a record of the final installed condition, incorporating any deviations from the original plans. Question 41. Which of the following is a required element of a contractor’s daily work report when inspecting a signal installation? A) List of all subcontractors’ insurance certificates B) Photographs of the completed signal heads at the end of each day C) Signature of the municipal mayor D) Number of coffee cups consumed on site Answer: B Explanation: Photographic documentation of progress, especially of installed signal heads, is a standard component of DWRs for verification. Question 42. The maximum allowable spacing between conduit sweeps in a trench for a signal conduit run is: A) 5 feet
Markings Technician I Ultimate
Exam
B) Provide a visual cue for cable identification C) Prevent water from traveling down the cable into terminations D) Increase the cable’s tensile strength during pulling Answer: C Explanation: A drip loop creates a low point that stops water from flowing toward terminations, protecting the connections. Question 46. Which of the following is NOT a required feature of a high-visibility safety vest used on a traffic signal work zone? A) Fluorescent background color B) Reflective tape covering at least 50 % of the surface C) Built-in LED lights powered by a battery pack D) Conformance to ANSI 107 Class 2 or higher Answer: C Explanation: While LED-enhanced vests are optional, they are not a mandatory requirement under ANSI 107. Question 47. For a pedestrian signal head, the minimum mounting height above the finished floor is: A) 36 inches B) 42 inches C) 48 inches D) 54 inches Answer: B Explanation: MUTCD specifies a minimum mounting height of 42 inches for pedestrian signal heads to ensure visibility. Question 48. When checking the grounding electrode system for a signal cabinet, the inspector must verify that the ground rod is installed to a depth of at least:
Markings Technician I Ultimate
Exam
A) 4 feet B) 6 feet C) 8 feet D) 10 feet Answer: C Explanation: NEC requires ground rods to be at least 8 feet deep to achieve a reliable low-impedance path. Question 49. The correct procedure for verifying the integrity of an inductive loop after installation is to: A) Visually inspect the loop for surface cracks only B) Perform a loop continuity test with a megohmmeter C) Use a handheld detector to confirm the loop’s magnetic field response D) Measure the loop’s resistance with a standard multimeter Answer: C Explanation: A handheld detector confirms that the loop is functioning by detecting its magnetic field when energized. Question 50. If a change order adds a new lane to an intersection, the inspector must ensure that: A) The original signal timing sheet is discarded B) New lane markings and signs are installed per MUTCD before signal activation C) The original pavement markings are left untouched D) The signal heads are lowered to accommodate the extra lane Answer: B Explanation: New lanes require appropriate pavement markings and signs to be installed before the signal can be safely operated.
Markings Technician I Ultimate
Exam
Question 54. Which of the following is a common cause of false detections in inductive loop systems? A) Excessive loop depth (greater than 6 inches) B) Presence of metallic debris within the loop area C) Use of copper conductors larger than 12 AWG D) Installation of the loop on a concrete surface Answer: B Explanation: Metallic debris can create unintended magnetic fields, causing false detections. Question 55. The required minimum vertical clearance for a pedestrian signal head over a crosswalk is: A) 8 feet B) 9 feet C) 10 feet D) 12 feet Answer: C Explanation: MUTCD mandates a minimum vertical clearance of 10 feet for pedestrian signals to ensure they are visible above vehicle traffic. Question 56. When a signal controller cabinet is installed on a sidewalk, the required clearance from the nearest curb is: A) 6 inches B) 12 inches C) 18 inches D) 24 inches Answer: B
Markings Technician I Ultimate
Exam
Explanation: A 12-inch clearance from the curb provides sufficient space for pedestrians and maintenance access. Question 57. The purpose of a “conflict monitor” (MMU) is to: A) Log traffic volumes for future studies B) Detect overlapping green phases that could cause vehicle conflicts C) Control the timing of pedestrian walk intervals D) Provide backup power to the signal controller Answer: B Explanation: The MMU monitors phase sequences and flags any conflicts where two opposing movements receive a green simultaneously. Question 58. During the final acceptance test, the inspector must verify that the red clearance interval (RCI) is at least: A) 1 second longer than the yellow change interval B) Equal to the yellow change interval C) 2 seconds longer than the yellow change interval D) 3 seconds longer than the yellow change interval Answer: C Explanation: RCI must be at least 2 seconds longer than YCI to allow the intersection to clear safely before the opposing green begins. Question 59. The standard color for a “Stop” sign on a highway is: A) Blue with white lettering B) Red with white lettering C) Yellow with black lettering D) Green with white lettering Answer: B
