Electrician Ultimate Exam

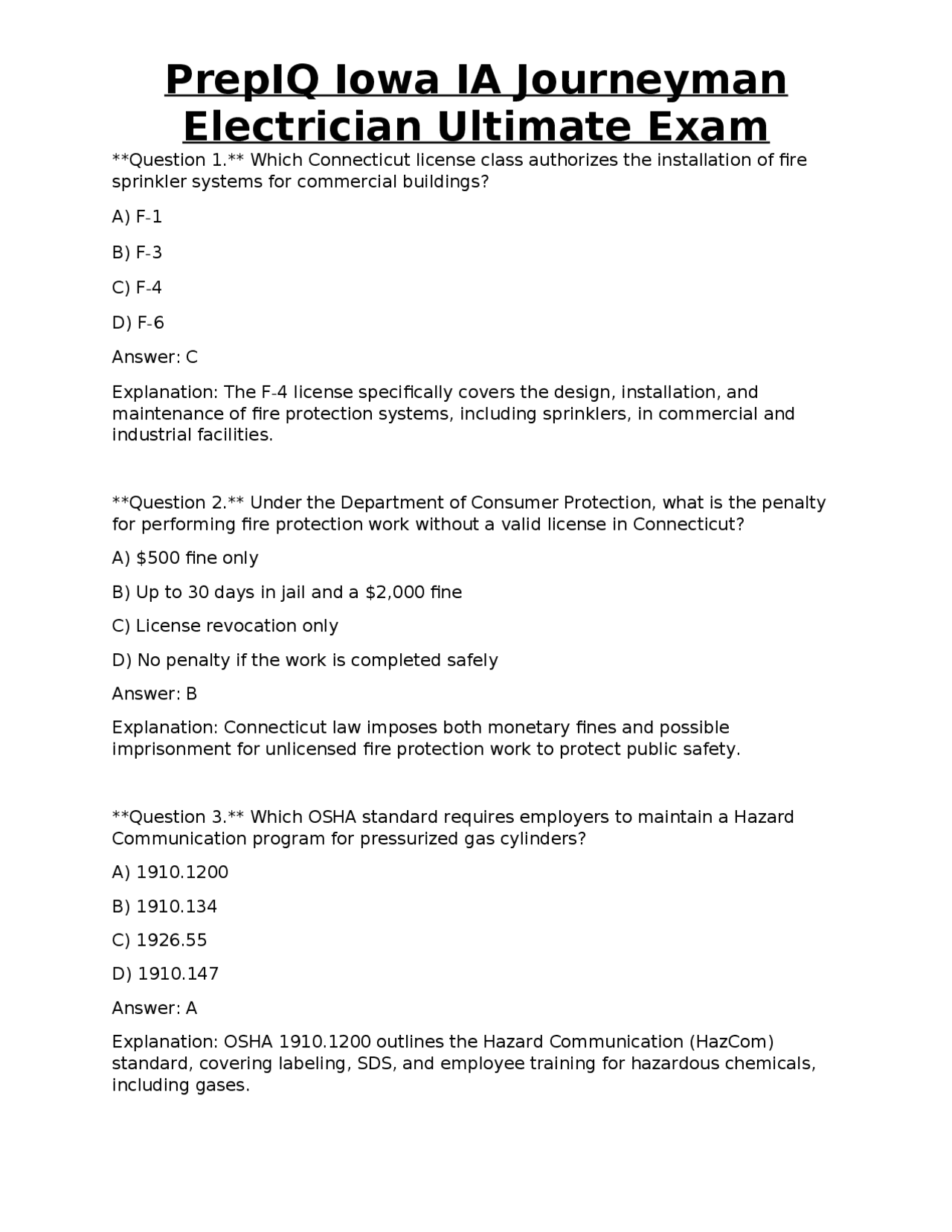

Question 1. Which Connecticut license class authorizes the installation of fire sprinkler systems for commercial buildings? A) F- 1 B) F- 3 C) F- 4 D) F- 6 Answer: C Explanation: The F-4 license specifically covers the design, installation, and maintenance of fire protection systems, including sprinklers, in commercial and industrial facilities. Question 2. Under the Department of Consumer Protection, what is the penalty for performing fire protection work without a valid license in Connecticut? A) $500 fine only B) Up to 30 days in jail and a $2,000 fine C) License revocation only D) No penalty if the work is completed safely Answer: B Explanation: Connecticut law imposes both monetary fines and possible imprisonment for unlicensed fire protection work to protect public safety. Question 3. Which OSHA standard requires employers to maintain a Hazard Communication program for pressurized gas cylinders? A) 1910. B) 1910. C) 1926. D) 1910. Answer: A Explanation: OSHA 1910.1200 outlines the Hazard Communication (HazCom) standard, covering labeling, SDS, and employee training for hazardous chemicals, including gases.
Electrician Ultimate Exam
Question 4. The SDS for a compressed oxygen cylinder must list which of the following as a primary hazard? A) Flammability B) Oxidizing agent C) Corrosive material D) Acute toxicity Answer: B Explanation: Oxygen is classified as an oxidizing agent, which can intensify fires, and must be identified as such on the SDS. Question 5. When storing compressed gas cylinders, the correct practice is to: A) Store all cylinders horizontally on the floor. B) Keep cylinders in direct sunlight to maintain pressure. C) Separate them by type and secure them upright with chains. D) Place them in a sealed metal cabinet. Answer: C Explanation: Cylinders must be stored upright, segregated by gas type, and secured to prevent tipping; exposure to heat or sealed containers is prohibited. Question 6. Which piece of PPE is mandatory when handling a liquid halogenated fire suppressant? A) Hard hat B) Chemical-resistant gloves and goggles C) Ear plugs D) Steel-toe boots only Answer: B Explanation: Halogenated chemicals can cause skin and eye irritation; chemical-resistant gloves and goggles protect against splashes.
Electrician Ultimate Exam
Question 10. Which method is used to charge foam concentrate into a bladder-type proportioning tank? A) Inline mixing via a venturi B) Manual filling through a sight glass C) Automatic metering pump D) Direct injection from a bulk tank Answer: B Explanation: Bladder tanks are manually filled with concentrate through a sight glass, ensuring accurate measurement before system activation. Question 11. During a routine inspection of foam discharge nozzles, a technician discovers a clogged orifice. The correct remedial action is to: A) Replace the entire nozzle assembly. B) Clean the orifice with a solvent approved by the manufacturer. C) Increase system pressure to compensate. D) Ignore it if the discharge appears adequate. Answer: B Explanation: Cleaning the nozzle with the recommended solvent restores proper flow without unnecessary replacement. Question 12. High-pressure CO₂ storage cylinders are typically rated at which pressure? A) 300 psi B) 800 psi C) 1,200 psi D) 2,000 psi Answer: C Explanation: High-pressure CO₂ cylinders are commonly rated at 1,200 psi, allowing rapid discharge for fire suppression. Question 13. Low-pressure CO₂ systems are advantageous because they:
Electrician Ultimate Exam
A) Require no venting during discharge. B) Operate at pressures below 400 psi, reducing risk of pipe rupture. C) Have a faster discharge rate than high-pressure systems. D) Eliminate the need for pre-discharge alarms. Answer: B Explanation: Low-pressure systems operate below 400 psi, decreasing mechanical stress on piping and fittings. Question 14. A CO₂ fire suppression system must include a pre-discharge alarm that provides at least how many seconds of warning before release? A) 5 seconds B) 10 seconds C) 15 seconds D) 30 seconds Answer: B Explanation: NFPA 12 mandates a minimum 10-second audible alarm before CO₂ discharge to allow evacuation. Question 15. To prevent asphyxiation hazards, CO₂ systems in occupied spaces must be equipped with: A) Automatic fire doors that close upon discharge. B) A venting system that releases gas to the outside. C) A pressure-relief valve that empties the cylinder after use. D) An oxygen-enrichment sensor. Answer: B Explanation: Venting the CO₂ to the exterior mitigates the risk of oxygen depletion in occupied areas. Question 16. Dry chemical agents used in commercial kitchen suppression are typically:
Electrician Ultimate Exam
A) FM- 200
B) Novec 1230 C) Inergen D) Halon 1301 Answer: C Explanation: Inergen is a blend of nitrogen, argon, and CO₂ that suppresses fire by reducing oxygen concentration without harming equipment. Question 20. The ODP (Ozone Depletion Potential) of FM-200 is: A) 0 B) 0. C) 0. D) 1. Answer: A Explanation: FM-200 (HFC-227ea) has an ODP of zero, making it environmentally acceptable under the Montreal Protocol. Question 21. Which clean-agent has the highest Global Warming Potential (GWP) among the following? A) FM-200 (HFC-227ea) B) Novec 1230 (FK- 5 - 1 - 12) C) Inergen (IG-541) D) Halon 1301 Answer: A Explanation: FM-200 has a GWP of about 3,220, significantly higher than Novec 1230 (≈1) and Inergen (≈0). Question 22. In a total-flood clean-agent system, the selector valve’s primary function is to: A) Control the pressure of the stored agent.
Electrician Ultimate Exam
B) Direct discharge to a specific protected zone. C) Regulate the temperature of the agent. D) Provide a manual override for the system. Answer: B Explanation: Selector valves route the agent to the designated zone, allowing multi-zone protection from a single storage container. Question 23. The “Room Integrity Test” (Fan Door Test) is performed to verify: A) The correct operation of smoke detectors. B) That the protected enclosure can maintain a pressure differential during discharge. C) The structural strength of fire doors. D) The temperature rating of the suppression agent. Answer: B Explanation: The test confirms the enclosure can hold the required pressure, ensuring the agent remains within the protected space. Question 24. Which component is used to manually initiate discharge of a clean-agent system? A) Heat detector B) Pull-type release station C) Pressure switch D) Flow sensor Answer: B Explanation: A pull-type manual release station allows occupants or fire personnel to trigger the system manually. Question 25. NFPA 2001 specifies that total-flood clean-agent systems must achieve full discharge within: A) 5 seconds B) 10 seconds
Electrician Ultimate Exam
D) The system has been manually silenced. Answer: C Explanation: Trouble signals denote a fault (e.g., open circuit, short, device failure) that must be addressed. Question 29. Which device converts a fire alarm signal into a mechanical action to open a solenoid valve? A) Relay B) Contactor C) Actuator D) Transducer Answer: C Explanation: An actuator receives the alarm signal and physically moves the solenoid valve to allow agent discharge. Question 30. During routine inspection, a technician discovers a pressure reading on a clean-agent cylinder that is 20 % below the manufacturer’s specified pressure. The appropriate action is to: A) Re-pressurize the cylinder on site. B) Replace the cylinder with a full-pressure unit. C) Ignore it if the system has a backup cylinder. D) Adjust the selector valve to compensate. Answer: B Explanation: A cylinder below required pressure must be replaced to guarantee sufficient agent volume for suppression. Question 31. Hydrostatic testing of pressurized fire suppression cylinders is required at a minimum interval of: A) Every 5 years B) Every 10 years C) Every 15 years
Electrician Ultimate Exam
D) Every 20 years Answer: B Explanation: NFPA standards mandate hydrostatic testing at least every 10 years to verify cylinder integrity. Question 32. Functional testing of a clean-agent system’s alarm shutdown relay should be performed: A) Monthly B) Quarterly C) Annually D) Every 5 years Answer: C Explanation: Annual functional testing ensures the relay will correctly disable HVAC and power systems during a discharge. Question 33. According to NFPA, semi-annual maintenance tasks for fire suppression systems include all EXCEPT: A) Visual inspection of all nozzles. B) Replacement of all pressure gauges. C) Verification of manual release station accessibility. D) Cleaning of detector lenses. Answer: B Explanation: Pressure gauges are not routinely replaced semi-annually; they are inspected and calibrated as needed. Question 34. In a fire protection drawing, the symbol of a small circle with a “P” inside denotes: A) Pressure gauge B) Proximity sensor C) Manual pull station D) Gas pipe termination
Electrician Ultimate Exam
Explanation: Following the manual ensures proper testing, performance, and maintains warranty validity. Question 38. The Connecticut State Fire Safety Code requires that fire protection systems be inspected by a certified inspector at least: A) Every 6 months B) Annually C) Every 2 years D) Every 5 years Answer: B Explanation: State code aligns with NFPA 25, mandating annual inspections by a qualified professional. Question 39. Which of the following is NOT a required element on a manual release station label? A) System type (e.g., FM-200) B) Manufacturer’s logo C) “Pull to activate” instruction D) Date of last inspection Answer: D Explanation: Labels must identify the system and provide activation instructions; inspection dates are recorded elsewhere. Question 40. When reading a fire protection plan, a double-line with a diagonal cross indicates: A) Gas-filled pipe B) Electrical conduit C) Water-sprinkler line D) Structural beam Answer: C
Electrician Ultimate Exam
Explanation: The standard symbol for a water-sprinkler line is a double line with a diagonal cross. Question 41. A high-expansion foam system is most appropriate for: A) Small kitchen hoods. B) Large open warehouses with high ceilings. C) Electrical switchgear rooms. D) Vehicle fire suppression. Answer: B Explanation: High-expansion foam creates a large volume of foam suitable for covering extensive spaces like warehouses. Question 42. In a balanced-pressure foam proportioner, the “balance” is achieved by: A) Using a venturi to draw concentrate. B) Equalizing pressure on both the water and concentrate sides. C) Installing a pressure regulator on the water side only. D) Relying on gravity feed for concentrate. Answer: B Explanation: Balanced-pressure proportioners maintain equal pressure on both sides, ensuring a consistent foam ratio. Question 43. Which of the following is a primary safety concern when discharging CO₂ in an occupied area? A) Electrical shock B) Toxic gas formation C) Asphyxiation due to oxygen displacement D) Chemical corrosion Answer: C Explanation: CO₂ displaces oxygen, creating a risk of asphyxiation for anyone present during discharge.
Electrician Ultimate Exam
Question 47. Which of the following is the most reliable method to verify that a clean-agent cylinder is full? A) Visual inspection of the cylinder’s external label. B) Weighing the cylinder and comparing to the manufacturer’s weight chart. C) Listening for a hissing sound. D. Checking the pressure gauge reading only. Answer: B Explanation: Weighing provides an accurate measure of remaining agent, whereas pressure can be affected by temperature. Question 48. A fire alarm control panel shows a “supervisory” status for a smoke detector. This indicates: A) The detector is actively detecting smoke. B) The detector is faulty and needs replacement. C) The detector’s circuit is open or the sensor is out of service. D) The detector is in a test mode. Answer: C Explanation: Supervisory status alerts the operator to a condition such as an open circuit or disabled detector. Question 49. Which of the following best describes the function of a “solenoid valve” in a gaseous suppression system? A) It stores the suppression agent. B) It detects heat and initiates discharge. C) It opens to allow the agent to flow when energized. D) It regulates the pressure of the discharge. Answer: C Explanation: A solenoid valve is an electromechanical device that opens the flow path when a current is applied.
Electrician Ultimate Exam
Question 50. The required discharge time for a foam system covering a 4,000 ft³ area, according to NFPA 11, is: A) 15 seconds B) 30 seconds C) 45 seconds D) 60 seconds Answer: B Explanation: NFPA 11 specifies a maximum 30-second discharge for foam systems to achieve sufficient coverage. Question 51. Which of the following is a key environmental advantage of using Novec 1230 over Halon 1301? A) Zero ODP and low GWP B) Higher fire-extinguishing efficiency C) Lower cost per kilogram D) Longer shelf life Answer: A Explanation: Novec 1230 has an ODP of zero and a GWP close to 1, making it environmentally superior to Halon 1301. Question 52. In a fire protection plan, the symbol “⧈” (diamond with a diagonal line) typically denotes: A) A heat detector B) A gas-filled nozzle C) A manual pull station D) A sprinkler head Answer: A Explanation: The standard symbol for a heat detector is a diamond with a diagonal line.
Electrician Ultimate Exam
Question 56. The “pre-discharge alarm” for a CO₂ system must be audible for at least: A) 30 seconds B) 45 seconds C) 60 seconds D) 90 seconds Answer: C Explanation: NFPA 12 requires a minimum 60-second audible alarm before CO₂ discharge to allow evacuation. Question 57. Which type of detector is most effective at detecting a rapid temperature rise in a data-center environment? A) Ionization smoke detector B) Photoelectric smoke detector C) Rate-of-rise heat detector D) Flame detector Answer: C Explanation: Rate-of-rise heat detectors sense sudden temperature increases, ideal for protecting sensitive equipment. Question 58. In a fire alarm control panel, the “trouble” light for a water-flow sensor indicates: A) Water is flowing in the sprinkler system. B) The sensor circuit is open or shorted. C) The water pressure is too low. D) The sprinkler heads are clogged. Answer: B Explanation: A trouble indication for a flow sensor signals a fault in the sensor’s electrical circuit, not actual water flow.
Electrician Ultimate Exam
Question 59. Which of the following is a required feature of a manual pull station for a clean-agent system? A) A lockable cover to prevent unauthorized use. B) A built-in fire-extinguishing nozzle. C) A red-colored “pull” lever with a clear label. D) An integrated smoke detector. Answer: C Explanation: Manual stations must be clearly labeled and have a red pull lever for easy identification and operation. Question 60. The primary advantage of a bladder-type foam proportioner over an inline inductor is: A) Faster response time. B) Ability to store a larger volume of concentrate on-site. C) Lower installation cost. D) No need for a separate pump. Answer: B Explanation: Bladder proportioners contain a reserve of concentrate, allowing extended operation without immediate resupply. Question 61. During a hydrostatic test, a fire suppression cylinder is filled with water and pressurized to: A) 150 % of its design pressure. B) 200 % of its design pressure. C) 250 % of its design pressure. D) 300 % of its design pressure. Answer: B Explanation: NFPA 25 requires testing at 200 % of the cylinder’s design pressure to verify structural integrity.
