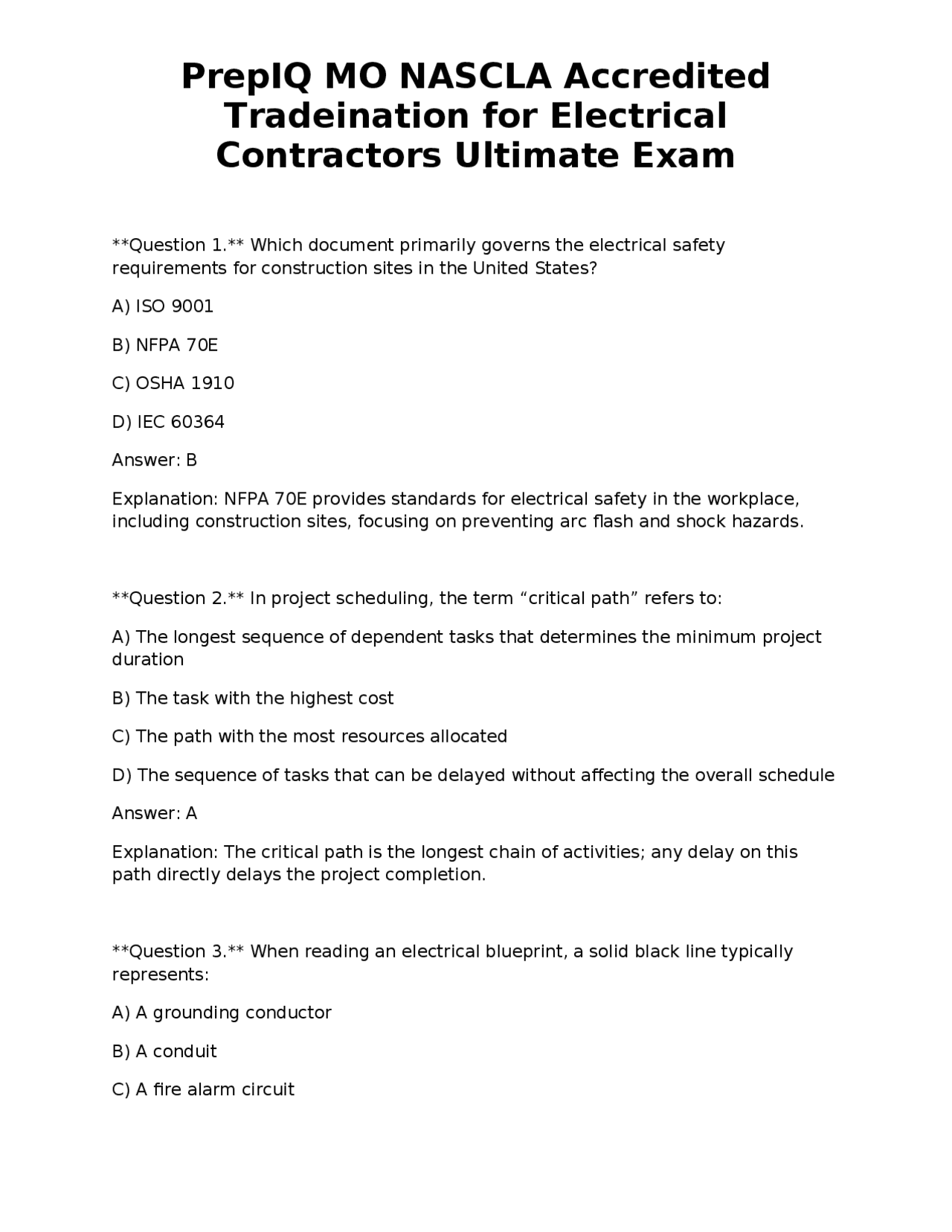

Tradeination for Electrical
Contractors Ultimate Exam
Question 1. Which document primarily governs the electrical safety requirements for construction sites in the United States? A) ISO 9001 B) NFPA 70E C) OSHA 1910 D) IEC 60364 Answer: B Explanation: NFPA 70E provides standards for electrical safety in the workplace, including construction sites, focusing on preventing arc flash and shock hazards. Question 2. In project scheduling, the term “critical path” refers to: A) The longest sequence of dependent tasks that determines the minimum project duration B) The task with the highest cost C) The path with the most resources allocated D) The sequence of tasks that can be delayed without affecting the overall schedule Answer: A Explanation: The critical path is the longest chain of activities; any delay on this path directly delays the project completion. Question 3. When reading an electrical blueprint, a solid black line typically represents: A) A grounding conductor B) A conduit C) A fire alarm circuit
Tradeination for Electrical
Contractors Ultimate Exam
D) A power cable Answer: D Explanation: In most electrical symbols, a solid black line denotes a power conductor or cable. Question 4. The OSHA regulation that addresses ladder safety is found in: A) 29 CFR 1926. B) 29 CFR 1910. C) 29 CFR 1926. D) 29 CFR 1910. Answer: C Explanation: 29 CFR 1926.1050 covers safety requirements for ladders used in construction. Question 5. Which of the following is the correct formula to calculate power in a resistive DC circuit? A) P = V / I B) P = I²R C) P = V × I D) P = V² / R Answer: C Explanation: Power (P) equals voltage (V) multiplied by current (I) in a DC resistive circuit. Question 6. Ohm’s Law states that voltage is equal to:
Tradeination for Electrical
Contractors Ultimate Exam
Explanation: NEC Chapter 1 contains definitions and general requirements applicable to all installations. Question 9. The purpose of a change order in contract management is to: A) Cancel the original contract B) Adjust the scope, price, or schedule of the project after the contract is signed C) Issue a final payment request D) Initiate a new project Answer: B Explanation: A change order modifies contract terms such as scope, cost, or timeline after the original agreement. Question 10. A GFCI device is required in which of the following locations for a residential dwelling? A) Dry garage wall outlet B) Kitchen countertop receptacle C) Bedroom ceiling light D) Living-room floor outlet Answer: B Explanation: NEC requires GFCI protection for receptacles in kitchens serving countertop surfaces. Question 11. The arc-flash boundary is defined as the distance at which the incident energy equals: A) 4 cal/cm²
Tradeination for Electrical
Contractors Ultimate Exam
B) 8 cal/cm² C) 12 cal/cm² D) 25 cal/cm² Answer: B Explanation: NFPA 70E defines the limited approach boundary at 8 cal/cm², the distance where a second-degree burn can occur. Question 12. Which of the following is a correct method for estimating labor hours for an electrical installation? A) Multiply total material cost by 0. B) Use a standard crew productivity factor for the specific trade task C) Divide total square footage by 10 D) Apply a flat 100-hour rate per project Answer: B Explanation: Estimating labor uses productivity factors (e.g., conduit installation per hour) based on crew size and task complexity. Question 13. In a parallel circuit, the total resistance is: A) The sum of individual resistances B) The product of individual resistances C) Less than the smallest individual resistance D) Equal to the largest individual resistance Answer: C Explanation: Parallel resistance is always lower than the smallest individual resistor because current has multiple paths.
Tradeination for Electrical
Contractors Ultimate Exam
D) A circuit that is protected by a GFCI only Answer: B Explanation: A dedicated circuit supplies only one appliance or piece of equipment, preventing overloads. Question 17. In a solar photovoltaic (PV) array, the rapid-shutdown requirement applies to: A) The inverter only B) All conductors within 1 meter of the array C) The DC disconnecting means located within 10 feet of the array D) The AC side of the system after conversion Answer: C Explanation: NEC 2020 requires a rapid-shutdown device within 10 ft of the PV modules to de-energize the array quickly. Question 18. The appropriate PPE for an electrician performing energized work within the arc-flash boundary includes: A) Hard hat and safety glasses only B) Flame-resistant clothing, insulated gloves, and face shield C) Steel-toe boots and hearing protection D) High-visibility vest and reflective tape Answer: B Explanation: Arc-flash PPE must protect against thermal and electrical hazards, requiring FR clothing, insulated gloves, and a face shield.
Tradeination for Electrical
Contractors Ultimate Exam
Question 19. When calculating box fill for a conduit body, each conductor that: A) Enters or exits the box counts as one conductor B) Is larger than 12 AWG counts as two conductors C) Is a ground wire counts as one conductor regardless of size D) Crosses the box without termination does not count Answer: A Explanation: NEC 314.16 counts each conductor that enters or exits a box as one fill unit. Question 20. The term “service entrance” refers to: A) The point where power is distributed to branch circuits inside a building B) The equipment that steps down voltage from a transformer to usable levels C) The wiring and equipment that connect the utility’s supply to the building’s main panel D) The conduit that runs from the meter to the main disconnect Answer: C Explanation: Service entrance includes the service drop, meter, and main disconnect that bring utility power into the building. Question 21. A “dead-front” on a switchgear panel indicates: A) The panel is non-functional B) All live parts are concealed behind a protective barrier C) The panel is out of service for maintenance D) The panel is intended for outdoor use only
Tradeination for Electrical
Contractors Ultimate Exam
Question 24. Which type of transformer is required to have a grounded neutral on the secondary side? A) An isolation transformer with no grounded secondary B) A step-down transformer supplying a 120 V circuit C) A three-phase delta-wye transformer with grounded wye secondary D) A three-phase delta-delta transformer with floating secondary Answer: C Explanation: In a delta-wye transformer, the wye secondary is grounded to provide a neutral reference. Question 25. When sizing an overload protection device for a motor, the NEC permits using a multiplier of up to: A) 1.00 of the motor’s FLA B) 1.25 of the motor’s FLA C) 1.50 of the motor’s FLA D) 2.00 of the motor’s FLA Answer: C Explanation: NEC 430.32 allows overload protection up to 150 % of the motor’s full-load amps for inverse-time devices. Question 26. In a hazardous (Class I) location, which type of conduit is acceptable for wiring the explosion-proof equipment? A) Rigid Metal Conduit (RMC) with a listed explosion-proof fitting B) EMT with standard fittings C) Flexible Metal Conduit (FMC) without any special rating
Tradeination for Electrical
Contractors Ultimate Exam
D) PVC conduit with no special rating Answer: A Explanation: RMC with listed explosion-proof fittings is approved for Class I hazardous locations. Question 27. The purpose of a “pull box” in a conduit system is to: A) Provide a location for splicing conductors B) Allow conductors to be pulled through bends and changes in direction C) Serve as a junction for disconnecting circuits D) House a circuit breaker Answer: B Explanation: Pull boxes are installed to facilitate pulling conductors through conduit runs with bends or direction changes. Question 28. Which of the following is NOT a typical component of an emergency lighting system? A) Battery backup B) Automatic transfer switch C) Photocell sensor D) Exit sign Answer: C Explanation: Photocell sensors are used for daylight harvesting, not for emergency lighting which relies on battery backup and transfer switches. Question 29. The NEC definition of “equipment grounding conductor” (EGC) is:
Tradeination for Electrical
Contractors Ultimate Exam
Explanation: NEC 210.52(C)(1) mandates that countertop receptacles be installed so that no point on the countertop is more than 12 inches from a receptacle. Question 32. In a three-phase delta system, the line voltage is: A) Equal to the phase voltage B) √3 times the phase voltage C) Half the phase voltage D) Twice the phase voltage Answer: A Explanation: In a delta configuration, line voltage equals the phase voltage because each line connects directly across a phase winding. Question 33. Which of the following is the primary purpose of a grounding electrode system? A) To provide a low-impedance path for normal load currents B) To stabilize the voltage to earth during normal operation C) To protect equipment from overloads D) To serve as a neutral for single-phase circuits Answer: B Explanation: The grounding electrode system ties the electrical system to earth, stabilizing voltage and limiting transient overvoltages. Question 34. For a residential dwelling, the minimum size of a grounding electrode conductor (GEC) connected to a concrete-encased electrode (Ufer) is: A) #14 AWG copper
Tradeination for Electrical
Contractors Ultimate Exam
B) #12 AWG copper C) #8 AWG copper D) #6 AWG copper Answer: C Explanation: NEC Table 250.66 requires a minimum of #8 AWG copper for a concrete-encased electrode for most residential services. Question 35. Which NEC article governs the installation of fire alarm systems? A) Article 110 B) Article 760 C) Article 300 D) Article 500 Answer: B Explanation: NEC Article 760 covers the requirements for fire alarm systems. Question 36. A “dedicated grounding conductor” is required for which type of equipment? A) Portable tools B) Fixed motor control centers C) Ungrounded receptacles D) Decorative lighting Answer: B Explanation: Fixed motor control centers must have a dedicated grounding conductor to ensure a reliable fault path.
Tradeination for Electrical
Contractors Ultimate Exam
C) 3 VA per square foot D) 5 VA per square foot Answer: B Explanation: NEC 220.42 states a general lighting load of 3 VA per square foot for dwelling units; however, many jurisdictions adopt 2 VA for residential, but the NEC standard is 3 VA. (Correct answer based on NEC is 3 VA.) Answer: C Explanation: NEC 220.42 specifies a general lighting load of 3 VA per square foot for dwelling units. Question 40. Which of the following statements about AFCI (Arc-Fault Circuit Interrupter) protection is correct? A) AFCIs are required for all 15-amp branch circuits in a dwelling B) AFCIs protect only against ground-faults C) AFCIs must be installed in bedrooms, living rooms, and dining rooms D) AFCIs are optional for any circuit in a commercial building Answer: C Explanation: NEC 210.12 requires AFCI protection for many living-area circuits, including bedrooms, living rooms, and dining rooms. Question 41. The term “ampacity” refers to: A) The maximum voltage a conductor can safely carry B) The maximum current a conductor can carry without exceeding its temperature rating C) The resistance of a conductor per foot
Tradeination for Electrical
Contractors Ultimate Exam
D) The power factor of a load Answer: B Explanation: Ampacity is the current-carrying capacity of a conductor based on its insulation and temperature rating. Question 42. Which of the following is the correct method for determining the size of a feeder conductor to a subpanel? A) Use the total connected load divided by 1. B) Size the feeder based on the largest single load only C) Apply the NEC load calculation method, including demand factors, then select a conductor with ampacity equal to or greater than the calculated load D) Choose a conductor size that matches the service entrance conductor size Answer: C Explanation: NEC requires a full load calculation with demand factors; the feeder must have an ampacity at least equal to the calculated load. Question 43. In a residential installation, a “GFCI breaker” provides protection for which of the following? A) Only the downstream receptacles B) All devices on the circuit, including hard-wired appliances C) Only the first receptacle on the circuit D) Only the lighting fixtures Answer: B Explanation: A GFCI breaker monitors the entire circuit, protecting receptacles, hard-wired appliances, and any downstream devices.
Tradeination for Electrical
Contractors Ultimate Exam
C) The voltage rating of the pump motor D) The amperage of the pool’s lighting circuit Answer: A Explanation: NEC Table 250.122 provides the minimum size of grounding and bonding conductors based on the overcurrent device protecting the circuit. Question 47. Which communication system cable is rated for a maximum of 90 °C in a plenum space? A) Cat5e UTP (CM) B) Cat6 STP (CMR) C) Coaxial RG-6 (CM) D) Fiber optic OM Answer: B Explanation: Cat6 shielded twisted pair with a CMR rating is approved for 90 °C in plenum (riser) spaces. Question 48. The NEC defines “equipment grounding conductor” (EGC) as: A) The conductor that carries normal load current back to the source B) The conductor that provides a low-impedance path to ground for fault current C) The same as the grounding electrode conductor D) The neutral conductor in a 120/240 V system Answer: B Explanation: The EGC is intended for fault clearing, not for carrying normal load currents.
Tradeination for Electrical
Contractors Ultimate Exam
Question 49. Which of the following is the correct procedure for de-energizing a circuit before work according to NFPA 70E? A) Turn off the circuit breaker and verify voltage with a tester before beginning work B) Only lock out the circuit breaker without testing C) Use a voltage detector only after work is complete D) Rely on signage indicating the circuit is “dead” Answer: A Explanation: NFPA 70E requires lockout, tagout, and verification of the absence of voltage before starting work. Question 50. When installing a receptacle in a wet location, the NEC requires the use of: A) A standard dry-rated receptacle B) A GFCI-protected receptacle only C) A weather-proof (in-use) cover D) A recessed box with no cover Answer: C Explanation: Wet locations require weather-proof (in-use) covers to protect the receptacle from moisture. Question 51. The term “service-drop” refers to: A) The conduit that runs from the main panel to subpanels B) The overhead or underground conductors that connect the utility’s transformer to the customer’s service entrance C) The wiring inside a building that distributes power to branch circuits
