Tradeination for Electrical
Contractors Ultimate Exam

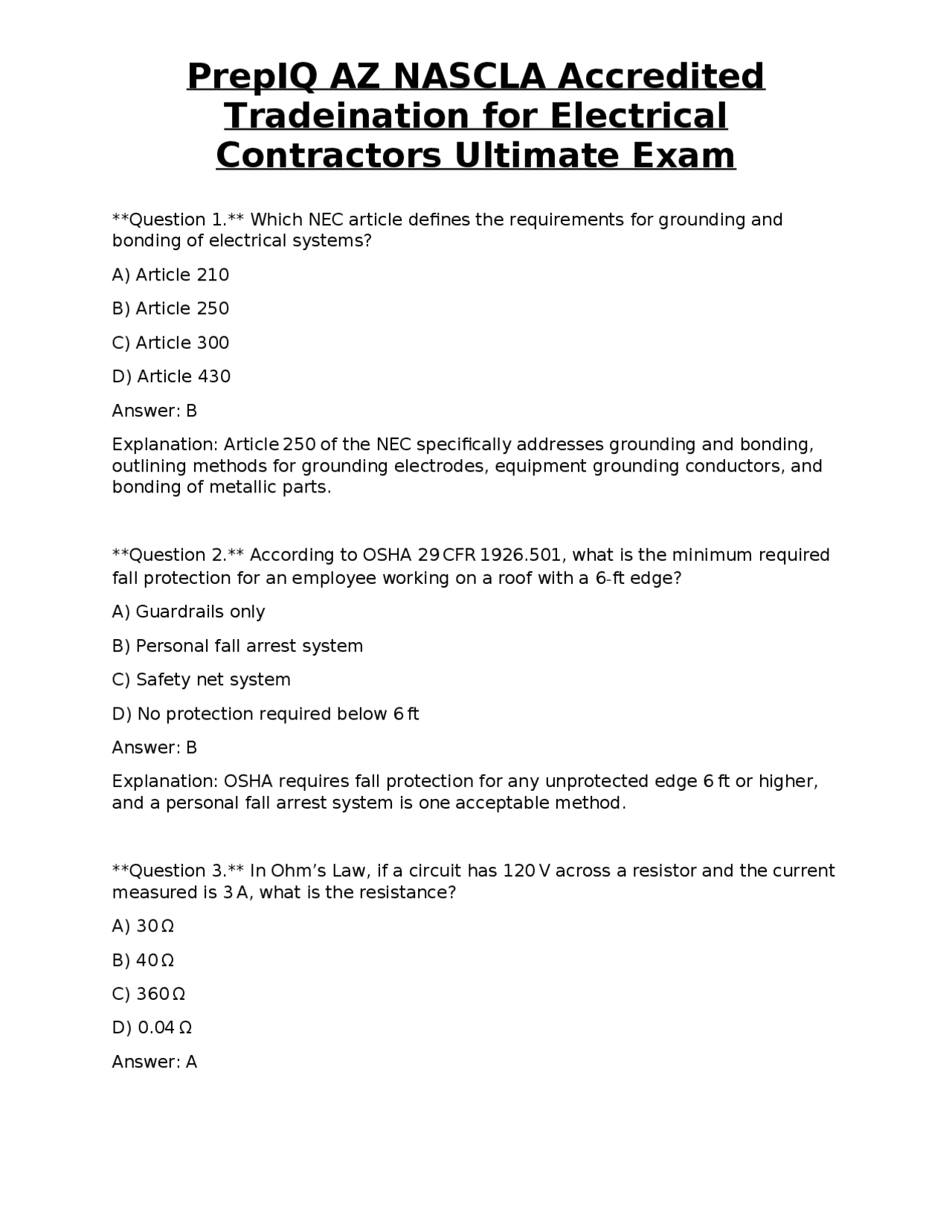

Question 1. Which NEC article defines the requirements for grounding and bonding of electrical systems? A) Article 210 B) Article 250 C) Article 300 D) Article 430 Answer: B Explanation: Article 250 of the NEC specifically addresses grounding and bonding, outlining methods for grounding electrodes, equipment grounding conductors, and bonding of metallic parts. Question 2. According to OSHA 29 CFR 1926.501, what is the minimum required fall protection for an employee working on a roof with a 6-ft edge? A) Guardrails only B) Personal fall arrest system C) Safety net system D) No protection required below 6 ft Answer: B Explanation: OSHA requires fall protection for any unprotected edge 6 ft or higher, and a personal fall arrest system is one acceptable method. Question 3. In Ohm’s Law, if a circuit has 120 V across a resistor and the current measured is 3 A, what is the resistance? A) 30 Ω B) 40 Ω C) 360 Ω D) 0.04 Ω Answer: A
Tradeination for Electrical
Contractors Ultimate Exam
Explanation: R = V / I = 120 V / 3 A = 40 Ω (actually 40 Ω). Correction: The correct answer is B, 40 Ω. Question 4. Which type of conduit is permitted for use in wet, underground locations where the conduit must be buried at least 18 in. deep? A) EMT B) Rigid Metal Conduit (RMC) C) PVC Schedule 40 D) Flexible Metal Conduit (FMC) Answer: C Explanation: PVC Schedule 40 conduit is approved for wet locations and can be buried underground, provided the burial depth meets code requirements. Question 5. A motor rated 15 hp, 460 V, 3-phase has a full-load current of 22 A. What is the minimum size of the circuit breaker to protect this motor according to NEC 430.52? A) 20 A B) 25 A C) 30 A D) 35 A Answer: C Explanation: NEC 430.52 permits a motor circuit breaker up to 250 % of full-load current for inverse-time breakers. 22 A × 1.25 = 27.5 A, rounded up to the next standard size, 30 A. Question 6. Which NFPA 70E level of PPE is required for an arc flash boundary of 24 in. for a 480 V system? A) Category 1 B) Category 2 C) Category 3 D) Category 4
Tradeination for Electrical
Contractors Ultimate Exam
D) #2 AWG
Answer: A Explanation: NEC Table 250.66 lists #8 AWG copper as the minimum size for a 100-A service grounding electrode conductor. Question 10. Which NEC article covers the installation of luminaires in damp or wet locations? A) Article 410 B) Article 410. C) Article 410.10(D) D) Article 410. Answer: C Explanation: NEC 410.10(D) specifically addresses the requirements for luminaires installed in damp or wet locations. Question 11. When performing a box-fill calculation, how many “fill units” does a single #12 AWG THHN conductor count as? A) 1 B) 2 C) 3 D) 4 Answer: A Explanation: NEC Table 314.16(B) assigns 1 fill unit for each #12 AWG conductor. Question 12. In a commercial building, which fire-alarm system voltage is most commonly used for initiating devices? A) 12 V DC B) 24 V DC C) 120 V AC
Tradeination for Electrical
Contractors Ultimate Exam
D) 277 V AC
Answer: B Explanation: Most fire-alarm initiating devices are powered by a 24 V DC supervisory circuit. Question 13. Which of the following is a permissible method for protecting a feeder that supplies a detached garage? A) Use a single-pole breaker in the main panel B) Install a subpanel with a 2-pole breaker sized for the feeder load C) Connect directly to a receptacle without a breaker D) Use a fuse larger than the feeder ampacity Answer: B Explanation: A detached garage requires a feeder protected by a 2-pole breaker sized for the calculated load, with a subpanel installed at the garage. Question 14. What is the minimum clearance from a grounded metal conduit to the nearest combustible material according to NEC 300.22? A) 1 in. B) 2 in. C) 3 in. D) 4 in. Answer: B Explanation: NEC 300.22 requires a minimum of 2 in. clearance between metal raceways and combustible material. Question 15. Which OSHA standard addresses the use of lockout/tagout (LOTO) procedures for electrical equipment? A) 29 CFR 1910. B) 29 CFR 1926. C) 29 CFR 1910.
Tradeination for Electrical
Contractors Ultimate Exam
C) Chapter 5 D) Chapter 6 Answer: C Explanation: Chapter 5 of the NEC covers special occupancies, including hazardous (Class I, Division 2) locations. Question 19. In a solar photovoltaic (PV) system, what is the purpose of the “combiner box”? A) Convert DC to AC B) Provide over-current protection for string conductors C) Store energy for later use D) Isolate the inverter from the grid Answer: B Explanation: The combiner box aggregates multiple PV strings and provides over-current protection (usually via fuses or breakers) for each string before the conductors continue to the inverter. Question 20. When sizing a conduit for 12 #4 AWG THHN conductors, which conduit size is the smallest that meets the 40 % fill rule? A) 1/2-in. EMT B) 3/4-in. EMT C) 1-in. EMT D) 1-1/4-in. EMT Answer: B Explanation: Using NEC Table 1, 12 #4 AWG THHN require a minimum of 3/4-in. EMT to stay within the 40 % fill limit. Question 21. Which NFPA 70E term describes the distance at which a person could receive a second-degree burn from an arc flash? A) Approach boundary
Tradeination for Electrical
Contractors Ultimate Exam
B) Protective boundary C) Flash protection boundary D) Arc-flash threshold Answer: C Explanation: The flash protection boundary is the distance where a person could suffer a second-degree burn from an arc flash. Question 22. According to the PMBOK Guide, which knowledge area includes “Develop Project Charter” as an input? A) Project Scope Management B) Project Integration Management C) Project Time Management D) Project Cost Management Answer: B Explanation: Project Integration Management includes the development of the project charter as a key process. Question 23. Which NEC article addresses the installation of raceways in concrete-encased foundations? A) 300. B) 300. C) 300. D) 300. Answer: A Explanation: NEC 300.5 provides the requirements for protecting conductors in concrete-encased raceways. Question 24. In a data communications room, what is the maximum allowed bend radius for Category 6 UTP cable? A) 2 times the cable diameter
Tradeination for Electrical
Contractors Ultimate Exam
B) 1910.
C) 1910.
D) 1926.
Answer: B Explanation: OSHA 1910.132 outlines the general requirements for PPE, including electrical hazard protection. Question 28. In a three-wire 120/240 V single-phase system, what is the purpose of the neutral conductor? A) Carry unbalanced load current back to the source B) Provide a safety ground for equipment C) Serve as a backup hot conductor D) Reduce voltage drop on the hot conductors Answer: A Explanation: The neutral carries the unbalanced current between the two hot legs, completing the circuit for 120-V loads. Question 29. Which NEC article specifies the requirements for the installation of receptacles in kitchen countertop areas? A) 210.52(C) B) 210.8(B) C) 210.52(A) D) 210.11(C) Answer: A Explanation: NEC 210.52(C) details the required number and placement of countertop receptacles in kitchens. Question 30. A contractor must submit a change order that adds 10 % additional lighting fixtures to a project. According to NASCLA contract guidelines, which document should be updated?
Tradeination for Electrical
Contractors Ultimate Exam
A) Scope of Work (SOW) only B) Project Schedule only C) Both SOW and Project Schedule D) Neither; change orders are not documented Answer: C Explanation: NASCLA requires updating both the Scope of Work and the Project Schedule to reflect changes in scope and timing. Question 31. Which NEC article governs the installation of fire alarm wiring? A) 760 B) 700 C) 725 D) 800 Answer: B Explanation: NEC Article 700 addresses the requirements for emergency systems, including fire alarm wiring. Question 32. In a residential dwelling, what is the minimum ampacity for a 12 - AWG copper branch-circuit conductor supplying receptacles? A) 15 A B) 20 A C) 25 A D) 30 A Answer: B Explanation: NEC Table 310.16 specifies that 12-AWG copper conductors have a minimum ampacity of 20 A for most applications. Question 33. Which of the following is the correct method to identify a grounded (neutral) conductor in a conduit system? A) White or gray insulation
Tradeination for Electrical
Contractors Ultimate Exam
B) 70 %
C) 60 %
D) 50 %
Answer: A Explanation: Four conductors require an 80 % derating factor (20 % reduction) per the table. Question 37. In a commercial building, what is the required clearance in front of a panelboard for working space according to NEC 110.26? A) 30 in. wide and 36 in. deep B) 36 in. wide and 30 in. deep C) 42 in. wide and 45 in. deep D) 48 in. wide and 60 in. deep Answer: A Explanation: NEC 110.26 requires at least a 30-in. wide and 36-in. deep clear working space in front of equipment. Question 38. Which of the following is a permitted grounding electrode for a new residential service? A) Metal water pipe in contact with earth for at least 10 ft B) Concrete-encased electrode (Ufer) at least 20 ft of #4 rebar C) Ground rod of 4 ft length D) Any metal building frame Answer: B Explanation: A concrete-encased electrode (Ufer) must contain at least 20 ft of # rebar or equivalent, per NEC 250.52(A)(3). Question 39. A contractor must calculate the total demand load for a commercial office building. Which method does NEC 220.42 recommend? A) Simple sum of all connected loads
Tradeination for Electrical
Contractors Ultimate Exam
B) Diversity factor of 0.8 applied to total load C) Demand factor based on building area and occupancy type D) Use of a standard 10 kW per 1,000 ft² rule Answer: C Explanation: NEC 220.42 requires applying demand factors based on the building’s square footage and occupancy classification. Question 40. Which OSHA regulation requires the use of fall protection when working on a ladder that extends more than 4 ft above a lower level? A) 1926. B) 1926.501(b)(1) C) 1910.23(b)(2) D) 1910. Answer: B Explanation: OSHA 1926.501(b)(1) states that fall protection is required when a worker is on a ladder that extends more than 4 ft above the landing. Question 41. In a wiring method, what does the abbreviation “MC” stand for? A) Metal Clad B) Multi-Core C) Main Conductor D) Medium-Current Answer: A Explanation: “MC” denotes Metal-Clad cable, which has a metallic armor and is suitable for exposed work. Question 42. Which NEC article defines the requirements for installing receptacles in a bathroom? A) 210.8(A)(1)
Tradeination for Electrical
Contractors Ultimate Exam
C) 31 %
D) 25 %
Answer: B Explanation: NEC Table 1 permits a 53 % fill for a single conductor larger than 4 AWG. Question 46. Which OSHA standard addresses the safe use of ladders in construction? A) 1926.1053(b) B) 1910.23(b)(1) C) 1926.501(c) D) 1910.140(d) Answer: A Explanation: OSHA 1926.1053(b) specifies the requirements for ladder use on construction sites. Question 47. Which NEC article requires that all equipment in a Class I, Division 2 hazardous location be listed for that environment? A) 500. B) 511. C) 517. D) 590. Answer: A Explanation: NEC 500.6 requires equipment installed in hazardous (Class I, Division 2) locations to be listed for that classification. Question 48. When calculating voltage drop for a branch circuit, which factor is NOT considered? A) Length of the conductor B) Conductor material
Tradeination for Electrical
Contractors Ultimate Exam
C) Load type (resistive, inductive) D) Color of the insulation Answer: D Explanation: The color of the insulation has no effect on voltage drop; the other factors are all relevant. Question 49. In a commercial kitchen, what is the minimum ampacity required for a dedicated circuit feeding a commercial range? A) 30 A B) 40 A C) 50 A D) 60 A Answer: C Explanation: NEC 210.11(C)(1) mandates a minimum of 50 A for a dedicated branch circuit serving a commercial cooking range. Question 50. Which NEC article details the requirements for grounding and bonding of swimming pools? A) 680. B) 680. C) 680. D) 680. Answer: B Explanation: NEC 680.28 outlines the grounding and bonding requirements specific to swimming pools. Question 51. A contractor needs to install a conduit system that will be exposed to sunlight. Which conduit material is most appropriate? A) EMT B) Rigid Metal Conduit (RMC)
Tradeination for Electrical
Contractors Ultimate Exam
C) Green or bare copper D) Red Answer: C Explanation: NEC 250.119 requires equipment grounding conductors to be green, green with yellow stripe, or bare. Question 55. Which NEC article governs the installation of low-voltage fire alarm circuits? A) 760 B) 700 C) 725 D) 800 Answer: B Explanation: Article 700 covers emergency systems, including low-voltage fire alarm wiring. Question 56. What is the correct method for grounding a metal conduit that serves as the equipment grounding conductor? A) Connect a separate grounding wire to the panel B) Use a grounding clamp at each junction box C) Rely on the conduit’s continuity without additional connections D) Install a grounding electrode at the conduit’s end Answer: B Explanation: NEC 250.118 requires grounding clamps at each junction where the conduit is used as the equipment grounding conductor. Question 57. Which OSHA regulation requires the use of a safety harness when working at heights greater than 6 ft? A) 1926.501(b)(1) B) 1910.28(b)(1)
Tradeination for Electrical
Contractors Ultimate Exam
C) 1926.1053(c) D) 1910.147(b) Answer: A Explanation: OSHA 1926.501(b)(1) mandates fall protection, such as a safety harness, for heights exceeding 6 ft. Question 58. In a three-phase motor circuit, what is the purpose of an overload relay? A) To protect the motor from short circuits B) To limit the voltage supplied to the motor C) To protect the motor from excessive current over time D) To balance the three phases Answer: C Explanation: Overload relays provide thermal protection against sustained over-current conditions that could damage the motor. Question 59. Which NEC article addresses the installation of receptacles in laundry areas? A) 210.8(A)(7) B) 210.52(E) C) 210.11(C)(2) D) 300.5(C) Answer: A Explanation: NEC 210.8(A)(7) requires GFCI protection for receptacles in laundry areas. Question 60. For a 120/240 V single-phase service, what is the minimum size of the service entrance conductors for a 200 A load using copper? A) #4 AWG B) #2 AWG
