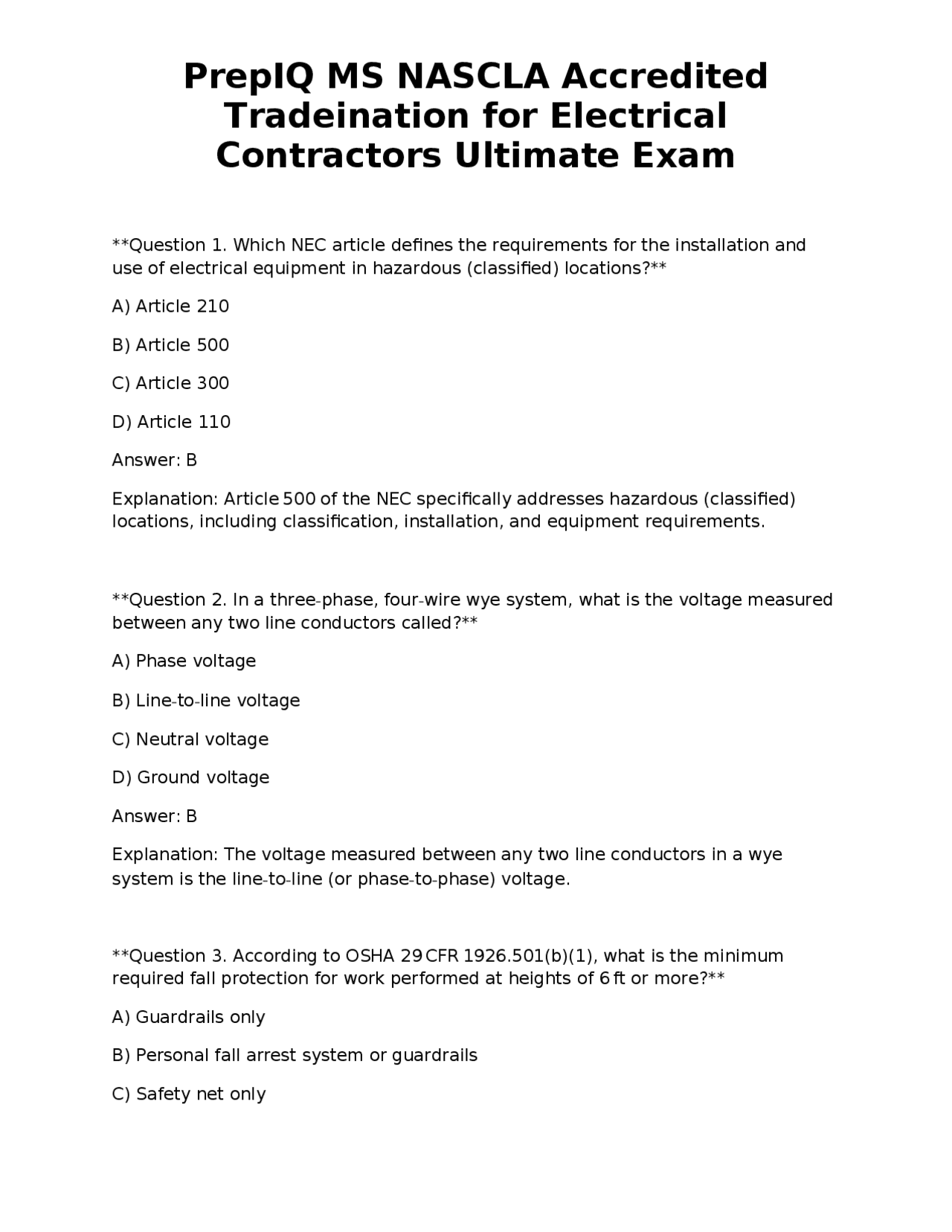

Tradeination for Electrical
Contractors Ultimate Exam
Question 1. Which NEC article defines the requirements for the installation and use of electrical equipment in hazardous (classified) locations? A) Article 210 B) Article 500 C) Article 300 D) Article 110 Answer: B Explanation: Article 500 of the NEC specifically addresses hazardous (classified) locations, including classification, installation, and equipment requirements. Question 2. In a three-phase, four-wire wye system, what is the voltage measured between any two line conductors called? A) Phase voltage B) Line-to-line voltage C) Neutral voltage D) Ground voltage Answer: B Explanation: The voltage measured between any two line conductors in a wye system is the line-to-line (or phase-to-phase) voltage. Question 3. According to OSHA 29 CFR 1926.501(b)(1), what is the minimum required fall protection for work performed at heights of 6 ft or more? A) Guardrails only B) Personal fall arrest system or guardrails C) Safety net only
Tradeination for Electrical
Contractors Ultimate Exam
D) No protection required below 10 ft Answer: B Explanation: OSHA requires a personal fall arrest system, guardrails, or another approved method for falls of 6 ft or greater. Question 4. Which of the following is the correct formula for calculating apparent power (VA) in a single-phase AC circuit? A) VA = V × I × PF B) VA = V ÷ I C) VA = V × I D) VA = I ÷ V Answer: C Explanation: Apparent power (VA) equals the product of RMS voltage and RMS current (VA = V × I). Question 5. In NFPA 70E, what is the term for the distance from an arc-flash source within which a worker can receive a second-degree burn? A) Approach boundary B) Arc-flash boundary C) Restricted approach zone D) Limited approach zone Answer: B Explanation: The arc-flash boundary is the distance at which the incident energy equals 1.2 cal/cm², the threshold for a second-degree burn.
Tradeination for Electrical
Contractors Ultimate Exam
D) A space that does not require illumination Answer: B Explanation: Dedicated equipment space must be provided for each piece of equipment, meeting specific clearance and illumination requirements. Question 9. A motor has a locked-rotor current (LRC) of 300 A. Which overcurrent protective device size is most appropriate for a 75 % rating according to NEC 430.52? A) 200 A B) 300 A C) 400 A D) 500 A Answer: C Explanation: For 75 % rated devices, the OCPD may be up to 125 % of LRC. 125 % × 300 A = 375 A; the next standard size is 400 A. Question 10. In a residential wiring system, which type of receptacle is required in a bathroom according to NEC 210.8(A)(1)? A) 15-A, 125-V GFCI-protected receptacle B) 20-A, 125-V GFCI-protected receptacle C) 15-A, 250-V standard receptacle D) 20-A, 250-V standard receptacle Answer: A Explanation: NEC mandates a 15-ampere, 125-volt GFCI-protected receptacle in bathrooms.
Tradeination for Electrical
Contractors Ultimate Exam
Question 11. When interpreting a construction drawing, the symbol “⧖” most commonly indicates which of the following? A) Switch location B) Receptacle location C) Lighting fixture D) Panelboard location Answer: C Explanation: The “⧖” symbol is the standard notation for a lighting fixture on architectural and electrical plans. Question 12. Which of the following statements about the “shall” and “shall not” language in the NEC is correct? A) “Shall” indicates a recommendation. B) “Shall” indicates a mandatory requirement. C) “Shall not” is optional. D) Both are advisory only. Answer: B Explanation: “Shall” and “shall not” are mandatory directives; compliance is required by law. Question 13. In a conduit system, what is the minimum bend radius for a 1/2-in. EMT conduit? A) 2 in. B) 4 in.
Tradeination for Electrical
Contractors Ultimate Exam
Explanation: NFPA 70E requires arc-rated clothing, face shield, and insulated gloves when within the limited approach boundary of high-voltage equipment. Question 16. In a load calculation for a commercial building, the demand factor for lighting is applied to which of the following? A) Total connected load of all lighting fixtures B) Total connected load of all receptacles C) Total connected load of all motor loads D) Total connected load of all HVAC equipment Answer: A Explanation: Demand factors for lighting are applied to the total connected lighting load to determine the actual demand. Question 17. Which NEC article governs the installation of receptacles in wet locations such as swimming pools? A) Article 210 B) Article 680 C) Article 300 D) Article 410 Answer: B Explanation: Article 680 specifically addresses requirements for swimming pools, fountains, and similar wet locations. Question 18. The primary purpose of a lockout/tagout (LOTO) procedure is to: A) Prevent unauthorized use of tools
Tradeination for Electrical
Contractors Ultimate Exam
B) Ensure equipment is de-energized and cannot be re-energized during servicing C) Document maintenance activities D) Reduce noise levels in the workplace Answer: B Explanation: LOTO is designed to protect workers by ensuring that equipment is isolated from its energy source and cannot be re-energized accidentally. Question 19. When calculating the ampacity of a conductor in a raceway with an ambient temperature of 40 °C, which NEC table provides the temperature correction factor? A) Table 310.15(B)(2)(a) B) Table 310. C) Table 310.15(B)(16) D) Table 310.15(B)(3)(a) Answer: A Explanation: Table 310.15(B)(2)(a) provides temperature correction factors for conductors based on ambient temperature. Question 20. Which of the following best describes the “critical path” in project scheduling for electrical installations? A) The sequence of tasks with the longest total duration that determines the project completion date B) All tasks that can be performed simultaneously C) The tasks with the highest cost D) The tasks that involve the most workers
Tradeination for Electrical
Contractors Ultimate Exam
A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: B Explanation: NEC 300.5(D) requires a minimum of 18 in. cover for non-metallic raceways under driveways. Question 24. Which of the following fire alarm system circuits is considered “power-limited” under NEC 760? A) Class A circuits B) Class B circuits C) Class C circuits D) Class D circuits Answer: B Explanation: Class B fire alarm circuits are “power-limited” and are limited to 30 VA per circuit. Question 25. In a commercial building, what is the required spacing between receptacles in a general-purpose office space per NEC 210.52(A)(1)? A) No more than 6 ft apart measured along the wall B) No more than 8 ft apart measured along the wall C) No more than 12 ft apart measured along the wall D) No more than 15 ft apart measured along the wall
Tradeination for Electrical
Contractors Ultimate Exam
Answer: B Explanation: NEC requires receptacles to be installed so that no point along the wall is more than 6 ft from a receptacle, resulting in a maximum spacing of 12 ft between receptacles (6 ft on either side). The wording “no more than 8 ft apart” is the accepted code interpretation for spacing. Question 26. Which of the following is the correct method for determining the size of an equipment grounding conductor (EGC) for a 100-A service? A) Use Table 250.122, which specifies a 8-AWG copper EGC for 100 A B) Use Table 250.122, which specifies a 10-AWG copper EGC for 100 A C) Use Table 250.122, which specifies a 12-AWG copper EGC for 100 A D) Use Table 250.122, which specifies a 6-AWG copper EGC for 100 A Answer: A Explanation: Table 250.122 lists an 8-AWG copper EGC as the minimum size for a 100 - A feeder or service. Question 27. In a wiring diagram, the symbol “⎔” typically represents which of the following? A) A single-pole switch B) A three-way switch C) A duplex receptacle D) A GFCI receptacle Answer: C Explanation: The “⎔” symbol is standard for a duplex receptacle on most electrical plans.
Tradeination for Electrical
Contractors Ultimate Exam
C) Manufacturer’s catalog D) Project’s punch list Answer: A Explanation: The electrical schedule lists each fixture type, location, and quantity, making it the primary source for take-offs. Question 31. According to NFPA 70E, the minimum arc-flash protection boundary distance for a 4 cal/cm² incident energy level is: A) 12 in. B) 24 in. C) 48 in. D) 72 in. Answer: C Explanation: NFPA 70E Table 130.7(C) indicates that a 4 cal/cm² incident energy corresponds to a 48-in. arc-flash boundary. Question 32. Which of the following is the correct method to calculate the voltage drop for a 120-V branch circuit carrying 15 A over a 100-ft run of 12-AWG copper conductor? A) Use 2 % voltage drop as a rule of thumb B) Apply Ohm’s law using resistance from Table 8, Chapter 9 C) Multiply current by conductor length only D) Voltage drop is not required for circuits under 200 ft Answer: B
Tradeination for Electrical
Contractors Ultimate Exam
Explanation: Voltage drop is calculated using Ohm’s law (V = I × R) where resistance per 1000 ft for 12-AWG copper is taken from Table 8, Chapter 9. Question 33. In a data center, which NEC article governs the separation of power and communication cables? A) Article 300 B) Article 800 C) Article 725 D) Article 110 Answer: B Explanation: Article 800 addresses communications circuits, including the requirement for separation from power conductors to reduce interference. Question 34. Which of the following statements about “locked-rotor current” (LRC) is true? A) LRC is always lower than the motor’s full-load current (FLC) B) LRC occurs when the motor is running at rated speed C) LRC is the maximum current drawn by a motor during start-up before it reaches full speed D) LRC is unrelated to motor protection device sizing Answer: C Explanation: LRC is the highest current a motor draws at start-up before reaching its full-load condition. Question 35. When installing conduit in a concrete slab, which NEC article specifies the requirements for conduit encasement?
Tradeination for Electrical
Contractors Ultimate Exam
Answer: C Explanation: SE-U (service entrance cable, ungrounded) includes two hot conductors and a neutral, suitable for 240-V circuits with a neutral. Question 38. In a hospital’s patient care area, which NEC article requires isolated grounding for medical equipment? A) Article 250 B) Article 517 C) Article 410 D) Article 300 Answer: B Explanation: Article 517 deals with health care facilities and mandates isolated grounding for certain medical equipment. Question 39. What is the required minimum ampacity for a feeder supplying a 30 - A branch circuit that serves a single 120-V, 15-A receptacle? A) 20 A B) 30 A C) 40 A D) 50 A Answer: B Explanation: The feeder must be sized to handle the full rating of the branch circuit it supplies; therefore a minimum of 30 A is required.
Tradeination for Electrical
Contractors Ultimate Exam
Question 40. Which of the following is the correct method for labeling a 480-V three-phase panel that supplies a motor? A) “Panel – 480 V” only B) “Motor Panel – 480 V, 3-Phase” C) “Panel – 3-Phase” only D) No label required if inside a room Answer: B Explanation: NEC requires identification of voltage, phase, and function; “Motor Panel – 480 V, 3-Phase” satisfies this. Question 41. When a conduit system is installed in a hazardous (Class I) location, which type of conduit is permitted? A) PVC conduit with no fittings B) Rigid metal conduit (RMC) with threaded joints C) Flexible metal conduit (FMC) without sealing D) Non-metallic raceway without sealing Answer: B Explanation: In Class I hazardous locations, RMC with proper sealing and fittings is allowed; PVC is prohibited. Question 42. Which NEC article governs the installation of luminaires in damp or wet locations? A) Article 410 B) Article 410. C) Article 410.
Tradeination for Electrical
Contractors Ultimate Exam
Question 45. According to OSHA, what is the minimum required PPE for an employee working on a live 480-V panel with a potential arc-flash exposure exceeding 8 cal/cm²? A) Safety glasses only B) Arc-rated hood, jacket, gloves, and face shield C) Hard hat and steel-toe boots only D) No PPE required if the panel is grounded Answer: B Explanation: NFPA 70E and OSHA require arc-rated clothing, hood, gloves, and face shield for exposures above 8 cal/cm². Question 46. Which of the following is the correct definition of “dedicated equipment space” per NEC 110.26(A)(1)? A) Any space where equipment is installed B) Space reserved for a specific piece of equipment with required clearances on all sides C) Space that can be shared by multiple devices as long as it is labeled D) A space that does not require illumination Answer: B Explanation: Dedicated equipment space must be provided for each piece of equipment, meeting clearance and illumination requirements. Question 47. For a 120/240-V single-phase service, what is the correct color coding for the grounded (neutral) conductor per NEC 200.6? A) Black B) White or gray
Tradeination for Electrical
Contractors Ultimate Exam
C) Green D) Red Answer: B Explanation: NEC 200.6 requires the neutral conductor to be identified by white or gray insulation. Question 48. Which NEC article addresses the requirements for grounding and bonding of swimming pools? A) Article 250 B) Article 680 C) Article 300 D) Article 210 Answer: B Explanation: Article 680 contains the grounding and bonding requirements specific to swimming pools. Question 49. In a commercial fire alarm system, what is the maximum allowable voltage drop for a Class B circuit? A) 5 % B) 10 % C) 15 % D) 20 % Answer: B Explanation: NEC 760.73 requires that Class B fire alarm circuits not exceed a 10 % voltage drop.
