Certificate Ultimate Exam

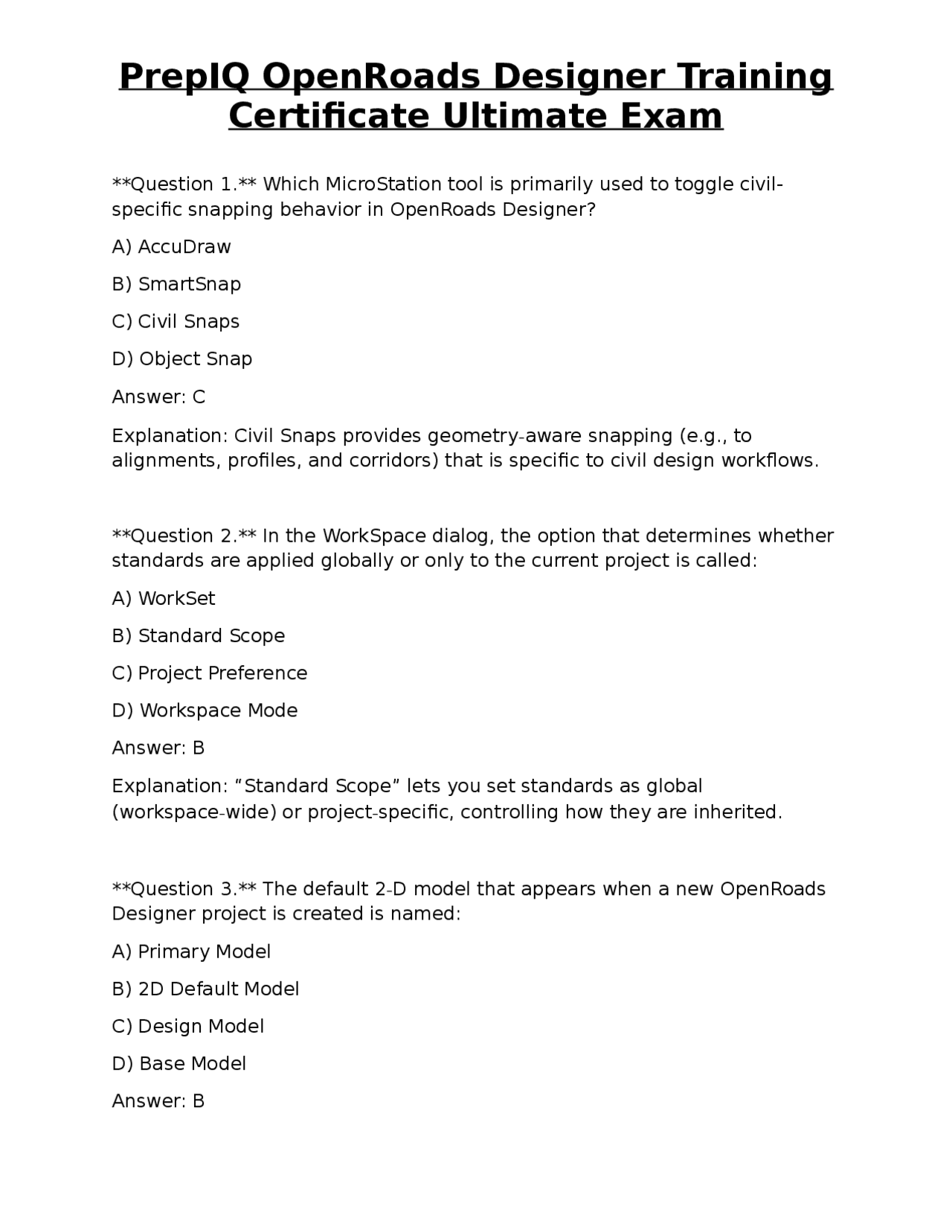

Question 1. Which MicroStation tool is primarily used to toggle civil- specific snapping behavior in OpenRoads Designer? A) AccuDraw B) SmartSnap C) Civil Snaps D) Object Snap Answer: C Explanation: Civil Snaps provides geometry-aware snapping (e.g., to alignments, profiles, and corridors) that is specific to civil design workflows. Question 2. In the WorkSpace dialog, the option that determines whether standards are applied globally or only to the current project is called: A) WorkSet B) Standard Scope C) Project Preference D) Workspace Mode Answer: B Explanation: “Standard Scope” lets you set standards as global (workspace-wide) or project-specific, controlling how they are inherited. Question 3. The default 2-D model that appears when a new OpenRoads Designer project is created is named: A) Primary Model B) 2D Default Model C) Design Model D) Base Model Answer: B
Certificate Ultimate Exam
Explanation: OpenRoads automatically creates a “2D Default” model for plan-view drafting; the 3D Managed model is added later for terrain and corridor work. Question 4. Which workflow ribbon contains the tools for creating alignments and profiles? A) Drawing B) Utility C) OpenRoads Modeling D) Survey Answer: C Explanation: The “OpenRoads Modeling” workflow houses alignment, profile, corridor, and superelevation tools. Question 5. To assign a unique symbology to a proposed centerline while keeping the existing fence unchanged, you should: A) Change the element’s level B) Apply a custom line style through Feature Definition C) Use the Delete command on the fence D) Convert the fence to a 3-D model element Answer: B Explanation: Feature Definitions let you bind a specific symbology (e.g., line weight, color) to a civil element type without altering other elements. Question 6. When federating a DGN reference, the relationship between the 2D Default model and the 3D Managed model is: A) Independent – they do not share data B) Hierarchical – 2D is a child of 3D
Certificate Ultimate Exam
B) Removing water bodies from cut/fill calculations C) Creating a smoother slope transition D) Generating spot elevations automatically Answer: B Explanation: Void areas define regions that are ignored in surface analysis, often used for lakes, ponds, or structures that should not affect cut/fill. Question 10. Which command swaps the left and right edges of a terrain surface to correct reversed orientation? A) Reverse Edge B) Swap Edges C) Flip Surface D) Edge Invert Answer: B Explanation: “Swap Edges” exchanges the left/right edge definitions, correcting orientation errors in complex surfaces. Question 11. In terrain analysis, a “Delta” surface is generated by: A) Adding two surfaces together B) Subtracting one surface from another to show differences C) Interpolating between contour intervals D) Applying a smoothing algorithm Answer: B Explanation: A Delta surface displays the difference (elevation change) between two existing surfaces, useful for cut/fill visualization. Question 12. Which design standard table is most commonly used for determining minimum horizontal curve radius based on design speed?
Certificate Ultimate Exam
A) AASHTO LRFD
B) CIRS
C) FHWA Design Speed Table D) PI (Project Index) Table Answer: A Explanation: The AASHTO LRFD “Design Speed” tables provide radius recommendations for given speeds, widely adopted in the U.S. Question 13. A “Spiral” element in a horizontal alignment is primarily used to: A) Connect two tangents with a constant radius B) Provide a gradual transition between straight and curved sections C) Create a clothoid with varying curvature for superelevation D) Define a compound curve with two radii Answer: B Explanation: Spirals (clothoids) smoothly transition curvature, reducing abrupt changes and facilitating superelevation design. Question 14. The “Complex by PI” tool creates a complex alignment based on: A) User-drawn points only B) A predefined design speed index (PI) file C) Existing roadway geometry D) A set of reference lines Answer: B Explanation: “Complex by PI” uses a Project Index (PI) file that contains design criteria (speed, lane width, superelevation, etc.) to automatically generate a full alignment.
Certificate Ultimate Exam
Explanation: Parabolic vertical curves (PVT) are standard for short grade changes, providing smooth curvature and easy calculation. Question 18. The “Profile Complex” tool is used to: A) Merge two separate profiles into one continuous line B) Convert a surface to a profile view C) Apply a set of design rules to a profile automatically D) Generate a profile from a 3-D corridor Answer: C Explanation: “Profile Complex” applies predefined civil rules (e.g., grade, curve length) to create a profile that conforms to design standards. Question 19. In a corridor template (.ITL), a “Point” that is constrained to a horizontal alignment and a vertical profile simultaneously is called: A) Dual-Constraint Point B) Linked Point C) 2-D Constrained Point D) Profile-Alignment Point Answer: D Explanation: The point is defined by both horizontal (alignment) and vertical (profile) constraints, ensuring it follows the 3-D path of the roadway. Question 20. Which of the following is NOT a typical constraint applied to a template point? A) Horizontal distance from a baseline B) Vertical elevation offset C) Slope relative to a nearby surface D) Color hue for display
Certificate Ultimate Exam
Answer: D Explanation: Constraints affect geometry (position, slope, elevation) but not visual attributes like color hue. Question 21. “Targeting” logic in a template is primarily used to: A) Assign a material type to pavement layers B) Control cut/fill transition slopes (daylighting) C) Define lane markings automatically D) Set the display order of corridor meshes Answer: B Explanation: Targeting defines where a template point will intersect a surface, dictating cut/fill slopes and daylighting behavior. Question 22. When a corridor drops from one typical section to another, the “Transition” element that controls the change is called: A) Transition Rule B) Drop-Zone C) Template Drop D) Section Swap Answer: C Explanation: “Template Drop” specifies the distance and conditions for switching between typical sections along the corridor. Question 23. To widen a lane for a turn lane at a specific station, which corridor feature should be edited? A) Point Control B) Superelevation Section C) Surface Model
Certificate Ultimate Exam
C) The slope of the terrain surface only D) The material type of the pavement Answer: A Explanation: Each superelevation section indicates which lanes (inside/outside) are affected and over which station range the superelevation applies. Question 27. The XML file used to calculate superelevation values is known as: A) Superelevation Template (.xml) B) Rules File C) Design Specification File D) Superelevation Database Answer: B Explanation: The “Rules File” (.xml) contains formulas and parameters (e.g., runoff, tangent-to-curve ratio) that drive automatic superelevation calculations. Question 28. In the Superelevation Editor, the “Transition Length” refers to: A) The distance over which the roadway returns to level after a curve B) The length of the curve itself C) The distance between two superelevation sections D) The length of the lane width change Answer: A Explanation: Transition length is the linear distance needed to move from the superelevated cross-slope back to the normal roadway cross-slope.
Certificate Ultimate Exam
Question 29. After modifying superelevation values manually, which command must be run to apply those changes to the corridor geometry? A) Re-Generate Superelevation B) Update Corridor Mesh C) Re-Process Corridor D) Refresh Superelevation Answer: C Explanation: “Re-Process Corridor” recomputes all corridor components, incorporating the edited superelevation data. Question 30. Which Civil AccuDraw mode provides dynamic coordinate entry based on the current alignment’s direction? A) Polar Mode B) Orthogonal Mode C) Alignment Mode D) Tangent Mode Answer: C Explanation: Alignment Mode aligns the AccuDraw axes with the active alignment, allowing quick entry of offsets and station-based values. Question 31. The “Civil Message Center” is primarily used to: A) Display real-time GPS data B) Show warnings, errors, and rule-based notifications during design C) Manage user permissions D) Store project metadata Answer: B Explanation: The Message Center reports rule violations, missing data, and other design-related messages to keep the user informed.
Certificate Ultimate Exam
Answer: B Explanation: “Daylight” stops the template point at the surface and creates a slope (cut/fill) to meet it, rather than penetrating the surface. Question 35. Which tool allows you to automatically generate breaklines from linear 2-D elements (e.g., contour lines) for terrain creation? A) Breakline Builder B) Smart Breakline Extractor C) Graphical Filter – Breaklines D) Terrain Breakline Wizard Answer: C Explanation: The Graphical Filter can be configured to treat selected 2-D elements as breaklines during surface generation. Question 36. To create a spot elevation label that updates automatically when the surface changes, you should use: A) Text Element with manual entry B) Spot Elevation Element linked to the surface C) Dimension with a custom style D) Annotation with a reference tag Answer: B Explanation: Spot Elevation elements are bound to a surface and refresh their elevation value whenever the surface is edited. Question 37. Which command removes an unwanted surface from the model without deleting the underlying reference data? A) Delete Surface B) Detach Surface
Certificate Ultimate Exam
C) Unload Surface D) Remove Surface Reference Answer: B Explanation: “Detach Surface” removes the surface from the active model while preserving the source file for later re-attachment. Question 38. When a vertical curve is created with a “K” value of 0, the resulting curve is: A) A parabolic curve with infinite length B) A straight line (no vertical curve) C) A circular arc D) An undefined curve that triggers an error Answer: B Explanation: A K-value of 0 indicates no vertical curvature, so the segment remains a straight grade. Question 39. The “Complex by Element” tool is best suited for: A) Generating a complex alignment from a series of existing civil elements (e.g., lines, arcs) B) Importing a complex alignment from an external file C) Creating a complex alignment based on speed tables only D) Converting a 3-D corridor into a 2-D plan view Answer: A Explanation: “Complex by Element” reads existing alignment elements and assembles them into a single complex alignment. Question 40. Which of the following statements about “Template Points” is FALSE?
Certificate Ultimate Exam
Explanation: Swapping edges reverses the left/right designation of breaklines and boundaries, which is vital for correct cut/fill analysis. Question 43. Which element type in OpenRoads Designer can store a “Design Speed” attribute that can be referenced by alignment rules? A) Alignment B) Profile C) Superelevation Section D) Corridor Template Answer: A Explanation: Alignments have a “Design Speed” property that can be accessed by rules (e.g., for minimum radius calculations). Question 44. The “Active Profile” can be changed in the profile view by: A) Right-clicking the profile and selecting “Set Active” B) Dragging the profile name to the top of the view list C) Using the “Set Active Profile” command on the ribbon D) Double-clicking the profile line in the view Answer: C Explanation: The ribbon provides a “Set Active Profile” button that designates which profile receives subsequent edits. Question 45. Which of the following is NOT a valid source for generating a terrain surface in OpenRoads Designer? A) GIS raster DEM file (e.g., GeoTIFF) B) LAS point cloud C) ASCII XYZ file D) GPK (Geopackage) file
Certificate Ultimate Exam
Answer: A Explanation: While raster DEMs can be imported, they must first be converted to a supported vector format (e.g., TIN) before creating a surface; direct raster import is not a native source for surface creation. Question 46. When a corridor is “clipped” at an intersection, the operation primarily modifies: A) The alignment geometry B) The corridor’s mesh elements to remove overlap C) The template’s point constraints D) The superelevation rule file Answer: B Explanation: Clipping removes intersecting mesh geometry, ensuring clean visual and analytical results at junctions. Question 47. In the “Superelevation Editor,” the “Inside Lane” designation refers to: A) The lane on the inside of a curve (closer to the center of curvature) B) The lane with the highest speed limit C) The lane on the left side of the roadway in a right-hand traffic system D) The lane designated for emergency vehicles Answer: A Explanation: Inside lanes are those closest to the curve’s center, requiring less superelevation than outside lanes. Question 48. The “Civil Toggles” panel includes a button to activate “Pick Points” mode. This mode is used for: A) Selecting existing civil elements for rule creation
Certificate Ultimate Exam
Question 51. Which command creates a “Target” that forces a template point to stay a constant offset above a surface, regardless of surface elevation changes? A) Daylight Target B) Offset Target C) Elevation Target D) Fixed Offset Target Answer: D Explanation: “Fixed Offset Target” maintains a specified vertical offset from the surface, updating automatically as the surface changes. Question 52. The “Rules File” for superelevation can be edited in which environment? A) Notepad or any text editor B) OpenRoads Designer’s Rule Builder only C) Excel spreadsheet imported as XML D) MicroStation VBA editor Answer: A Explanation: The Rules File is a plain XML document; it can be edited with any text editor, though the Rule Builder provides a UI for convenience. Question 53. When a corridor template includes a “Shoulder” component, the typical constraint used to keep it level with the pavement is: A) Horizontal Offset Constraint B) Vertical Elevation Constraint C) Slope Constraint relative to the pavement surface D) Width Constraint only Answer: C
Certificate Ultimate Exam
Explanation: A slope constraint ties the shoulder’s elevation to the pavement surface’s slope, ensuring a realistic cross-section. Question 54. Which of the following statements about “Civil AccuDraw” is TRUE? A) It only works in 2-D views. B) It automatically snaps to the nearest alignment point when active. C) It can be set to “Plan Mode” to align axes with the current plan view’s north. D) It replaces the need for any other snapping tools. Answer: C Explanation: “Plan Mode” aligns the AccuDraw axes with the view’s north direction, facilitating plan-view drafting. Question 55. The “Surface Thinning” tool is used to: A) Reduce the number of triangles in a surface for faster performance B) Remove duplicate points from a point cloud C) Decrease the vertical resolution of a surface D) Convert a surface to a mesh Answer: A Explanation: Thinning simplifies the surface mesh by removing unnecessary nodes while preserving overall shape, improving performance. Question 56. In OpenRoads Designer, the “Feature Definition” for an element can include: A) Geometry type only B) Symbology, label style, and data fields C) Only the element’s color
