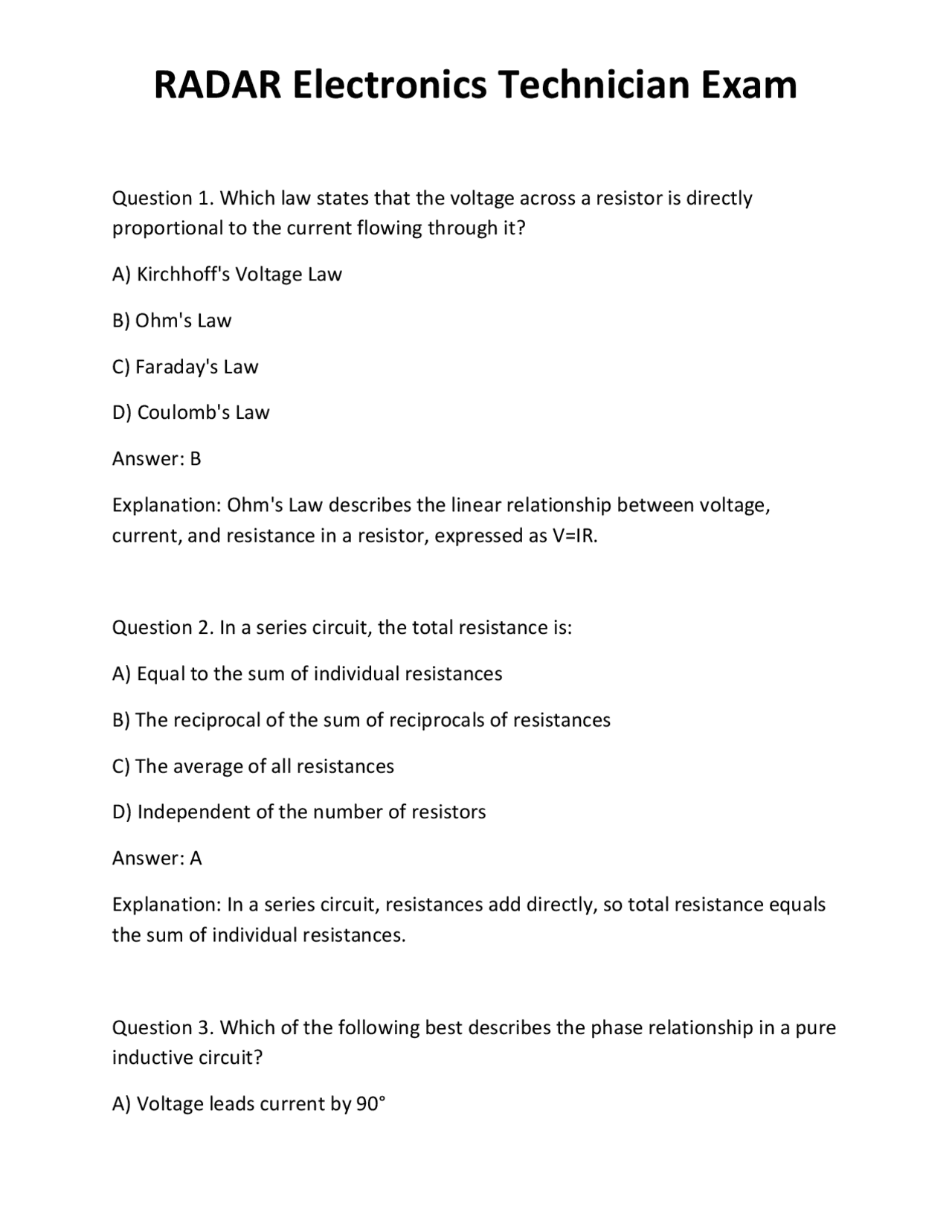

Question 1. Which law states that the voltage across a resistor is directly proportional to the current flowing through it? A) Kirchhoff's Voltage Law B) Ohm's Law C) Faraday's Law D) Coulomb's Law Answer: B Explanation: Ohm's Law describes the linear relationship between voltage, current, and resistance in a resistor, expressed as V=IR. Question 2. In a series circuit, the total resistance is: A) Equal to the sum of individual resistances B) The reciprocal of the sum of reciprocals of resistances C) The average of all resistances D) Independent of the number of resistors Answer: A Explanation: In a series circuit, resistances add directly, so total resistance equals the sum of individual resistances. Question 3. Which of the following best describes the phase relationship in a pure inductive circuit? A) Voltage leads current by 90°
B) Voltage lags current by 90° C) Voltage and current are in phase D) Voltage leads current by 180° Answer: A Explanation: In a purely inductive circuit, the voltage leads the current by 90°, due to the inductor's opposition to changes in current. Question 4. What is the primary difference between AC and DC power? A) AC flows in one direction only, DC alternates direction B) DC flows in one direction only, AC alternates direction C) AC has constant voltage, DC varies with time D) DC operates at higher frequencies than AC Answer: B Explanation: Direct Current (DC) flows unidirectionally, while Alternating Current (AC) periodically reverses direction. Question 5. Which component is used primarily to store energy in an electric field? A) Resistor B) Inductor C) Capacitor
Explanation: Resistors often have color bands that encode their resistance value according to standardized color codes. Question 8. A Zener diode is primarily used for: A) Rectification of AC signals B) Voltage regulation and voltage reference C) Amplification in RF circuits D) Current limiting in power supplies Answer: B Explanation: Zener diodes operate in the breakdown region to maintain a stable voltage, serving as voltage regulators. Question 9. Which transistor configuration is commonly used for voltage amplification? A) Common emitter B) Common base C) Common collector D) Emitter follower Answer: A Explanation: The common emitter configuration is widely used for voltage amplification due to its high gain.
Question 10. An operational amplifier in an inverting configuration produces an output that is: A) Equal to the input voltage B) Inverted and amplified based on the feedback resistor ratio C) Non-inverted and proportional to the input current D) Zero, regardless of the input signal Answer: B Explanation: An inverting op-amp configuration produces an inverted, amplified output determined by the ratio of feedback and input resistors. Question 11. The binary number 1011 is equivalent to which decimal number? A) 11 B) 13 C) 14 D) 15 Answer: B Explanation: 1011 in binary converts to (1×8)+(0×4)+(1×2)+(1×1)=8+0+2+1=11; correction: 1011 is 11, so answer A. (Note: The AI should double-check the options; answer A is correct: 11) Question 12. Which logic gate outputs true only when all inputs are true? A) OR
Answer: B Explanation: The D flip-flop is edge-triggered and changes state on the rising edge of the clock input. Question 15. In an analog-to-digital converter (ADC), increasing the resolution results in: A) Fewer discrete levels and less detail B) More discrete levels and greater detail C) Faster conversion time but lower accuracy D) Only suitable for digital signals Answer: B Explanation: Higher resolution in an ADC means more discrete voltage levels, leading to greater detail and accuracy in the digital representation. Question 16. What is the primary purpose of a transistor in an electronic circuit? A) To store energy B) To amplify or switch electronic signals C) To rectify AC signals D) To filter high-frequency noise Answer: B Explanation: Transistors act as amplifiers or electronic switches, controlling current flow in a circuit.
Question 17. Which amplifier class is characterized by its high efficiency but produces significant distortion? A) Class A B) Class B C) Class C D) Class AB Answer: C Explanation: Class C amplifiers are highly efficient but generate substantial distortion, typically used in RF applications. Question 18. A bridge rectifier converts: A) AC to DC using four diodes arranged in a bridge configuration B) DC to AC with an oscillator circuit C) AC to AC with a transformer D) DC to DC with a voltage regulator Answer: A Explanation: A bridge rectifier uses four diodes in a bridge configuration to convert AC to pulsating DC. Question 19. The primary function of a Zener diode in power supplies is to:
B) Yagi-Uda antenna C) Parabolic reflector antenna D) Patch antenna Answer: C Explanation: Parabolic reflector antennas have high gain and directivity, ideal for long-distance microwave communications. Question 22. In radar systems, the maximum unambiguous range is primarily determined by: A) Pulse width and PRF B) Antenna size C) Receiver noise figure D) Transmitter power Answer: A Explanation: The maximum unambiguous range depends on pulse repetition frequency (PRF) and pulse width, which define the time window for unambiguous measurements. Question 23. Which component is essential in a CW radar to detect moving targets via Doppler shift? A) Magnetron B) Mixer
C) Detector or demodulator D) Antenna Answer: C Explanation: The detector or demodulator processes the received signal to detect Doppler shifts caused by moving targets in CW radar. Question 24. The radar cross section (RCS) of a target refers to: A) The physical size of the target B) The effective reflective area of the target as perceived by the radar C) The distance at which the target can be detected D) The frequency at which the radar operates Answer: B Explanation: RCS quantifies how detectable an object is by radar, representing its effective scattering area. Question 25. Which type of radar is primarily used for weather observation? A) Air traffic control radar B) Weather radar C) Marine navigation radar D) Ground-penetrating radar Answer: B
Question 28. When troubleshooting an electronic circuit, the systematic approach often involves: A) Random checks of components B) Starting from the power supply and moving toward the load C) Replacing all components at once D) Ignoring schematic diagrams Answer: B Explanation: Systematic troubleshooting begins with the power supply and follows signal flow to identify faults efficiently. Question 29. Which tool is essential for safely removing surface-mounted devices (SMDs)? A) Soldering iron B) Desoldering pump or hot air rework station C) Multimeter D) Oscilloscope Answer: B Explanation: Hot air rework stations or desoldering pumps are used to remove SMDs safely without damaging the PCB. Question 30. Electrostatic discharge (ESD) precautions are critical when handling:
A) Power supplies B) Microprocessors and integrated circuits C) Transformers D) Resistors Answer: B Explanation: ESD can damage sensitive electronic components like microprocessors and ICs; proper handling precautions prevent static damage. Question 31. The main purpose of a Smith Chart is to: A) Visualize impedance matching B) Measure voltage and current C) Calculate power losses D) Plot frequency response Answer: A Explanation: The Smith Chart graphically represents complex impedance to aid in impedance matching in RF circuits. Question 32. Which type of antenna is most suitable for portable, short-range communication? A) Parabolic reflector B) Dipole
Answer: B D) Sample a portion of the power traveling through a transmission line Answer: B Explanation: Directional couplers are used to sample signals in microwave systems for measurement or monitoring without interrupting the main signal path. Question 35. Which component is commonly used as a frequency discriminator in FM demodulation? A) Diode B) Tuner coil C) Phase-locked loop circuit D) Frequency-dependent resonant circuit Answer: D Explanation: Frequency discriminators use resonant circuits whose output varies with frequency, enabling FM demodulation. Question 36. Which type of radar is primarily used to measure the velocity of moving targets? A) Pulse radar B) Continuous wave (CW) radar C) MTI radar
D) Monopulse radar Answer: B Explanation: CW radar detects Doppler frequency shifts caused by target movement, making it suitable for velocity measurement. Question 37. When considering a radar system, increasing the transmitter power will generally: A) Decrease the maximum range B) Increase the maximum range C) Have no effect on range D) Decrease the system's sensitivity Answer: B Explanation: Higher transmitter power increases the signal strength, thus extending the radar's detection range. Question 38. The primary purpose of a duplexer in radar systems is to: A) Amplify the received signal B) Isolate the transmitter from the receiver to prevent damage during transmission C) Modulate the radar signal D) Convert RF signals to baseband Answer: B
Question 41. Which instrument is most suitable for analyzing the spectral content of RF signals? A) Multimeter B) Spectrum analyzer C) Oscilloscope D) Signal generator Answer: B Explanation: Spectrum analyzers display the frequency spectrum of signals, making them ideal for spectral analysis. Question 42. Which troubleshooting approach involves testing from the output back toward the input? A) Input-to-output testing B) Half-splitting method C) Top-down method D) Bottom-up method Answer: D Explanation: Testing from the output back toward the input helps isolate faults by narrowing down the problem area.
Question 43. When handling RF components, precautions against ESD are necessary because: A) RF signals cause static B) Static discharge can damage sensitive components C) RF components generate static electricity D) ESD has no effect on RF components Answer: B Explanation: Electrostatic discharge can permanently damage sensitive RF and digital components; ESD precautions prevent this. Question 44. Which tool is best suited for verifying the continuity of a circuit? A) Multimeter set to resistance mode B) Oscilloscope C) Spectrum analyzer D) Signal generator Answer: A Explanation: A multimeter in resistance mode is used to check circuit continuity and identify open circuits. Question 45. The primary function of an inverting amplifier is to: A) Amplify signals without phase change
