Ultimate Exam

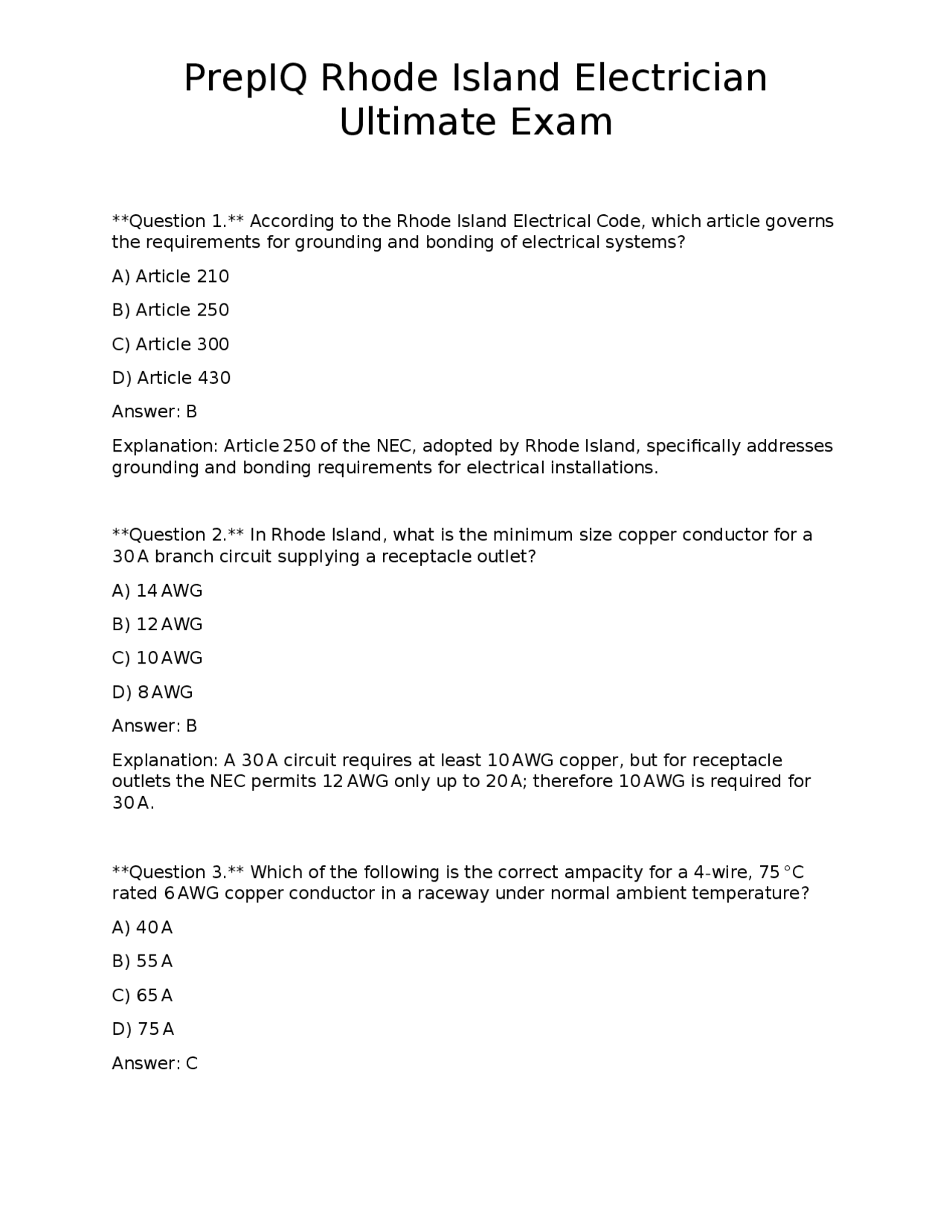

Question 1. According to the Rhode Island Electrical Code, which article governs the requirements for grounding and bonding of electrical systems? A) Article 210 B) Article 250 C) Article 300 D) Article 430 Answer: B Explanation: Article 250 of the NEC, adopted by Rhode Island, specifically addresses grounding and bonding requirements for electrical installations. Question 2. In Rhode Island, what is the minimum size copper conductor for a 30 A branch circuit supplying a receptacle outlet? A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: A 30 A circuit requires at least 10 AWG copper, but for receptacle outlets the NEC permits 12 AWG only up to 20 A; therefore 10 AWG is required for 30 A. Question 3. Which of the following is the correct ampacity for a 4-wire, 75 °C rated 6 AWG copper conductor in a raceway under normal ambient temperature? A) 40 A B) 55 A C) 65 A D) 75 A Answer: C
Ultimate Exam
Explanation: Per NEC Table 310.15(B)(16), a 6 AWG copper conductor with 75 °C rating has an ampacity of 65 A. Question 4. Rhode Island requires a permit for which of the following electrical work? A) Replacing a single light fixture in an existing dwelling B) Installing a new 120 V receptacle in a garage C) Adding a new 240 V dryer circuit in a residential kitchen D) Rewiring a portable generator for personal use Answer: C Explanation: Adding a new 240 V dryer circuit constitutes a new branch circuit and requires a permit in Rhode Island. Question 5. Which NEC article defines the requirements for emergency systems, including illumination and power sources, that are applicable in Rhode Island? A) Article 700 B) Article 690 C) Article 620 D) Article 760 Answer: A Explanation: Article 700 covers emergency systems, including power sources, illumination, and wiring methods for emergency use. Question 6. Under Rhode Island law, a qualified electrician must be present to perform which of the following tasks? A) Testing a battery-operated flashlight B) Connecting a low-voltage landscape lighting controller C) Installing a new service entrance panel D) Replacing a broken toggle switch in a residential home Answer: C
Ultimate Exam
Explanation: NEC 210.11(C)(1) requires at least two 20 A small-appliance branch circuits for countertop receptacles in kitchens. Question 10. What is the minimum distance a receptacle must be installed from a bathtub in a Rhode Island bathroom? A) 12 in (300 mm) B) 18 in (450 mm) C) 24 in (600 mm) D) 30 in (750 mm) Answer: B Explanation: NEC 210.8(A)(3) requires a minimum 18-inch (450 mm) distance from the edge of the bathtub to a receptacle. Question 11. Which of the following devices is required to be GFCI-protected in a Rhode Island unfinished basement? A) A dedicated 240 V water heater circuit B) A 120 V receptacle used for a dehumidifier C) A hard-wired smoke alarm D) A lighting fixture on a dedicated switch Answer: B Explanation: All 120 V receptacles in unfinished basements must be GFCI-protected per NEC 210.8(A)(5). Question 12. Rhode Island adopts which edition of the NEC as its current electrical code? A) 2014 NEC B) 2017 NEC C) 2020 NEC D) 2023 NEC Answer: C
Ultimate Exam
Explanation: Rhode Island has officially adopted the 2020 edition of the NEC as its governing electrical code. Question 13. When installing a 120/240 V single-phase service in a Rhode Island dwelling, how many hot conductors are required? A) One B) Two C) Three D) Four Answer: B Explanation: A single-phase 120/240 V service uses two hot conductors (L1 and L2) and a neutral. Question 14. What is the maximum number of conductors allowed in a single conduit without derating, according to NEC Table 310.15(B)(3)(a)? A) 3 B) 4 C) 6 D) 9 Answer: B Explanation: Up to three current-carrying conductors may be placed in a conduit without any ampacity derating; the fourth conductor triggers a 80 % derating factor. Question 15. A Rhode Island electrician must use a lockout/tagout (LOTO) procedure when performing work on which of the following? A) A portable battery-operated tool B) A 120 V receptacle that is already isolated by a circuit breaker C) A 480 V motor control center that is still energized D) A low-voltage (≤ 30 V) doorbell transformer Answer: C
Ultimate Exam
Explanation: NEC Table 220.42 provides demand factors for dwelling unit feeders, which must be applied to determine the correct feeder size. Question 19. Which type of circuit breaker is required for a 240 V, 30 A dryer circuit in Rhode Island? A) A single-pole breaker B) A double-pole breaker C) A GFCI breaker only D) A tandem breaker Answer: B Explanation: A 240 V dryer circuit requires a 2-pole breaker to simultaneously disconnect both hot conductors. Question 20. In Rhode Island, what is the minimum height for a receptacle installed in a kitchen countertop area? A) 12 in above the countertop B) 15 in above the countertop C) 18 in above the countertop D) No minimum height, as long as it is within reach Answer: D Explanation: NEC 210.52(C) does not specify a minimum height for countertop receptacles; they must be installed so the face is no more than 20 in above the countertop surface. Question 21. Which of the following is the correct method for grounding a metal conduit system in a Rhode Island residential installation? A) Rely on the conduit’s contact with the earth B) Install a grounding electrode conductor (GEC) to the conduit at each outlet box C) Connect a grounding conductor to the conduit at the service equipment only D) No grounding required for metal conduit Answer: C
Ultimate Exam
Explanation: The NEC requires that the grounding conductor be bonded to the metal conduit at the service equipment; additional bonding at each box is not required. Question 22. What is the required AFCI protection for bedroom receptacle circuits in a Rhode Island single-family home? A) No AFCI required B) Combination type AFCI at the panel C) Branch-circuit AFCI only for lighting D) Portable AFCI devices only Answer: B Explanation: NEC 210.12(A) requires combination type AFCI protection for all 120 V, single-phase, 15 A and 20 A branch circuits supplying bedrooms. Question 23. A Rhode Island electrician is installing a 120 V, 20 A receptacle in a wet location outdoors. Which enclosure rating is required? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 6 Answer: C Explanation: Outdoor wet locations require at least a NEMA 4X enclosure to protect against water and corrosion. Question 24. Which NEC article specifies the requirements for wiring methods in hazardous (classified) locations that must be observed in Rhode Island industrial facilities? A) Article 300 B) Article 500 C) Article 600 D) Article 700 Answer: B
Ultimate Exam
Explanation: NEC 210.8(A)(10) requires GFCI protection for receptacles in laundry areas. Question 28. Which of the following statements about the Rhode Island electrical permit process is correct? A) Electrical permits are optional for any work performed by a licensed electrician. B) A permit is required for any new wiring, additions, or alterations to existing circuits. C) Only commercial projects require permits; residential work does not. D) Permits are only needed for work on fire alarm systems. Answer: B Explanation: Rhode Island law requires a permit for any new wiring, additions, or alterations to existing electrical circuits, regardless of the project type. Question 29. What is the required ampacity for a 3-wire, 120/240 V feeder supplying a 100 A subpanel in a Rhode Island dwelling? A) 90 A copper B) 100 A copper C) 125 A copper D) 150 A copper Answer: C Explanation: The feeder must be sized to handle the subpanel’s rating plus a safety margin; 125 A copper (e.g., 1 AWG) is commonly used for a 100 A subpanel. Question 30. In a Rhode Island office building, which type of fire alarm system wiring is required to be installed in a separate raceway from power conductors? A) Conventional fire alarm wiring B) Addressable fire alarm wiring C) Both conventional and addressable wiring D) No separate raceway required Answer: C
Ultimate Exam
Explanation: NEC 760.41 requires fire alarm circuits to be in a separate raceway or have adequate separation from power conductors, regardless of system type. Question 31. Which of the following devices must be installed at the service disconnect in a Rhode Island residential installation? A) A surge protective device (SPD) only B) A main breaker and a grounding electrode conductor (GEC) C) A GFCI breaker for all circuits D) A disconnect switch without a breaker Answer: B Explanation: The service disconnect must include a main breaker and a grounding electrode conductor to bond the system to the earth. Question 32. Rhode Island follows the NEC requirement that receptacles in which of the following locations must be tamper-resistant (TR)? A) Garages B) Bedrooms C) Kitchens D) All of the above Answer: D Explanation: NEC 406.12 requires tamper-resistant receptacles in all areas of dwelling units, including kitchens, garages, and bedrooms. Question 33. When installing a 120 V, 15 A receptacle in a Rhode Island hotel room, what is the required spacing between the receptacle and the edge of a bathtub in the adjoining bathroom? A) 12 in B) 18 in C) 24 in D) No spacing required because the receptacle is in a different room Answer: D
Ultimate Exam
Explanation: Commercial electric ranges typically require a 50 A branch circuit per NEC 210.21(B)(2). Question 37. Which of the following is the correct method for bonding a metal water pipe to the grounding electrode system in a Rhode Island residence? A) Use a grounding clamp at any accessible point on the pipe B) Wrap the pipe with grounding wire and tape it in place C) No bonding required if the pipe is plastic D) Connect the pipe directly to the neutral bus bar Answer: A Explanation: NEC 250.104(A)(1) requires a grounding clamp to bond metal water piping systems to the grounding electrode. Question 38. For a Rhode Island multi-family dwelling, what is the maximum number of receptacles permitted on a single 15 A branch circuit? A) 8 B) 10 C) 12 D) No specific limit, but load calculations must be satisfied Answer: D Explanation: NEC does not set a numeric limit; the circuit must be sized to handle the calculated load of the connected receptacles. Question 39. When installing a new lighting circuit in a Rhode Island office, what is the minimum ampacity of the conduit fill for three 12 AWG THHN conductors? A) 40 % B) 53 % C) 60 % D) 75 % Answer: B
Ultimate Exam
Explanation: NEC Table 1 of Chapter 9 allows a maximum conduit fill of 53 % for three conductors. Question 40. Which type of overcurrent protective device is required for a 120 V, 20 A branch circuit supplying a bathroom vanity light in Rhode Island? A) No overcurrent device required B) A 15 A breaker C) A 20 A breaker D) A 30 A breaker Answer: C Explanation: The branch circuit must be protected by a breaker rated at or above the circuit’s ampacity; a 20 A breaker is appropriate. Question 41. Rhode Island requires that all receptacles installed in outdoor locations be protected by which of the following? A) A weather-proof cover only B) A GFCI device only C) Both a weather-proof cover and GFCI protection D) No special protection required Answer: C Explanation: NEC 210.8(A)(3) requires GFCI protection, and outdoor receptacles must also have weather-proof (in-use) covers. Question 42. In a Rhode Island residential garage, which of the following circuits must be GFCI protected? A) A dedicated 240 V circuit for an electric vehicle charger B) A 120 V receptacle used for a power tool C) A 120 V lighting circuit only D) A dedicated circuit for a refrigerator Answer: B
Ultimate Exam
Explanation: NEC 200.6 requires clear identification of the feeder’s purpose and rating. Question 46. In a Rhode Island office, a 30 A circuit supplies a 120 V air-conditioning unit. Which type of breaker must be used at the panel? A) A standard thermal-magnetic breaker B) A GFCI breaker C) An AFCI breaker D) A hydraulic magnetic breaker Answer: A Explanation: Standard thermal-magnetic breakers are sufficient for non-hazardous, non-residential air-conditioning circuits. Question 47. Which NEC article outlines the requirements for installing receptacles in swimming pools, a topic also regulated in Rhode Island? A) Article 300 B) Article 680 C) Article 690 D) Article 700 Answer: B Explanation: Article 680 governs swimming pool, spa, and hot tub installations, including receptacle requirements. Question 48. When installing a 120 V, 15 A receptacle in a Rhode Island kitchen, how far must the receptacle be from the edge of a sink? A) 6 in B) 12 in C) 18 in D) No specific distance required Answer: B
Ultimate Exam
Explanation: NEC 210.52(C)(3) requires receptacles to be installed not more than 12 in above the countertop, which effectively places them at least 12 in from the sink edge. Question 49. In a Rhode Island commercial building, what is the required fire-resistance rating for a raceway that passes through a fire-rated floor/ceiling assembly? A) No rating needed if the raceway is metal B) Same rating as the assembly (e.g., 2-hour) C) 1-hour rating only D) 3-hour rating only Answer: B Explanation: NEC 300.21 requires the raceway to maintain the fire-rating of the assembly it penetrates. Question 50. Which of the following is the proper method to terminate a grounding electrode conductor to a concrete-encased electrode (Ufer) in Rhode Island? A) Clamp directly to the rebar using a listed grounding clamp B) Wrap the conductor around the rebar and tie with wire ties C) Connect using a screw-type terminal block D) No connection required if the rebar is exposed Answer: A Explanation: NEC 250.68(A) requires a listed grounding clamp to securely attach the GEC to the concrete-encased electrode. Question 51. For a Rhode Island residential installation, which type of conduit is permitted for use in a wet location above ground? A) EMT (Electrical Metallic Tubing) without any coating B) Rigid Metal Conduit (RMC) only C) PVC conduit D) Flexible Metal Conduit (FMC) only
Ultimate Exam
Answer: C Explanation: NEC 200.6 requires labeling that identifies both the circuit’s purpose and its voltage/ampacity. Question 55. When installing a new 120/240 V service in a Rhode Island single-family home, how many grounding electrode conductors are permitted? A) Only one GEC is allowed B) Two GECs may be used, each bonded to a different electrode C) Unlimited GECs may be installed D) No GEC required if the service is grounded at the utility transformer Answer: A Explanation: NEC 250.53(A)(1) permits only one grounding electrode conductor for a single service. Question 56. Which NEC article governs the installation of wiring methods for fire alarm circuits that must be complied with in Rhode Island? A) Article 300 B) Article 760 C) Article 770 D) Article 800 Answer: B Explanation: Article 760 provides the wiring method requirements for fire alarm systems. Question 57. In a Rhode Island commercial building, a 120 V, 20 A receptacle is installed in a walk-in cooler. What protection is required? A) No special protection required B) GFCI protection only C) AFCI protection only D) Both GFCI and AFCI protection Answer: B
Ultimate Exam
Explanation: NEC 210.8(A)(6) requires GFCI protection for receptacles in walk-in coolers and freezers. Question 58. Which of the following is the correct practice for installing a disconnecting means for a standby generator in a Rhode Island residence? A) Install a manual disconnect within 5 ft of the generator B) Use an automatic transfer switch (ATS) without a manual disconnect C) No disconnect required if the generator is portable D) Install a fused disconnect located at the main service panel only Answer: A Explanation: NEC 702.12 requires a readily accessible manual disconnect within 5 ft of the generator for standby systems. Question 59. For a Rhode Island multi-family dwelling, which of the following circuits must be GFCI protected? A) All 120 V receptacles in living rooms B) All 240 V receptacles in laundry rooms C) All 120 V receptacles in bathrooms and kitchens D) Only receptacles serving outdoor lighting Answer: C Explanation: NEC 210.8(A) requires GFCI protection for 120 V receptacles in bathrooms and kitchens of dwelling units. Question 60. In a Rhode Island commercial office, which type of conduit is required for a fire-rated vertical riser that penetrates a 2-hour fire wall? A) EMT B) RMC with a 2-hour fire-rated sleeve C) PVC conduit only D) No conduit required if the cables are fire-rated Answer: B
