Ultimate Exam

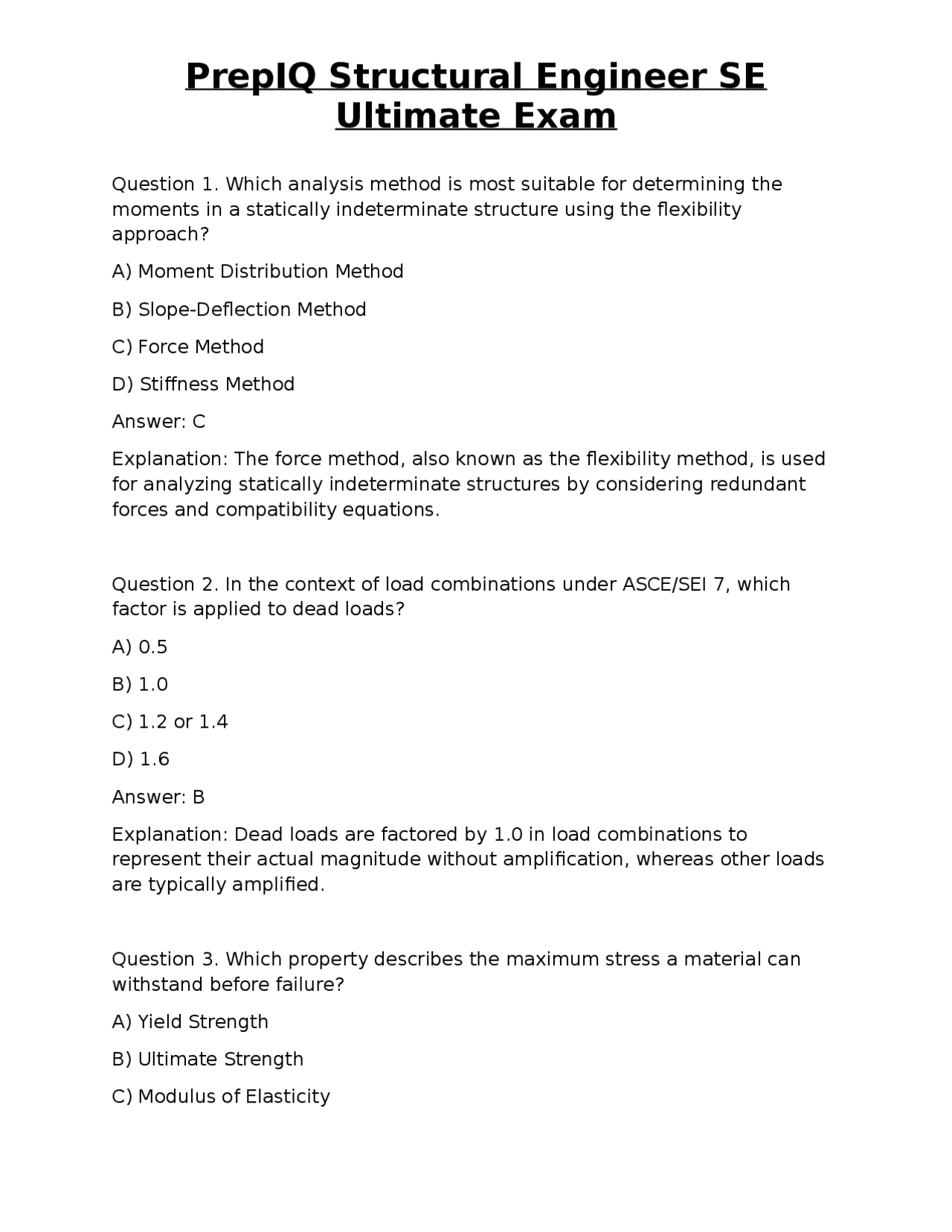

Question 1. Which analysis method is most suitable for determining the moments in a statically indeterminate structure using the flexibility approach? A) Moment Distribution Method B) Slope-Deflection Method C) Force Method D) Stiffness Method Answer: C Explanation: The force method, also known as the flexibility method, is used for analyzing statically indeterminate structures by considering redundant forces and compatibility equations. Question 2. In the context of load combinations under ASCE/SEI 7, which factor is applied to dead loads? A) 0. B) 1. C) 1.2 or 1. D) 1. Answer: B Explanation: Dead loads are factored by 1.0 in load combinations to represent their actual magnitude without amplification, whereas other loads are typically amplified. Question 3. Which property describes the maximum stress a material can withstand before failure? A) Yield Strength B) Ultimate Strength C) Modulus of Elasticity
Ultimate Exam
D) Creep Strength Answer: B Explanation: The ultimate strength is the maximum stress a material can sustain before failure, which is critical in designing for safety margins. Question 4. According to AISC 360, what is the primary purpose of a bolted slip-critical connection? A) To allow movement under load B) To prevent slip between connected parts C) To act as a shear connector only D) To facilitate easy disassembly Answer: B Explanation: Slip-critical connections are designed to prevent slip between connected elements by ensuring sufficient bolt tension and friction. Question 5. Which code provision governs the maximum reinforcement ratio in reinforced concrete beams? A) ACI 318 B) AISC 360 C) ASCE 7 D) TMS 402 Answer: A Explanation: ACI 318 specifies limits on reinforcement ratios to ensure ductility and prevent brittle failure. Question 6. When designing a reinforced concrete column for combined axial load and biaxial bending, which diagram is used? A) Moment-Curvature Diagram
Ultimate Exam
Question 9. Which wind load component is most affected by topographic features? A) Basic Wind Speed B) Exposure Category C) Topographic Factor D) Building Height Factor Answer: C Explanation: Topographic features influence wind speeds locally, requiring adjustments via the topographic factor to account for increased wind pressures. Question 10. In seismic design, what does the coefficient R represent? A) Structural stiffness factor B) Response modification coefficient C) Reinforcement ratio D) Response spectrum factor Answer: B Explanation: R is the response modification coefficient, representing the structure's ductility and overstrength, used to reduce design forces in seismic design. Question 11. Which material property is most relevant for assessing creep in concrete? A) Compressive Strength B) Modulus of Elasticity C) Shrinkage Coefficient D) Time-dependent Strain under sustained load Answer: D
Ultimate Exam
Explanation: Creep involves the time-dependent strain in concrete under sustained load, affecting long-term deformation. Question 12. Which structural system is most suitable for resisting lateral loads in a high-rise building? A) Moment Frames B) Shear Walls C) Braced Frames D) All of the above Answer: D Explanation: All these systems—moment frames, shear walls, and braced frames—are used to resist lateral loads, often in combination for optimal performance. Question 13. Which parameter is used to determine the effective length factor ($K$) for a compression member? A) Support conditions and end restraints B) Material strength C) Member width D) Load type Answer: A Explanation: The effective length factor $K$ depends on support conditions and end restraints, influencing buckling capacity. Question 14. In steel design, what is the purpose of lateral-torsional buckling (LTB) checks? A) To verify shear capacity B) To prevent excessive deflections C) To ensure beam stability under bending
Ultimate Exam
B) To allow movement and reduce cracking C) To connect masonry wythes D) To improve shear capacity Answer: B Explanation: Control joints accommodate expansion and contraction, reducing stress and cracking in masonry walls. Question 18. Which material is most susceptible to thermal cracking in structural applications? A) Steel B) Concrete C) Wood D) Masonry Answer: B Explanation: Concrete is prone to thermal cracking due to temperature variations causing expansion and contraction. Question 19. In geotechnical engineering, what does a high factor of safety in soil bearing capacity indicate? A) Greater likelihood of failure B) Increased reliability of the soil strength estimate C) Reduced foundation size D) Decreased settlement potential Answer: B Explanation: A high factor of safety indicates a conservative estimate, increasing confidence that the soil can support the load safely.
Ultimate Exam
Question 20. When calculating wind uplift pressure on a roof, which of the following factors is most critical? A) Live load B) Wind speed and exposure C) Dead load D) Seismic activity Answer: B Explanation: Wind uplift pressure depends primarily on wind speed, exposure category, and topography affecting wind flow. Question 21. Which analysis method is typically used for complex seismic response evaluations of irregular structures? A) Equivalent Static Method B) Response Spectrum Analysis C) Modal Response Spectrum Analysis (MRSA) D) Force Method Answer: C Explanation: MRSA accounts for multiple modes of vibration, making it suitable for irregular and complex structures. Question 22. In steel connection design, what distinguishes a seated beam connection from an eccentric connection? A) Seated connections are pinned; eccentric are rigid B) Seated connections transfer loads directly to the supporting member; eccentric connections introduce bending moments C) Eccentric connections are bolted; seated are welded D) Seated connections are used only in tension; eccentric only in compression Answer: B
Ultimate Exam
D) To prevent out-of-plane failure Answer: B Explanation: Collectors transfer lateral forces from diaphragms or vertical elements to shear walls or frames, ensuring load transfer during seismic events. Question 26. In the analysis of indeterminate structures, what is the primary advantage of the stiffness method? A) Simplicity in calculations for statically determinate systems B) Ability to handle complex boundary conditions and material nonlinearities C) Only suitable for small structures D) It ignores material properties Answer: B Explanation: The stiffness method efficiently handles complex boundary conditions and nonlinearities, making it suitable for indeterminate systems. Question 27. Which steel section is most commonly used as a tension member in truss connections? A) I-Beam B) Channel C) Structural Threaded Rods or Wires D) Angle Answer: C Explanation: Wires or threaded rods are often used as tension members due to their high tensile strength and ease of connection. Question 28. What is the significance of the effective prestress force in post- tensioned concrete? A) It determines the initial cracking load
Ultimate Exam
B) It compensates for losses over time, ensuring serviceability and strength C) It is only relevant during construction D) It does not affect the final member capacity Answer: B Explanation: Effective prestress accounts for losses such as creep and relaxation, ensuring the desired initial prestress level for performance. Question 29. In lateral load analysis, what is the purpose of a diaphragm? A) To resist shear forces only B) To transfer lateral loads to vertical resisting elements C) To support vertical loads only D) To provide thermal insulation Answer: B Explanation: Diaphragms transfer lateral forces from floors or roofs to vertical resisting elements like shear walls or frames. Question 30. Which parameter is most critical in determining the seismic response modification coefficient (R)? A) Structural ductility and energy dissipation capacity B) Material strengths C) Structural height D) Foundation type Answer: A Explanation: R reflects the structure's ductility and energy dissipation, influencing how much seismic force reduction is permitted. Question 31. In a moment-resisting frame, what is the primary design concern?
Ultimate Exam
Question 34. Which material failure mode is most critical to evaluate in high- strength steel at elevated temperatures? A) Yielding B) Buckling C) Loss of tensile strength due to thermal softening D) Fracture fatigue Answer: C Explanation: Elevated temperatures reduce steel's tensile strength, risking loss of load-carrying capacity during fire exposure. Question 35. In the context of seismic design, what is the purpose of detailing for ductility? A) To increase strength at the expense of flexibility B) To allow energy dissipation and prevent brittle failure during earthquakes C) To reduce construction costs D) To enhance fire resistance Answer: B Explanation: Ductile detailing enables structures to deform plastically, dissipating seismic energy and preventing sudden failure. Question 36. What is a key advantage of using composite steel-concrete beams? A) Reduced weight compared to concrete alone B) Increased bending capacity and stiffness C) Simplified construction with no need for reinforcement D) Better fire resistance than concrete alone Answer: B
Ultimate Exam
Explanation: Composite beams combine steel and concrete to enhance load- carrying capacity and stiffness efficiently. Question 37. Which parameter influences the calculation of the fundamental period of a structure? A) Material strengths B) Structural height and stiffness distribution C) Live load magnitude D) Foundation type Answer: B Explanation: The period depends on the structure's height and stiffness; taller and less stiff structures have longer periods. Question 38. In the design of a reinforced concrete flat slab, what is the primary concern at column locations? A) Shear strength B) Punching shear capacity C) Flexural capacity of the slab D) Torsion resistance Answer: B Explanation: Flat slabs are susceptible to punching shear at columns, requiring checks to ensure capacity is adequate. Question 39. Which of the following accurately describes the purpose of a moment connection in steel structures? A) To allow rotation and accommodate thermal movements B) To transfer bending moments and provide rigidity between members C) To act as a simple pin joint
Ultimate Exam
B) To increase compressive strength C) To prevent shear failure and control cracks D) To enhance ductility Answer: C Explanation: Stirrups provide shear capacity and prevent brittle shear failure by resisting diagonal tension cracks. Question 43. In steel design, what is the purpose of a weld size check? A) To ensure the weld is capable of transmitting the required forces without failure B) To verify the aesthetic quality of the weld C) To determine the weld's fire resistance D) To prevent corrosion Answer: A Explanation: Weld size checks ensure the weld can safely carry the design forces, preventing failure at connections. Question 44. Which structural component is most critical for controlling deflections in long-span bridges? A) Piers B) Deck slabs C) Continuous girders or trusses D) Foundation piles Answer: C Explanation: Continuous girders and trusses provide the necessary stiffness to limit deflections in long-span bridges.
Ultimate Exam
Question 45. Which factor most influences the fire resistance of a steel member? A) Cross-sectional shape B) Protective coating or insulation C) Member length D) Type of steel alloy Answer: B Explanation: Protective coatings or insulation are critical for maintaining steel's strength during fire exposure. Question 46. In the context of foundation design, what does the term 'settlement' refer to? A) The maximum load a foundation can carry B) The downward movement of a foundation under load C) The lateral displacement of soil D) The expansion of soil due to moisture Answer: B Explanation: Settlement is the vertical movement of the foundation caused by soil compression under load. Question 47. Which property of timber is most affected by moisture content? A) Modulus of Elasticity B) Shear Strength C) Volume and dimensional stability D) Tensile strength Answer: C Explanation: Moisture content significantly influences timber's volume, leading to swelling or shrinking.
Ultimate Exam
Answer: B Explanation: Overstrength refers to the inherent capacity of a structure exceeding its design level, providing additional safety during seismic events. Question 51. Which method is most appropriate for evaluating the dynamic behavior of a tall building under wind loads? A) Static analysis B) Time-history analysis C) Modal response spectrum analysis D) P-Delta analysis Answer: C Explanation: Modal response spectrum analysis considers the building's dynamic modes, making it suitable for tall structures under wind. Question 52. In reinforced concrete design, what is the purpose of shear stirrups? A) To resist bending moments B) To control shear failure and crack development C) To transfer axial loads D) To improve ductility in compression Answer: B Explanation: Shear stirrups are placed to resist shear forces and prevent brittle shear failure. Question 53. Which property of steel is most relevant for resisting buckling in compression members? A) Yield Strength B) Modulus of Elasticity
Ultimate Exam
C) Ductility D) Critical Buckling Load Answer: D Explanation: The critical buckling load determines the maximum axial load a steel member can carry before buckling. Question 54. What is the primary function of a foundation pile in geotechnical engineering? A) To resist lateral earth pressures B) To transfer loads from the structure to deeper, stable soil or rock C) To serve as a water drainage conduit D) To act as a retaining wall element Answer: B Explanation: Piles transfer structural loads to deeper, more competent soil or rock layers, especially when surface soils are weak. Question 55. Which of the following is most critical in the design of a masonry veneer wall? A) In-plane shear capacity B) Out-of-plane stability and lateral support C) Flexural strength of mortar joints D) Thermal insulation properties Answer: B Explanation: Out-of-plane stability is crucial for masonry veneer walls to prevent buckling or collapse under wind or seismic loads. Question 56. In seismic design, what does the term 'response modification coefficient' (R) account for?
