Practice Exam

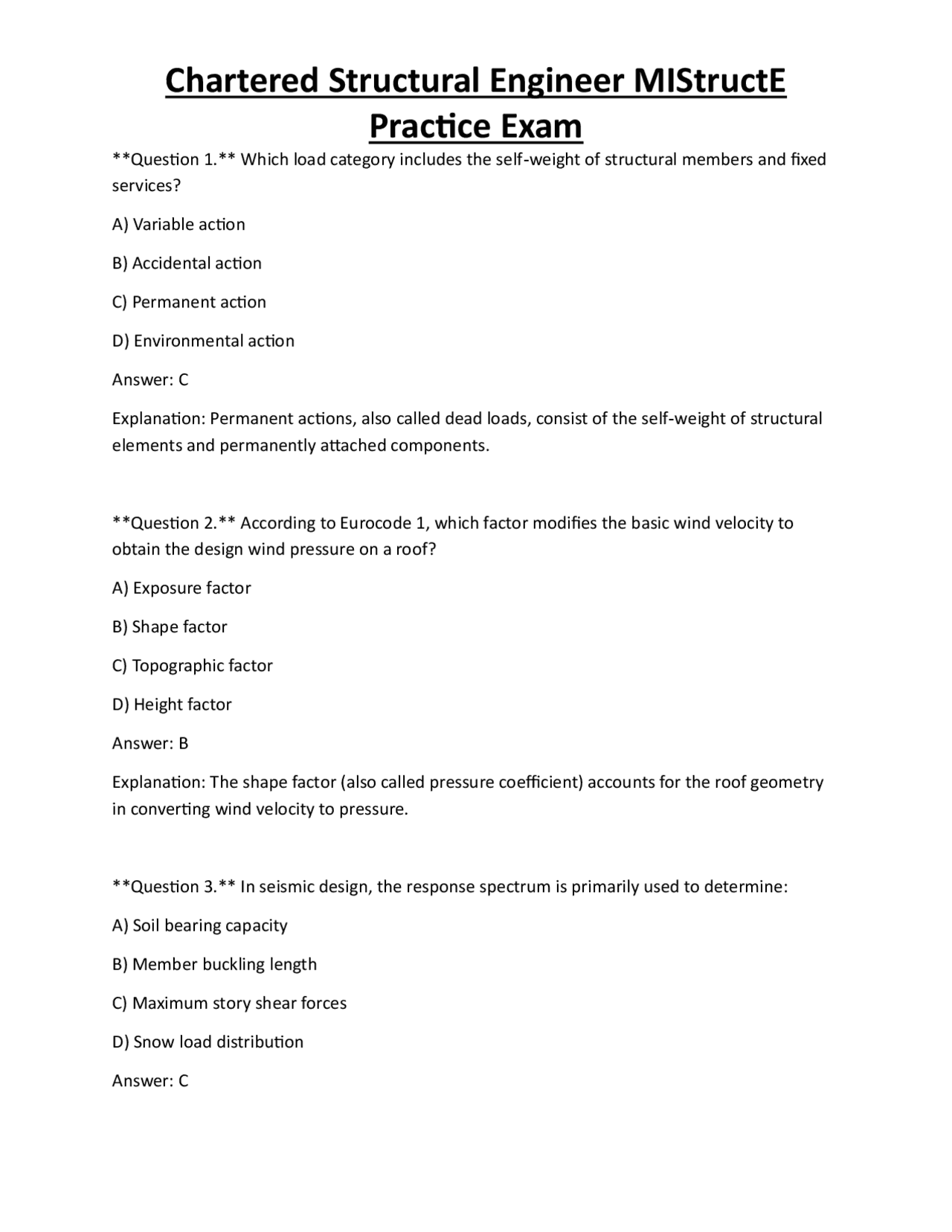

Question 1. Which load category includes the self‑weight of structural members and fixed services? A) Variable action B) Accidental action C) Permanent action D) Environmental action Answer: C Explanation: Permanent actions, also called dead loads, consist of the self‑weight of structural elements and permanently attached components. Question 2. According to Eurocode 1, which factor modifies the basic wind velocity to obtain the design wind pressure on a roof? A) Exposure factor B) Shape factor C) Topographic factor D) Height factor Answer: B Explanation: The shape factor (also called pressure coefficient) accounts for the roof geometry in converting wind velocity to pressure. Question 3. In seismic design, the response spectrum is primarily used to determine: A) Soil bearing capacity B) Member buckling length C) Maximum story shear forces D) Snow load distribution Answer: C
Practice Exam
Explanation: The response spectrum provides the peak accelerations for different natural periods, which are used to calculate story shear forces. Question 4. Which property of concrete governs its time‑dependent deformation under sustained load? A) Modulus of elasticity B) Creep coefficient C) Tensile strength D) Shrinkage strain Answer: B Explanation: The creep coefficient quantifies the additional strain that develops in concrete under long‑term loading. Question 5. The critical stress for elastic buckling of a pinned‑pinned steel column is given by Euler’s formula. Which term represents the effective length factor for this condition? A) K = 0. B) K = 1. C) K = 2. D) K = 0. Answer: B Explanation: For pinned‑pinned ends, the effective length factor K equals 1.0, giving the column’s effective length equal to its actual length. Question 6. In a reinforced concrete beam, the design shear force is resisted by: A) Bending reinforcement only B) Stirrups and concrete shear capacity C) Compression reinforcement only
Practice Exam
B) Standard Penetration Test (SPT) C) Plate Load Test D) Vane Shear Test Answer: B Explanation: The SPT blow count (N‑value) indicates the soil’s resistance to penetration and is used to infer density. Question 10. For a cantilever retaining wall, the active earth pressure coefficient K_a is calculated using: A) Rankine theory only B) Coulomb theory only C) Both Rankine and Coulomb, depending on wall friction D) Neither; a fixed value is used Answer: C Explanation: K_a can be derived from Rankine (zero wall friction) or Coulomb (including wall friction) theories. Question 11. In a moment‑distribution analysis, the distribution factor for a member is based on: A) Member length only B) Relative stiffness of the member to adjacent members C) Applied load magnitude D) Support settlement magnitude Answer: B Explanation: The distribution factor is the ratio of a member’s stiffness to the sum of stiffnesses at the joint.
Practice Exam
Question 12. The first natural frequency of a single‑degree‑of‑freedom system is proportional to the square root of: A) Mass divided by stiffness B) Stiffness divided by mass C) Damping ratio D) Load amplitude Answer: B Explanation: (f_1 = \frac{1}{2\pi}\sqrt{k/m}); thus frequency increases with stiffness and decreases with mass. Question 13. In a steel moment‑resisting frame, a bolted connection classified as slip‑critical is primarily governed by: A) Bearing stress on the bolt hole B) Friction between the faying surfaces C) Weld strength D) Shear deformation of the bolt shank Answer: B Explanation: Slip‑critical connections rely on friction generated by bolt tension to resist shear. Question 14. The Poisson’s ratio for most structural steels is approximately: A) 0. B) 0. C) 0. D) 0. Answer: C
Practice Exam
C) Cubic shape functions D) Constant shape functions Answer: B Explanation: Quadratic shape functions provide sufficient curvature representation for bending behavior in thin plate elements. Question 18. The P‑Δ effect in a multi‑storey frame primarily influences which design check? A) Foundation bearing capacity B) Column axial load capacity C) Secondary moment due to lateral deflection D) Shear wall shear capacity Answer: C Explanation: P‑Δ (axial load × lateral displacement) generates additional moments that must be checked for stability. Question 19. Which of the following is a typical load factor for live loads in the UK National Annex to Eurocode 1? A) 0. B) 1. C) 1. D) 2. Answer: C Explanation: The partial factor for imposed (live) loads is commonly taken as 1.5 to account for variability. Question 20. In a steel column, the slenderness ratio λ is defined as:
Practice Exam
A) Effective length divided by radius of gyration B) Column depth divided by width C) Yield stress divided by elastic modulus D) Length divided by cross‑sectional area Answer: A Explanation: λ = (l_e / r); it quantifies the column’s propensity to buckle. Question 21. The design of a reinforced concrete shear wall for in‑plane shear primarily uses which parameter? A) Flexural reinforcement ratio B) Wall thickness only C) Shear reinforcement ratio (stirrups) D) Concrete compressive strength only Answer: C Explanation: Shear walls are provided with vertical and horizontal reinforcement (often ties or stirrups) to resist in‑plane shear. Question 22. When assessing the durability of concrete in a marine environment, which factor is most critical? A) Aggregate size B) Water‑cement ratio C) Curing temperature D) Formwork material Answer: B Explanation: A lower water‑cement ratio reduces permeability, enhancing resistance to chloride ingress in marine conditions.
Practice Exam
Answer: B Explanation: (K_a = \tan^2(45° - φ/2) = \tan^2(30°) ≈ 0.33). Question 26. In a timber‑frame shear wall, the primary load‑resisting mechanism is provided by: A) Diagonal steel plates B) Shear studs or nailed connections C) Concrete infill panels D) Post‑tensioned cables Answer: B Explanation: Shear studs (or nailed/bolted connections) transfer shear between studs and sheathing, forming the wall’s shear mechanism. Question 27. The term “ductility” in seismic design refers to a structure’s ability to: A) Remain perfectly elastic under any load B) Sustain large deformations without loss of load‑carrying capacity C) Reduce its weight during an earthquake D) Increase its stiffness after a seismic event Answer: B Explanation: Ductility is the capacity to undergo plastic deformations while maintaining strength, essential for energy dissipation in earthquakes. Question 28. Which of the following is an example of an accidental action considered in structural design? A) Wind pressure on a façade B) Vehicle impact on a bridge pier
Practice Exam
C) Snow load on a roof D) Live load in a office floor Answer: B Explanation: Vehicle impact is classified as an accidental action, requiring robustness checks for potential collision effects. Question 29. In a reinforced concrete column subjected to combined axial load and bending, the interaction diagram is used to: A) Determine required concrete cover B) Select appropriate anchorage length for reinforcement C) Verify that the combination of loads lies within the permissible region D) Compute the column’s natural frequency Answer: C Explanation: The interaction diagram defines the safe domain for simultaneous axial and bending stresses. Question 30. The term “serviceability limit state” (SLS) primarily ensures that: A) Structural elements do not collapse under ultimate loads B) The structure remains functional and comfortable for occupants C) The foundation does not exceed bearing capacity D) The material does not exceed its yield stress Answer: B Explanation: SLS controls deflections, vibrations, and crack widths to maintain usability and comfort. Question 31. In a finite element model of a floor slab, a “shell” element is preferred over a “solid” element because:
Practice Exam
Question 34. In bridge design, the AASHTO LRFD specification defines the design truck load as: A) A single 18‑ton axle B) A 9 kN/m² distributed load C) A 32 kN axle load spaced 2.13 m apart D) A 150 kN wheel load on each side Answer: C Explanation: The standard AASHTO design truck has a 32 kN (≈ 7 ton) axle load with a spacing of 2.13 m. Question 35. The term “robustness” in structural design is most closely associated with: A) Maximizing material strength B) Minimizing construction cost C) Preventing disproportionate collapse after localized damage D) Achieving the highest possible natural frequency Answer: C Explanation: Robustness ensures that failure of a small portion does not lead to progressive or disproportionate collapse. Question 36. In a steel beam, the lateral‑torsional buckling strength is primarily influenced by: A) Web thickness only B) Flange width, thickness, and unbraced length C) Bolt grade used in connections D) Concrete cover on the beam
Practice Exam
Answer: B Explanation: Lateral‑torsional buckling depends on flange dimensions, stiffness, and the length of the unbraced segment. Question 37. Which of the following is NOT a typical consideration in a construction phase health‑and‑safety plan? A) Risk assessment for temporary works B) Prevention through Design (PtD) measures C) Long‑term operational maintenance strategy D) Coordination of site traffic and pedestrian routes Answer: C Explanation: Long‑term maintenance relates to the operational phase, not directly to construction‑phase H&S planning. Question 38. The “Coulomb” earth pressure theory differs from the “Rankine” theory by: A) Assuming a smooth backfill surface B) Including wall friction and backfill inclination C) Ignoring soil cohesion D) Using a fixed pressure coefficient of 0. Answer: B Explanation: Coulomb theory incorporates both wall friction and backfill slope, whereas Rankine assumes a frictionless, horizontal backfill. Question 39. In a reinforced concrete slab, the minimum reinforcement ratio for flexure is prescribed to avoid: A) Excessive cracking B) Excessive deflection
Practice Exam
B) Increase the moment capacity of the connection C) Allow for slip‑critical behavior D) Decrease the overall weight of the connection Answer: B Explanation: Stiffened end plates provide additional resistance to rotation, enhancing the moment capacity. Question 43. The “effective length factor” K for a column with one end fixed and the other end pinned is: A) 0. B) 0. C) 1. D) 2. Answer: B Explanation: For a fixed‑pinned column, K ≈ 0.7, reflecting a reduced effective length compared to a pinned‑pinned column. Question 44. Which of the following loads is typically NOT considered in the design of a residential roof? A) Snow load B) Wind uplift C) Live load from occupants D) Self‑weight of the roof structure Answer: C Explanation: Live loads from occupants are applied to floors, not directly to the roof.
Practice Exam
Question 45. In a reinforced concrete column, the “spiral reinforcement” is primarily intended to: A) Increase axial load capacity only B) Provide confinement to improve ductility and strength C) Reduce the required concrete cover D) Transfer shear between adjacent columns Answer: B Explanation: Spiral (or hoop) reinforcement confines the concrete core, enhancing both strength and ductility. Question 46. The term “service life” of a structure most directly relates to: A) The period until the first major repair is required B) The total time the structure remains safe and functional for its intended use C) The time taken to construct the structure D) The duration of the design calculations Answer: B Explanation: Service life defines the expected period during which the structure performs safely without major intervention. Question 47. In a concrete mix design, increasing the water‑cement ratio will: A) Increase compressive strength B) Decrease workability C) Increase permeability and reduce durability D) Reduce shrinkage Answer: C
Practice Exam
D) At the web‑flange junction Answer: C Explanation: In plastic analysis, the neutral axis is positioned such that total compressive force equals total tensile force. Question 51. The “shear lag” effect in wide flange beams is most pronounced when: A) The beam is simply supported B) The flanges are thick and closely spaced C) The beam carries a uniform load over its entire length D) The load is applied only to the top flange (partial shear) Answer: D Explanation: Partial shear (load on one flange) leads to non‑uniform stress distribution, causing shear lag. Question 52. In a reinforced concrete shear wall, the “diagonal tension reinforcement” is primarily used to: A) Increase axial load capacity B) Resist out‑of‑plane buckling C) Carry diagonal tension forces due to shear D) Provide fire protection Answer: C Explanation: Diagonal tension bars intercept shear cracks and carry the tension component of shear forces. Question 53. Which of the following statements about “fatigue” in steel structures is correct? A) Fatigue strength is independent of stress concentration
Practice Exam
B) Fatigue failure occurs at stresses well below the yield stress after many cycles C) Fatigue is only a concern for welded connections D) Fatigue can be ignored if the structure is designed for ultimate limit state Answer: B Explanation: Fatigue damage accumulates under cyclic loading, leading to failure at stresses below yield after many repetitions. Question 54. The “CFR” (Code of Federal Regulations) governing construction safety in the United States is: A) Part 23 – Aviation Safety B) Part 10 – Occupational Safety and Health (OSHA) C) Part 34 – Environmental Protection D) Part 50 – Nuclear Safety Answer: B Explanation: OSHA regulations (29 CFR Part 10) set standards for construction safety. Question 55. In a dynamic analysis of a building, the “modal participation factor” quantifies: A) The contribution of each mode to the total mass B) The relative importance of each mode in the response to a given load pattern C) The damping ratio of each mode D) The stiffness reduction due to cracking Answer: B Explanation: Participation factors weight the influence of each mode on the overall structural response.
