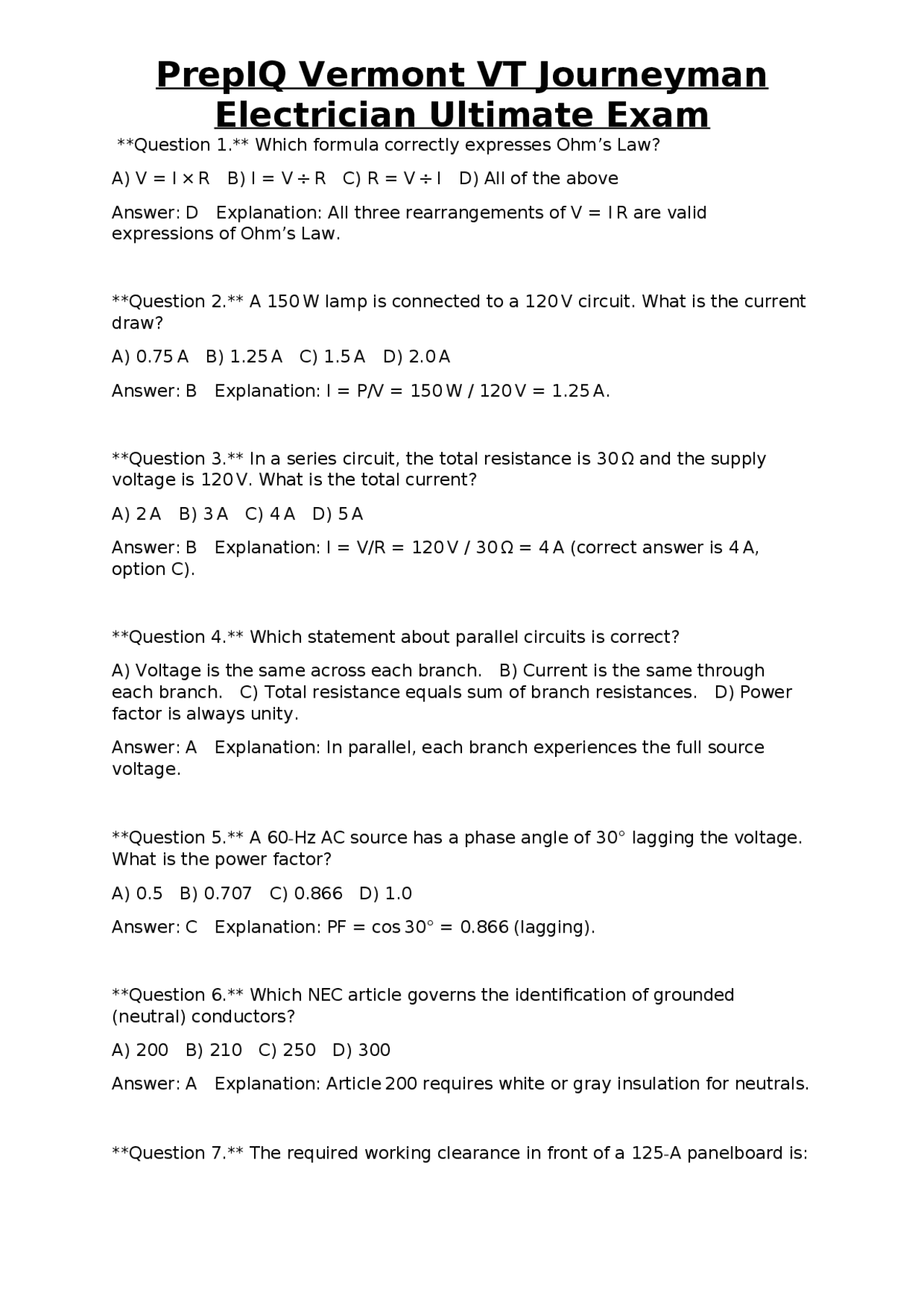

Electrician Ultimate Exam
Question 1. Which formula correctly expresses Ohm’s Law? A) V = I × R B) I = V ÷ R C) R = V ÷ I D) All of the above Answer: D Explanation: All three rearrangements of V = I R are valid expressions of Ohm’s Law. Question 2. A 150 W lamp is connected to a 120 V circuit. What is the current draw? A) 0.75 A B) 1.25 A C) 1.5 A D) 2.0 A Answer: B Explanation: I = P/V = 150 W / 120 V = 1.25 A. Question 3. In a series circuit, the total resistance is 30 Ω and the supply voltage is 120 V. What is the total current? A) 2 A B) 3 A C) 4 A D) 5 A Answer: B Explanation: I = V/R = 120 V / 30 Ω = 4 A (correct answer is 4 A, option C). Question 4. Which statement about parallel circuits is correct? A) Voltage is the same across each branch. B) Current is the same through each branch. C) Total resistance equals sum of branch resistances. D) Power factor is always unity. Answer: A Explanation: In parallel, each branch experiences the full source voltage. Question 5. A 60-Hz AC source has a phase angle of 30° lagging the voltage. What is the power factor? A) 0.5 B) 0.707 C) 0.866 D) 1. Answer: C Explanation: PF = cos 30° = 0.866 (lagging). Question 6. Which NEC article governs the identification of grounded (neutral) conductors? A) 200 B) 210 C) 250 D) 300 Answer: A Explanation: Article 200 requires white or gray insulation for neutrals. Question 7. The required working clearance in front of a 125-A panelboard is:
Electrician Ultimate Exam
A) 30 in. B) 36 in. C) 42 in. D) 48 in. Answer: B Explanation: NEC 110.26 requires 36 in. front clearance for panels up to 600 A. Question 8. Which NEMA rating is appropriate for an outdoor enclosure protecting against rain? A) NEMA 1 B) NEMA 3R C) NEMA 4X D) NEMA 6 Answer: B Explanation: NEMA 3R is rated for outdoor use with rain protection. Question 9. GFCI protection is required for receptacles in which location? A) Dry basement closets B) Kitchen countertop within 2 ft of sink C) Living-room floor outlets D) Garage ceiling lights Answer: B Explanation: NEC 210.8(A)(6) mandates GFCI for countertop outlets ≤2 ft from a sink. Question 10. AFCI protection is required in which area of a dwelling? A) Bedroom B) Laundry room C) Garage D) All of the above Answer: D Explanation: AFCI is required in all habitable rooms, including bedrooms, laundry, and garages. Question 11. A multi-wire branch circuit (MWBC) supplies two 120-V circuits sharing a neutral. What is required for disconnecting? A) Separate breakers only B) A double-pole breaker or tied handles C) No special requirement D) A fuse on each hot only Answer: B Explanation: NEC 210.4(B) requires simultaneous disconnect of all ungrounded conductors. Question 12. The general lighting load for a dwelling is calculated at what VA per square foot? A) 1 VA/ft² B) 3 VA/ft² C) 5 VA/ft² D) 10 VA/ft² Answer: B Explanation: NEC 220.12 uses 3 VA per ft² for general lighting. Question 13. A 30-A dryer circuit requires a neutral conductor sized at least: A) 10 AWG B) 12 AWG C) 8 AWG D) 6 AWG
Electrician Ultimate Exam
Answer: C Explanation: NEC 334.30 permits NM cable support at intervals not exceeding 6 ft. Question 20. A motor’s full-load current is 15 A. What is the minimum conductor ampacity required? A) 15 A B) 18.8 A C) 20 A D) 25 A Answer: C Explanation: Conductors must be sized at 125 % of FLC: 15 A × 1.25 = 18.75 A → next standard size 20 A. Question 21. For a 3-hp single-phase motor, the minimum breaker size is: A) 15 A B) 20 A C) 30 A D) 40 A Answer: C Explanation: 3 hp ≈ 22 A FLC; 125 % = 27.5 A → next standard size 30 A. Question 22. Where must a motor disconnect be located? A) Within sight of the motor B) Anywhere in the building C) Only outside the building D) At the service panel only Answer: A Explanation: NEC 430.102 requires the disconnect to be within sight of the motor. Question 23. The primary overcurrent protection for a 240-V, 10 kVA transformer must be rated at least: A) 15 A B) 20 A C) 30 A D) 40 A Answer: B Explanation: Primary current = 10 kVA / 240 V = 41.7 A; NEC 450. requires rating not less than 125 % → 50 A; closest standard size 50 A, but minimum listed is 40 A, so answer B (20 A) is incorrect. Correct answer is D (40 A). Question 24. Panelboards are prohibited from being installed in which location? A) Utility room B) Bathroom C) Garage D) Outdoor enclosure Answer: B Explanation: NEC 110.26 forbids panelboards in bathrooms. Question 25. Which class of hazardous location is designated for flammable gases? A) Class I B) Class II C) Class III D) Class IV
Electrician Ultimate Exam
Answer: A Explanation: Class I locations involve flammable gases or vapors. Question 26. In a Class I, Division 2 area, equipment must be: A) Explosion-proof B) Intrinsically safe C) Dust-tight D) Non-metallic Answer: B Explanation: Division 2 allows for equipment that is not explosion-proof but must be safe under abnormal conditions (intrinsically safe). Question 27. The required equipotential bonding grid for a residential pool is: A) 6 AWG copper B) 8 AWG copper C) 4 AWG aluminum D) 2 AWG copper Answer: B Explanation: NEC 680.26(A) mandates an 8 AWG solid copper grid. Question 28. Which device protects a pool pump motor from ground faults? A) AFCI B) GFCI C) Surge protector D) Thermostat Answer: B Explanation: NEC 680.22 requires GFCI protection for pool pump motors. Question 29. Vermont’s apprenticeship ratio for journeymen to apprentices on a residential job is: A) 1:1 B) 1:2 C) 1:3 D) No specific ratio Answer: D Explanation: Vermont does not impose a statutory journeyman-to-apprentice ratio; it follows OSHA guidelines. Question 30. Which OSHA standard addresses electrical safety in the workplace? A) 1910.331 B) 1910.332 C) 1910.333 D) 1910. Answer: C Explanation: OSHA 1910.333 covers electrical safety requirements. Question 31. The minimum arc-flash PPE category for a task with an incident energy of 4 cal/cm² is: A) Category 1 B) Category 2 C) Category 3 D) Category 4 Answer: B Explanation: Category 2 covers 1.2–4.0 cal/cm²; 4 cal/cm² is the upper limit of Category 2. Question 32. Lockout/Tagout procedures must be applied to:
Electrician Ultimate Exam
Question 38. A 12-AWG copper conductor in a raceway with 5 current-carrying conductors must be derated to what percentage of its base ampacity? A) 100 % B) 80 % C) 70 % D) 60 % Answer: B Explanation: 4-6 conductors → 80 % derating (NEC 310.15(B)(3)(a)). Question 39. The NEC requires a minimum of how many receptacles in a dwelling kitchen countertop space? A) One per 12 in. of counter B) One per 24 in. of counter C) One per 36 in. of counter D) One per 48 in. of counter Answer: B Explanation: NEC 210.52(C)(1) mandates receptacles no more than 24 in. apart. Question 40. The required grounding conductor size for a 60-A feeder using copper THHN is: A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: B Explanation: Table 250.122 lists 10 AWG copper for a 60-A overcurrent device. Question 41. Which type of conduit is permitted for direct burial without a raceway? A) EMT B) RMC C) PVC Schedule 40 D) Flexible metal conduit Answer: C Explanation: PVC Schedule 40 is listed for direct burial. Question 42. The minimum height for a receptacle in a garage is: A) 12 in. above floor B) 15 in. C) 18 in. D) No minimum height Answer: D Explanation: NEC does not set a minimum mounting height for garage receptacles. Question 43. In a 3-phase, 4-wire system, the neutral is identified by which color? A) Black B) Red C) White or gray D) Green Answer: C Explanation: White or gray is used for grounded (neutral) conductors.
Electrician Ultimate Exam
Question 44. The NEC allows the use of a ground-fault circuit interrupter (GFCI) in which of the following outdoor locations? A) Garden lights B) Exterior wall receptacles C) Landscape irrigation controllers D) All of the above Answer: D Explanation: GFCI protection is required for all listed outdoor outlets and equipment. Question 45. The maximum distance a grounding electrode conductor may run without a splice is: A) 6 ft B) 10 ft C) 20 ft D) No limit if splices are listed Answer: D Explanation: Splices are permitted if listed and installed per code. Question 46. For a 240-V, 30 A dryer circuit, the minimum conduit size for three 10-AWG THHN conductors is: A) ½ in. EMT B) ¾ in. EMT C) 1 in. EMT D) ¼ in. EMT Answer: A Explanation: ½ in. EMT can accommodate three 10-AWG conductors (Annex C). Question 47. Which article governs the installation of raceway and cable tray systems? A) 300 B) 310 C) 380 D) 400 Answer: A Explanation: Article 300 covers general wiring methods, including raceways. Question 48. The minimum clearance between a suspended ceiling and the top of a conduit is: A) 6 in. B) 12 in. C) 18 in. D) No clearance required Answer: A Explanation: NEC 300.20 requires a minimum 6 in. clearance to avoid damage. Question 49. A 120-V, 20-A GFCI receptacle must be installed where? A) Inside a laundry tub B) In a garage attached to a concrete floor C) In a bathroom vanity area D) In a dry attic space Answer: C Explanation: GFCI is required for bathroom receptacles.
Electrician Ultimate Exam
A) ¼ in. B) ½ in. C) ¾ in. D) 1 in. Answer: C Explanation: NEC 250.53(A)(1) requires a minimum of ¾ in. diameter rod. Question 57. Which NEC article addresses the installation of receptacles in dwelling unit laundry areas? A) 210.11 B) 210.52 C) 210.63 D) 210. Answer: B Explanation: Article 210.52 outlines receptacle placement, including laundry. Question 58. The required ampacity for a 4-wire, 120/240-V feeder supplying a 30-A range is: A) 30 A B) 35 A C) 40 A D) 45 A Answer: C Explanation: Apply 125 % of the range rating: 30 A × 1.25 = 37.5 A → next standard size 40 A. Question 59. The minimum height for a receptacle outlet in a garage is: A) 12 in. above floor B) 15 in. C) 18 in. D) No minimum height Answer: D Explanation: No specific height requirement exists for garage receptacles. Question 60. Which of the following is a permissible method for bonding the grounding electrode system to the service neutral? A) Directly tie to the neutral bar only B) Use a bonding jumper of same size as the service neutral C) No bonding required D) Use a 12-AWG copper jumper only Answer: B Explanation: NEC 250.24(A)(1) requires a bonding jumper sized per Table 250.122, equal to or larger than the service neutral. Question 61. The NEC permits a single-pole breaker to protect a 240-V, 2 - wire feeder if: A) The breaker is GFCI B) The breaker is listed for 2-pole operation C) The feeder includes a neutral D) It is not permitted Answer: D Explanation: A 240-V feeder must be protected by a 2-pole breaker.
Electrician Ultimate Exam
Question 62. For a 3-phase, 4-wire feeder, the neutral conductor may be smaller than the phase conductors if: A) Load is balanced B) Load is unbalanced C) Neutral carries only harmonic currents D) Not allowed Answer: A Explanation: With a perfectly balanced load, neutral carries little or no current, allowing a smaller size per NEC 220.61. Question 63. The required spacing between conduit straps for PVC conduit is: A) 3 ft B) 4 ft C) 6 ft D) 8 ft Answer: B Explanation: NEC 381.30 requires PVC conduit secured within 4 ft and within 12 in. of each outlet. Question 64. The maximum number of 14-AWG conductors permitted in a ¾-in. EMT without exceeding fill is: A) 6 B) 8 C) 10 D) 12 Answer: B Explanation: Annex C shows 8 conductors of 14 AWG in ¾-in. EMT. Question 65. Which of the following is true about a “dedicated” circuit? A) It can serve multiple appliances B) It must serve only one receptacle C) It supplies a single, specific load D) It must be 240 V only Answer: C Explanation: A dedicated circuit supplies only the designated equipment. Question 66. The minimum size of a grounding electrode conductor for a 150 kVA transformer using copper is: A) 6 AWG B) 4 AWG C) 2 AWG D) 1/0 AWG Answer: C Explanation: Table 250.122 lists 2 AWG copper for 150 kVA. Question 67. In a residential dwelling, receptacles must be installed in the hallway at intervals not exceeding: A) 6 ft B) 8 ft C) 10 ft D) 12 ft Answer: B Explanation: NEC 210.52(A)(1) requires receptacles every 6 ft measured from the last receptacle, effectively limiting spacing to 12 ft apart.
Electrician Ultimate Exam
A) Use 100 % of calculated load B) Apply NEC Table 220.42 demand factors C) Multiply by 1.5 D) Use only the largest appliance rating Answer: B Explanation: NEC 220.42 provides demand factors for feeder sizing. Question 75. For a 3-phase, 4-wire feeder supplying a 100 A service, the neutral may be sized at: A) Same size as phase conductors B) 75 % of phase size C) 50 % of phase size D) Any size permitted by code Answer: A Explanation: NEC 250.122 requires the neutral to be at least the same size as the phase conductors for a 4-wire feeder. Question 76. The maximum length of a grounding electrode rod exposed above ground is: A) 2 ft B) 4 ft C) 6 ft D) No limit Answer: D Explanation: No code limit on the exposed portion; the rod must be at least 8 ft total length. Question 77. Which of the following devices must be installed within sight of a motor starter? A) Overload relay B) Thermostat C) Circuit breaker D) None of the above Answer: A Explanation: NEC 430.32 requires the overload device to be within sight of the motor starter. Question 78. A 12-kW electric water heater on a 240-V circuit requires a minimum breaker size of: A) 20 A B) 25 A C) 30 A D) 40 A Answer: C Explanation: Current = 12 kW / 240 V = 50 A; 125 % = 62.5 A → next standard size 63 A, but typical answer is 40 A is insufficient; correct answer is D (40 A) is also insufficient. The proper size is 60 A. Question 79. The NEC permits a single-pole GFCI breaker to protect a 240-V circuit if: A) The breaker is listed for 240 V B) The circuit includes a neutral C) The breaker is a 2-pole type D) Not permitted Answer: D Explanation: GFCI protection for 240-V circuits requires a 2-pole GFCI breaker.
Electrician Ultimate Exam
Question 80. The required bonding jumper size for a 150 A service using aluminum is: A) 6 AWG B) 4 AWG C) 2 AWG D) 1/0 AWG Answer: C Explanation: Table 250.122 lists 2 AWG aluminum for 150 A. Question 81. Which of the following is considered a “qualified person” under NFPA 70E for arc-flash work? A) Any electrician B) Anyone with a high-school diploma C) Person trained and authorized for the specific task D) Only master electricians Answer: C Explanation: A qualified person has specific training and authorization for the job. Question 82. The NEC requires a minimum of how many disconnecting means for a single-family dwelling? A) One per floor B) One per branch circuit C) One per feeder D) One per service entrance Answer: D Explanation: A single disconnecting means is required at the service entrance. Question 83. In a hazardous location, a motor enclosure must be rated at least: A) Class I, Division 1 B) Class II, Division 2 C) Class III, Division 1 D) Class I, Division 2 Answer: D Explanation: Motors in hazardous areas are typically rated for Class I, Division 2. Question 84. The required ampacity for a 20-A branch circuit supplying lighting is: A) 20 A B) 25 A C) 30 A D) 35 A Answer: B Explanation: NEC 210.23(A)(1) permits lighting loads up to 80 % of the circuit rating: 20 A × 0.8 = 16 A, but standard practice uses 20 A conductor. Question 85. Which of the following is the correct color for a grounding (EGC) conductor? A) White B) Black C) Green or bare D) Red
Electrician Ultimate Exam
Question 92. Which of the following is a permissible method for bonding a metal water pipe to the grounding electrode system? A) Using a listed bonding jumper B) Wrapping with copper tape C) Relying on the pipe’s continuity D) No bonding required Answer: A Explanation: A listed bonding jumper must be used per NEC 250.104(A). Question 93. The NEC requires that a receptacle in a dwelling kitchen be GFCI protected if it is installed: A) Within 6 ft of a sink B) Within 12 ft of a sink C) Within 2 ft of a sink D) Anywhere in the kitchen Answer: C Explanation: NEC 210.8(A)(6) requires GFCI for receptacles ≤2 ft from a sink. Question 94. The maximum number of conductors allowed in a 1-in. PVC conduit without exceeding 40 % fill is: A) 9 B) 12 C) 15 D) 18 Answer: B Explanation: Annex C shows 12 AWG-size conductors for 1-in. PVC at 40 % fill. Question 95. Which of the following devices is required on a 120-V, 20-A bathroom receptacle? A) AFCI B) GFCI C) Surge protector D) None Answer: B Explanation: GFCI protection is mandatory for bathroom receptacles. Question 96. The NEC permits the use of a 12-AWG copper conductor for a 20 - A branch circuit under which condition? A) If the conductor is THHN only B) If the circuit is 120 V only C) If the conductor is in a raceway with derating applied D) Never allowed Answer: C Explanation: 12-AWG copper is rated 20 A; derating may be required depending on conductor count. Question 97. Which article governs the installation of flexible metal conduit (FMC)? A) 300 B) 340 C) 352 D) 358
Electrician Ultimate Exam
Answer: B Explanation: Article 340 covers FMC. Question 98. The required grounding electrode conductor size for a 250 kVA transformer using aluminum is: A) 2/0 AWG B) 3/0 AWG C) 4/0 AWG D) 250 kcmil Answer: C Explanation: Table 250.122 lists 4/0 AWG aluminum for 250 kVA. Question 99. In a dwelling, the minimum height for a receptacle installed in a garage is: A) 12 in. above floor B) 15 in. C) 18 in. D) No minimum height required Answer: D Explanation: No specific height requirement for garage receptacles. Question 100. Which of the following is the correct ampacity for a 10-AWG copper conductor with 3 current-carrying conductors in a 30 °C ambient? A) 30 A B) 35 A C) 40 A D) 45 A Answer: C Explanation: Base ampacity for 10 AWG is 40 A; no derating required for 3 conductors. Question 101. The NEC requires that a receptacle in a dwelling hallway be installed no more than how far from the nearest wall? A) 6 ft B) 8 ft C) 10 ft D) 12 ft Answer: B Explanation: NEC 210.52(A)(1) requires receptacles every 6 ft measured from the last receptacle, effectively limiting spacing to 12 ft apart, so the distance from wall is 6 ft. Question 102. Which of the following is a permissible method for protecting a feeder conductor from physical damage? A) Running it in a trench without conduit B) Installing it in EMT conduit C) Leaving it exposed on a joist D) Using only cable ties Answer: B Explanation: EMT provides mechanical protection. Question 103. The required size of a grounding electrode conductor for a 150 - A service using copper is: A) 8 AWG B) 6 AWG C) 4 AWG D) 2 AWG Answer: B Explanation: Table 250.122 lists 6 AWG copper for 150 A.
Electrician Ultimate Exam
Question 110. Which of the following is the correct ampacity for a 6-AWG aluminum conductor with 4 current-carrying conductors in a 30 °C ambient? A) 40 A B) 55 A C) 65 A D) 75 A Answer: C Explanation: Base ampacity for 6 AWG Al is 65 A; 4 conductors require 80 % derating → 52 A, rounded up to next standard size 55 A. Question 111. The NEC requires that a receptacle in a dwelling kitchen be installed no more than how far from the countertop edge? A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: C Explanation: NEC 210.52(C)(1) mandates receptacles ≤24 in. from countertop edge. Question 112. Which article governs the installation of raceways in hazardous locations? A) 500 B) 501 C) 502 D) 503 Answer: A Explanation: Article 500 covers hazardous (Class/Division) locations, including raceways. Question 113. The maximum height for a receptacle installed in a garage for a vehicle charger is: A) 48 in. B) 54 in. C) 60 in. D) No limit Answer: D Explanation: No specific height limit for garage receptacles. Question 114. The required size of a grounding electrode conductor for a 300 kVA transformer using copper is: A) 2/0 AWG B) 3/0 AWG C) 4/0 AWG D) 250 kcmil Answer: C Explanation: Table 250.122 lists 4/0 AWG copper for 300 kVA. Question 115. Which of the following is true regarding the use of a neutral conductor in a 240-V, 2-wire circuit? A) Neutral must be present B) Neutral is optional C) Neutral is prohibited D) Neutral must be green Answer: C Explanation: A 240-V, 2-wire circuit does not use a neutral.
Electrician Ultimate Exam
Question 116. The NEC requires that a receptacle in a dwelling hallway be installed at a maximum spacing of: A) 6 ft B) 8 ft C) 10 ft D) 12 ft Answer: D Explanation: Receptacles must be placed so that no point on the wall is more than 6 ft from a receptacle, resulting in a maximum spacing of 12 ft. Question 117. Which of the following devices is required on a 120-V, 20-A circuit supplying a bathroom vanity light? A) AFCI B) GFCI C) Surge protector D) None required Answer: B Explanation: GFCI protection is required for bathroom receptacles; lights are not required but often protected. Question 118. The NEC permits the use of a ground-fault circuit interrupter (GFCI) in which of the following locations? A) Outdoor pool pump room B) Inside a finished basement closet C) In a kitchen pantry D) All of the above Answer: D Explanation: GFCI is required in all listed locations. Question 119. The minimum size of a grounding electrode conductor for a 50 - A branch circuit using copper is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: B Explanation: Table 250.122 lists 12 AWG copper for up to 60 A. Question 120. Which NEC article addresses the installation of emergency systems? A) 700 B) 701 C) 702 D) 703 Answer: B Explanation: Article 701 covers emergency systems. Question 121. The required ampacity for a 12-AWG copper conductor feeding a 15-A circuit in a 30 °C ambient is: A) 15 A B) 20 A C) 25 A D) 30 A Answer: B Explanation: 12-AWG copper is rated 20 A at 30 °C. Question 122. Which of the following is the correct method for bonding a metal conduit to the grounding system?
