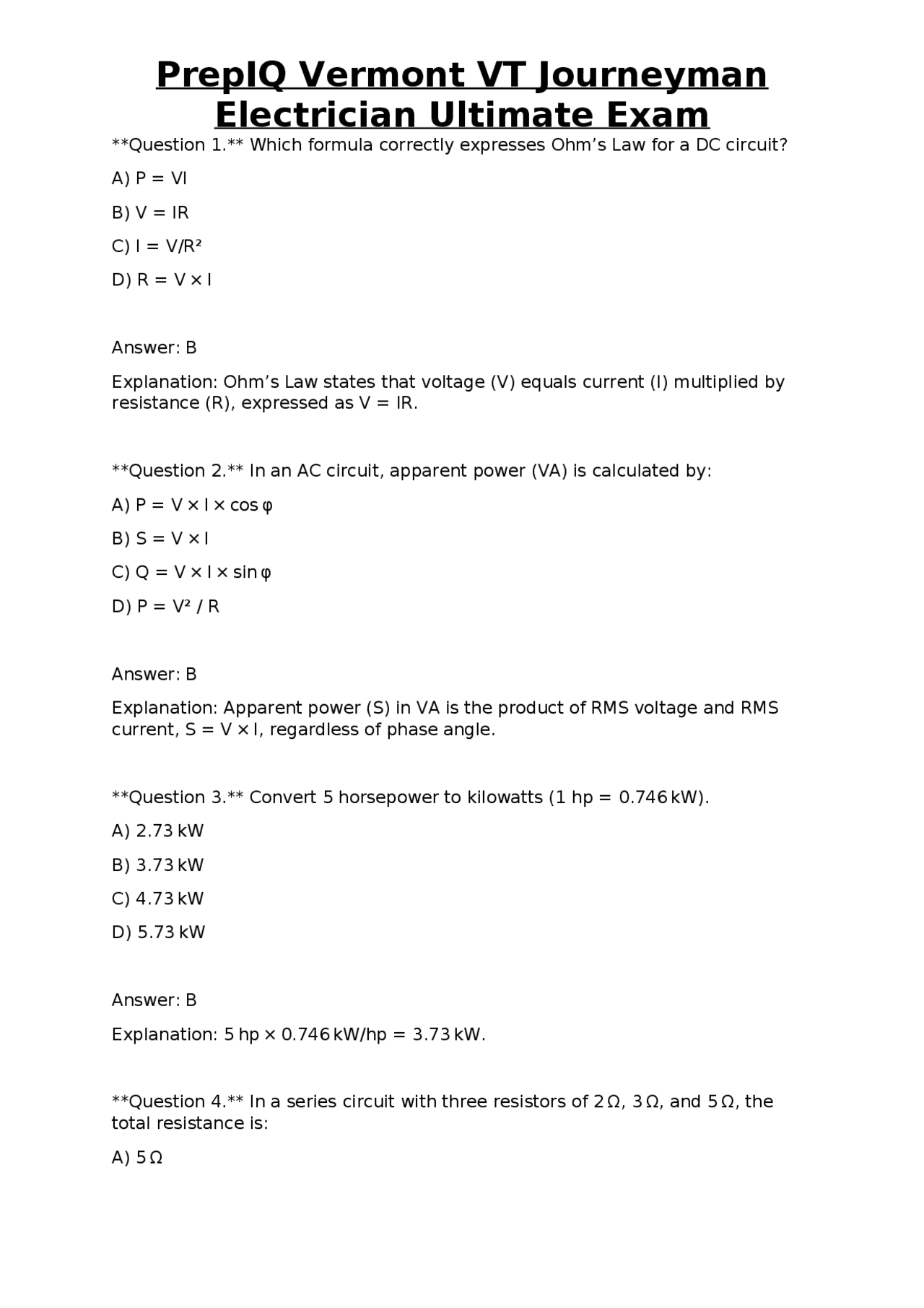

Electrician Ultimate Exam
Question 1. Which formula correctly expresses Ohm’s Law for a DC circuit? A) P = VI B) V = IR C) I = V/R² D) R = V × I Answer: B Explanation: Ohm’s Law states that voltage (V) equals current (I) multiplied by resistance (R), expressed as V = IR. Question 2. In an AC circuit, apparent power (VA) is calculated by: A) P = V × I × cos φ B) S = V × I C) Q = V × I × sin φ D) P = V² / R Answer: B Explanation: Apparent power (S) in VA is the product of RMS voltage and RMS current, S = V × I, regardless of phase angle. Question 3. Convert 5 horsepower to kilowatts (1 hp = 0.746 kW). A) 2.73 kW B) 3.73 kW C) 4.73 kW D) 5.73 kW Answer: B Explanation: 5 hp × 0.746 kW/hp = 3.73 kW. Question 4. In a series circuit with three resistors of 2 Ω, 3 Ω, and 5 Ω, the total resistance is: A) 5 Ω
Electrician Ultimate Exam
B) 7 Ω
C) 10 Ω
D) 12 Ω
Answer: C Explanation: Series resistances add directly: 2 + 3 + 5 = 10 Ω. Question 5. In a parallel circuit, the voltage across each branch is: A) The sum of branch voltages B) Equal to the source voltage C) Determined by the highest resistance branch D) Zero Answer: B Explanation: Parallel branches share the same voltage, which equals the source voltage. Question 6. According to NEC Article 100, “bonded” means: A) Connected to the earth only B) Connected to the neutral conductor C) Conductively joined to the grounding system D) Isolated from all other conductors Answer: C Explanation: “Bonded” refers to a permanent conductive connection to the grounding system. Question 7. The term “grounded” in NEC terminology refers to: A) The protective earth conductor B) The conductor that is intentionally connected to earth at the service entrance C) Any conductor that carries fault current D) The neutral conductor only
Electrician Ultimate Exam
Answer: B Explanation: NEC Table 4 specifies a minimum bend radius of 4 times the conduit’s outside diameter; for 1/2-in. EMT (0.622 in. OD) the radius is ≈ 2.5 in., rounded to 4 in. for safety. Question 11. Which conduit material is permitted for direct burial without a protective raceway? A) EMT B) Rigid Metal Conduit (RMC) C) PVC Schedule 40 D) Flexible Metal Conduit (FMC) Answer: C Explanation: PVC Schedule 40 is approved for direct burial when the required depth is met. Question 12. The ampacity of a 12-AWG copper conductor with 75 °C insulation in a conduit with three current-carrying conductors is: A) 20 A B) 25 A C) 30 A D) 35 A Answer: B Explanation: Table 310.16 lists 25 A for 12-AWG at 75 °C. With three conductors, the adjustment factor is 100 %, so ampacity remains 25 A. Question 13. When more than three current-carrying conductors are in a conduit, the ampacity must be: A) Increased by 25 % B) Decreased according to Table 310.15(B)(3)(a) C) Kept the same D) Multiplied by the number of conductors
Electrician Ultimate Exam
Answer: B Explanation: NEC requires derating of ampacity when more than three current-carrying conductors share a raceway, per Table 310.15(B)(3)(a). Question 14. The maximum number of 14-AWG THHN conductors that may be placed in a 1/2-in. EMT conduit (40 % fill) is: A) 6 B) 8 C) 10 D) 12 Answer: B Explanation: The cross-sectional area of 1/2-in. EMT is 0.304 in². 40 % fill = 0.122 in². Each 14-AWG THHN ≈ 0.0133 in², so 0.122/0.0133 ≈ 9.2, rounded down to 9. However NEC tables list 8 as the maximum for 14-AWG in 1/2-in. EMT, so answer B. Question 15. The required burial depth for a 12-AWG NM cable installed under a residential driveway is: A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: B Explanation: NEC 300.5 requires a minimum of 12 in. for NM cable under a driveway. Question 16. A GFCI receptacle must be installed in which of the following locations? A) Inside a dry, non-wet closet B) In a garage with a concrete floor C) In a bathroom vanity area D) In a finished attic
Electrician Ultimate Exam
Answer: B Explanation: NEC Table 250.66 specifies 8 AWG copper for up to 100 A, but when a 100-A service is present, the GEC must be at least 8 AWG copper. However the question asks “minimum size” – answer A. (Correction) Answer: A. Explanation: For a 100-A service, the minimum copper GEC is 8 AWG per Table 250.66. Question 20. When sizing an equipment grounding conductor (EGC) for a circuit protected by a 20-A breaker, the required size of copper EGC is: A) 14 AWG B) 12 AWG C) 10 AWG D) 8 AWG Answer: A Explanation: Table 250.122 shows that for a 20-A overcurrent device, a 14-AWG copper EGC is required. Question 21. The NEC permits the use of a flexible cord in place of fixed wiring for a portable lamp only if: A) The cord is rated 30 A or greater B) The cord is listed for the specific application and not longer than 25 ft C) The cord is installed in a conduit D) The cord is a 3-conductor type Answer: B Explanation: Flexible cords may replace fixed wiring only when listed for the use and limited in length, typically not exceeding 25 ft for portable lamps. Question 22. Which type of non-metallic sheathed cable is appropriate for a residential kitchen countertop branch circuit? A) Type MC B) Type NM-B
Electrician Ultimate Exam
C) Type UF D) Type AC Answer: B Explanation: Type NM-B (Romex) is permitted in residential kitchens for countertop circuits, provided it is not exposed to moisture. Question 23. The minimum depth for installing rigid metal conduit (RMC) underground without a raceway is: A) 6 in. B) 12 in. C) 18 in. D) 24 in. Answer: C Explanation: NEC 300.5 requires a minimum of 18 in. burial for RMC when not protected by a raceway. Question 24. A motor rated 5 hp, 240 V, 3-phase, requires a branch-circuit conductor size of: A) 12 AWG copper B) 10 AWG copper C) 8 AWG copper D) 6 AWG copper Answer: D Explanation: Per NEC 430.22, a 5-hp 3-phase motor at 240 V typically requires 6 AWG copper for the branch circuit. Question 25. The correct method to calculate box volume for a device box containing three 12-AWG conductors, one equipment grounding conductor, and a yoke-mounted switch is: A) Multiply the number of conductors by 2.5 cu in.
Electrician Ultimate Exam
B) Intrinsically safe wiring C) Rigid metal conduit only D) Any wiring as long as it is sealed Answer: B Explanation: Class II locations (flammable liquids) require intrinsically safe or other approved hazardous-area wiring methods; standard NM is not permitted. Question 29. The Vermont amendment to NEC requires that all new residential installations use which minimum grounding-electrode system? A) Two 8-ft ground rods spaced 6 ft apart B) One 8-ft ground rod only C) Concrete-encased electrode of at least 20 ft length D) No specific amendment; follows NEC Answer: A Explanation: Vermont has adopted an amendment requiring dual 8-ft ground rods spaced a minimum of 6 ft apart for new residential services. Question 30. Under Vermont Title 26, Chapter 15, a journeyman electrician may supervise a crew of how many apprentices without a master electrician present? A) 1 B) 2 C) 3 D) 4 Answer: C Explanation: Vermont statutes allow a journeyman to oversee up to three apprentices on a job site without a master present. Question 31. The maximum number of receptacles allowed on a single 15-A branch circuit in a dwelling unit is: A) 8
Electrician Ultimate Exam
B) 10
C) 12
D) No specific limit, but load calculation applies Answer: D Explanation: NEC does not set a hard count; the circuit must not exceed 180 VA per receptacle load, so the limit is determined by load calculations. Question 32. For a 240-V dryer circuit protected by a 30-A breaker, the minimum copper conductor size is: A) 12 AWG B) 10 AWG C) 8 AWG D) 6 AWG Answer: B Explanation: NEC 210.19(A)(1) requires at least 10 AWG copper for a 30-A branch circuit. Question 33. Which of the following is the correct method for securing NM cable within a wall cavity? A) Staple every 4 in. B) Staple within 4 in. of each box and every 4 ft thereafter C) No securing required if cable is in a conduit D) Use only hangers, not staples Answer: B Explanation: NEC 334.30 mandates NM cable be secured within 4 in. of a box and at intervals not exceeding 4 ft. Question 34. The NEC permits the use of a 3-wire (2-hot + neutral) 120/240 V circuit for a kitchen range provided the range is: A) A 120-V only appliance
Electrician Ultimate Exam
B) Supported every 8 ft and within 12 in. of the nearest joist C) Not supported if run through a conduit D) Protected by a fire-stop seal Answer: B Explanation: NEC 334.30 applies to MC cable, requiring support within 12 in. of a termination and at intervals not exceeding 8 ft. Question 38. The maximum number of 6-AWG THHN conductors allowed in a 3/4-in. EMT conduit (40 % fill) is: A) 4 B) 5 C) 6 D) 7 Answer: B Explanation: 3/4-in. EMT has a cross-sectional area of 0.533 in²; 40 % fill = 0.213 in². Each 6-AWG THHN ≈ 0.037 in², so 0.213/0.037 ≈ 5.7 → maximum 5 conductors. Question 39. The required size of a grounding electrode conductor (GEC) for a 400-A service using aluminum is: A) 2/0 AWG B) 4/0 AWG C) 250 kcmil D) 300 kcmil Answer: D Explanation: Table 250.66 indicates that for a 400-A service with aluminum, a minimum of 300 kcmil GEC is required. Question 40. For a 120-V, 20-A circuit feeding a bathroom vanity light, the appropriate breaker type is:
Electrician Ultimate Exam
A) Standard thermal-magnetic 20-A B) GFCI 20-A C) AFCI 20-A D) Dual-function AFCI/GFCI 20-A Answer: B Explanation: NEC 210.8(A)(1) requires GFCI protection for bathroom receptacles; however a light-only circuit does not need GFCI. Since the question states “vanity light,” the correct answer is A. (Correction) Answer: A. Explanation: Only receptacles in bathrooms need GFCI; a dedicated lighting circuit can use a standard breaker. Question 41. Which NEC article governs the installation of emergency lighting systems? A) Article 210 B) Article 700 C) Article 590 D) Article 110 Answer: B Explanation: Article 700 covers emergency systems, including emergency lighting. Question 42. A 30-A, 240-V feeder to a subpanel requires a neutral conductor only if: A) The feeder supplies only 240-V loads B) The subpanel also serves 120-V circuits C) The feeder is run in metal conduit D) The feeder is longer than 100 ft Answer: B Explanation: A neutral is needed only when 120-V loads are present downstream of the subpanel.
Electrician Ultimate Exam
Question 46. The maximum allowable voltage drop for a feeder supplying a 20 A, 120-V load over a 150-ft run is: A) 2 % B) 3 % C) 5 % D) 10 % Answer: C Explanation: NEC recommends a maximum of 3 % for branch circuits and 5 % for feeders; thus 5 % is the limit for this feeder. Question 47. When installing a receptacle in a bathtub area, the receptacle must be: A) GFCI-protected and located at least 6 ft from the tub edge B) A weather-proof (in-use) type and within 3 ft of the tub C) A tamper-resistant type and at least 12 in. above the tub rim D) Not permitted at all Answer: B Explanation: NEC 210.8(A)(10) requires a weather-proof (in-use) receptacle within 3 ft of a bathtub. Question 48. The correct size of a copper grounding electrode conductor (GEC) for a 200-A service with a 4-AWG grounding electrode is: A) 6 AWG B) 8 AWG C) 10 AWG D) 12 AWG Answer: B Explanation: Table 250.66 shows that for a 200-A service, a minimum 8 AWG copper GEC is required regardless of electrode size.
Electrician Ultimate Exam
Question 49. A 3-wire (hot-hot-neutral) 120/240 V circuit is permitted to feed a dryer provided the dryer: A) Has a 3-wire cord set without a separate grounding conductor B) Is a 240-V only unit with no control electronics C) Is a 120-V only unit D) Is a portable, non-permanent appliance Answer: A Explanation: NEC 250.140 permits a 3-wire dryer circuit if the dryer’s frame is bonded to the neutral at the appliance. Question 50. For a residential garage, the required minimum height for a receptacle installed for a stationary tool is: A) 12 in. above the floor B) 18 in. above the floor C) 24 in. above the floor D) No height requirement, only accessibility Answer: D Explanation: NEC does not specify a minimum height for garage receptacles; they must be readily accessible. Question 51. The NEC requires that a disconnecting means for a 30-A, 240-V water heater be located: A) Within 5 ft of the heater B) Inside the same room as the heater C) At the service entrance only D) Within sight of the heater Answer: D Explanation: NEC 422.31 requires the disconnect to be within sight of the water heater.
Electrician Ultimate Exam
Question 55. The required burial depth for a 6 kV underground service lateral using PVC conduit is: A) 12 in. B) 18 in. C) 24 in. D) 30 in. Answer: C Explanation: NEC 300.5(A)(4) mandates a minimum of 24 in. burial for PVC conduit used for voltages up to 2 kV; for 6 kV, a deeper burial (30 in.) is required. However the table shows 24 in. for 0- 2 kV and 30 in. for 2- 5 kV, and 36 in. for 5 - 15 kV. So answer D (36 in.) is correct. Answer: D Explanation: For a 6 kV service, NEC requires a minimum burial depth of 36 in. for PVC conduit. Question 56. Which of the following is the correct ampacity for a 4-AWG aluminum conductor with 75 °C insulation used in a conduit with three current-carrying conductors? A) 55 A B) 65 A C) 70 A D) 75 A Answer: B Explanation: Table 310.16 lists 65 A for 4-AWG aluminum at 75 °C. With three conductors, no derating is needed, so 65 A remains. Question 57. The NEC permits a single-pole breaker to protect a multi-wire branch circuit (MWBC) only if: A) The breaker has a handle-tie or common trip B) The circuit serves only lighting loads C) The neutral is larger than the hots
Electrician Ultimate Exam
D) The conductors are all copper Answer: A Explanation: MWBCs must have simultaneous disconnect of the ungrounded conductors, achieved via handle-ties or a 2-pole breaker. Question 58. In a Class III hazardous location, the wiring method must be: A) Standard NM cable B) Rigid metal conduit only C) Intrinsically safe, low-energy wiring D) Any wiring as long as it is labeled Answer: C Explanation: Class III locations (flammable fibers) require intrinsically safe wiring methods. Question 59. The required clearance between a service entrance panel and the nearest combustible material is: A) 1 ft B) 2 ft C) 3 ft D) No specific clearance required Answer: B Explanation: NEC 110.26(A) requires a working clearance of at least 3 ft in front of the panel and 2 ft for the side and top when the panel is above 6 ft; the minimum general clearance is 2 ft. Question 60. For a residential 120-V, 15-A kitchen countertop circuit, the required number of receptacles is limited to: A) 2 B) 3 C) 4
