Compentency Ultimate Exam

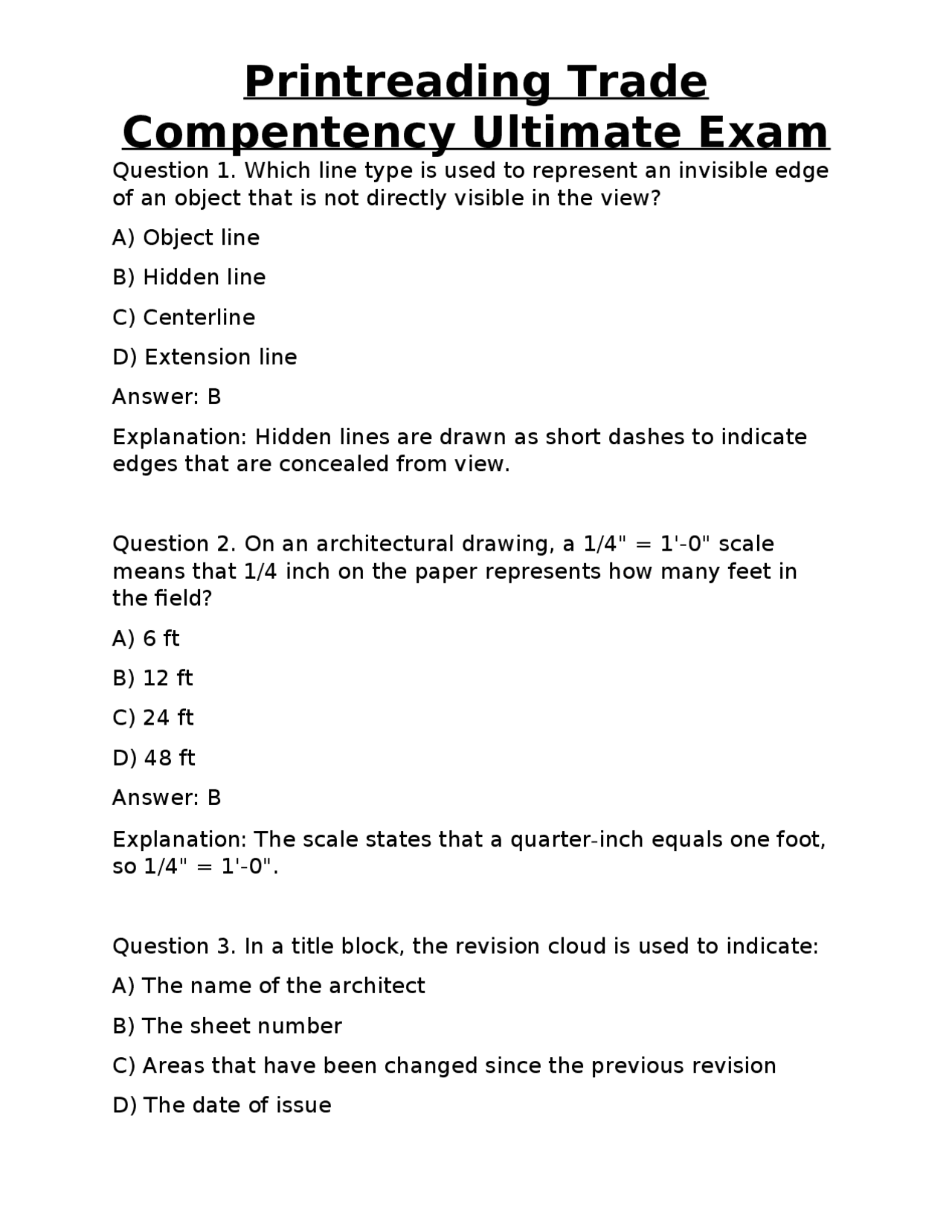

Question 1. Which line type is used to represent an invisible edge of an object that is not directly visible in the view? A) Object line B) Hidden line C) Centerline D) Extension line Answer: B Explanation: Hidden lines are drawn as short dashes to indicate edges that are concealed from view. Question 2. On an architectural drawing, a 1/4" = 1'-0" scale means that 1/4 inch on the paper represents how many feet in the field? A) 6 ft B) 12 ft C) 24 ft D) 48 ft Answer: B Explanation: The scale states that a quarter-inch equals one foot, so 1/4" = 1'-0". Question 3. In a title block, the revision cloud is used to indicate: A) The name of the architect B) The sheet number C) Areas that have been changed since the previous revision D) The date of issue
Compentency Ultimate Exam
Answer: C Explanation: Revision clouds surround the portion of the drawing that has been altered. Question 4. Which projection method shows the front, top, and side views of an object on the same plane without perspective? A) Isometric projection B) Oblique projection C) Orthographic projection D) Perspective projection Answer: C Explanation: Orthographic projection uses separate, true-scale views arranged on a single sheet. Question 5. The abbreviation “OC” on a drawing most commonly stands for: A) On Center B) Occupancy Load C) Overhead Clearance D) Open Circuit Answer: A Explanation: “OC” is a standard abbreviation meaning the item is located on the centerline. Question 6. A half-section view is useful because it: A) Shows the exterior elevation only
Compentency Ultimate Exam
Explanation: Elevation headings indicate the direction the view is facing; the top of the sheet aligns with that compass direction. Question 9. In a floor plan, a “+” symbol next to a door indicates: A) The door swings inward B) The door is fire-rated C) The door is double-leaf D) The door is a sliding type Answer: A Explanation: The plus sign shows the direction of swing; the arc indicates the swing radius. Question 10. A roof plan typically includes all of the following EXCEPT: A) Ridge line location B) Ceiling height C) Drainage scuppers D) Roof membrane type Answer: B Explanation: Ceiling height is shown on interior elevations or sections, not on roof plans. Question 11. In a site plan, contour lines that are close together indicate: A) Flat terrain B) A rapid change in elevation (steep slope)
Compentency Ultimate Exam
C) Underground utilities D) Property boundaries Answer: B Explanation: The spacing of contour lines reflects slope; tighter spacing means a steeper grade. Question 12. A setback line on a civil drawing is used to indicate: A) The location of utilities B) Minimum distance required between the building and property line C) The height of the structure D) The location of the fire lane Answer: B Explanation: Setbacks define required clearances from lot lines for zoning compliance. Question 13. The term “footing” on a foundation plan refers to: A) The top surface of a slab B) A shallow concrete pad that spreads the load of a column or wall C) The interior wall finish D) The location of a plumbing fixture Answer: B Explanation: Footings distribute structural loads to the soil.
Compentency Ultimate Exam
D) The required welding speed Answer: B Explanation: The arrow points to the joint where the weld is to be applied. Question 17. In wood framing plans, a “double-2x6” header above a door means: A) Two 2-by-6 studs placed side-by-side for the header B) A single 2-by-12 header C) Two separate headers, each 2 in. high and 6 in. wide D) A header made of laminated veneer lumber Answer: A Explanation: “Double-2x6” indicates two 2-by-6 lumber pieces nailed together to form the header. Question 18. The abbreviation “TYP” on a drawing stands for: A) Typical detail that repeats elsewhere B) Temporary support C) Top-of-pipe elevation D) Thermal expansion joint Answer: A Explanation: “TYP” signals a detail that is standard throughout the drawing set. Question 19. In HVAC ductwork layouts, a “VAV” box is used to:
Compentency Ultimate Exam
A) Provide variable air volume control for a space B) Filter incoming outdoor air C) Heat water for domestic use D) Act as a fire damper Answer: A Explanation: VAV (Variable Air Volume) boxes modulate airflow to maintain temperature setpoints. Question 20. A duct size shown as “12” × 8”” on a plan indicates: A) A round duct with 12 in. diameter and 8 in. length B) A rectangular duct 12 in. high and 8 in. wide C) A 12 ft long duct with 8 ft width D) A duct that must be installed at a 12-degree angle Answer: B Explanation: Duct dimensions are presented as height × width for rectangular sections. Question 21. In an electrical one-line diagram, the symbol of a circle with “G” inside denotes: A) Generator B) Grounding electrode C) Grounding conductor D) Gas detector Answer: C
Compentency Ultimate Exam
C) A rotary-control valve D) A remote-controlled sprinkler Answer: A Explanation: “R-C” commonly designates Residential-type, quick-response sprinkler heads. Question 25. In the CSI MasterFormat, Division 26 is dedicated to: A) Concrete B) Masonry C) Electrical D) Fire Suppression Answer: C Explanation: Division 26 covers all electrical work and related components. Question 26. When a specification states “The drawing shall be considered superseded by the written specification,” this principle is known as: A) Hierarchy of documents B) Precedence rule C) Scope of work D) Contractual amendment Answer: A Explanation: The hierarchy of documents dictates that specifications override conflicting drawing details.
Compentency Ultimate Exam
Question 27. A door schedule lists “Fire-rated 90 min, 2-panel, 3 ′ × 7 ′.” This information is primarily used to: A) Determine the material for the door frame B) Verify compliance with fire-code requirements C) Calculate the HVAC load for the room D) Select the electrical wiring size for the doorbell Answer: B Explanation: The schedule provides fire-rating and size data needed for code compliance. Question 28. To calculate the square footage of a rectangular room that measures 15 ft by 20 ft on a 1/8" = 1'-0" plan, you would first: A) Multiply 15 ft × 20 ft directly B) Convert the drawing dimensions to actual feet using the scale, then multiply C) Add the two dimensions together D) Use the area of the paper sheet Answer: B Explanation: The plan dimensions must be converted from the scaled drawing to real dimensions before area calculation. Question 29. A linear takeoff for electrical conduit requires the total length of conduit between two points on a plan. Which tool is most efficient for this task?
Compentency Ultimate Exam
Explanation: A V-shaped symbol on the reference line denotes a fillet weld. Question 32. A P&ID symbol that shows a circle with a diagonal line through it represents: A) A pressure gauge B) A valve C) A pump D) A flow meter Answer: B Explanation: In P&IDs, a circle with a diagonal line is the standard symbol for a valve. Question 33. BIM annotations that appear as “#BIM- 01 ” on a print typically indicate: A) A reference to a 3-D model element for coordination B) The number of bolts required C) The fire-rating of a wall assembly D) The contractor’s bid number Answer: A Explanation: BIM tags link the 2-D print to the associated 3-D model component for coordination. Question 34. On an orthographic drawing, a centerline is drawn as: A) A thick solid line
Compentency Ultimate Exam
B) A thin solid line with alternating long and short dashes C) A thin dashed line with equal spacing D) A thick dashed line Answer: B Explanation: Centerlines consist of a thick solid line with alternating long and short dashes. Question 35. The term “phantom line” is used to depict: A) Hidden edges B) Alternate positions of moving parts or repeated features C) Centerlines of circular objects D) Dimensions that are not to be built Answer: B Explanation: Phantom lines show the position of an object in another location or a repeated feature. Question 36. In a plan view, a “+” symbol placed at a window indicates: A) The window opens inward B) The window is a fixed type C) The window is a skylight D) The window is a sliding type Answer: A Explanation: The plus sign shows the swing direction of a hinged window.
Compentency Ultimate Exam
D) The roof assembly above the wall Answer: B Explanation: A full section cuts through the entire thickness, displaying all layers. Question 40. The symbol “∅” followed by a number on a drawing is used to denote: A) The diameter of a circular object such as a pipe or rebar B) The area of a space in square feet C) The depth of a foundation footing D) The length of a beam Answer: A Explanation: The diameter symbol “∅” specifies the size of circular elements. Question 41. In a structural steel drawing, a “gusset plate” is typically used to: A) Connect two members at an angle, providing additional strength B) Cover a hole in a beam for pipe passage C) Serve as a decorative element on the façade D) Act as a fire-resistant barrier Answer: A Explanation: Gusset plates reinforce connections, especially in trusses and braced frames.
Compentency Ultimate Exam
Question 42. The abbreviation “NTS” on a drawing stands for: A) Not to scale B) New temperature sensor C) No-touch surface D) Non-technical specifications Answer: A Explanation: “NTS” warns that the drawing is not drawn to scale. Question 43. In a plumbing layout, a “wet vent” is used to: A) Supply hot water to a fixture B) Allow a drain pipe to also serve as a vent for other fixtures downstream C) Provide a dedicated vent for a bathtub only D) Connect a water heater to the main supply line Answer: B Explanation: A wet vent combines the functions of a drain and a vent in a single pipe. Question 44. The term “rise-run” in grading calculations refers to: A) The horizontal distance only B) The vertical change (rise) divided by the horizontal distance (run) C) The total length of a pipe D) The angle of a roof slope measured in degrees Answer: B
Compentency Ultimate Exam
B) Volts per ampere C) Volt-amps, the apparent power rating of a device D) Variable amperage Answer: C Explanation: “VA” denotes apparent power, useful for sizing transformers and panels. Question 48. A “roof drainage scupper” on a roof plan is indicated by which symbol? A) A small circle with a slash B) A rectangle with a diagonal line through it C) A small inverted “V” with a line extending downward D) A series of dots forming a line Answer: C Explanation: Scuppers are shown as inverted V-shapes with a line indicating water flow off the roof. Question 49. In a drawing set, the sheet number “S- 3 ” most likely indicates: A) The third structural sheet B) The third sheet in the specifications section C) The third site plan sheet D) The third sheet in the electrical discipline Answer: A
Compentency Ultimate Exam
Explanation: Prefixes such as “S-” are commonly used to denote structural sheets. Question 50. The term “bird’s-eye view” in drawing terminology refers to: A) An orthographic plan view looking straight down from above B) An isometric view showing three faces of an object C) A perspective view from a low angle D) A detail drawing of a roof truss Answer: A Explanation: A bird’s-eye view is a plan view looking directly down on the layout. Question 51. In a concrete beam schedule, the notation “12 in. × 24 in. × 36 in.” describes: A) Width × Depth × Length of the beam B) Length × Height × Width of the formwork C) Reinforcement bar spacing D) The size of the concrete mix bags Answer: A Explanation: Beam schedules list dimensions in the order width, depth, and length. Question 52. A “reference line” in welding symbols is always drawn as: A) A thin solid line
