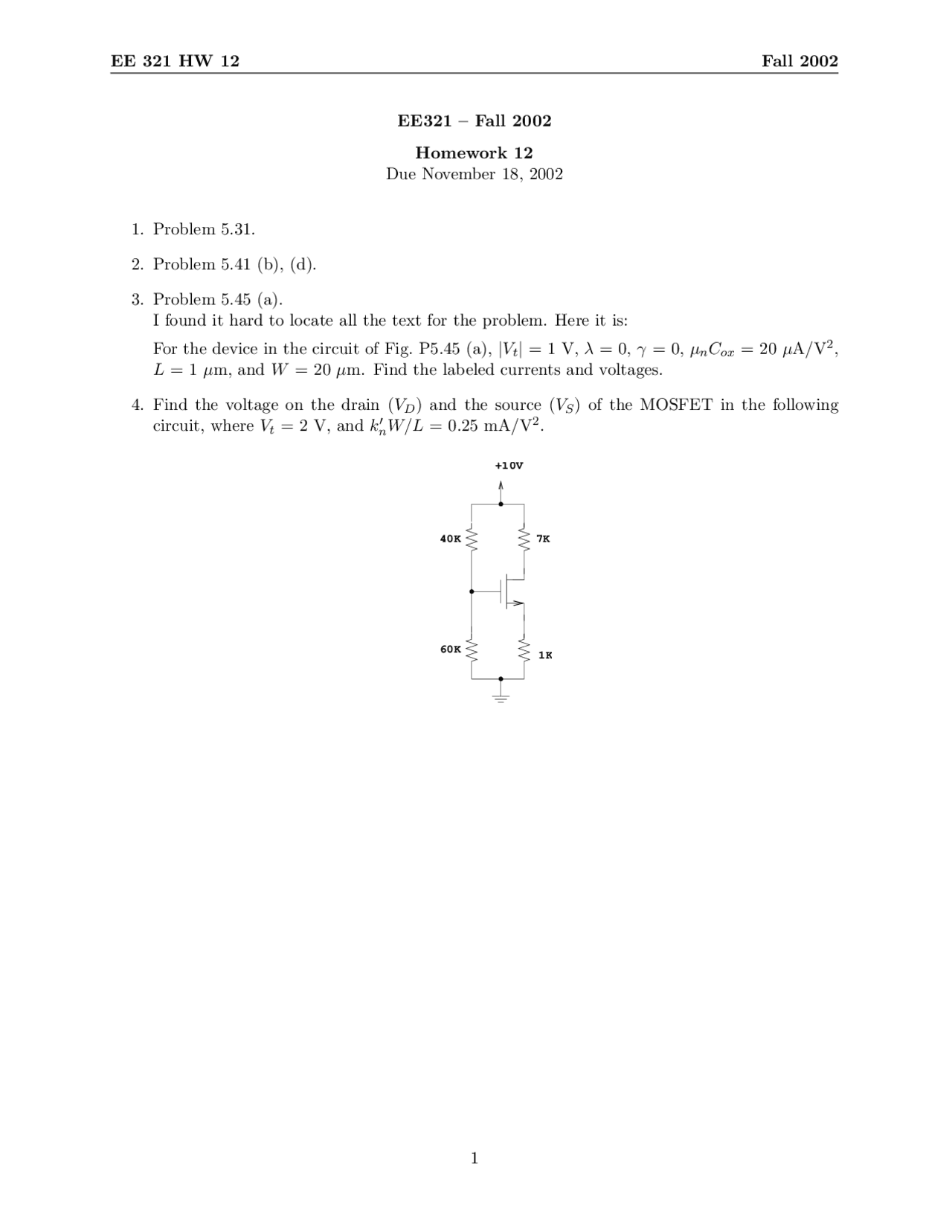

EE 321 HW 12 Fall 2002
EE321 – Fall 2002
Homework 12
Due November 18, 2002
1. Problem 5.31.
2. Problem 5.41 (b), (d).
3. Problem 5.45 (a).
I found it hard to locate all the text for the problem. Here it is:
For the device in the circuit of Fig. P5.45 (a), |Vt|= 1 V, λ= 0, γ= 0, µnCox = 20 µA/V2,
L= 1 µm, and W= 20 µm. Find the labeled currents and voltages.
4. Find the voltage on the drain (VD) and the source (VS) of the MOSFET in the following
circuit, where Vt= 2 V, and k0
nW/L = 0.25 mA/V2.
+10V
7K
1K
60K
40K
