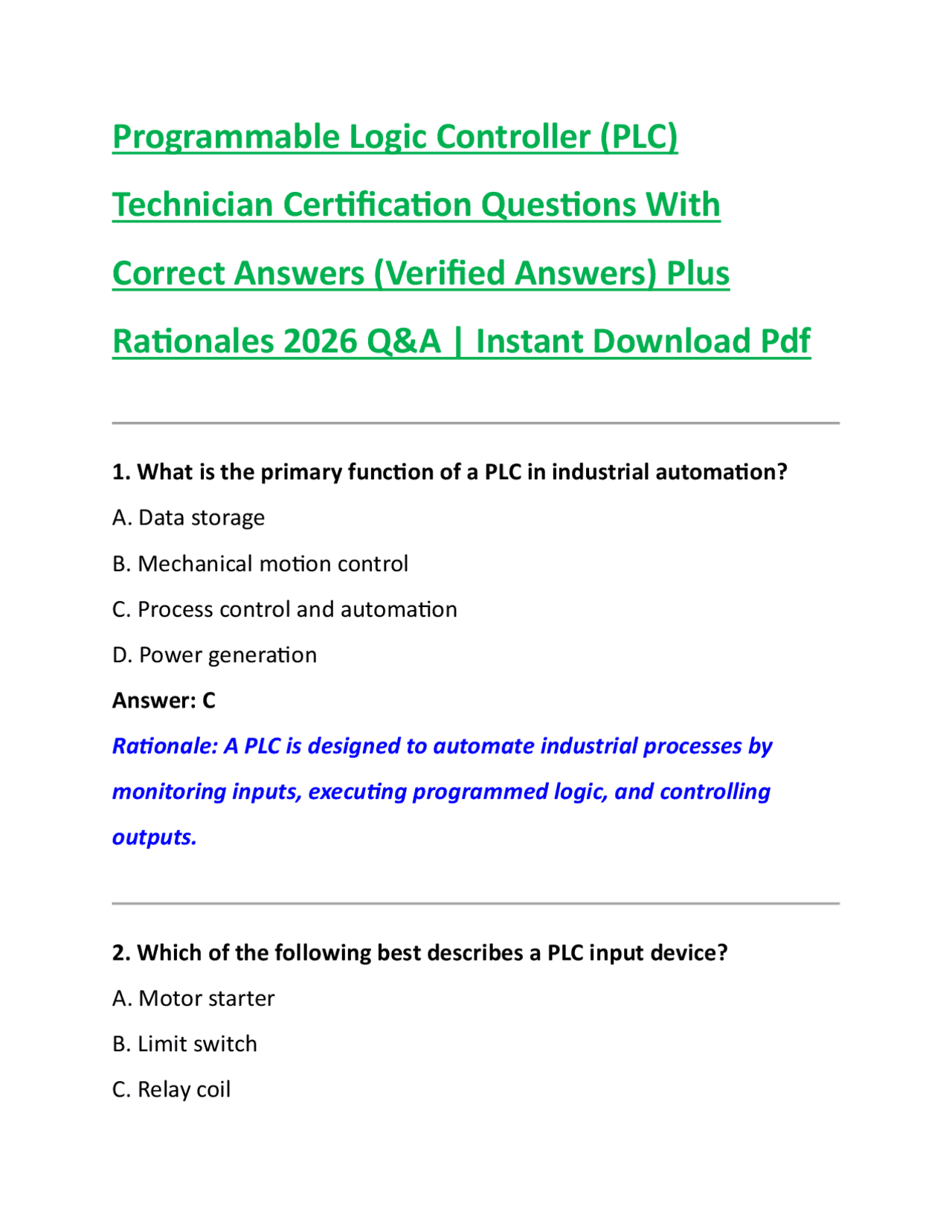

Programmable Logic Controller (PLC)
Technician Certification Questions With
Correct Answers (Verified Answers) Plus
Rationales 2026 Q&A | Instant Download Pdf
1. What is the primary function of a PLC in industrial automation? A. Data storage B. Mechanical motion control C. Process control and automation D. Power generation Answer: C Rationale: A PLC is designed to automate industrial processes by monitoring inputs, executing programmed logic, and controlling outputs. 2. Which of the following best describes a PLC input device? A. Motor starter B. Limit switch C. Relay coil
D. Solenoid valve Answer: B Rationale: A limit switch sends discrete signals to the PLC, making it an input device.
3. What type of signal is typically processed by a discrete input module? A. Continuous voltage B. Analog waveform C. On/Off signal D. Digital communication packets Answer: C Rationale: Discrete inputs handle binary ON/OFF signals. 4. Which programming language is most commonly used in PLCs? A. Python B. Ladder Logic C. Java D. C++ Answer: B
7. What is the purpose of the PLC CPU? A. Power distribution B. Executes control instructions C. Converts analog signals D. Stores wiring diagrams Answer: B Rationale: The CPU processes logic instructions and controls system operation. 8. Which device is considered an output in a PLC system? A. Push button B. Sensor C. Motor starter D. Proximity switch Answer: C Rationale: A motor starter receives signals from the PLC to control a motor, making it an output device. 9. What is the function of an analog input module? A. Processes ON/OFF signals B. Measures variable signals like temperature
C. Controls relay contacts D. Stores programs Answer: B Rationale: Analog modules handle continuously varying signals such as temperature or pressure.
10. Which programming element represents a logical AND in ladder logic? A. Parallel branches B. Series contacts C. Output coil D. Timer block Answer: B Rationale: Series contacts must all be true for output activation, representing AND logic. 11. What does a normally open (NO) contact do in ladder logic? A. Always closed B. Opens when energized C. Closes when energized D. Converts analog signals
14. What is a key advantage of PLCs over relay systems? A. Higher power consumption B. Mechanical wear C. Easier reprogramming D. Slower operation Answer: C Rationale: PLCs can be easily reprogrammed without rewiring hardware. 15. Which PLC memory type is volatile? A. EEPROM B. Flash C. RAM D. ROM Answer: C Rationale: RAM loses data when power is removed. 16. What does the term “scan time” refer to? A. Wiring time B. Time to replace modules C. Time for one PLC cycle
D. Time to install software Answer: C Rationale: Scan time is the duration of one complete input-process- output cycle.
17. Which of the following is an analog output device? A. Lamp B. Relay C. Variable frequency drive D. Push button Answer: C Rationale: A VFD receives analog signals to control motor speed. 18. What is the purpose of interlocking in PLC programming? A. Increase voltage B. Prevent unsafe conditions C. Reduce memory usage D. Speed up scan time Answer: B Rationale: Interlocks prevent conflicting or unsafe machine operations.
C. Stores programs D. Controls outputs Answer: B Rationale: It provides regulated DC voltage to PLC components.
22. Which communication protocol is commonly used in industrial PLC networks? A. HTTP B. Ethernet/IP C. SMTP D. FTP Answer: B Rationale: Ethernet/IP is widely used in industrial automation systems. 23. What does a latch instruction do? A. Temporarily delays output B. Maintains output state after input is removed C. Measures time D. Converts signals
Answer: B Rationale: Latching keeps an output energized until reset.
24. What is the purpose of a reset instruction? A. Starts PLC B. Clears a latched output or counter C. Increases voltage D. Stores program Answer: B Rationale: Reset instructions return devices to their initial state. 25. Which PLC component handles signal conversion? A. CPU B. Input/output modules C. Memory unit D. Power supply Answer: B Rationale: I/O modules convert field signals into PLC-readable formats.
D. Voltage loss Answer: C Rationale: It detects a change from low to high state.
29. What is the function of a watchdog timer in a PLC? A. Measures production B. Detects system faults or program freezes C. Controls motors D. Stores data Answer: B Rationale: It ensures the PLC is operating correctly. 30. What is an HMI in PLC systems? A. Hardware Memory Interface B. Human Machine Interface C. High Motor Input D. Heat Management Interface Answer: B Rationale: HMI allows operators to interact with PLC-controlled systems.
31. What is a key feature of modular PLCs? A. Fixed hardware only B. Expandable components C. No CPU required D. Battery-powered only Answer: B Rationale: Modular PLCs allow adding or removing I/O modules. 32. What is the role of an encoder in PLC systems? A. Measures temperature B. Converts motion into electrical signals C. Controls outputs D. Stores programs Answer: B Rationale: Encoders provide position or speed feedback. 33. What does a PLC ladder diagram resemble? A. Circuit breaker panel B. Electrical relay logic C. Hydraulic system D. Mechanical drawing
36. What is the purpose of a scan watchdog alarm? A. Increase memory B. Detect excessive scan time C. Control motors D. Reset outputs Answer: B Rationale: It alerts when scan time exceeds limits. 37. Which of the following is an example of a Boolean operation? A. Addition B. AND C. Division D. Square root Answer: B Rationale: AND is a logical Boolean operation. 38. What does a PLC diagnostic function do? A. Writes programs B. Identifies system faults C. Controls motors D. Converts signals
Answer: B Rationale: Diagnostics help detect hardware or software issues.
39. What is the function of a solenoid valve in PLC systems? A. Stores memory B. Controls fluid or air flow C. Processes logic D. Measures pressure Answer: B Rationale: It is an electrically controlled valve used in automation. 40. What is a major benefit of PLC redundancy systems? A. Lower cost B. Increased reliability C. Reduced wiring D. Slower processing Answer: B Rationale: Redundancy ensures continued operation during failure.
Answer: B Rationale: It defines execution sequence of logic instructions.
44. What is the function of a PLC simulator? A. Builds hardware B. Tests programs virtually C. Powers motors D. Measures voltage Answer: B Rationale: Simulators allow safe testing of PLC logic. 45. What does “fail-safe” design mean in PLC systems? A. System increases speed B. System defaults to safe state during failure C. System stores more data D. System ignores faults Answer: B Rationale: Fail-safe systems prioritize safety during malfunctions.
46. What is the purpose of grounding in PLC installations? A. Increase voltage B. Prevent electrical noise and hazards C. Store programs D. Control outputs Answer: B Rationale: Grounding ensures safety and signal stability. 47. What is the role of an interrupt in PLC programming? A. Stops power supply B. Temporarily halts program for urgent task C. Stores data D. Controls motors Answer: B Rationale: Interrupts handle high-priority events immediately. 48. What is a typical output device controlled by PLCs in manufacturing? A. Sensor B. Conveyor motor C. Limit switch
